After the completion of my 1/400 1545 HMS Mary Rose ,

==> viewtopic.php?f=59&t=163736

.... :big_grin: my family were rather taken by the 'romance' of a sailing ship,
as opposed to the fierce and often grey ships that are my usual milieu...!

Sir Winston Churchill is a three-masted topsail schooner with two square sails and a large Bermudan rig mizzen, the idea being that experience of
every type of sail that could be set could be had.

Attachment:
all for and aft sail setting.jpg
all for and aft sail setting.jpg [ 152.46 KiB | Viewed 2768 times ]




The 135 ft long vessel was built by Richard Dunston of Hessle on the River Humber in 1965/66

In 1968 a sister ship, the Malcolm Miller was launched. Sir Winston Churchill differed from Malcolm Miller mainly in having rounded top cabin door midships, whereas those on the Malcolm Miller were square topped.
The Sir Winston Churchill was slightly lower at the stern -as when she was being built, the concrete ballast had run aft whilst pouring into the hull cavity...(!!)

This difference in trim can be clearly seen in most photographs of the two ships together.

In 1976, the vessel took part in a transatlantic Tall ships race to celebrate the Bicentenary of the United States Declaration of Independence.
The Japanese model company Imai manufactured 1/350 scale kits of the main participants of this parade of sail,
-including a not often seen kit of the Sir Winston Churchill, the subject of this build thread!

The vessel was sold by the Sail Training Trust in 2000, but continued operating as a sail-training ship , albeit with reduced capacity owned by an Isle of Man based comany.


In 2007 she underwent a major refit , and she now again in commission as a luxurious private Yacht under Greek flag ,
cruising the Mediterranean and the Aegean seas under charter .

The 40 year old Imai kit in outline is pretty good, alas much of the detail--whilst broadly correct is rather overscale , or in some cases useless


There are numerous small resolution images of the ship all over the internet--most of them distant views with unhelpful graininess/ lack of pixels
and not amazingly helpful for seeing detail .

Attachment:
ts-k1-sir-winston-churchill-liverpool.jpg [ 192.55 KiB | Viewed 2768 times ]

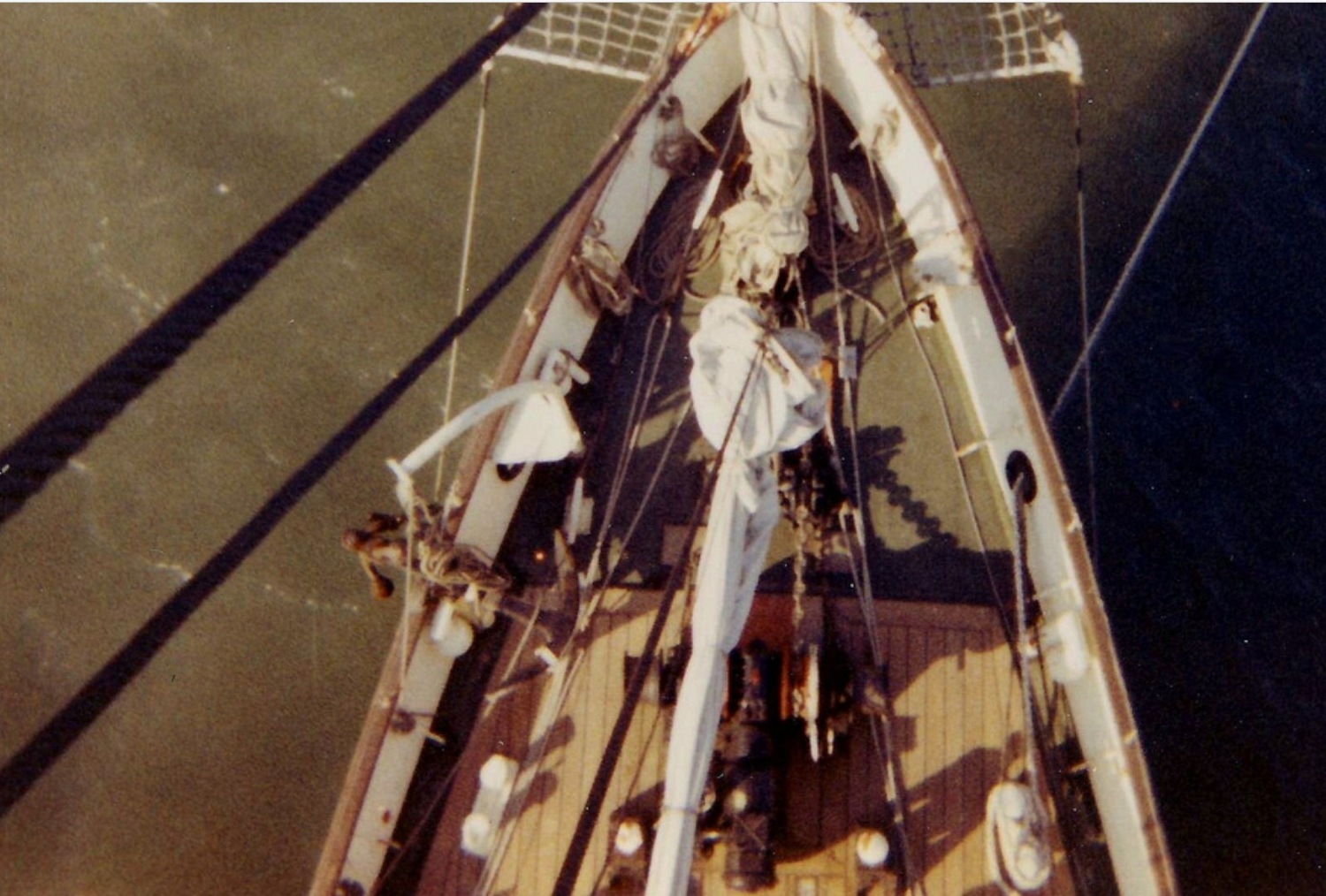

Some candid photos posted in various threads on the net from people who sailed on the vessel give good view of much of the deck detail

Attachment:
deck2.jpg [ 246.8 KiB | Viewed 2768 times ]

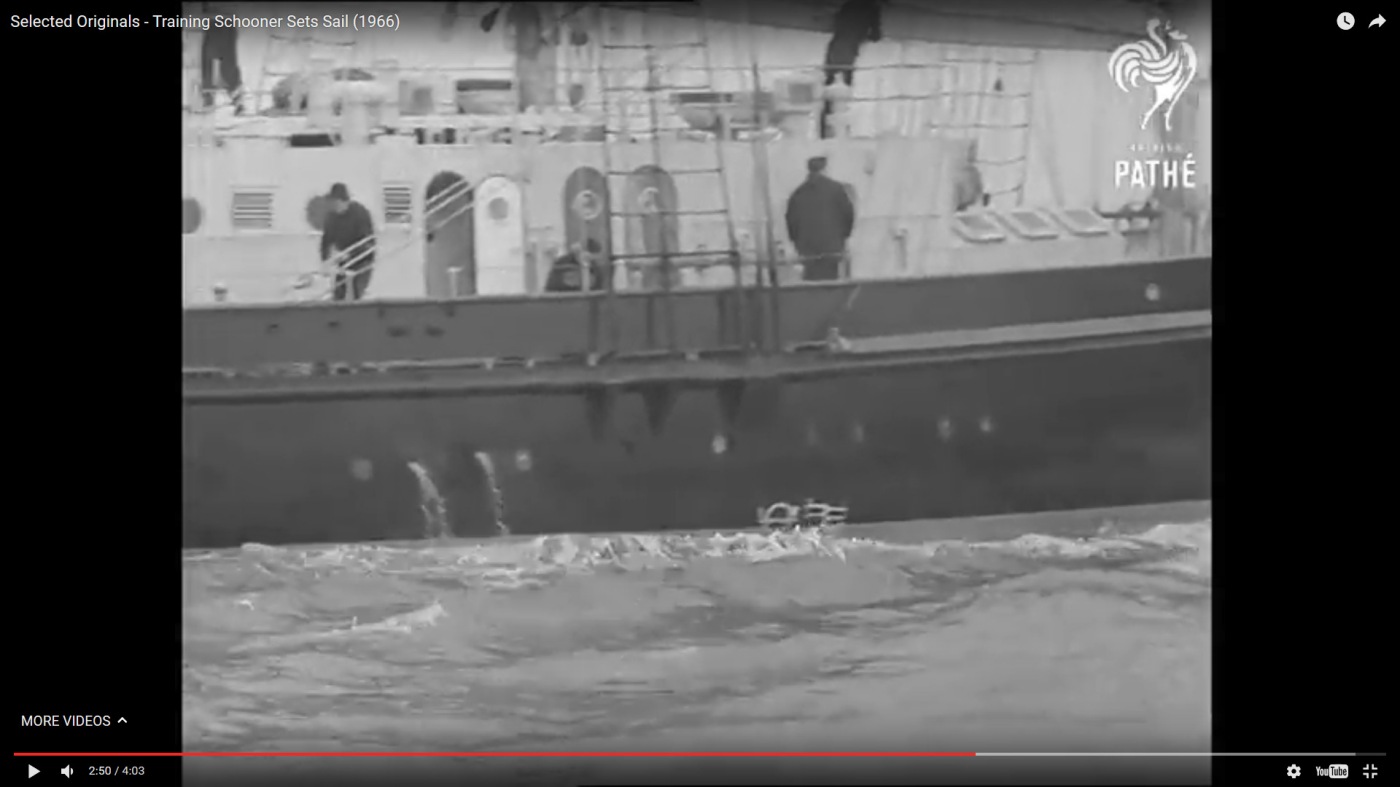

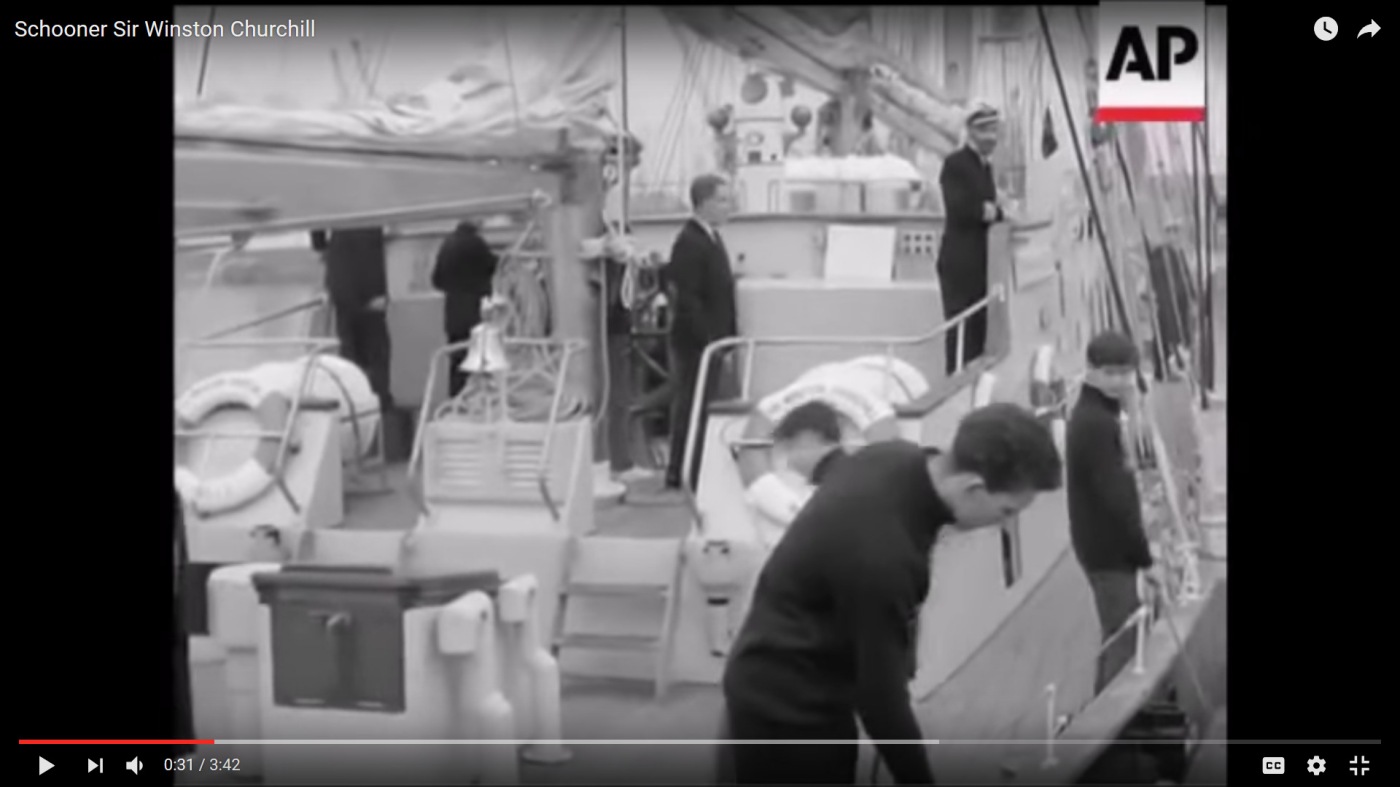

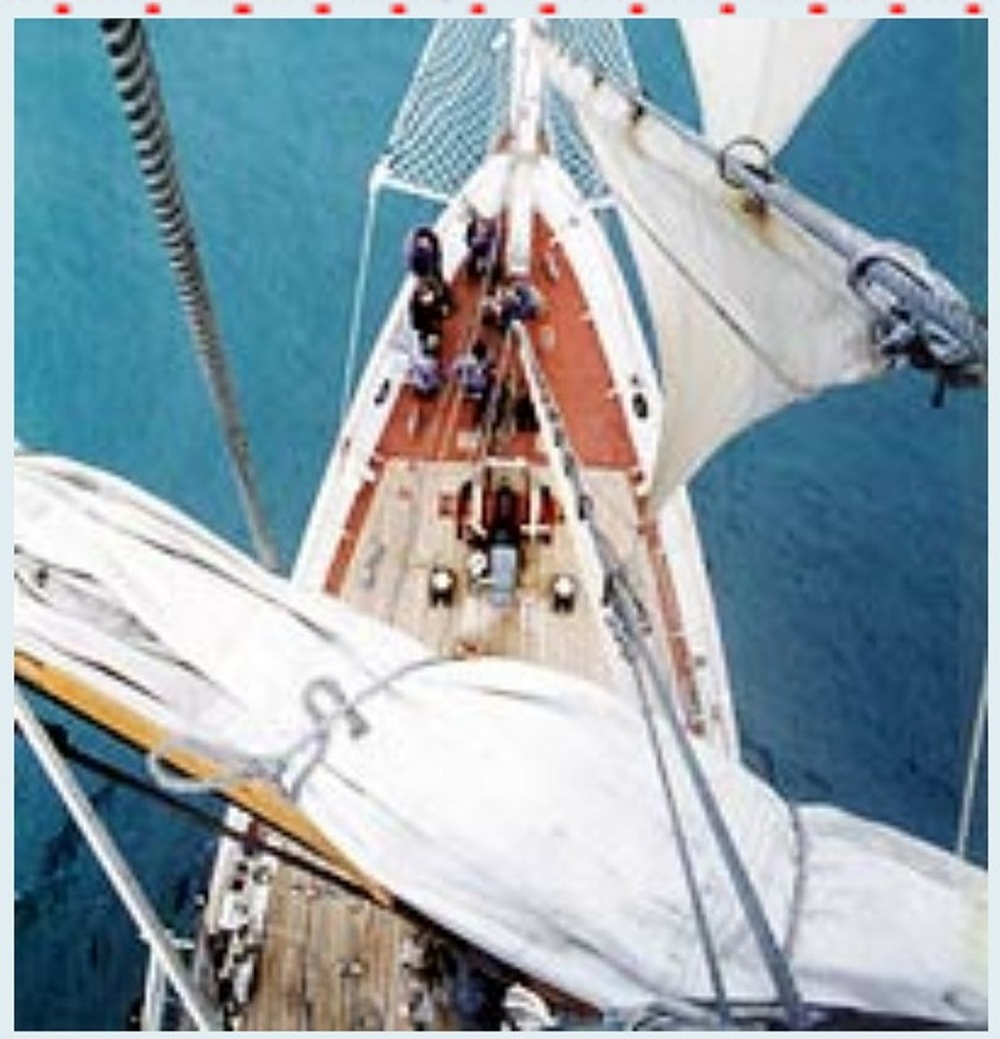

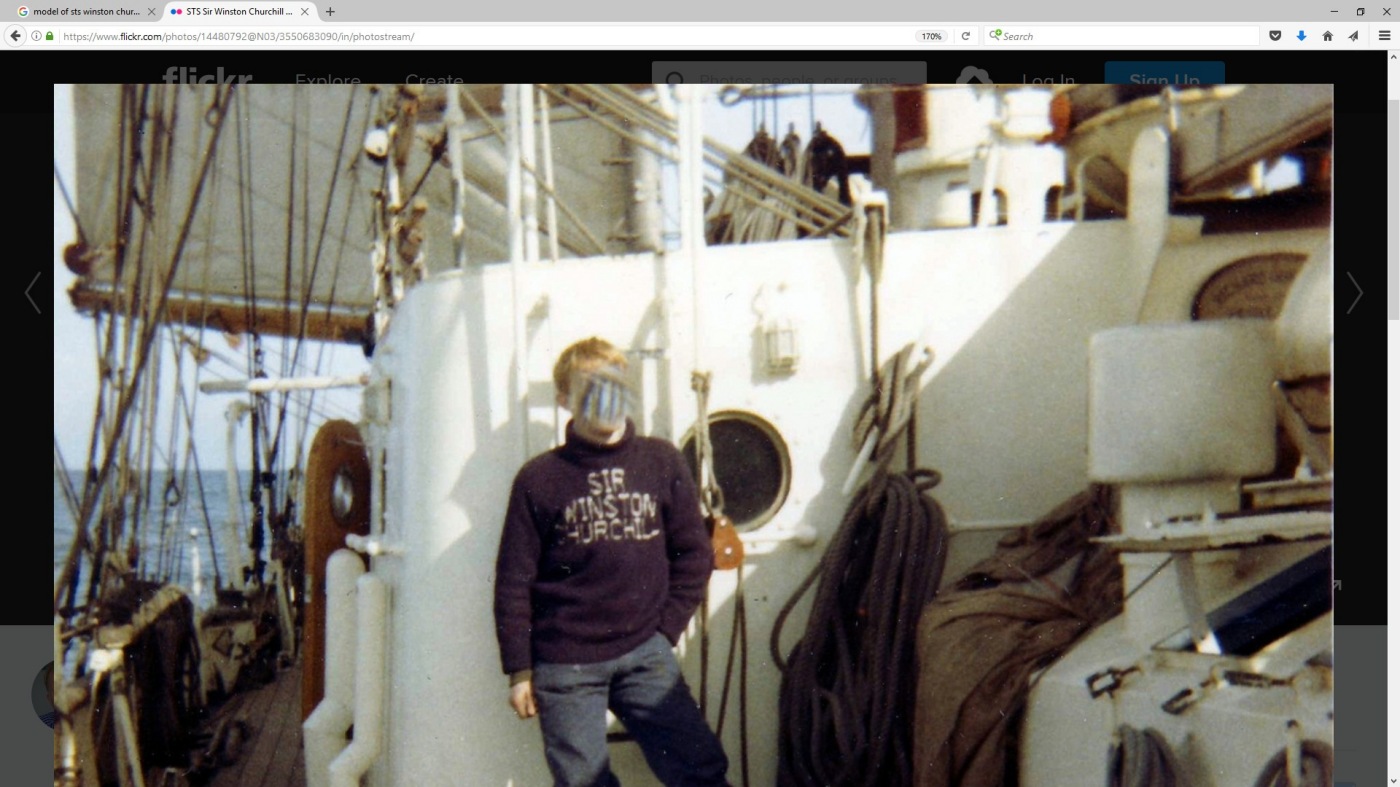

By far the most useful source of images so far has been grabbing screenshot stills from old Pathe News- cine-reels


examples below

Attachment:
mkefolbkecliblah.jpg [ 124.11 KiB | Viewed 2768 times ]

Attachment:
ckcgmahmmknmlljn.jpg [ 135.8 KiB | Viewed 2768 times ]


I have a 1/100 plan courtesy of David Carter, along with numerous views of various models-
-almost all of which conflict with photos of the real thing!

So as ever--I shall steam ahead and try and produce an accurate(ish) model.

The model....
============

The hull in outline scales well and looks pretty good!

Attachment:
P1180905.jpg [ 162.95 KiB | Viewed 2768 times ]

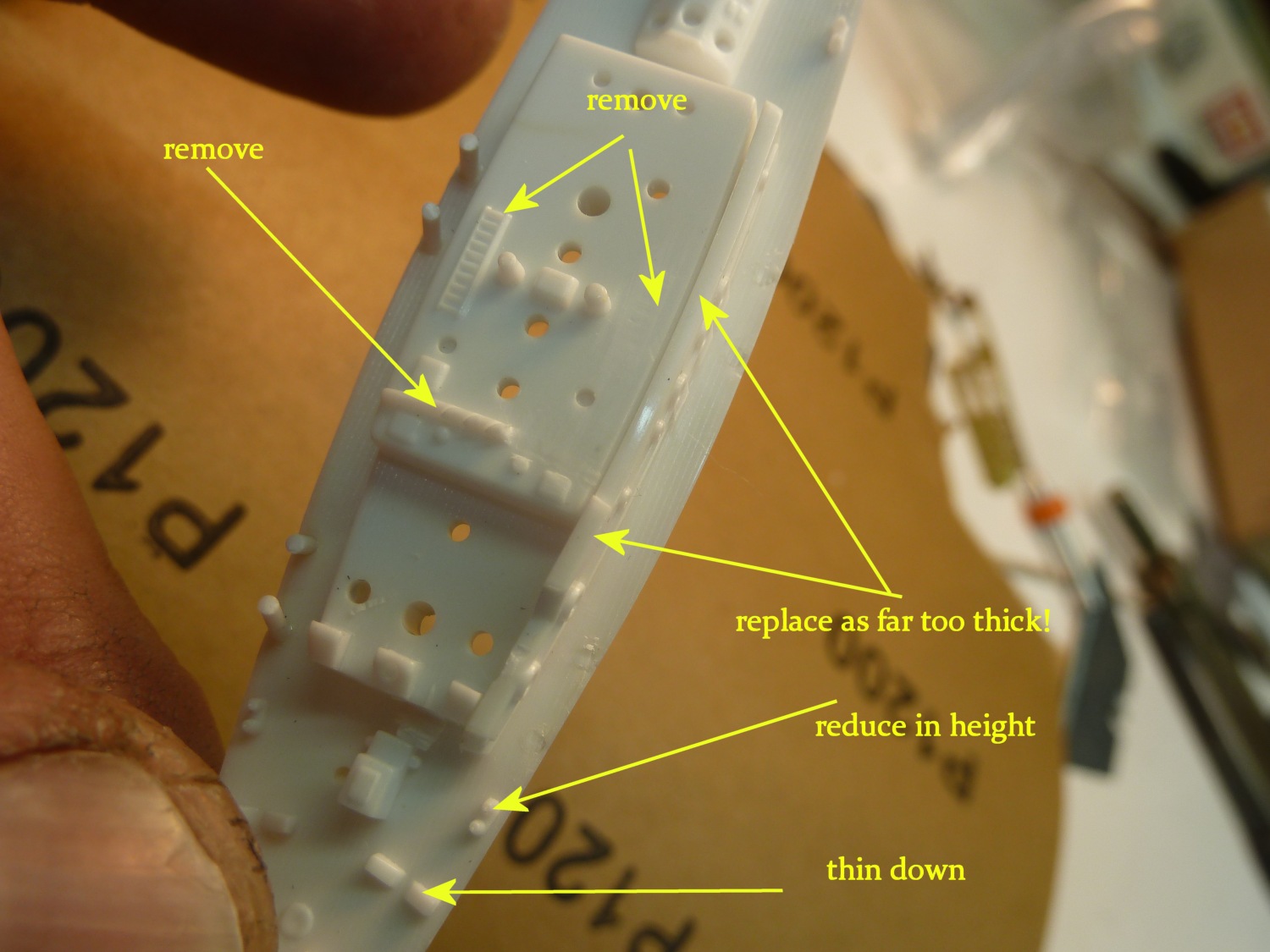

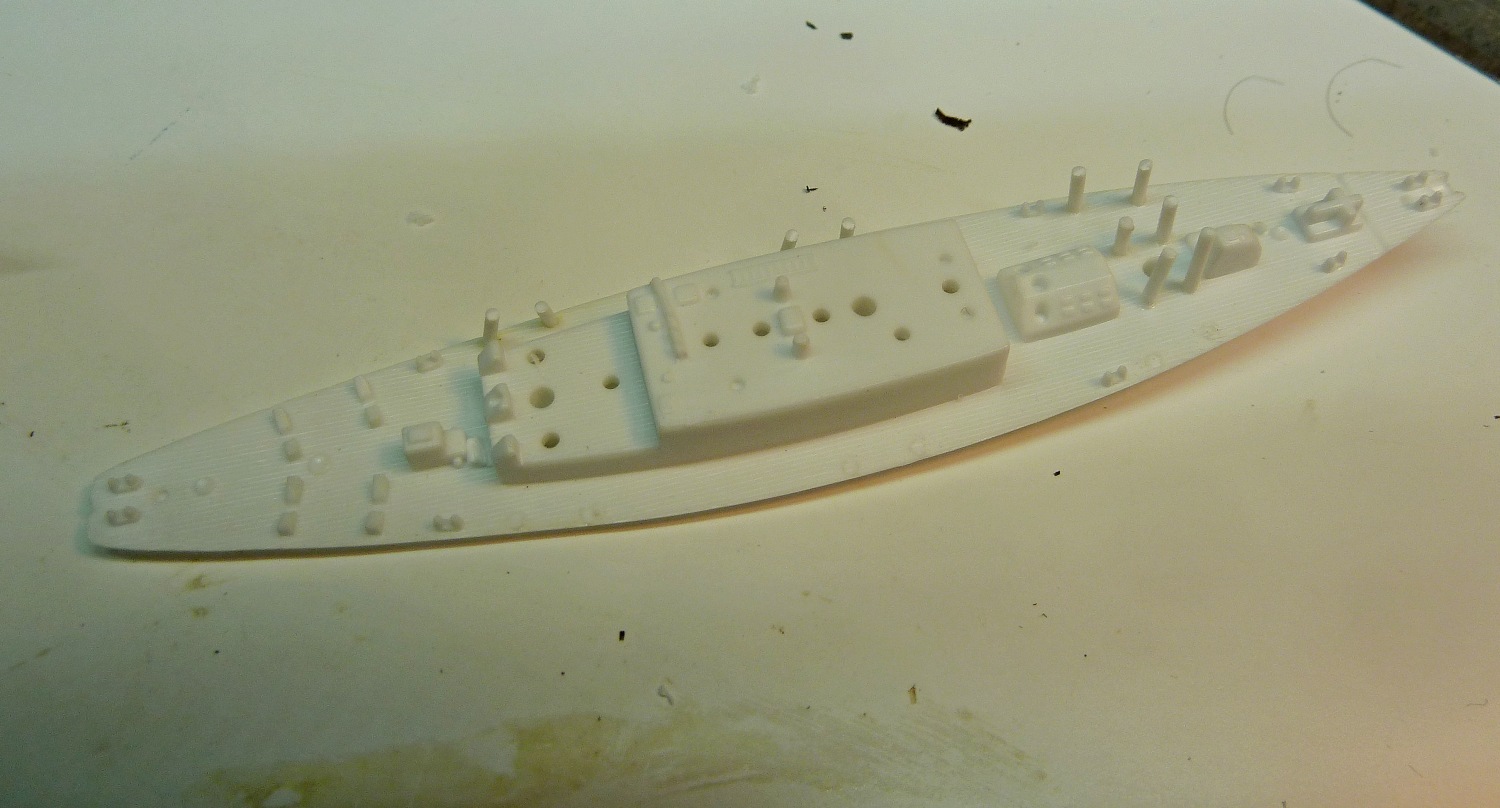

Every hole on deck had to be plugged with styrene rod

Attachment:
P1180906.jpg [ 234.88 KiB | Viewed 2768 times ]

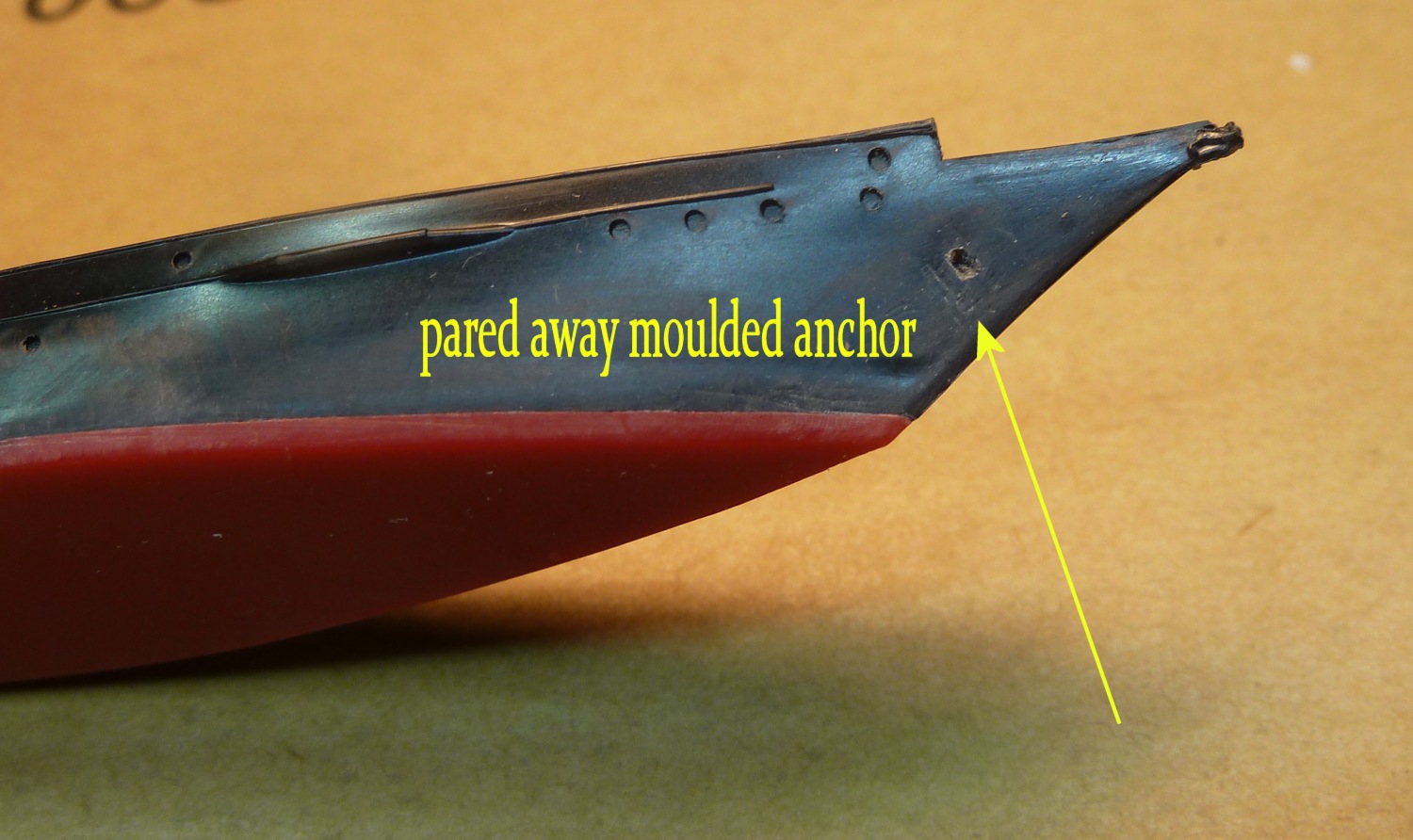

I immediately started thinning down the vastly over-scale thickness of the topside bulwarks

Attachment:
P1180908.jpg [ 250.59 KiB | Viewed 2768 times ]


along with the odd shaped and sized anchors

Attachment:
P1180918 (1).jpg
P1180918 (1).jpg [ 232.07 KiB | Viewed 2768 times ]


The cabins side parts which would also form the bulwarks of the central helms station cockpit
were vastly over-scale with clunky detail --so much so that the cabin doors in scale would not have had sufficient room to open !

Attachment:
P1180920 (1).jpg
P1180920 (1).jpg [ 246.82 KiB | Viewed 2768 times ]

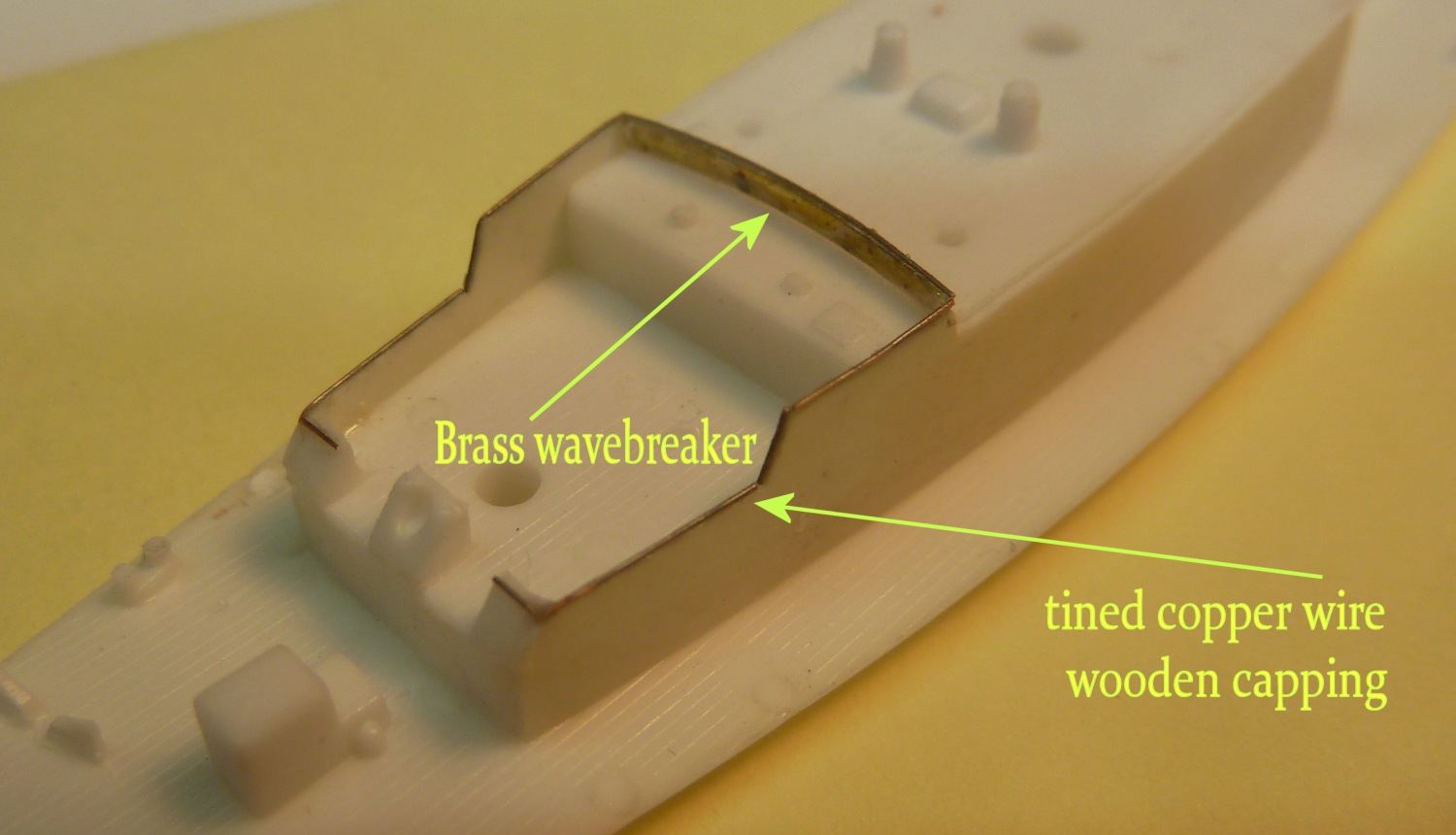

Much scraping later, some new cabin sides in much thinner material,
some brass strip and copper wire and patience ! :thumbs_up_1:

Attachment:
P1180991.jpg [ 191.49 KiB | Viewed 2768 times ]


Attachment:
P1180992.jpg [ 144.89 KiB | Viewed 2768 times ]

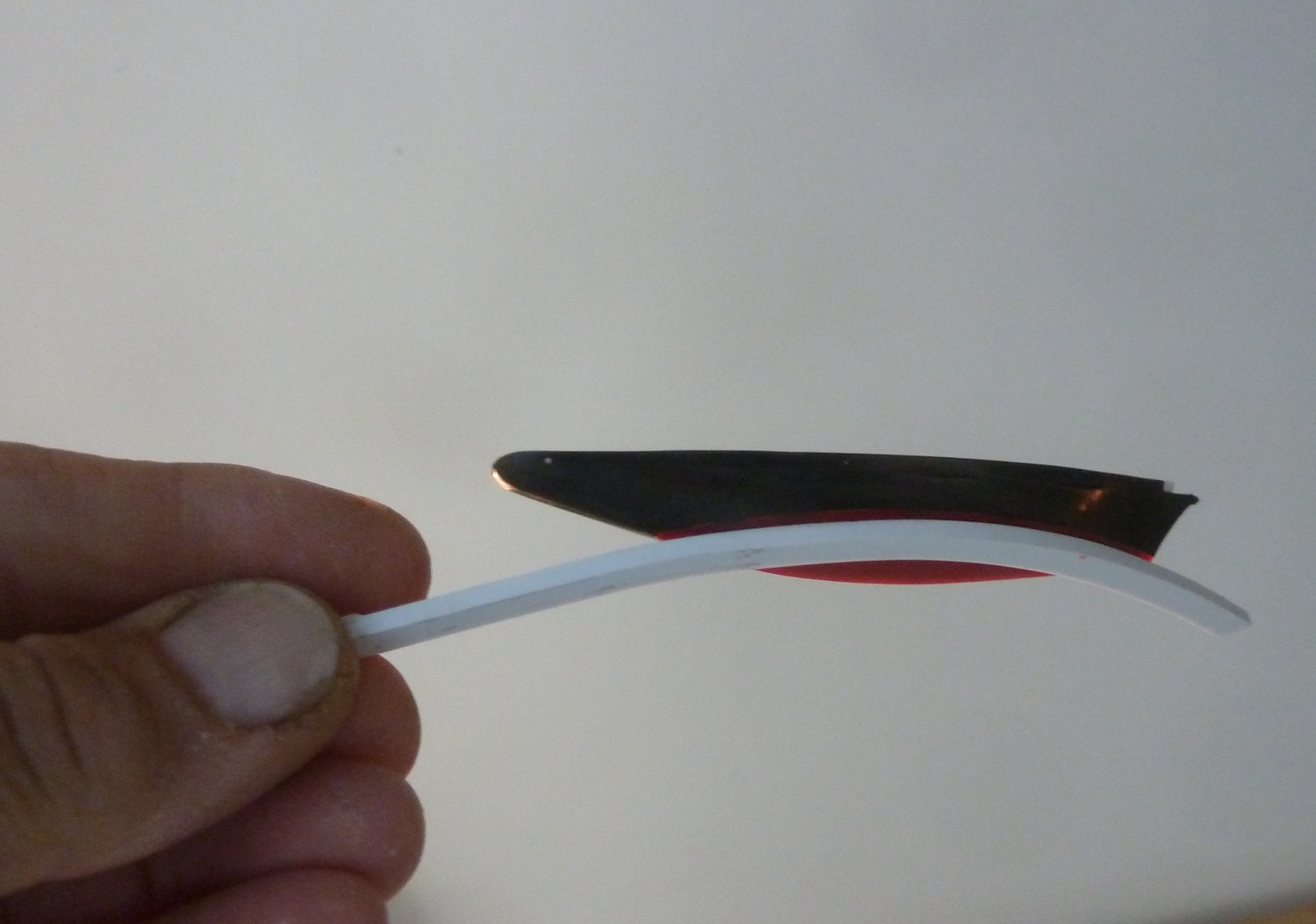

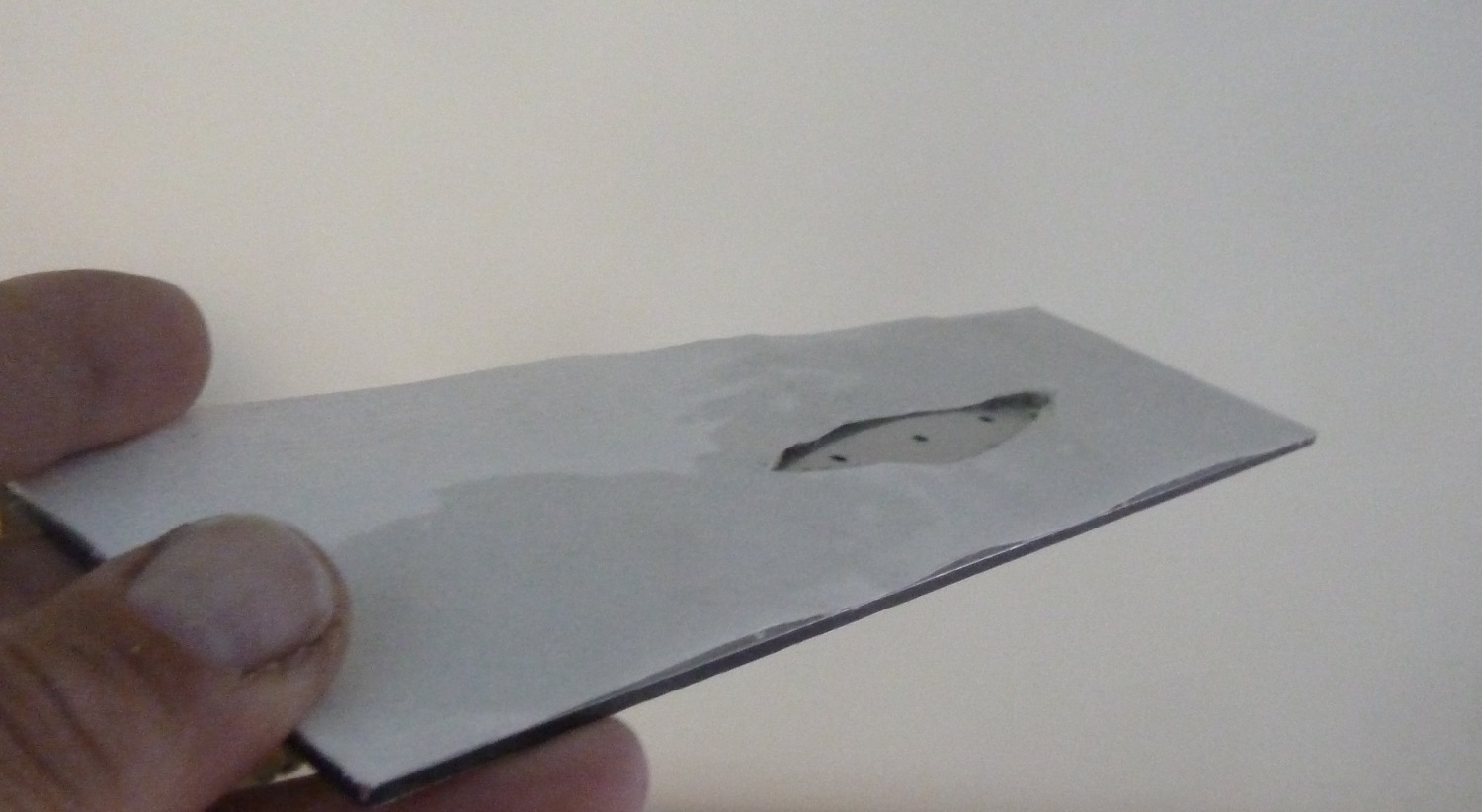

The pared down inner bulwarks on the hull sides were now not the smoothest of surfaces--and being white would show any undulation

I 'homogenised' the surface in readiness for white paint and detailing by using BECC self adhesive vinyl strip secured top and bottom with CA

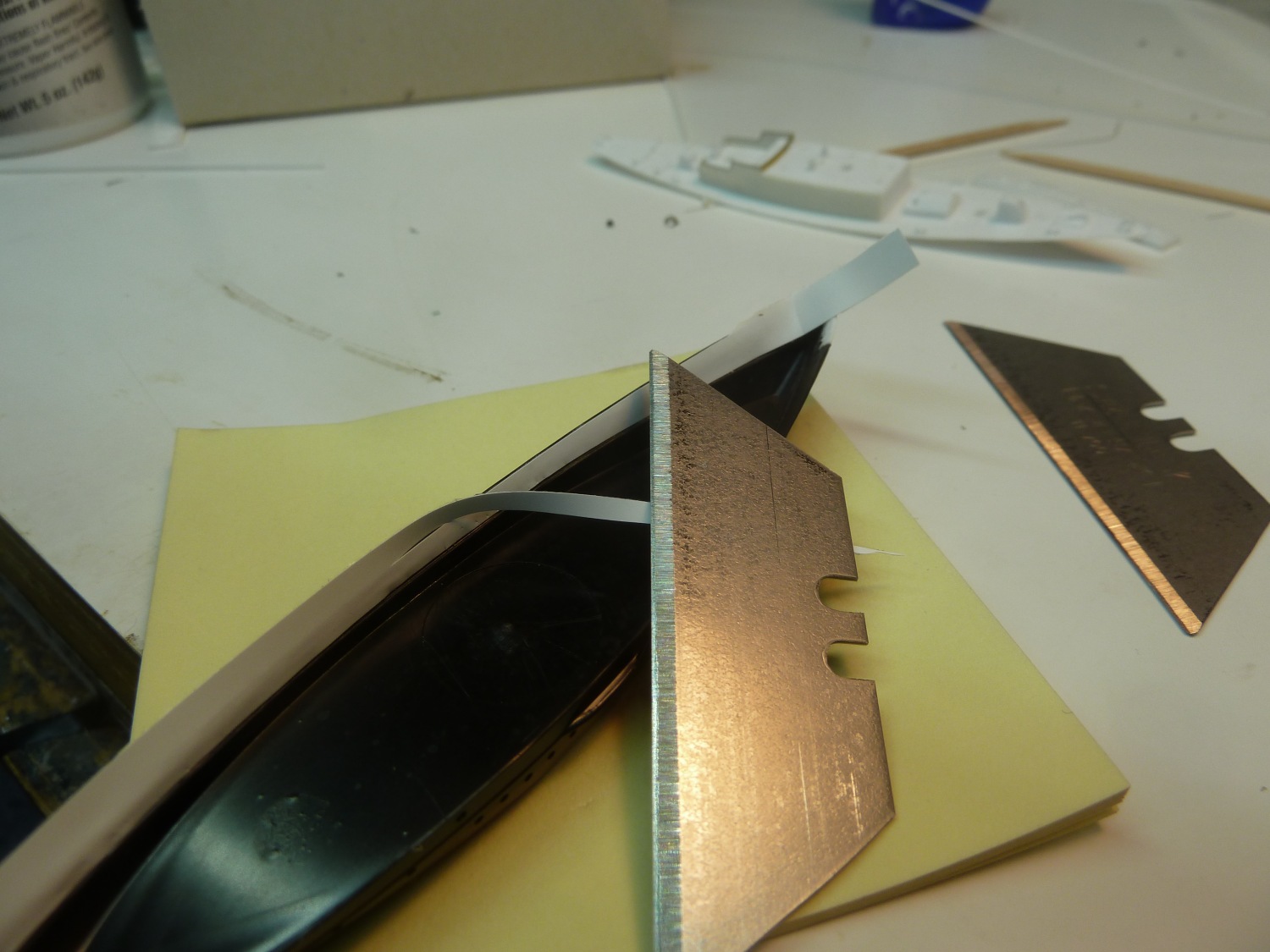

( as opposed to thinner decal sriping, alas that media in this instance would be rather too more compliant to the uneven under surface :cool_2: )

and the excess cut away with a sharp blade

Attachment:
P1180994.jpg [ 248.59 KiB | Viewed 2768 times ]


Attachment:
P1180993.jpg [ 217.62 KiB | Viewed 2768 times ]



I wanted my model to be 'on the wind' with some heeling...

To achieve this , I added a rudimentary lower hull blank on the starboard side of thick styrene block strip

Attachment:
P1180995.jpg [ 166.55 KiB | Viewed 2768 times ]


Attachment:
P1180997.jpg [ 227.63 KiB | Viewed 2768 times ]


More updates once that has been sanded to shape... :smallsmile:


JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Apr 10, 2017 2:32 pm
Offline

Joined: Thu Dec 18, 2014 7:58 am
Posts: 74
Location: Oslo, Norway
JIM BAUMANN wrote:
The Sir Winston Churchill was slightly lower at the stern -as when she was being built, the concrete ballast had run aft whilst pouring into the hull cavity...(!!)


About par for the course for British workmanship at that time, I'd say :)

It'll be exciting follow this project of yours!


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Apr 13, 2017 7:22 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1330
Location: Belgium
This should be good again! :)
Following with great interest...

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Apr 13, 2017 3:26 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4376
Location: Nr Southampton England
Hello Marjinn!

Good to 'read' you again- still busy with the music/ family/ work....( have you had anym modelmaking time? )


meanwhile, there is progress on SWC is afoot...
I sanded to shape the added section of the "underwater" on the starboard side which gives a reasonable amount of heel.

Attachment:
P1190012.jpg [ 303.26 KiB | Viewed 2515 times ]


Attachment:
P1190011.jpg [ 209.24 KiB | Viewed 2515 times ]


I turned my attention back to the deck and superstructure; in particular the skylight which had distinctive and large lifting lids
which had vertical safety bar grating on them

obliviously anything that I would make would be over-scale--but I also knew hat plain skylights would not do...

In my decal stash I had a piece of black 'grille' decal I bought in the late 1980's
--it must be 30 years or older-- made by a company called MABEX

Attachment:
P1190026.jpg [ 282.32 KiB | Viewed 2515 times ]

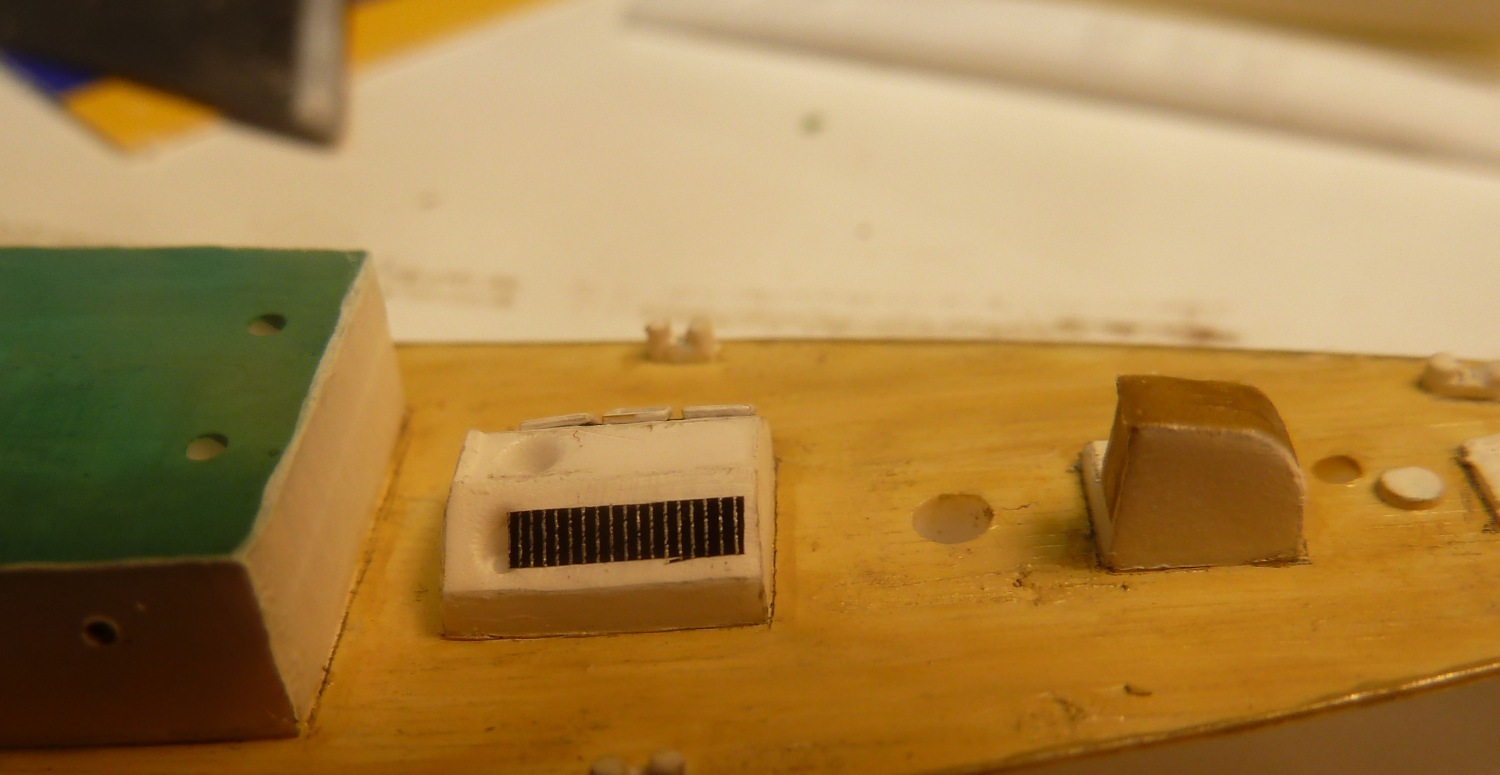

I laid a strip of the decal into the skylight

Attachment:
P1190020.jpg [ 155.84 KiB | Viewed 2515 times ]


and then made the frames by cutting up some model-Railway ladderstock ( oo - 4mm =1Foot - 1/76 )

Attachment:
P1190025.jpg [ 174.88 KiB | Viewed 2515 times ]


when all married up it looked quite pleasing to the eye

Attachment:
P1190030.jpg [ 202.4 KiB | Viewed 2515 times ]



I also needed to find some narrow round topped cabin doors with a porthole in then ..........==> x 6

I did not have any in 1/350- so ended up using some old PE ( l'Arsenal Liberty ship...)

I think these were fold up yokes..(?)
anyhow-
- the image below illustrated it better than any description !


Attachment:
P1190007.jpg [ 458.79 KiB | Viewed 2515 times ]



I installed the deck- dribbling thin CA around the edges fwd to aft

-after further scraping to ensure I managed to get it down deeper in the hull recess aft

I added handrails along the cabin-sides made of sprue

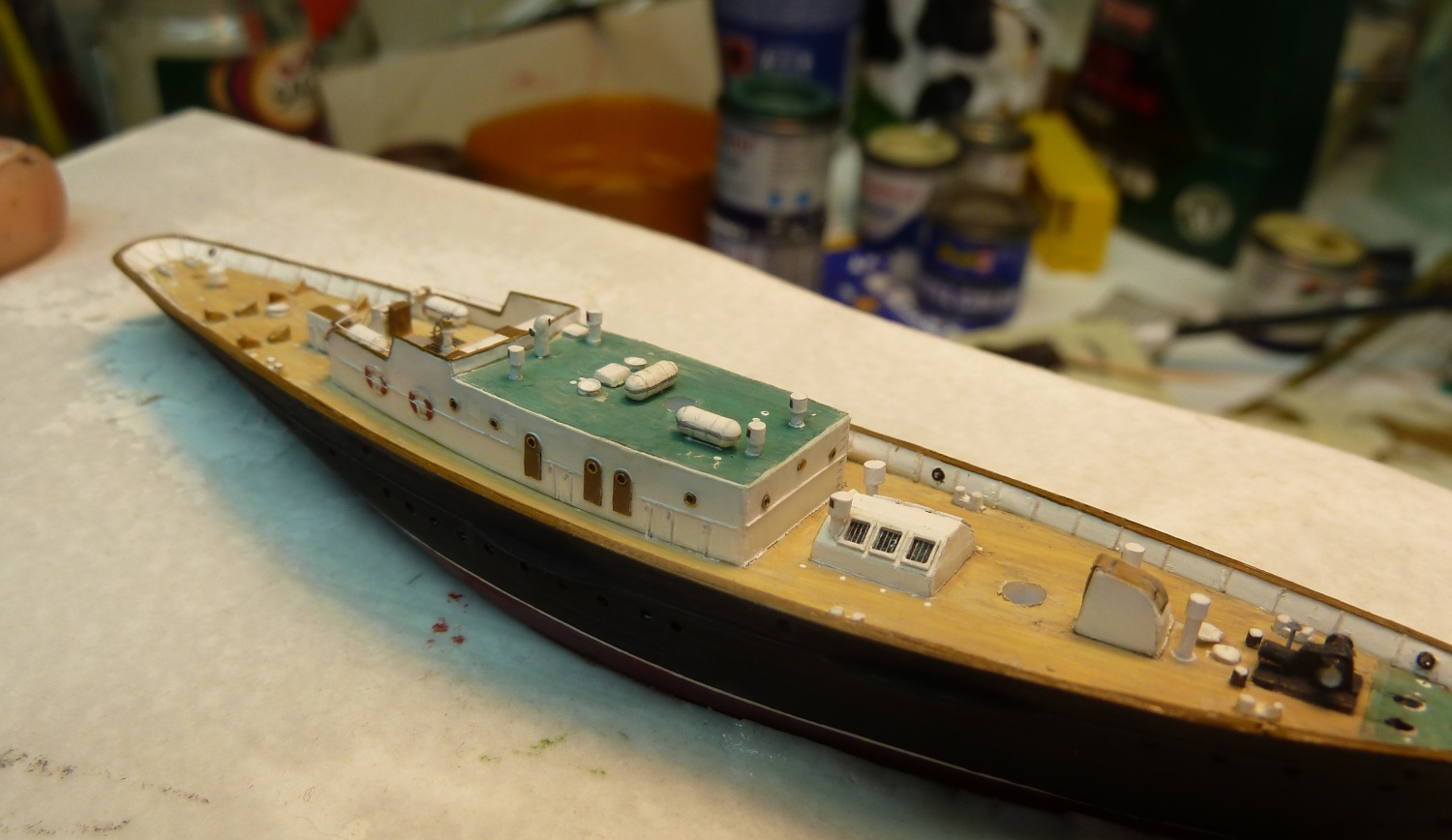

overall it is looking ok so far

:thumbs_up_1:

JB


Attachments:
P1190030.jpg [ 202.4 KiB | Viewed 2515 times ]
P1190032.jpg [ 220.38 KiB | Viewed 2515 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Apr 14, 2017 2:05 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1330
Location: Belgium
Hello Jim!

Your making quick progress, and that's a clever solution for those skylights!

Life has been a bit busy indeed, with little modelling time. And with modelling less on my mind, I get on this great forum less frequently too unfortunately…
But things are getting a bit quieter nowadays, and I have a nice trip to one of the biggest international modelling show coming up (Moson), so I hope modelling will nestle itself comfortably in my brain again soon. :)

Cheers,

Marijn


Last edited by marijn van gils on Fri Apr 14, 2017 6:34 am, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Apr 14, 2017 6:12 am
Offline

Joined: Wed Oct 11, 2006 5:46 am
Posts: 412
This is going to be very interesting! :thumbs_up_1:

_________________
http://lsa-space.blogspot.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue May 02, 2017 3:50 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4376
Location: Nr Southampton England
work has been steady-- interrupted by Easter, other peoples weddings and some fine weather...

enough procrastination for lack of tangible progress... I have done plenty of searching for and analysing/ evaluating images,
to the point at which I have to accept that I cannot make and/or add on all the detail of my findings-......but I shall try :wave_1:

When launched in 1966 Winston Churchill carried Ratsey and Lapthorn sails ( small red logo), a garish decor aft of the figurehead and silver painted railings around the cockpit helm deck and white anchor winch as distinguishing features

Attachment:
silver rail..jpg
silver rail..jpg [ 106.89 KiB | Viewed 2286 times ]

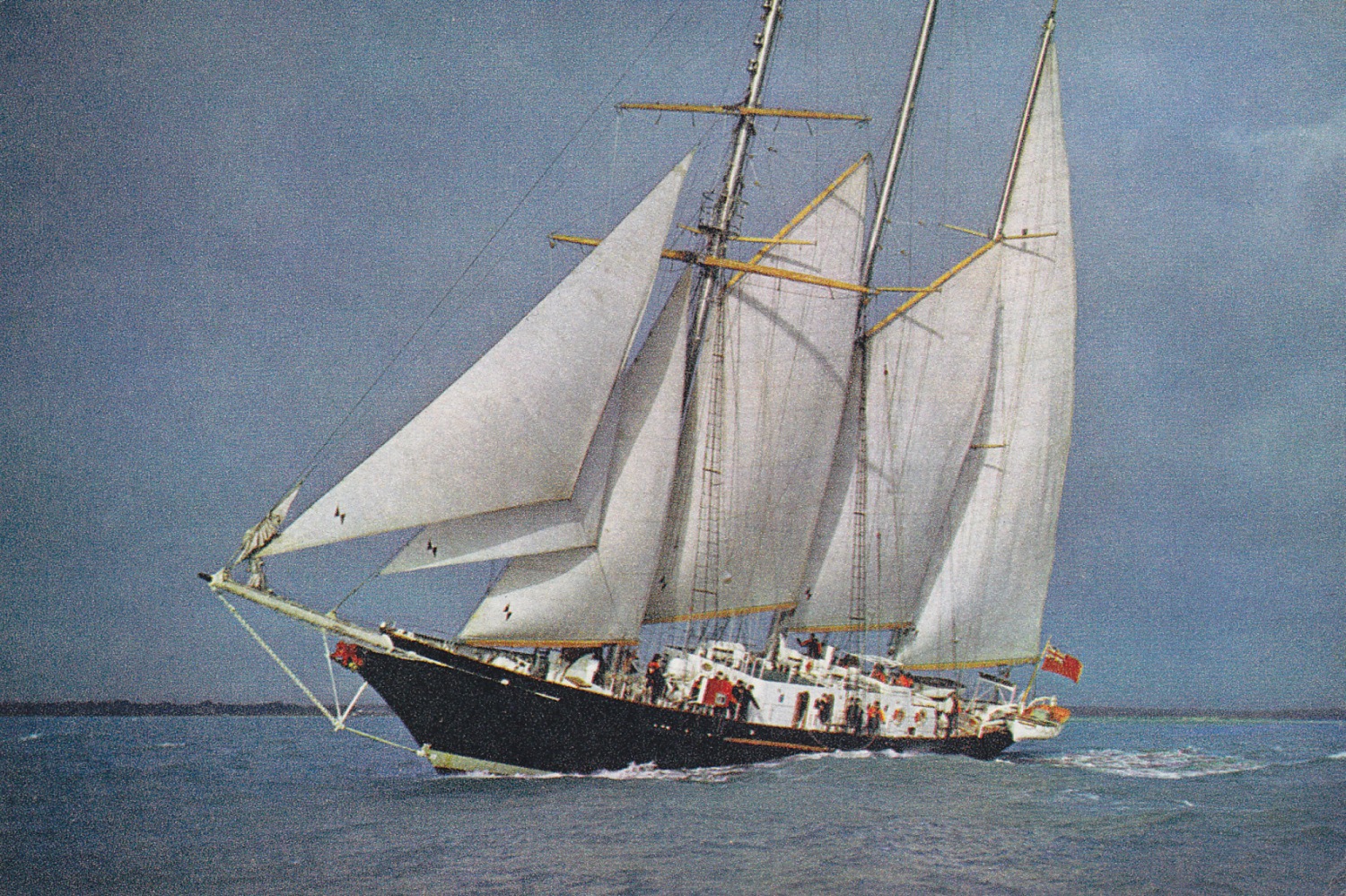

.... in the early 1970's --for only about 3 years (or so it seems) she also had a white boot-top; unusual to find a photo of that scheme
Attachment:
26.jpg [ 720.81 KiB | Viewed 2286 times ]


..... concurrently with the green coachroof and foredeck along with the Bruce Banks sails
( black double triangle logo) and the anchor winch was black and white railings
Attachment:
foredeck.jpg [ 338.97 KiB | Viewed 2286 times ]

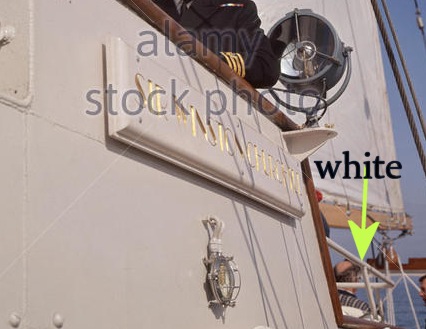

Attachment:
white rail.jpg
white rail.jpg [ 43.67 KiB | Viewed 2286 times ]



( by the mid 1980's the coachroof and foredeck were painted red- which I believe remained so until she was sold.

Attachment:
foredeck 1.jpg
foredeck 1.jpg [ 188.52 KiB | Viewed 2286 times ]


Having located the an approximate era and fit I liked best for visual interest
( also cross-referenced by the positions and types of life-raft canisters --both the shape and location varied quite considerably!! )

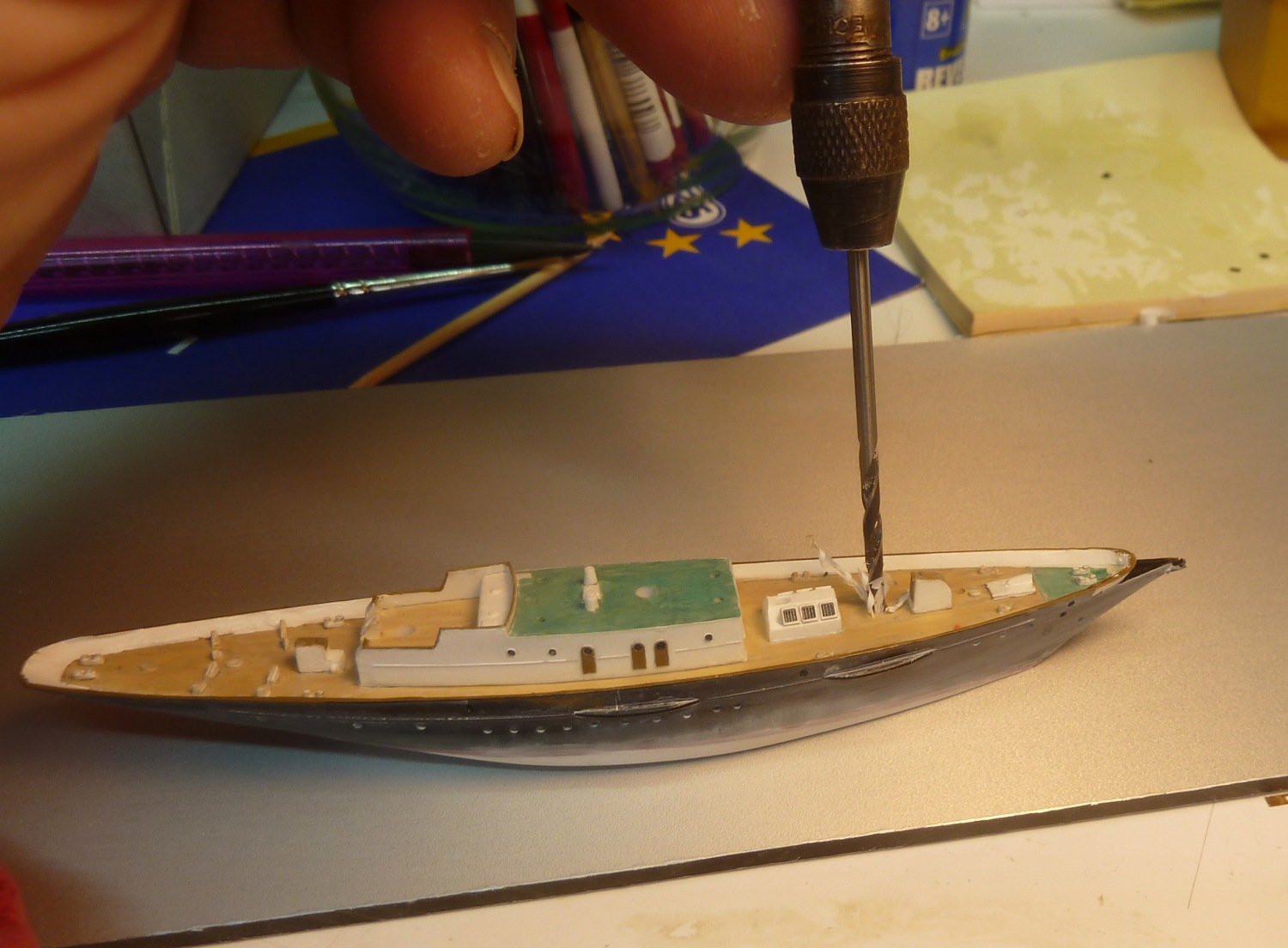

I drilled the mast positions all the way through the hull
Attachment:
P1190054.jpg [ 283.07 KiB | Viewed 2286 times ]


and the drilled all the way through the baseplate to ensure that masts cannot ever move

Attachment:
P1190058.jpg [ 197.8 KiB | Viewed 2286 times ]



...the model had the hull and underwater area painted and decal strip boot-top installed;

Attachment:
P1190062.jpg [ 210.06 KiB | Viewed 2286 times ]

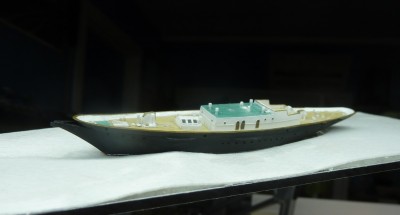

and the hull was installed into its paper and cocktail stick sea base

( as described here in detail ==> link ==> viewtopic.php?f=4&t=37223

Attachment:
P1190071.jpg [ 127.61 KiB | Viewed 2286 times ]

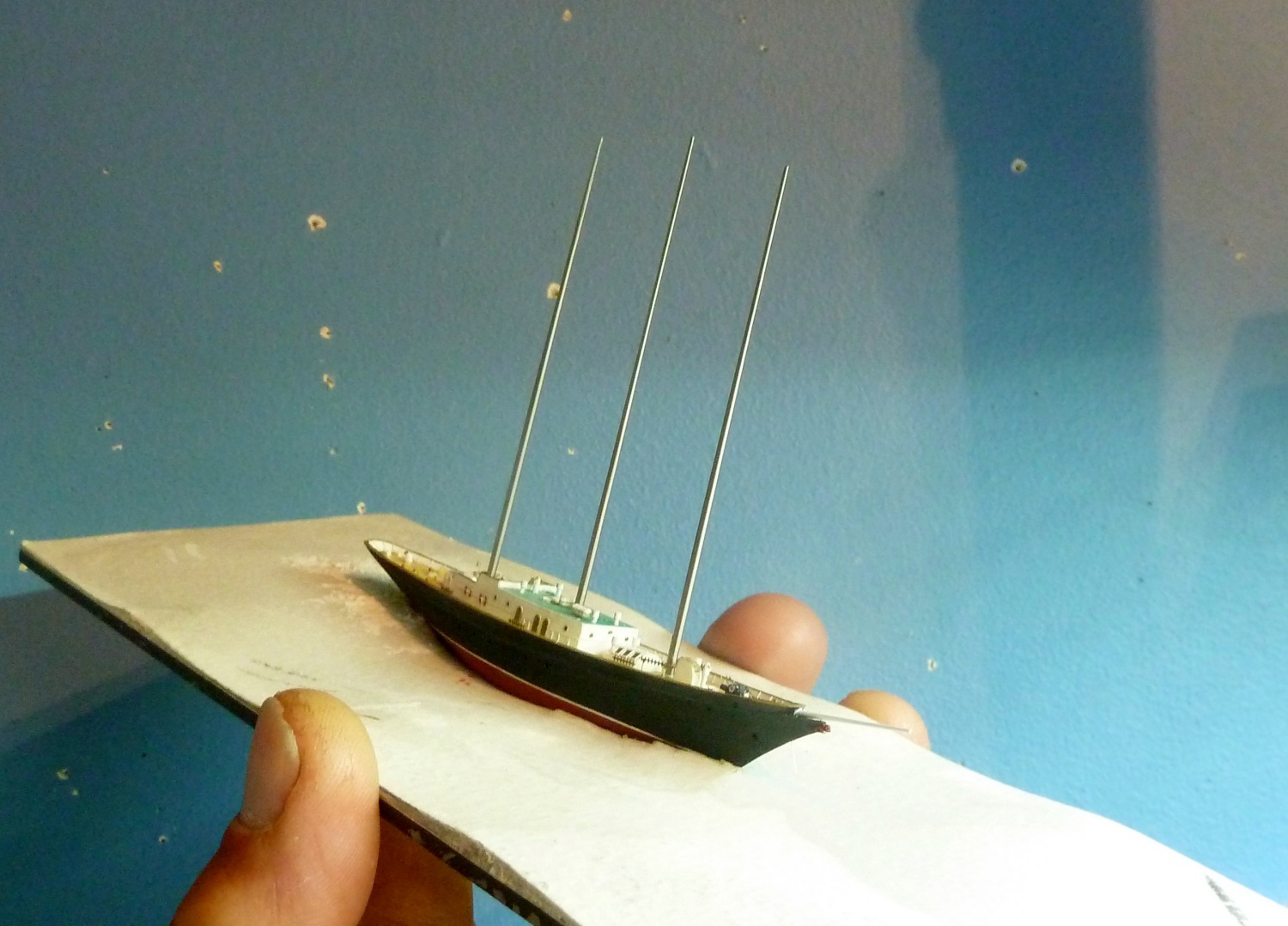

I plan to depict her on a close reach with all plain fore-and-aft canvas set-- so she will have heel and be moving at quite a clip !

Attachment:
P1190075.jpg [ 139.63 KiB | Viewed 2286 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat May 06, 2017 1:41 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1330
Location: Belgium
Mmm, I can already imagine how great she will look in full sail and with that tilt! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat May 06, 2017 8:25 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4376
Location: Nr Southampton England
On the subject of sailing.... we need masts.

The plastic masts, although showing some taper are both too fat, bendy and clunkily detailed--

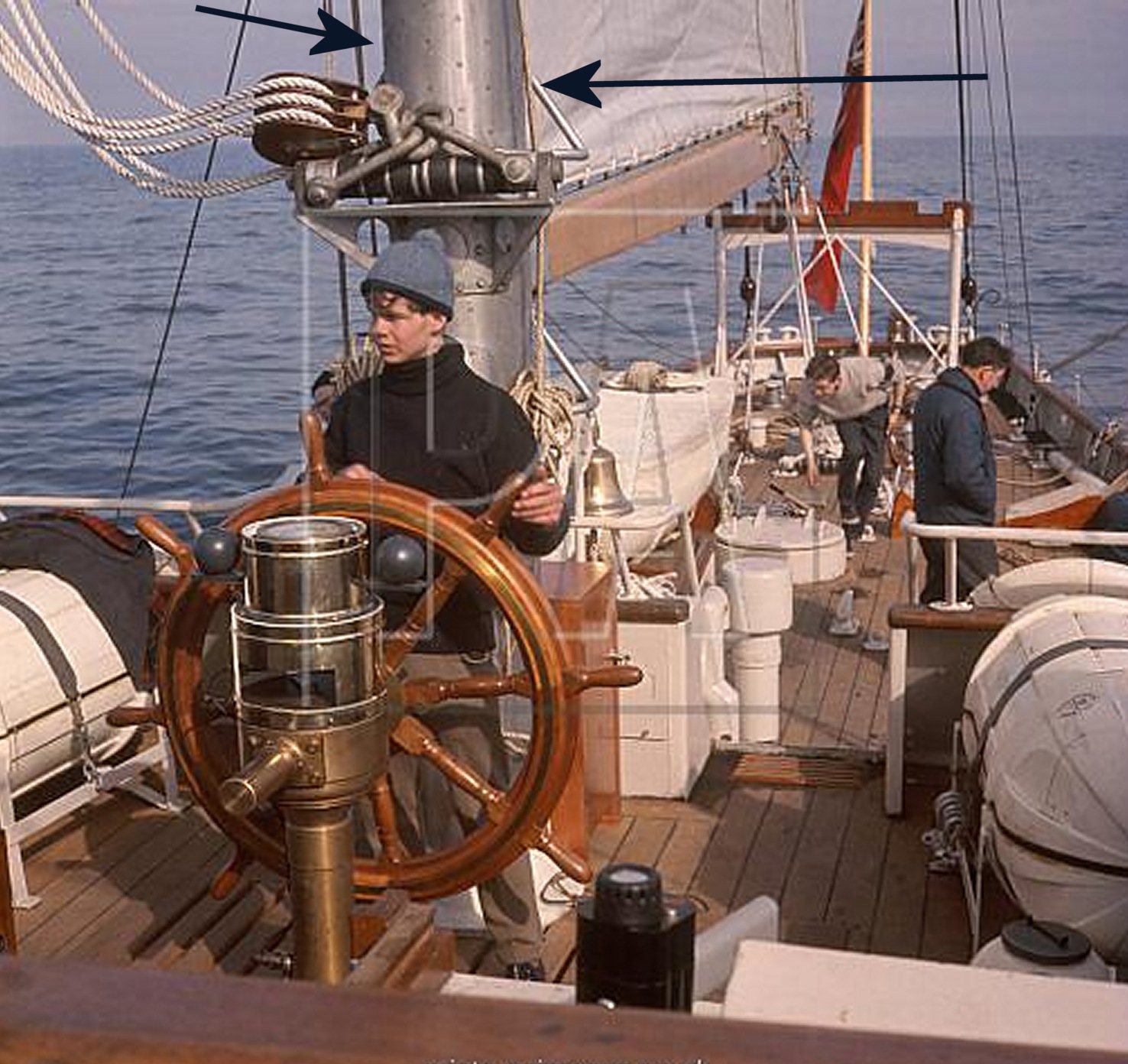

The masts on the real thing were ( are ! --she is still sailing! ) silver anodised aluminium

Attachment:
view aft..jpg
view aft..jpg [ 449.69 KiB | Viewed 2136 times ]


The colour contrast of the ' modern ' aluminium masts and all the traditional square ( and tapered=> tricky to make) section booms and gaffs
( but 2 x round section square-sail yards ) in varnished timber ( pitchpine maybe?)

Even the spreaders of the shrouds on the masts were made of wood (!)
will create an interesting visual image on the completed model
Attachment:
v-spars.jpg [ 824.59 KiB | Viewed 2136 times ]

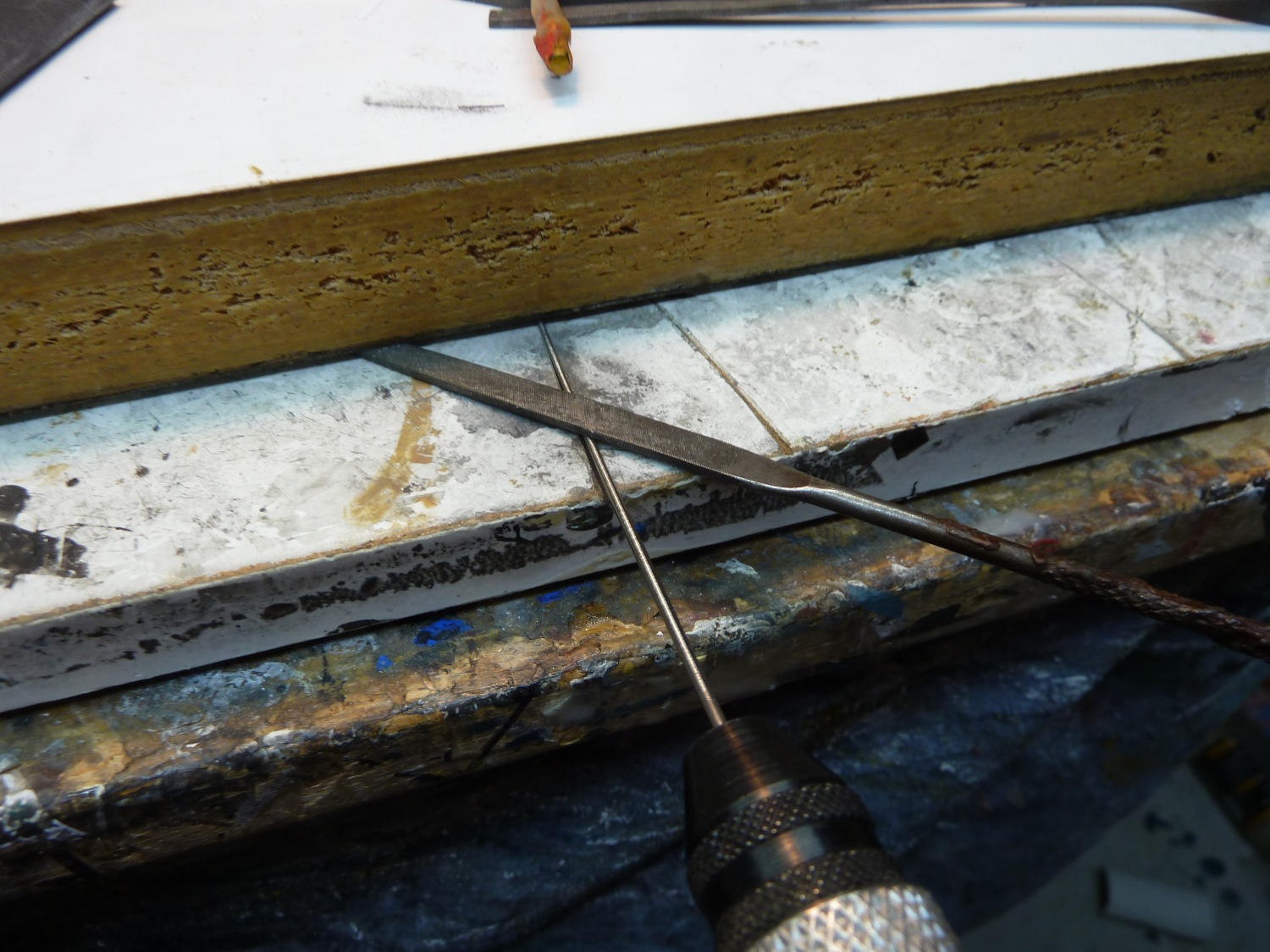

my method of making tapered masts

-take some stainless steel welding rod, insert into chuck of mini drill
and locate in a tapered groove on the workbench ==> ( this prevents oscillation and possible centrifugal force spinning it out sideways,
, distorting the work-piece as well as being potentially rather dangerous!!!

Attachment:
grooves ..jpg
grooves ..jpg [ 325.25 KiB | Viewed 2136 times ]




Note that (these days ...-' nuff said!)
I have another shelf piece located above ,-to further inhibit the possibility of it flying out!

I spin at moderate speed and using a flat file grind away until a satisfactory shape has been achieved
maintaining slight compressional pressuer on the masts and the file--using the file flat on the grooved bench

in this instance--lacking an ' accurate ' plan ( The Billings plan is helpful, but alas does not match photos everywhere)
I am judging by photos relative sizes and what looks 'right'

Attachment:
P1190279.jpg [ 366.27 KiB | Viewed 2136 times ]


Stainless steel being springy is more forgiving than brass--which can whip out at the slightest provocation!!
it does not take very long--and in this instance where we have very long tapered masts--as opposed to traditional
sailing ship masts where 3 or more sections are joined in a stepped stagger; - both wood and metal-

- there is no real alternative apart from making them yourself--as all commercially available tapered metal masts are much too short.

These masts being anodised aluminium the sliver colour works well too!- no paint, no tarnish !

Attachment:
P1190282.jpg [ 243.89 KiB | Viewed 2136 times ]




The bowsprit was surprisingly chunky spar on the real thing--I used half a large 1/350 spar from Master models-
-with the tip removed.
It is a tiny bit under scale--but by the time it has had two coats of white paint it should be spot on.
Very important was to maintain a small bit of daylight underneath it
( I would have assumed they would have rested it on / strapped it to the bow for more support, but seems not! )

Attachment:
nnhmbefnhnjepbpd.jpg [ 157.94 KiB | Viewed 2136 times ]


Attachment:
P1190283.jpg [ 189.88 KiB | Viewed 2136 times ]


I started making all the swan-neck vents needed, these were made of copper wire

Attachment:
P1190076.jpg [ 234.83 KiB | Viewed 2136 times ]


These were installed where appropriate using photos rather than the plans
Porthole surrounds were North Star PE (they were polished daily by the Sail-training students)

Attachment:
P1190286.jpg [ 173.79 KiB | Viewed 2136 times ]


Adding all the small items, life rings ( WEM Koenig PE ) ( and their vexed cradles!!! ) as well as tiny handrails above the timber capping, builders brass plaque, making the binnacles and wheel pedestal, decal grating for helmsman, hatches and instrument boxes, and a multitude of other details took a surprisingly long time.

Attachment:
P1190266.jpg [ 262.07 KiB | Viewed 2136 times ]


Attachment:
P1190265.jpg [ 223.44 KiB | Viewed 2136 times ]


Attachment:
P1190263.jpg [ 365.81 KiB | Viewed 2136 times ]


The life raft canisters were made of styrene rod--with ends belled using white glue, the bulwark braces all around the inside faces were made of white stretched-sprue attached with varnish

The anchor winch was fully scratchbuilt using cut-down 1/700 handrail to make the cable drum brakes

Attachment:
P1190276.jpg [ 163.05 KiB | Viewed 2136 times ]

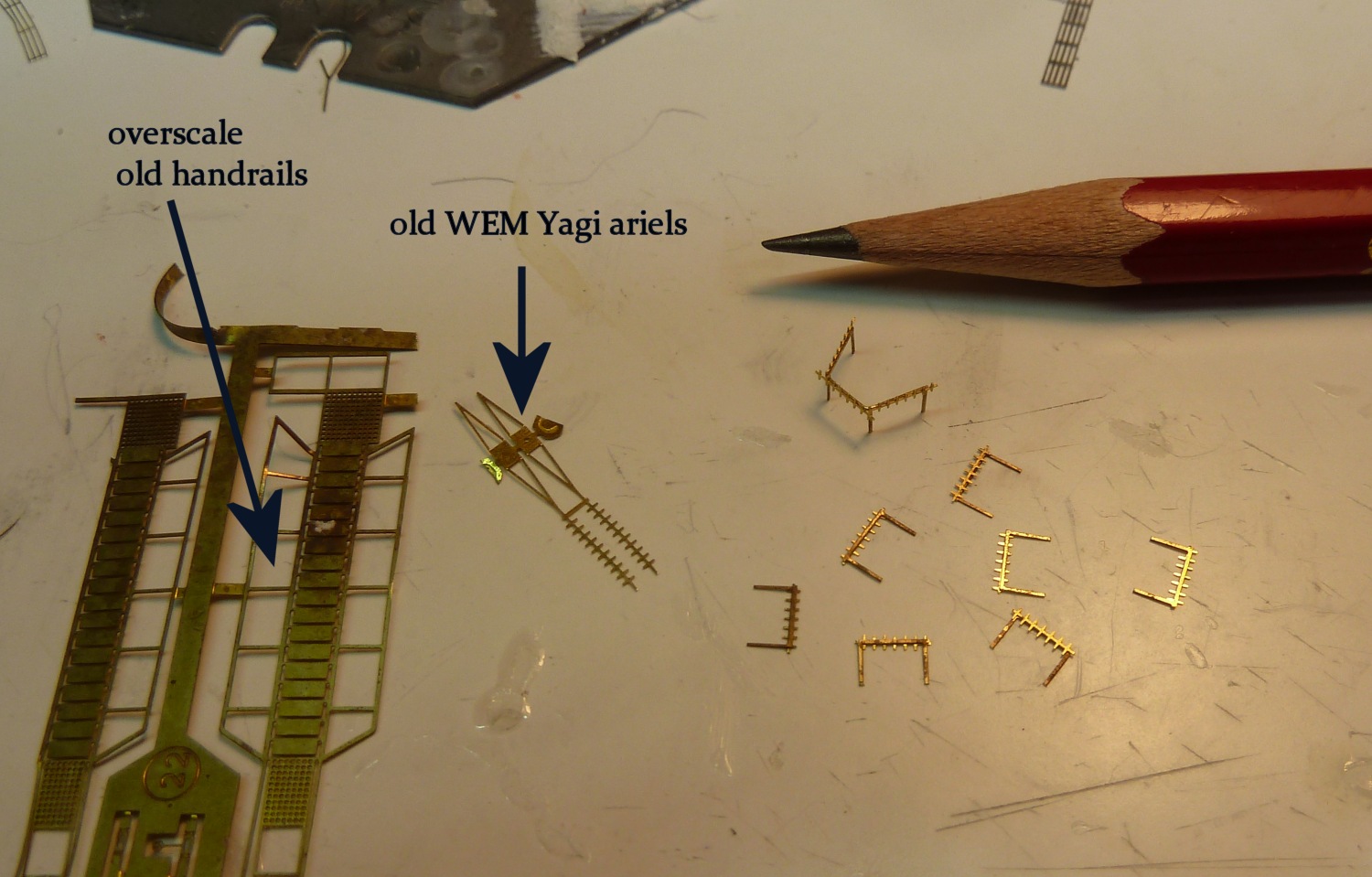

Making the belaying pin rails-for securing much of the running rigging
-to replace the vastly overscale plastic items was a game of trial and error,
of how to achieve a crisp repeatable effect without losing the will to live !

The final solution was simple ( ish ...) !

using old 1/350 handrail of correct spacing ( L'Arsenal liberty ship) and some elderly PE WEM Yagi ariels...

Attachment:
P1190272.jpg [ 269.35 KiB | Viewed 2136 times ]


Attachment:
P1190278.jpg [ 239.35 KiB | Viewed 2136 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat May 06, 2017 10:10 am
Offline
User avatar

Joined: Mon Oct 13, 2014 5:39 pm
Posts: 643
Location: San Tan Valley Arizona
Nice use of existing materials to create something totally different. Your work is always inspirational, looking forward to seeing this progress.

_________________
Mark
Master Gunnery Sergeant USMC (Ret.)
http://www.modelshipgallery.com/gallery ... index.html

On the bench:

1/200 Rodney

1/32nd Wingnut Wings Post War NINAK


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jul 23, 2017 2:06 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4376
Location: Nr Southampton England
well.... I am back!


after a protracted and unscheduled 2 month break alas-
-enforced by

1) far too much 1/1 business work (!) ,
2) unusual hot ( for UK ) weather ( up to 32 deg C ) making the modelroom too hot to play in,

3) AND...most distractingly probably (!)
..... the return from the paint-shop of ...



Attachment:
P1180733.jpg [ 339.89 KiB | Viewed 1765 times ]


my latest automotive mistress to the collection

Attachment:
z190350.JPG [ 363.6 KiB | Viewed 1765 times ]


( and driving at every opportunity !! )

Attachment:
z1190328.jpg [ 267.91 KiB | Viewed 1765 times ]


make and install new interior, fettling and perfecting of course ....

Attachment:
z1190354.jpg [ 449.58 KiB | Viewed 1765 times ]


With the car about finished,
my fingers were itching to get a move on with my model again !
===========================================================

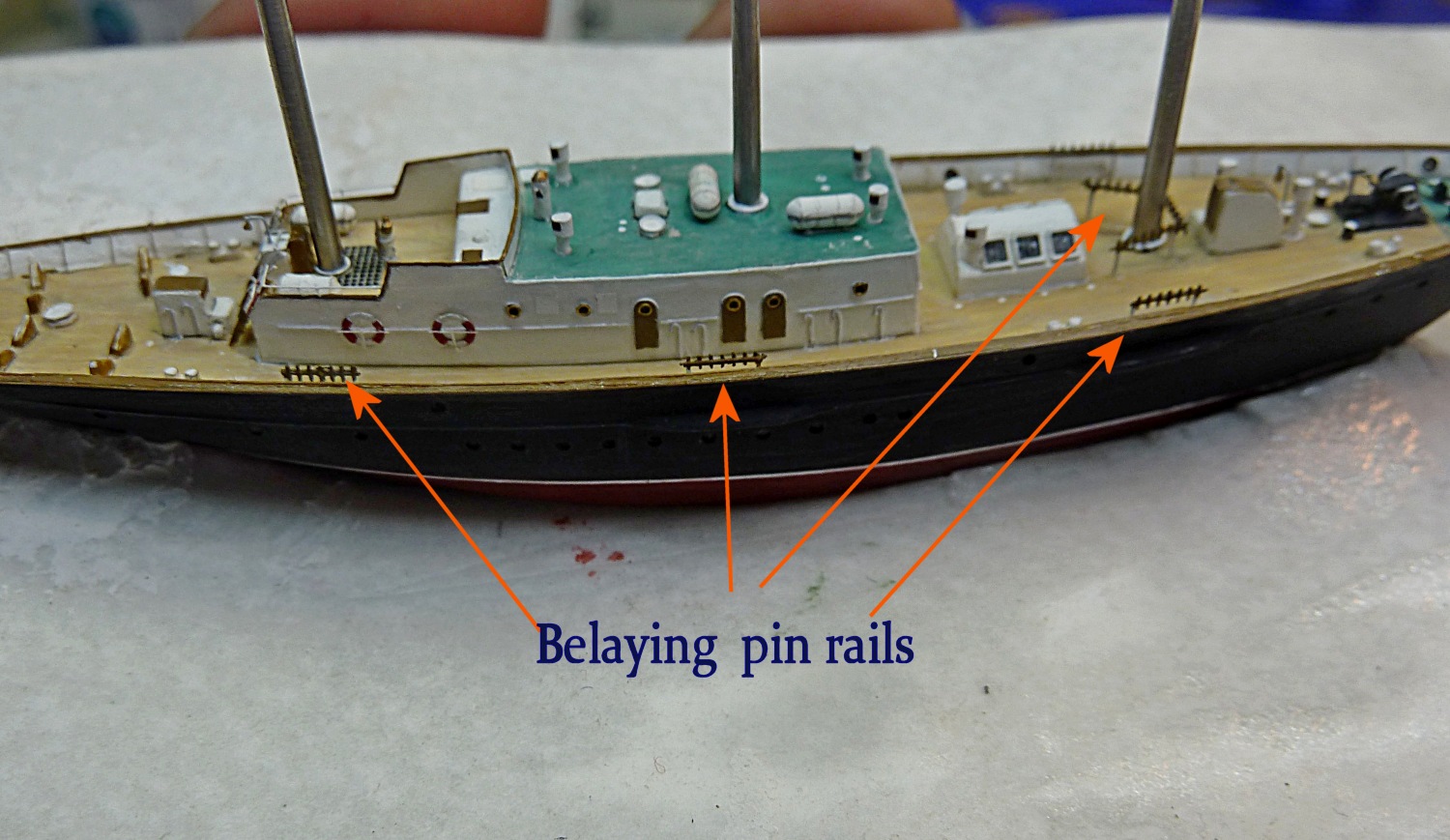

The previously made belaying pin rails were painted and installed;

Attachment:
P1190873.jpg [ 319.58 KiB | Viewed 1765 times ]


masts were installed and the slightly varied heights and rakes established.
Attachment:
P1190871.jpg [ 280.69 KiB | Viewed 1765 times ]


I used a 'ruled line paper ' file saved of f the internet

-and then resized it so that the correct number of lines would correspond to
the ( in real life) 36" wide sailcloth panel seam lines of the sails ,

==> I double-checked the number of panels per sail from this useful back-lit photo
Attachment:
P1190840.jpg [ 323.1 KiB | Viewed 1765 times ]

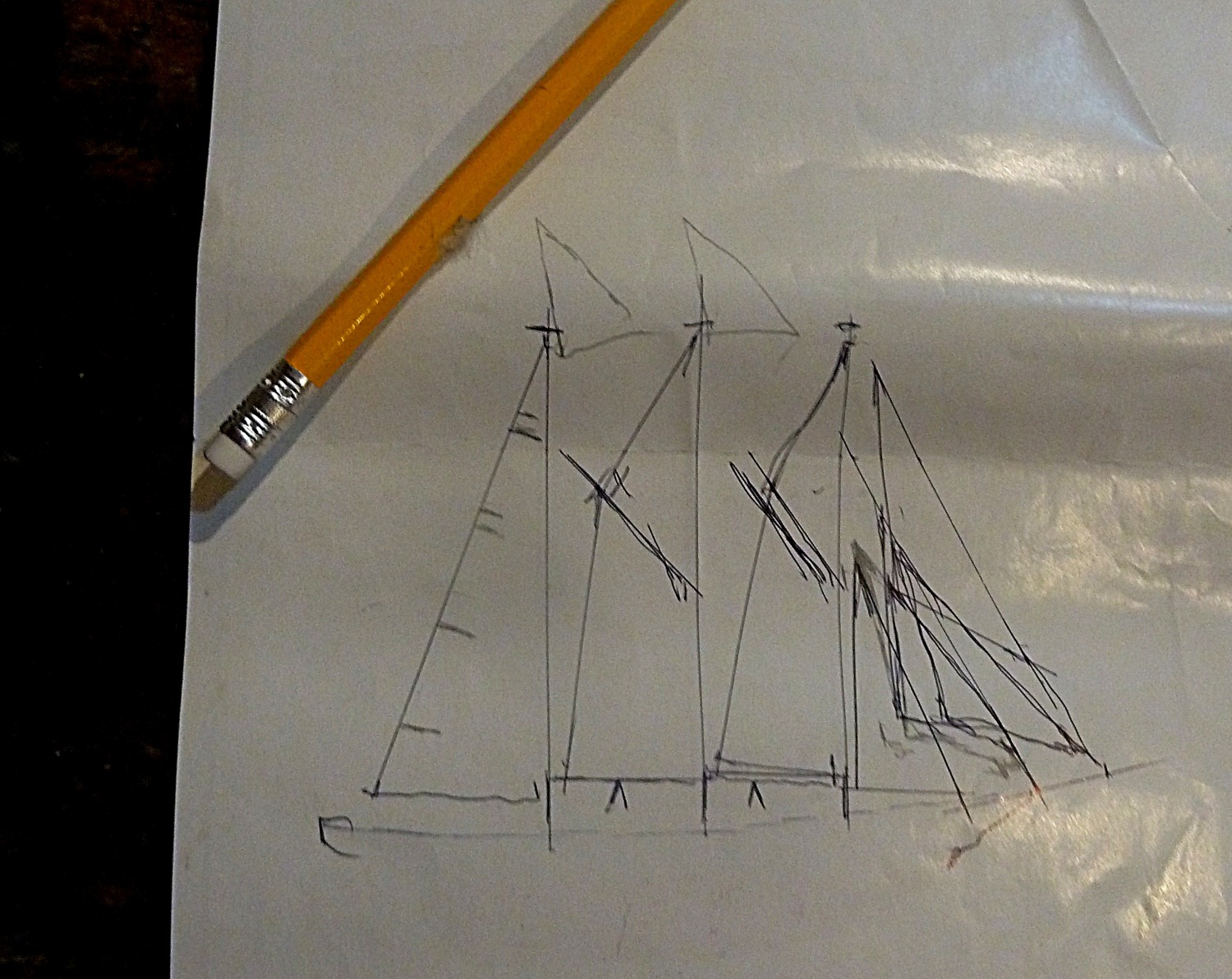

Firstly I made a ' scale size drawing ' of the sails and sail-plan--and compared the outline to a scaled side-on photo

Attachment:
P1190834.jpg [ 441.55 KiB | Viewed 1765 times ]


I then made templates in paper and offered these up to the the model

Attachment:
P1190832.jpg [ 333.84 KiB | Viewed 1765 times ]



The panel lines on almost all Traditional fore-and-aft rigged ) sails
are square @ 90 degrees to the leech ( aft unsupported edge )
-- in order that the yarns are stable and thereby the non-spar supported edges allows the least amount of stretch.

Attachment:
P1190843.jpg [ 260.32 KiB | Viewed 1765 times ]



The head-sails and the topsails - being triangular, with the seams square to the leech
would have the potential problem of the cloth weave being diagonal to the edge(* the flexible direction in woven fabric)
and therby a very very stretchy 'foot' edge which would flutter and not hold the shape.

Before the advent of laminate fabrics and the load-directional cuts of modern (racing ) sails,
Sailmakers used to counter this potential problem when building triangular sails
by introducing a 'mitre' seam
-=> so that both the foot and the leech would have the panels laying square to the edges, thereby minimising stretch.

The (relatively modern- 1960's ) sail-plan of Sir Winston Churchill means that virtually all the sails have the panles to the mitre seam at a a near identical angle of incidence .

I made the mitre-cut panel paper blanks the 'non -digital' hard way; =-> by cutting 2 x pieces of lined paper, gluing them edge to edge, scanning and then printing the result.

The REALLY hard and very frustrating part of this process was trying to get my printer to print the image with the panel lines AND the mitre cut lines to be exactly concentric above each other ...on BOTH sides of the paper !!!!

Much frustration and un-printable language issued forth .... and an inordinate amount of paper was used to get 2 x usable sheets with it all the lines lying correctly.

I am sure a skilled digital operator could achieve this easily--alas not me... :Mad_6:

Attachment:
P1190857.jpg [ 298.45 KiB | Viewed 1765 times ]

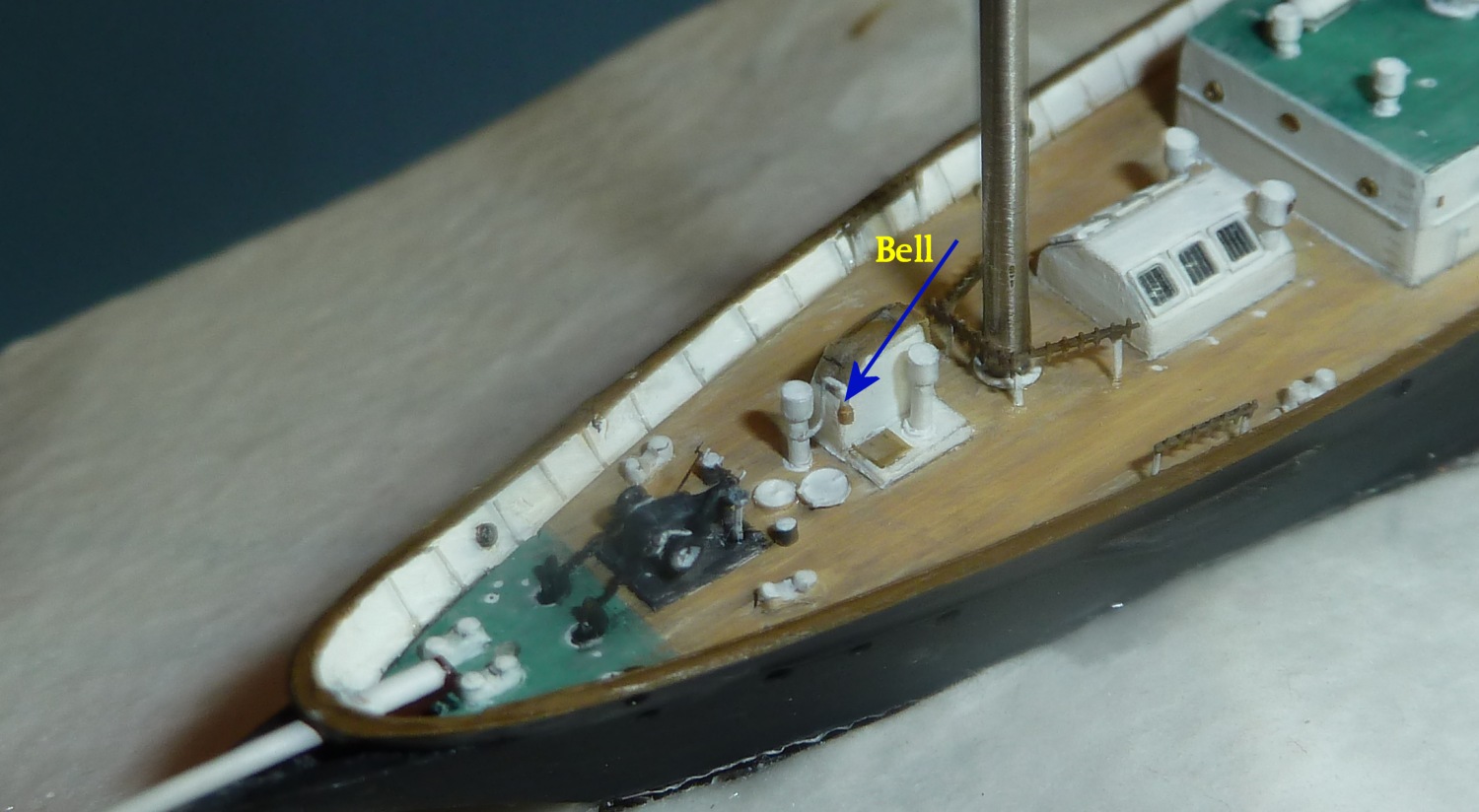

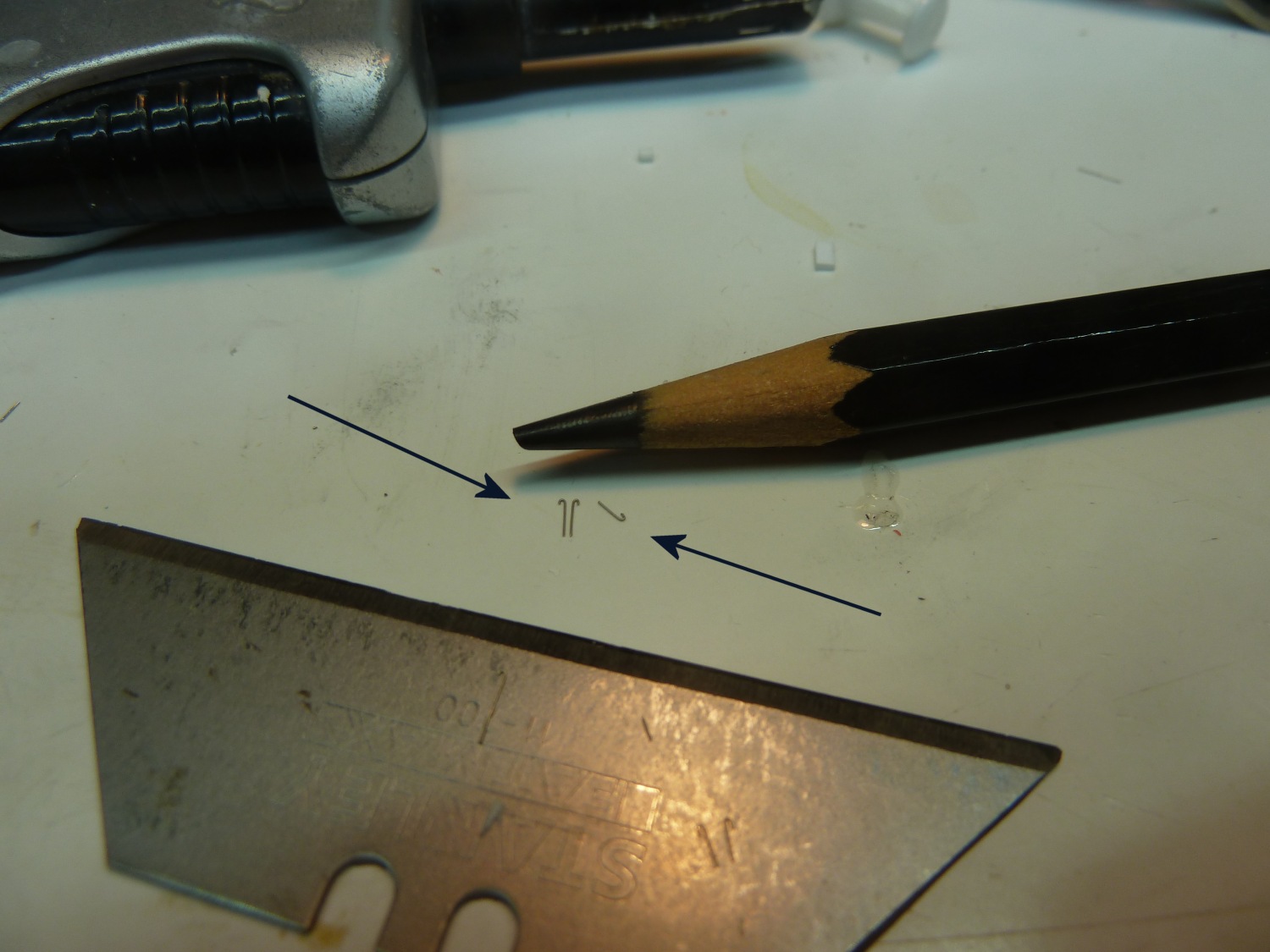

making the very tiny ships bell fwd and aft was easy by comparison!

Attachment:
P1190862.jpg [ 208.89 KiB | Viewed 1765 times ]



more soon

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jul 25, 2017 10:59 am
Offline
User avatar

Joined: Sun Jul 23, 2017 5:54 am
Posts: 5
Location: Vienna Austria
I truly admire your skills and sense for detail Jim.

_________________
A passion for modeling


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jul 29, 2017 3:55 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1330
Location: Belgium
Great work Jim! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:
I'm following your work on the sails with great interest! Thanks again for posting all the in-progress work; much appreciated!

Nice DS too by the way!

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Aug 03, 2017 10:53 am
Offline

Joined: Thu Dec 18, 2014 7:58 am
Posts: 74
Location: Oslo, Norway
JIM BAUMANN wrote:
my latest automotive mistress to the collection

Attachment:



One has to admire your aestethic taste in cars, if perhaps not your sense of practicality :)


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Aug 03, 2017 10:48 pm
Offline
User avatar

Joined: Wed Mar 01, 2017 12:47 am
Posts: 20
Location: Middle of North America
I thought I could work in very small scales, you take it to another level.
Super work !

_________________
There are two ways of doing things, if you're not enjoying yourself, you're doing it wrong.

Willing to do Commissions, Wooden ships as well, building models for over 35 years.
Please respond to E-mail in Profile.


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 07, 2017 11:52 pm
Offline

Joined: Wed Oct 11, 2006 5:46 am
Posts: 412
Hello Jim! Congrats for the DS, she's a beauty! Always a pleasure to follow these post, not just for modelling :thumbs_up_1:

_________________
http://lsa-space.blogspot.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 09, 2017 3:56 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4376
Location: Nr Southampton England
Thank you for nice comments!
I am curently on holiday in Germany...

:surfer:

have done " theretical" modelling...

and have -in my mind-- solved some upcoming issues with the impending completion of the model !

will be back at workbench when I get back !

regards

JB :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 09, 2017 6:06 pm
Offline

Joined: Fri Nov 11, 2005 7:13 am
Posts: 225
Location: Lexington, MA
The problem with the sails got me a thinking....
This is only a suggestion as I have never tried it (but the temptation now exists), how about printing the pattern on white decal sheet as a mirrored pair and then using some kind of foil or other v. thin sheet of appropriate material as a base for the decals? Lining the lines up would be easy (well easier than trying to do double sided printing to line up exactly) but I wonder if it would then be too thick and/or too flimsy to implement?

[Sound of current work being scraped to one side of the workbench to enable the pursuit of whimsical experimentation]

Attachment:
temp.jpg [ 192.22 KiB | Viewed 1292 times ]


OK, so it's rough as hell but took less than an hour from nothing whatsoever to those pictures (and no bad language). The overall height is about 2" (I used the 'A' sail from the kit as a guide). Nothing dried properly, nothing is cut exact or anything; and I didn't bother checking to see if the lines were going the right way..... Since I didn't have any white laser decal paper I used clear sheet and white paper soaked in CA as the base. The third image is with a LED torch shining from behind (if you couldn't already guess).

With more time I would paint and weather the paper before applying the decal, or get white laser paper, or use white inkjet paper, or, or, or - still have plenty of ideas about how to develop this further.

If interested, please PM me. Or just carry on doing the stunning job you are already doing. :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Aug 11, 2017 3:22 pm
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2202
Location: Paris France
hello Jim

It is always a pleasure to see your work And take a modeliing lesson :thumbs_up_1:
and good job on your "belle DS"
cheers
nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 16, 2017 5:01 pm
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 329
Location: Budapest, Hungary
Very nice subject. I am intrigued to see your solution to the sail-problem.


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 46 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Koppalakki and 6 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
