Hi, dear all!
Here is my new project:D





_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Oct 28, 2018 8:11 pm
Offline

Joined: Wed Jan 11, 2012 12:24 pm
Posts: 72
Wow, that is a lot of brass! It's looking great and well worth the effort.


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Oct 29, 2018 3:57 am
Offline

Joined: Thu Jan 26, 2017 8:30 am
Posts: 189
Wow, is this an aftermarket set?

Pretty impressive build of the pagoda-bridge...


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Oct 29, 2018 4:15 am
Offline
User avatar

Joined: Sat Jul 30, 2016 5:33 pm
Posts: 1164
What the hell, this is amazing.

Are you building the lower hull from scratch? Can you post more information about what we are seeing and what the plan is?

It looks amazing.

_________________
It's never too late for a great childhood!


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Oct 30, 2018 6:56 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7421
Location: New York City
Stunning work, yet again.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 31, 2018 7:57 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1720
Location: Belgium
Good to see you on your next project!
And again it looks like it will be superbly detailed! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 09, 2018 8:25 pm
Offline
User avatar

Joined: Sun Dec 03, 2006 5:36 pm
Posts: 2147
Location: About 50 miles away from the Gulf of Mexico ( traveling W is you do so :)
What a feast of details at such scale! :thumbs_up_1: :thumbs_up_1:






Jose :wave_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:02 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
Thom wrote:
Wow, that is a lot of brass! It's looking great and well worth the effort.

Thanks, Thom!

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:04 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
Silenoz wrote:
Wow, is this an aftermarket set?

Pretty impressive build of the pagoda-bridge...


Thanks!
This PE set is still under construction, will be on sell though. :big_grin:

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:22 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
pascalemod wrote:
What the hell, this is amazing.

Are you building the lower hull from scratch? Can you post more information about what we are seeing and what the plan is?

It looks amazing.


It‘s built from Fujimi's new kit. Sorry for letting you misunderstand. I placed it beside KAJIKA‘s 1/700 KONGO(I have to make a scratch for it) for comparison. The Kongo Class battleships have the same characteristic in strakers so they are extreamly alike. (KAJIKA‘s Kongo is highly accurate in strakers)

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:24 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
Dan K wrote:
Stunning work, yet again.

Thanks DAN K!

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:26 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
marijn van gils wrote:
Good to see you on your next project!
And again it looks like it will be superbly detailed! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:


Thanks!I‘am trying my best on it, best for so far :big_grin:

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 10, 2018 11:59 pm
Offline
User avatar

Joined: Wed Aug 07, 2013 12:53 am
Posts: 74
Location: Newyork
J. Soca wrote:
What a feast of details at such scale! :thumbs_up_1: :thumbs_up_1:






Jose :wave_1:

Thanks Jose!

And, some new progress!

According to the fitting plan of battleship Kongo 1944 and battleship Haruna 1934 there are two pairs of rollers beside the anti-wind anchors. For which I made these rollers on my Hiei considering that all Kongo Class battleships have these settings, no direct evidence though for the lost of Hiei‘s fitting plan and no clear photo.

rollers for paravane

I heat the frame of the kit making it thin lines to make these eaves above scuttles.

secondary guns


_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 11, 2018 12:25 am
Offline

Joined: Sat Jan 24, 2009 5:16 pm
Posts: 734
Location: Wisconsin
All I can say is wow!


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 11, 2018 4:22 am
Offline
User avatar

Joined: Sat Jul 30, 2016 5:33 pm
Posts: 1164
Aphres wrote:
pascalemod wrote:
What the hell, this is amazing.

Are you building the lower hull from scratch? Can you post more information about what we are seeing and what the plan is?

It looks amazing.


It‘s built from Fujimi's new kit. Sorry for letting you misunderstand. I placed it beside KAJIKA‘s 1/700 KONGO(I have to make a scratch for it) for comparison. The Kongo Class battleships have the same characteristic in strakers so they are extreamly alike. (KAJIKA‘s Kongo is highly accurate in strakers)


Are you building a lower hull for the Kajika Kongo ca 1914? I am very interested to know how you did this. Do you have plans for the lower hull? Id like to try the same and build Kongo in original shape.

_________________
It's never too late for a great childhood!


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 11, 2018 1:04 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7421
Location: New York City
Do you have plans for the lower hull? Id like to try the same and build Kongo in original shape.

You could use the lower hull from one of the Fujimi kits and just cut down the very stern.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 12, 2018 1:18 am
Offline
User avatar

Joined: Sat Jul 30, 2016 5:33 pm
Posts: 1164
Dan K wrote:
Do you have plans for the lower hull? Id like to try the same and build Kongo in original shape.

You could use the lower hull from one of the Fujimi kits and just cut down the very stern.


Blisters though? I dont think they are comparable, as ship had added blisters and lengthened stern. Or?

_________________
It's never too late for a great childhood!


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 12, 2018 12:48 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7421
Location: New York City
Quote:
Blisters though? I don't think they are comparable, as ship had added blisters and lengthened stern. Or?


:doh_1: You are absolutely correct. I don't know what I was thinking. Reducing the blister on the hull will take some work and scratch-building. I do think it can be done. Reducing the stern is much easier, IMHO.


Attachments:
Kongo class, Gakken, Hiei blister on left.jpg
Kongo class, Gakken, Hiei blister on left.jpg [ 333.8 KiB | Viewed 1137 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 12, 2018 1:32 pm
Offline
User avatar

Joined: Sat Jul 30, 2016 5:33 pm
Posts: 1164
Dan K wrote:
Quote:
Blisters though? I don't think they are comparable, as ship had added blisters and lengthened stern. Or?


:doh_1: You are absolutely correct. I don't know what I was thinking. Reducing the blister on the hull will take some work and scratch-building. I do think it can be done. Reducing the stern is much easier, IMHO.


Here is what I found on the internets on forums where my Google translator is completely failing. :)


Attachments:

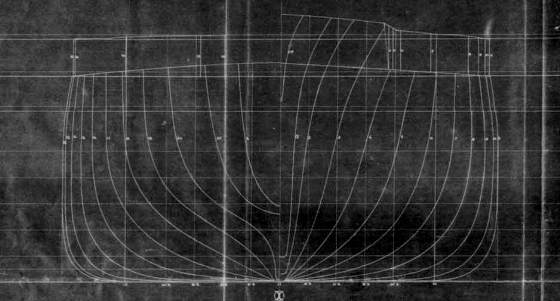

HARUNA 1916 - 2.jpg
HARUNA 1916 - 2.jpg [ 230.22 KiB | Viewed 1133 times ]

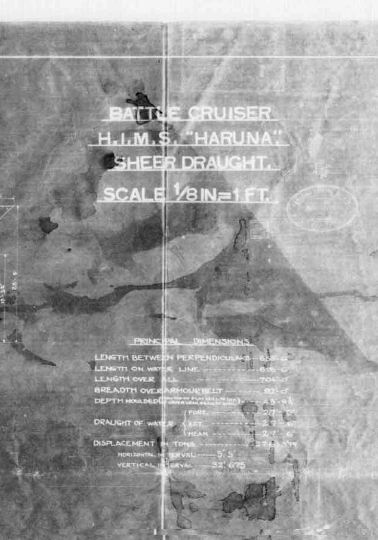

Haruna19161.jpg [ 121.85 KiB | Viewed 1133 times ]

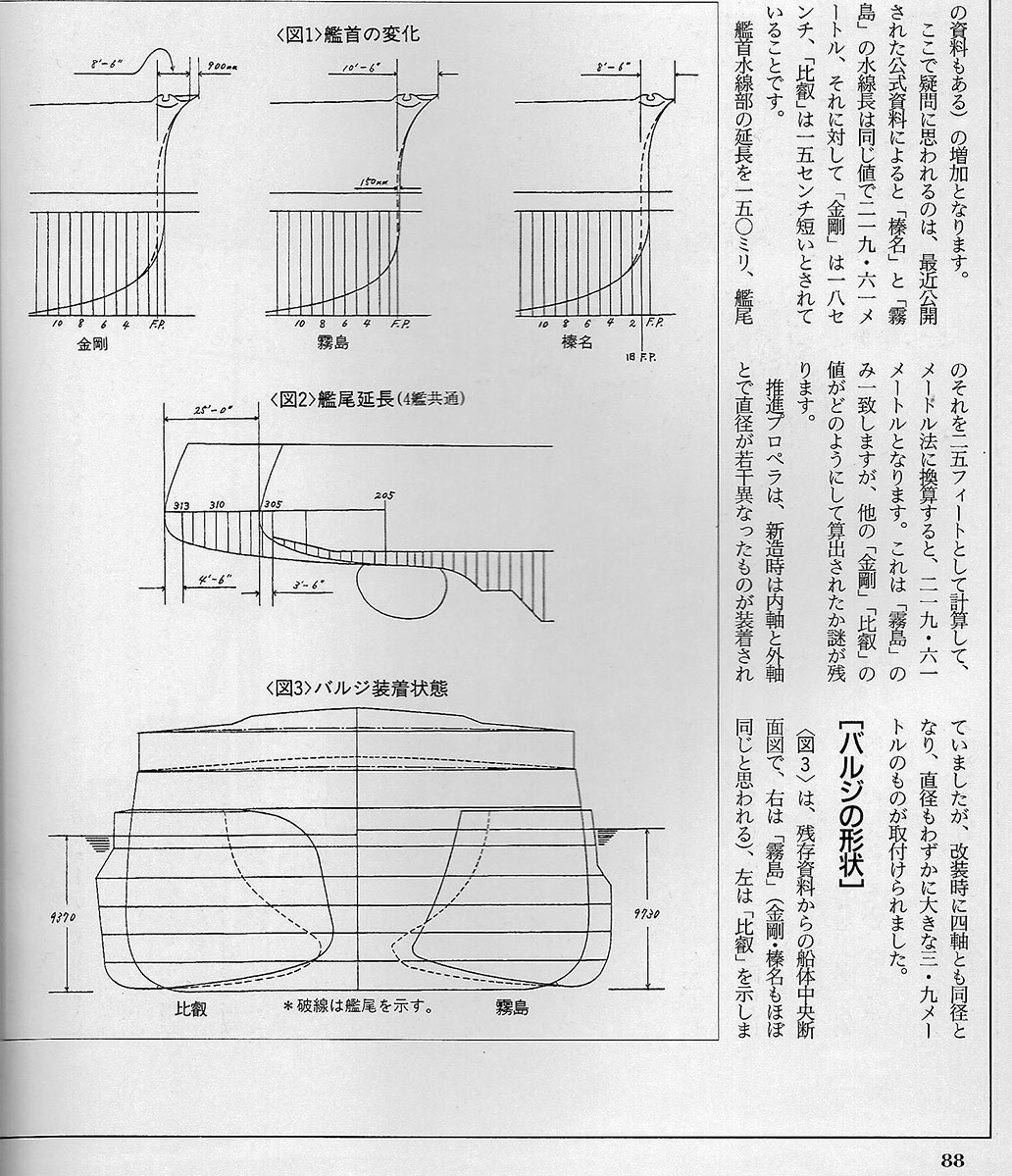

HARUNA 1916 - 3.jpg
HARUNA 1916 - 3.jpg [ 140.56 KiB | Viewed 1133 times ]

_________________
It's never too late for a great childhood!
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 12, 2018 5:03 pm
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 2694
pascalemod, what I did on my Arizona kitbash viewtopic.php?f=59&t=165105 to make a Tennessee pre-upgrade was to cut the bulge out 1 at a time leaving a wide hole, trimmed the hole so both ends were square, put a backer strip across the top of the backside of the hole for a .040"(1mm) plastic plate to fill the hole. did the starboard side 1st using 3 shorter plates but did the portside using just 1 plate. waited a day or so before carving, scrapping & sanded to shape.


Report this post
Top
 Profile
