Hello together
Since I'm taking part in the competition, I thought to myself, show my construction of my Bismarck model from the Trumpeter brand in the scale 1:200.
The Pontos Detail Up Set “Advanced” is used for optimal detailing of the model. Various Veteran Models sets and all sorts of other aftermarket accessories do the rest.
Not to mention a bunch of styrene profiles for scratch building and the famous leftovers box.
I’m trying to create a model that shows the period from April 1941 to about 80% historically correct.

I worked on the model for almost two and a half years and it was finished in October last year.
I ended up here with you through a friend and will enter some pictures of the construction here during the days.

This is the start

Attachment:
IMG_20201028_135602776.jpg [ 1.08 MiB | Viewed 484 times ]


With the Pontos etched parts set, you have the best prerequisites for raising the level of detail.

Attachment:
IMG_20201214_172405155.jpg [ 947.95 KiB | Viewed 484 times ]

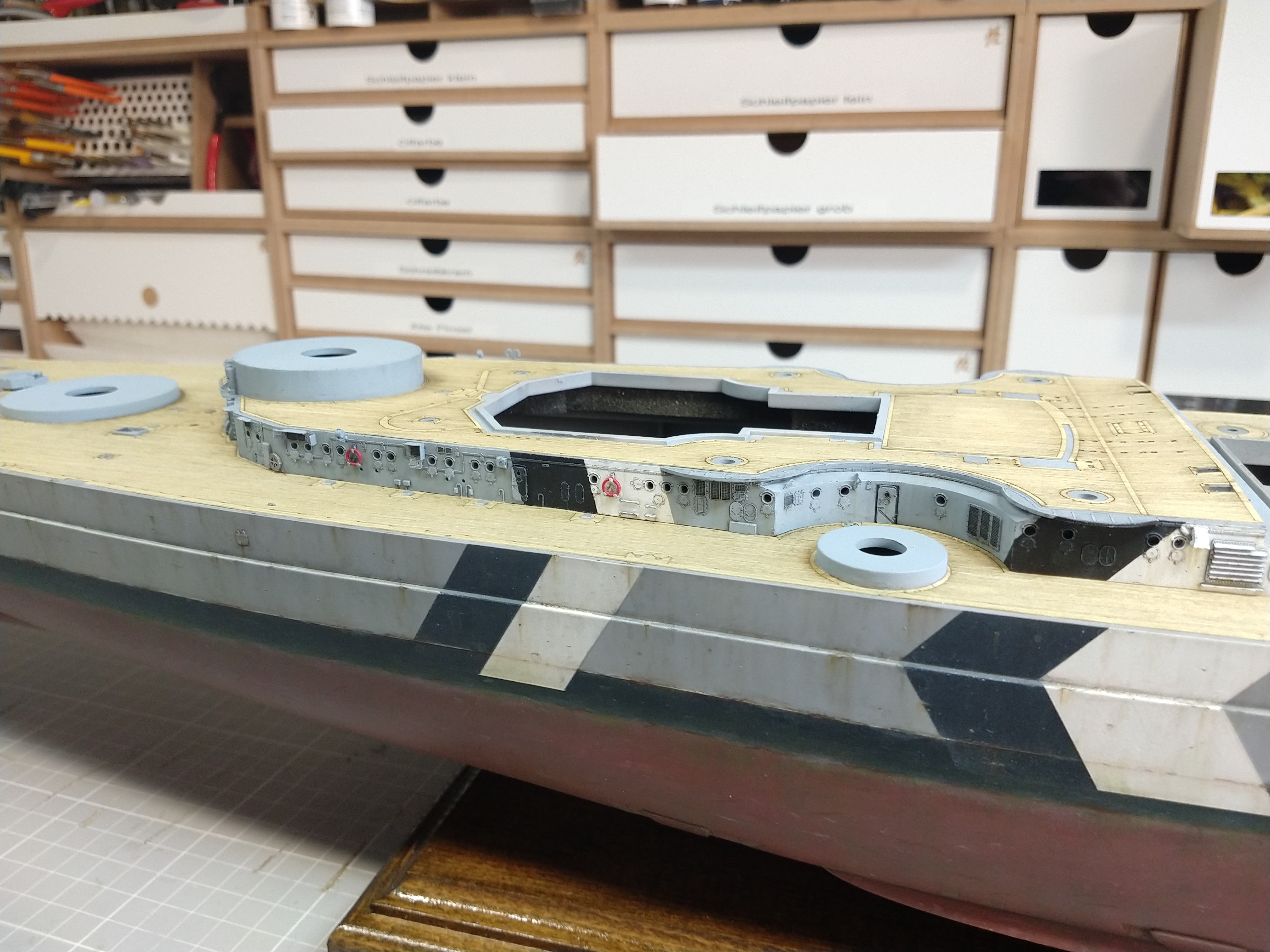

Next came the wooden deck on the hull and the ID markings could be painted.
Note the double bar chains. Many ship models use regular link chains, which is incorrect.

Attachment:
IMG_20210211_172835620_HDR.jpg [ 1.23 MiB | Viewed 484 times ]

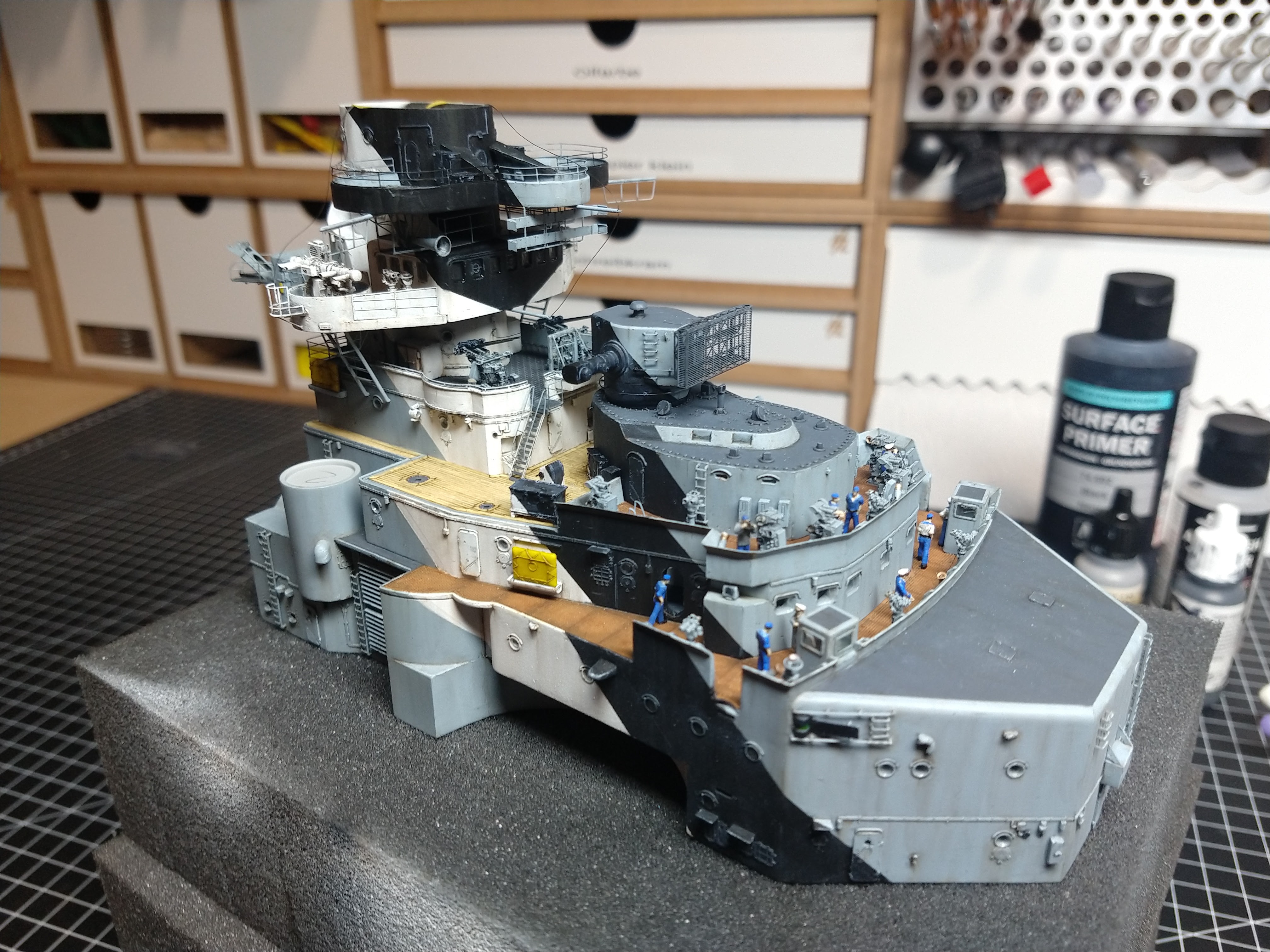

The first superstructures received their Baltic camouflage scheme and could be glued to the deck.

Attachment:
IMG_20210306_134837154.jpg [ 1.27 MiB | Viewed 484 times ]


The front superstructures got their fans.

Attachment:
IMG_20210401_172218978_HDR.jpg [ 889.12 KiB | Viewed 484 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jan 11, 2023 8:31 am
Offline

Joined: Sun Jun 26, 2022 12:20 pm
Posts: 77
Nice work on the detailing. This scale would suit my eyesight nicely but I've only got room for 1/700 scale models.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jan 11, 2023 12:06 pm
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Many thanks Donald.
I also have to slowly see where I leave the huge pots.

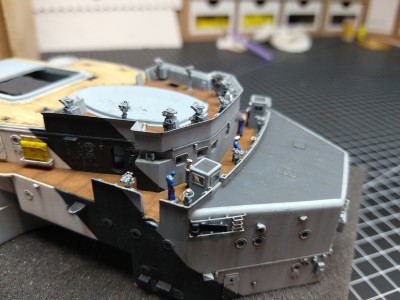

The next floor has been improved with styrene profiles.

Attachment:
IMG_20210429_154121986.jpg [ 1012.65 KiB | Viewed 372 times ]


Next up was the bridge. Out of the box she is almost naked. Here you can really score with the Styrene profiles.

Attachment:
IMG_20210515_180558298_HDR.jpg [ 924.16 KiB | Viewed 372 times ]


The lines were made with 0.2 mm lead wire.

Attachment:
IMG_20210607_185440360.jpg [ 1.48 MiB | Viewed 372 times ]


Finally, the fire control units from veteran models, and I like the bridge.

Attachment:
IMG_20210613_191048594.jpg [ 1.6 MiB | Viewed 372 times ]


The wobbly pots also got an update

Attachment:
IMG_20210530_171826313.jpg [ 1.68 MiB | Viewed 372 times ]


The next floor.

Attachment:
IMG_20210509_095251037.jpg [ 1.45 MiB | Viewed 372 times ]

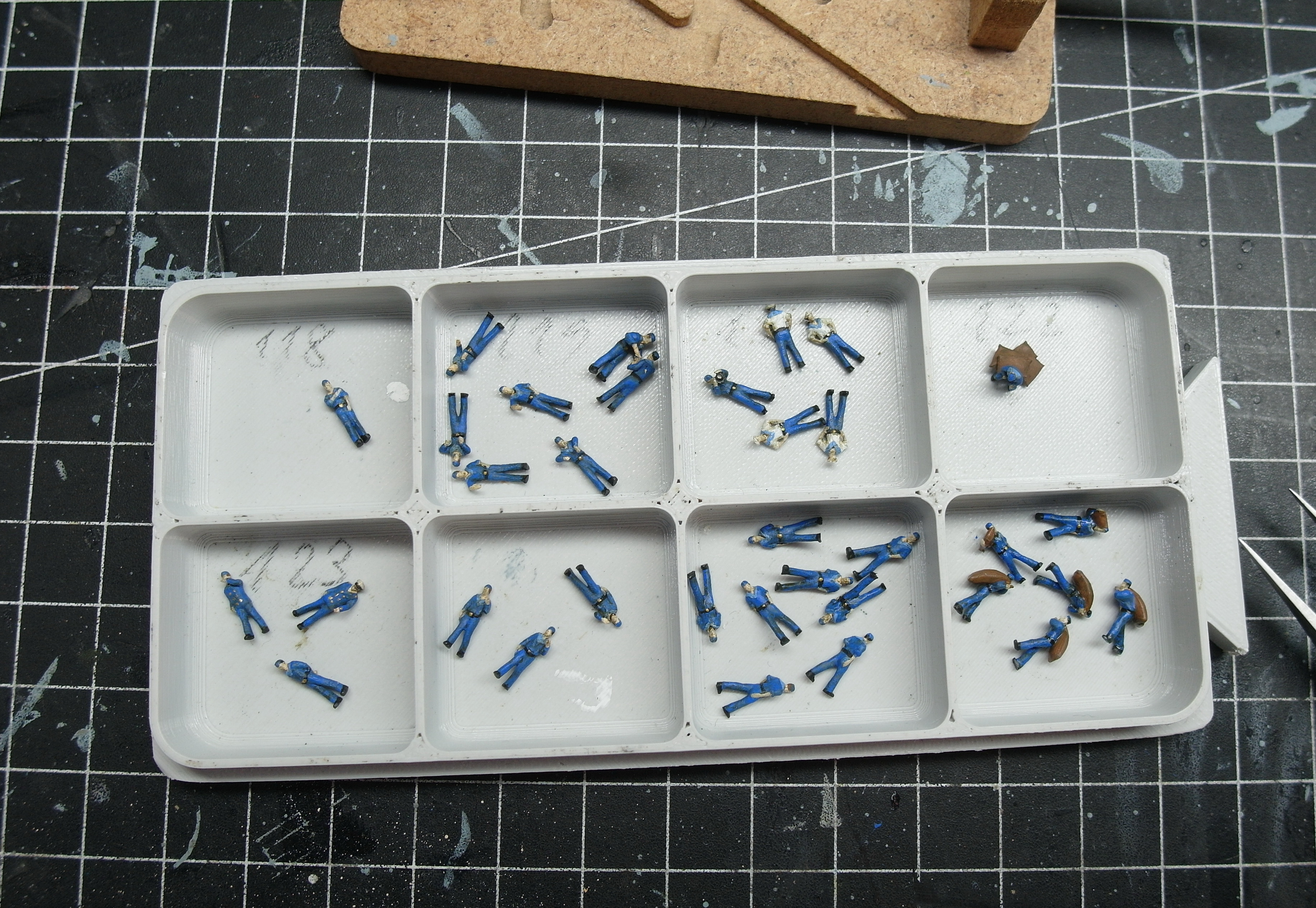

Now the first sailors came on board. the guys are from northstar models

Attachment:
IMG_20210615_142220190.jpg [ 2.22 MiB | Viewed 372 times ]


And so the bridge can also be installed.

Attachment:
IMG_20210615_170522167.jpg [ 1.17 MiB | Viewed 372 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 9:26 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16

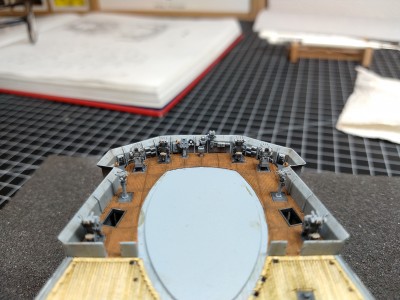

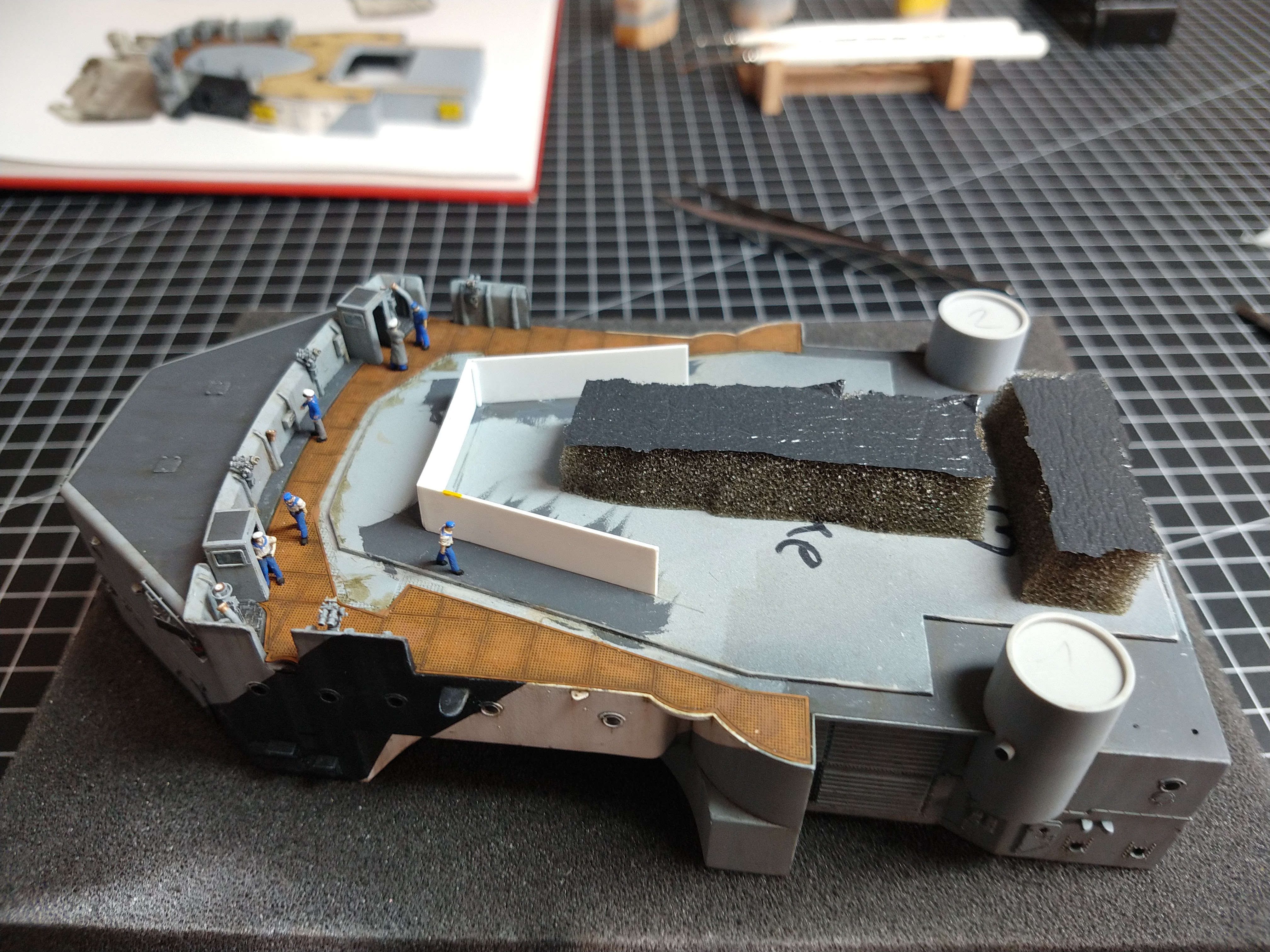

Let's continue with the next little floor.

Attachment:
IMG_20210603_100304507.jpg [ 1.19 MiB | Viewed 333 times ]

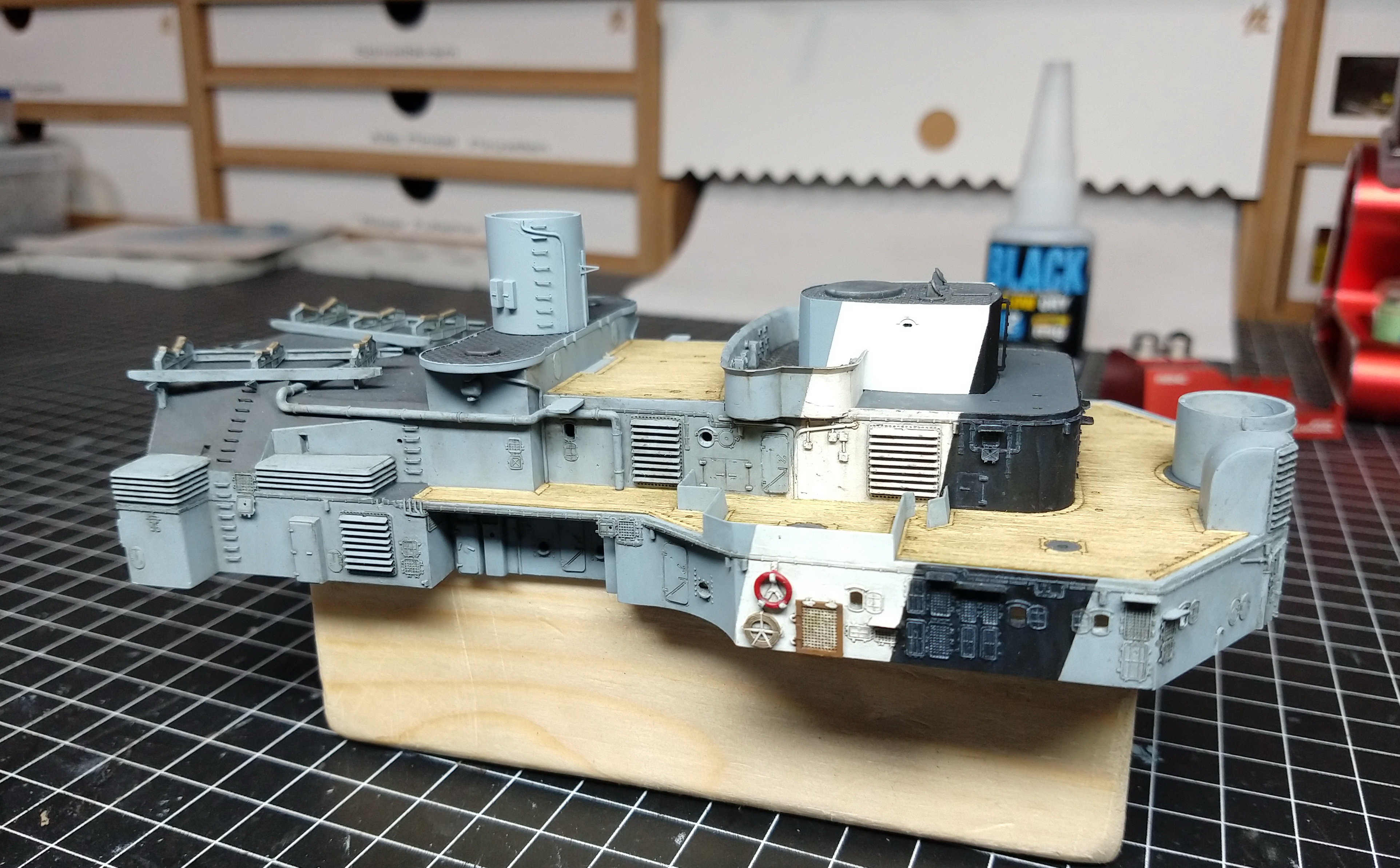

It goes further up. Here, too, the kit is upgraded with styrene.

Attachment:
IMG_20210615_171352983.jpg [ 1.55 MiB | Viewed 333 times ]

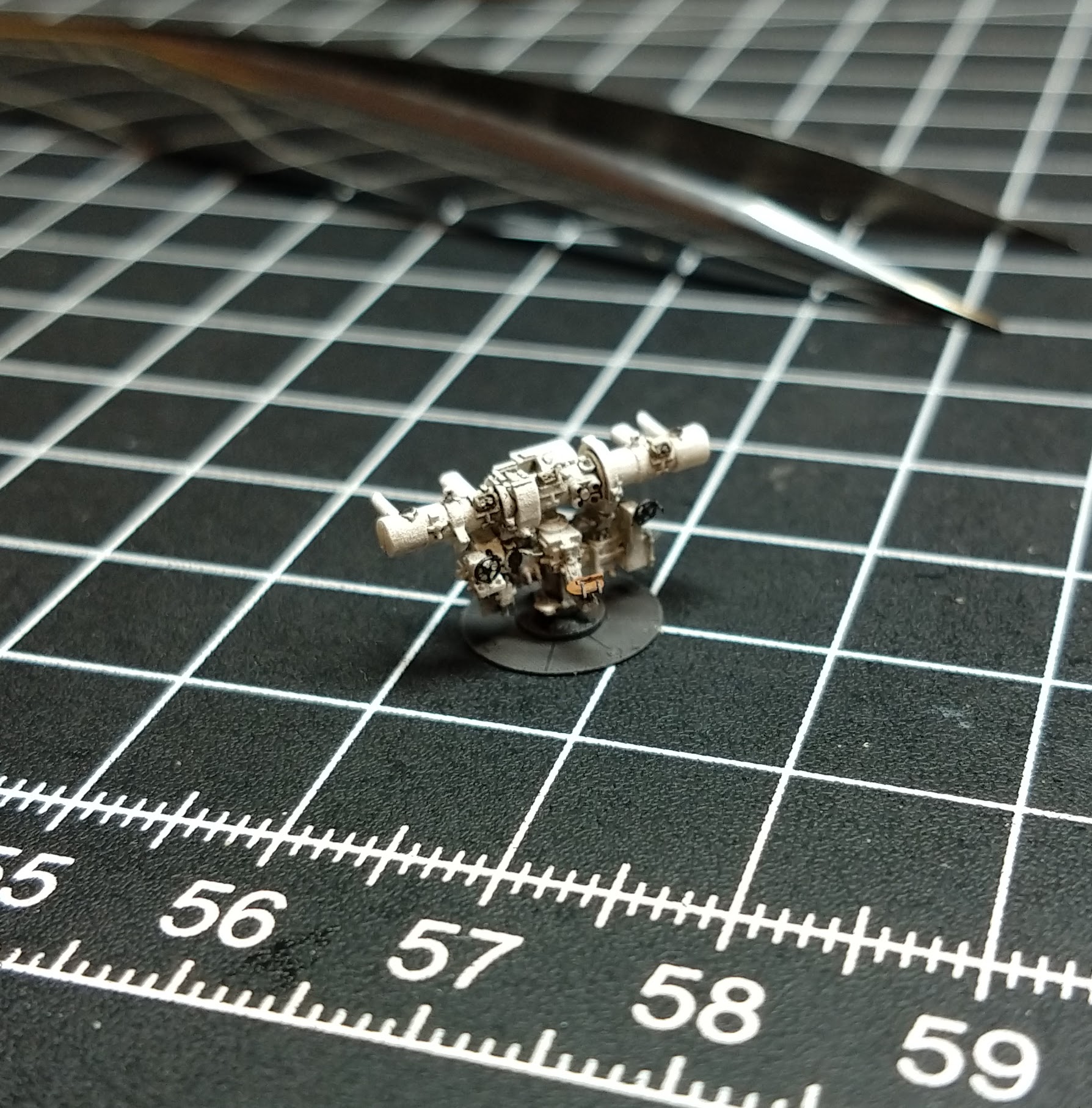

Veteran’s 37mm Flak is amazing.

Attachment:
16.jpg [ 731.45 KiB | Viewed 333 times ]


Likewise the range finder.

Attachment:
15.jpg [ 531.06 KiB | Viewed 333 times ]

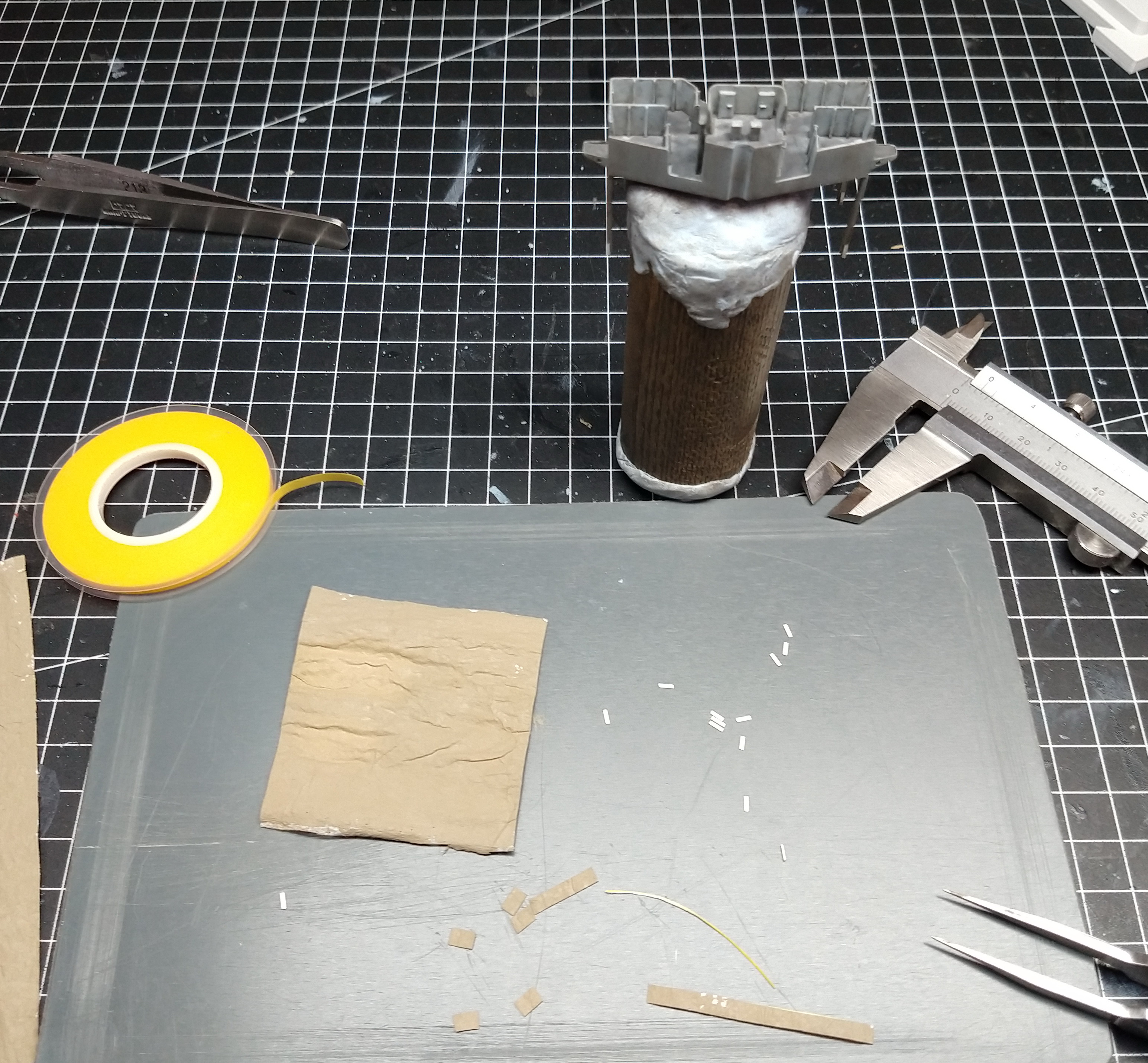

Next, I’ll show you something I made myself. I made tarpaulins out of paper and diluted wood glue

Attachment:
14.jpg [ 1.41 MiB | Viewed 333 times ]


These were used to protect the companionways from rain.

Attachment:
13.jpg [ 439.05 KiB | Viewed 333 times ]


Next came the transom skylights. Again, the richness of detail of Pontos is fantastic.
The Waterbombs make with styren.

Attachment:
11.jpg [ 1.67 MiB | Viewed 333 times ]


Here is a picture of the gangway in place with the brackets scratched.

Attachment:
pe5.jpg [ 486.43 KiB | Viewed 333 times ]


The admiralty bridge with the built-in anti-aircraft guns from Veteran.

Attachment:
8.jpg [ 1.59 MiB | Viewed 333 times ]


It grows upwards.

Attachment:
7.jpg [ 1.73 MiB | Viewed 333 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 9:39 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16

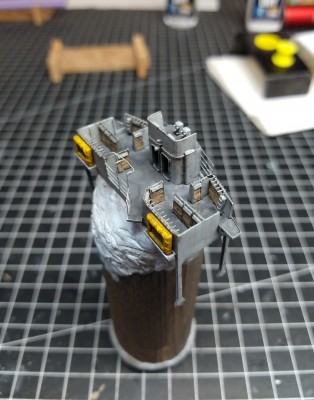

Next up is the funnel. This one also needs some upgrades.

Attachment:
IMG_20210831_055242134.jpg [ 1.09 MiB | Viewed 329 times ]


The usual, styrene, lead wire and Pontos.

Attachment:
9.jpg [ 1.17 MiB | Viewed 329 times ]


Pontos is the crowning glory.

Attachment:
IMG_20210911_154725102.jpg [ 416.1 KiB | Viewed 329 times ]


And the going to the coronation.

Attachment:
IMG_20210913_192351522.jpg [ 1.1 MiB | Viewed 329 times ]

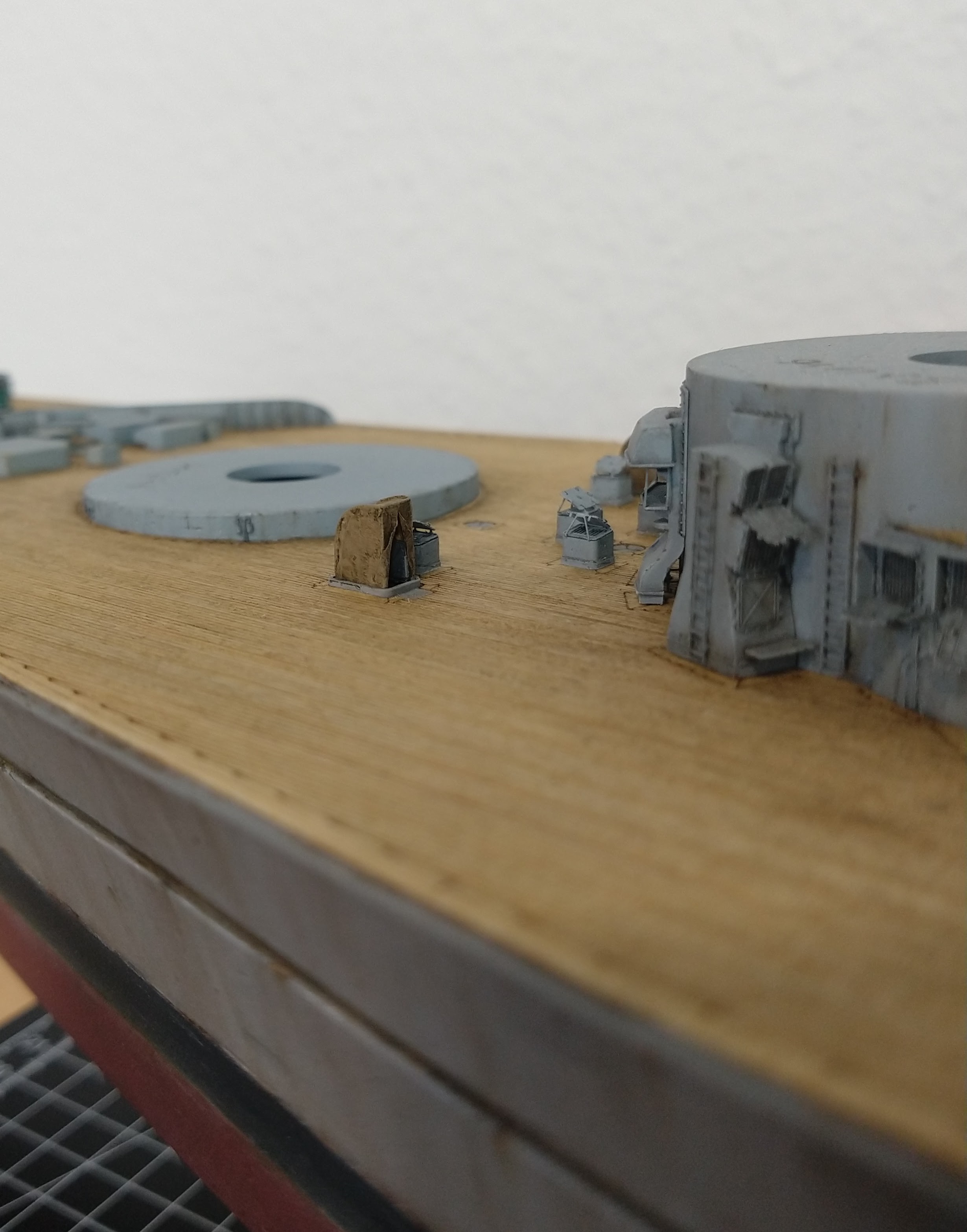

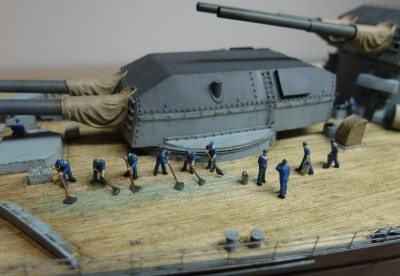

Let’s move on to the final details on the hull. I always do this quite late to protect them from damage for as long as possible.

Attachment:
10.jpg [ 1.34 MiB | Viewed 329 times ]


Then it goes far to the hangars and the dinghies.

Attachment:
4.jpg [ 1.29 MiB | Viewed 329 times ]

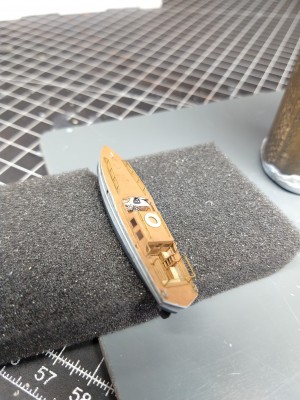

The Admiralty Boat is another of Pontos’ jewels. And a little upgraded by me.

Attachment:
3.jpg [ 1.82 MiB | Viewed 329 times ]


Scratched the gangway to the hangar and it can be installed.

Attachment:
pe1.jpg [ 1.8 MiB | Viewed 329 times ]


Set the foremast

Attachment:
6.jpg [ 1.14 MiB | Viewed 329 times ]

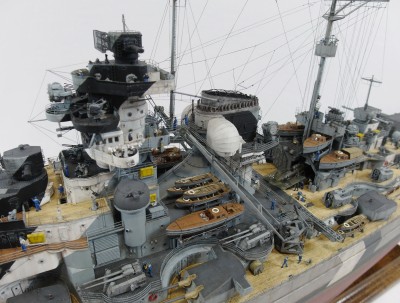

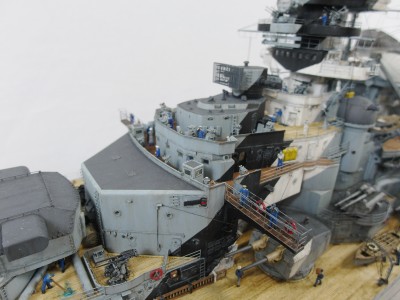

The tower is also equipped with everything and can be locked.

Attachment:
5.jpg [ 1.24 MiB | Viewed 329 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 10:12 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Let’s go to the rear deckhouse.

Attachment:
17df.jpg [ 2.21 MiB | Viewed 324 times ]

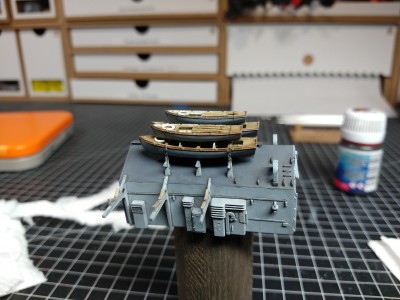

First the base of the main mast was set and the traffic boats in their mounts.
As you can see, I have shown the hangar open. A small scene should arise here.

Attachment:
SAM_2406.JPG [ 1.77 MiB | Viewed 324 times ]


Paper and wood glue are also used for the tarpaulins for the traffic boats.

Attachment:
IMG_20220511_164039279.jpg [ 2.53 MiB | Viewed 324 times ]


Next we pimped the signal platform. Again with paper and styrene.

Attachment:
IMG_20220427_110102990.jpg [ 2.28 MiB | Viewed 324 times ]


With this I imitate the covers of the signal flags.

Attachment:
IMG_20220428_115148480.jpg [ 2.24 MiB | Viewed 324 times ]


Still pulled the ropes for the flags.

Attachment:
rdtut.JPG [ 2.2 MiB | Viewed 324 times ]


Then all come togehter.

Attachment:
SAM_2458.JPG [ 2.28 MiB | Viewed 324 times ]


This allows the deckhouse to be installed and the main mast to be continued.

Attachment:
SAM_2475.JPG [ 2.44 MiB | Viewed 324 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 10:47 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16

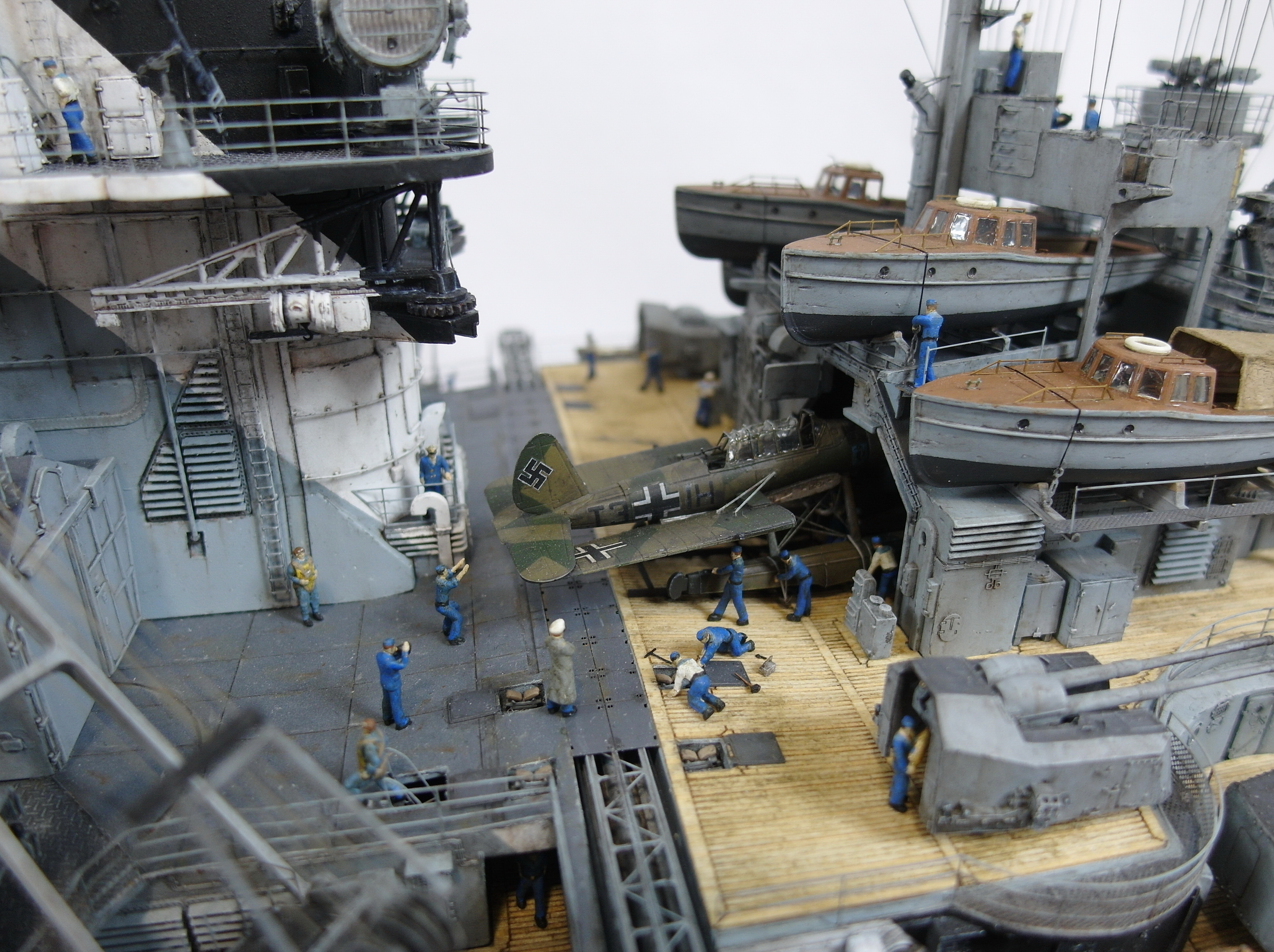

Let’s get to the protagonist for the small scene in front of the hangar.

Attachment:
IMG_20220601_212111662.jpg [ 1.79 MiB | Viewed 320 times ]

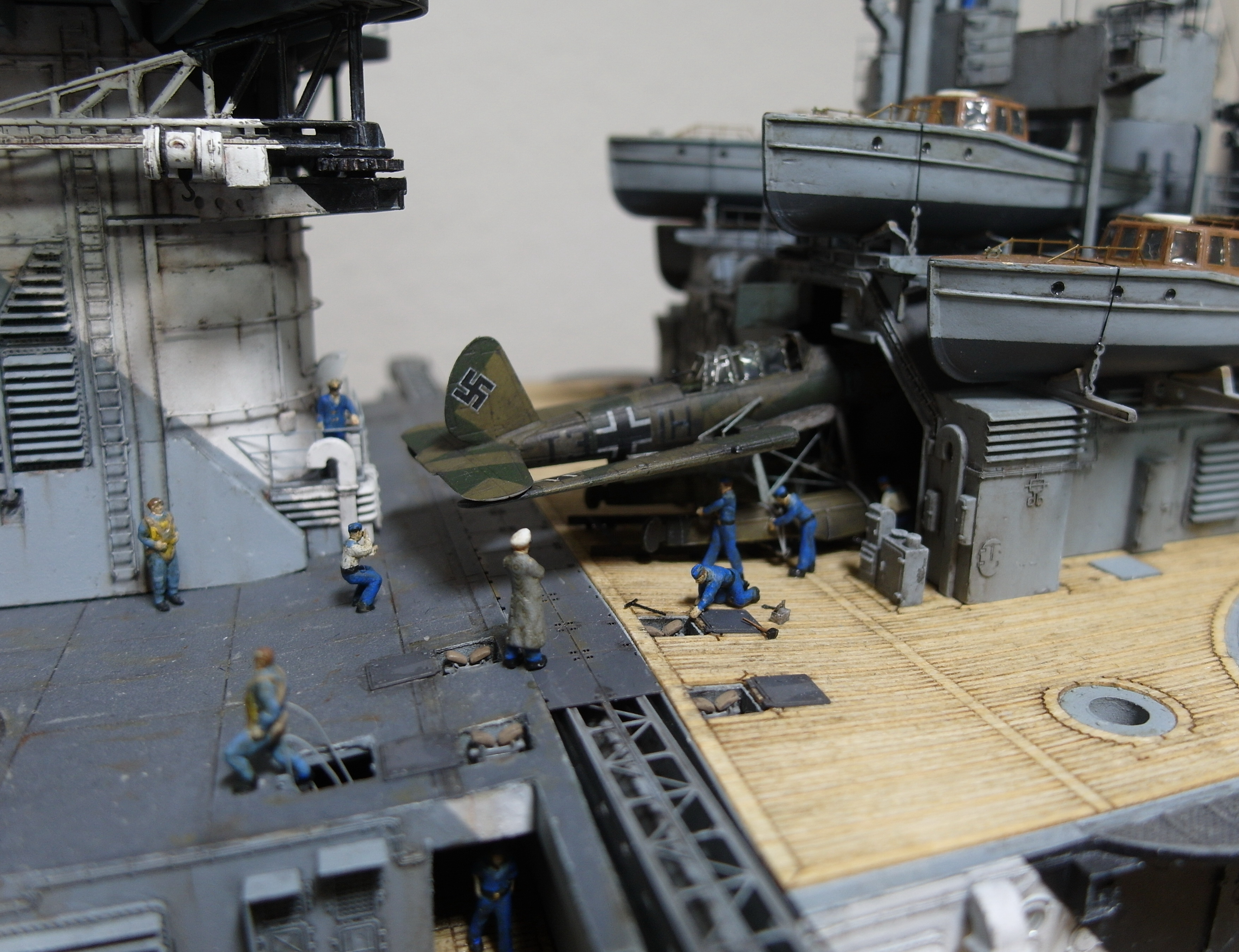

The team pushes the Arado out of the hanger on the rail system. The hydraulic jacks are adjusted again with a hammer and crowbar.

Attachment:
SAM_2522.JPG [ 2.17 MiB | Viewed 320 times ]


And off you go to the bridge nock.

Attachment:
SAM_2536.JPG [ 2.31 MiB | Viewed 320 times ]


It’s amazing how many parts Pontos makes that out of. You can hardly get any closer to the original

Attachment:
SAM_2553.JPG [ 2.33 MiB | Viewed 320 times ]


When installing the bridge wing, I still had to make corrections because Pontos had forgotten something here. This sheet metal was used to close the created bridge wing.
And when it was extended, like here with me, it naturally prevented the sailors from falling off.

Attachment:
SAM_2583.JPG [ 2.56 MiB | Viewed 320 times ]


Of course, the middle artillery should not be missing either.

Attachment:
SAM_2577.JPG [ 2.54 MiB | Viewed 320 times ]


Let’s also come to the rigging.

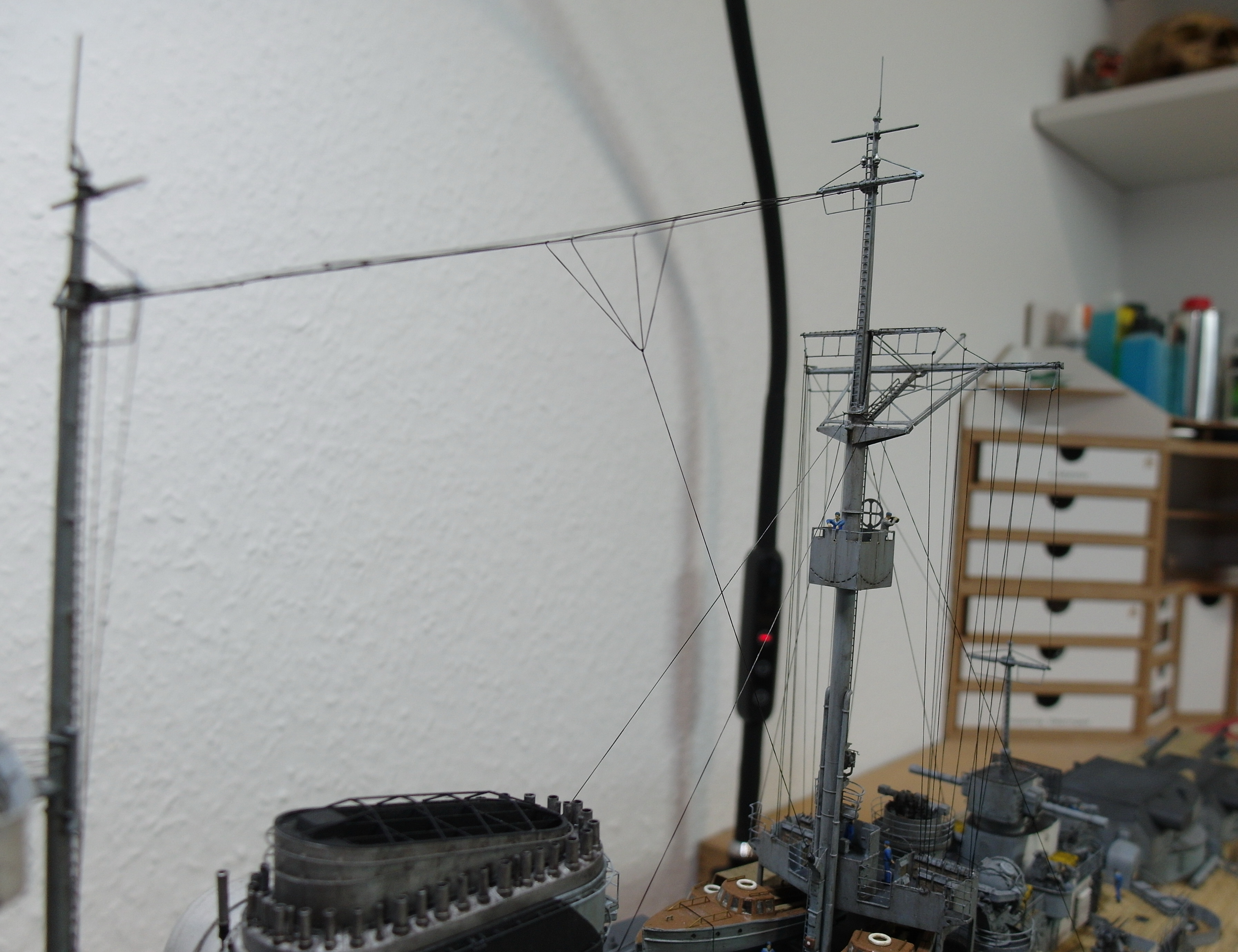

First I built a device to run the longwave antennas parallel between the triangles.
This way you can get the same tension on both sides.

Attachment:
SAM_2668.JPG [ 2.47 MiB | Viewed 320 times ]


And the first threads are already hanging. Also to the funnel.

Attachment:
SAM_2679.JPG [ 2.31 MiB | Viewed 320 times ]


Now came a point that got on my nerves. Four cables each led from the two double-stranded long-wave antennas, which narrowed into one towards the mast.

Attachment:
SAM_2688.JPG [ 1.9 MiB | Viewed 320 times ]


Now the rest of the rigging can follow.

Attachment:
pe6.JPG [ 2.52 MiB | Viewed 320 times ]

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 11:01 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
The crane body is already finished and there are still endless components.

Attachment:
SAM_2757.JPG [ 3.03 MiB | Viewed 319 times ]


But that also went together. A lamp scratched and he can get on the deck. Fits perfectly in the mount on the tower.

Attachment:
SAM_2790.JPG [ 2.76 MiB | Viewed 319 times ]


Since I am building the ship as it
was equipped in April 1941, there are still dinghies and row yawls on deck.

Attachment:
pe3.JPG [ 2.6 MiB | Viewed 319 times ]


The last yawls in the davits have come on deck. A PE set of a destroyer in 1/350 had to be used for the rope drums.

Attachment:
pe4.JPG [ 2.41 MiB | Viewed 319 times ]


Let’s breathe life into the model.

Attachment:
SAM_3007.JPG [ 2.83 MiB | Viewed 319 times ]


Northstar’s characters are fantastic. But it takes a lot of time to paint the 100 or so figures.

Attachment:
SAM_3333.JPG [ 2.08 MiB | Viewed 319 times ]


Attachment:
SAM_3320.JPG [ 2.17 MiB | Viewed 319 times ]


Attachment:
SAM_3348.JPG [ 2.1 MiB | Viewed 319 times ]


Attachment:
SAM_3327.JPG [ 2.54 MiB | Viewed 319 times ]


Attachments:
SAM_3311.JPG [ 2.1 MiB | Viewed 319 times ]

_________________
Greetings from Germany.
Jörg
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 11:09 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
That was it for the quick build report.

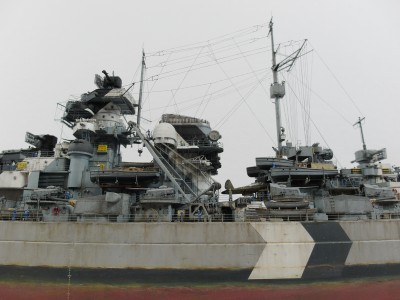

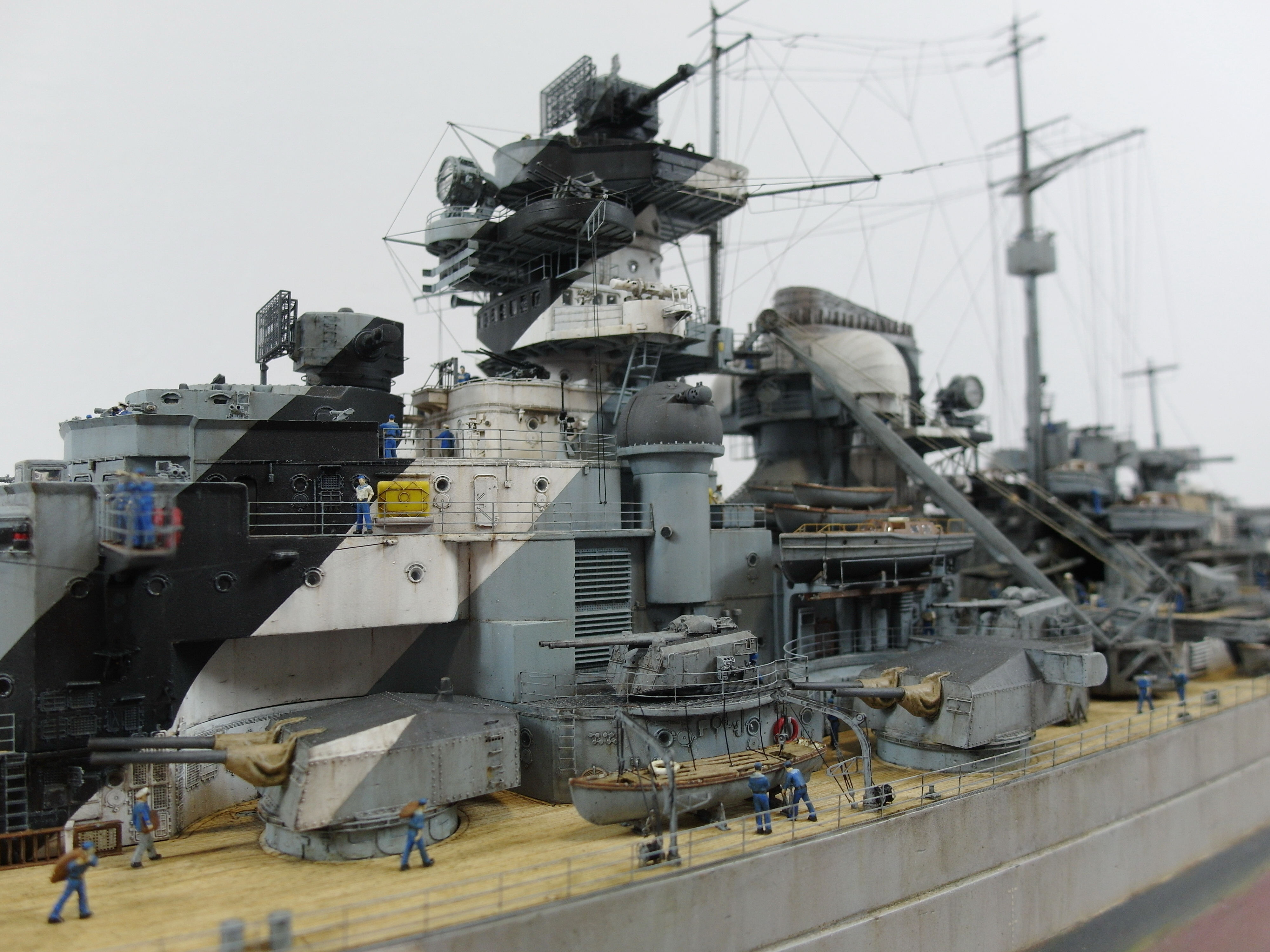

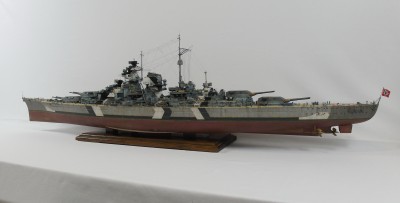

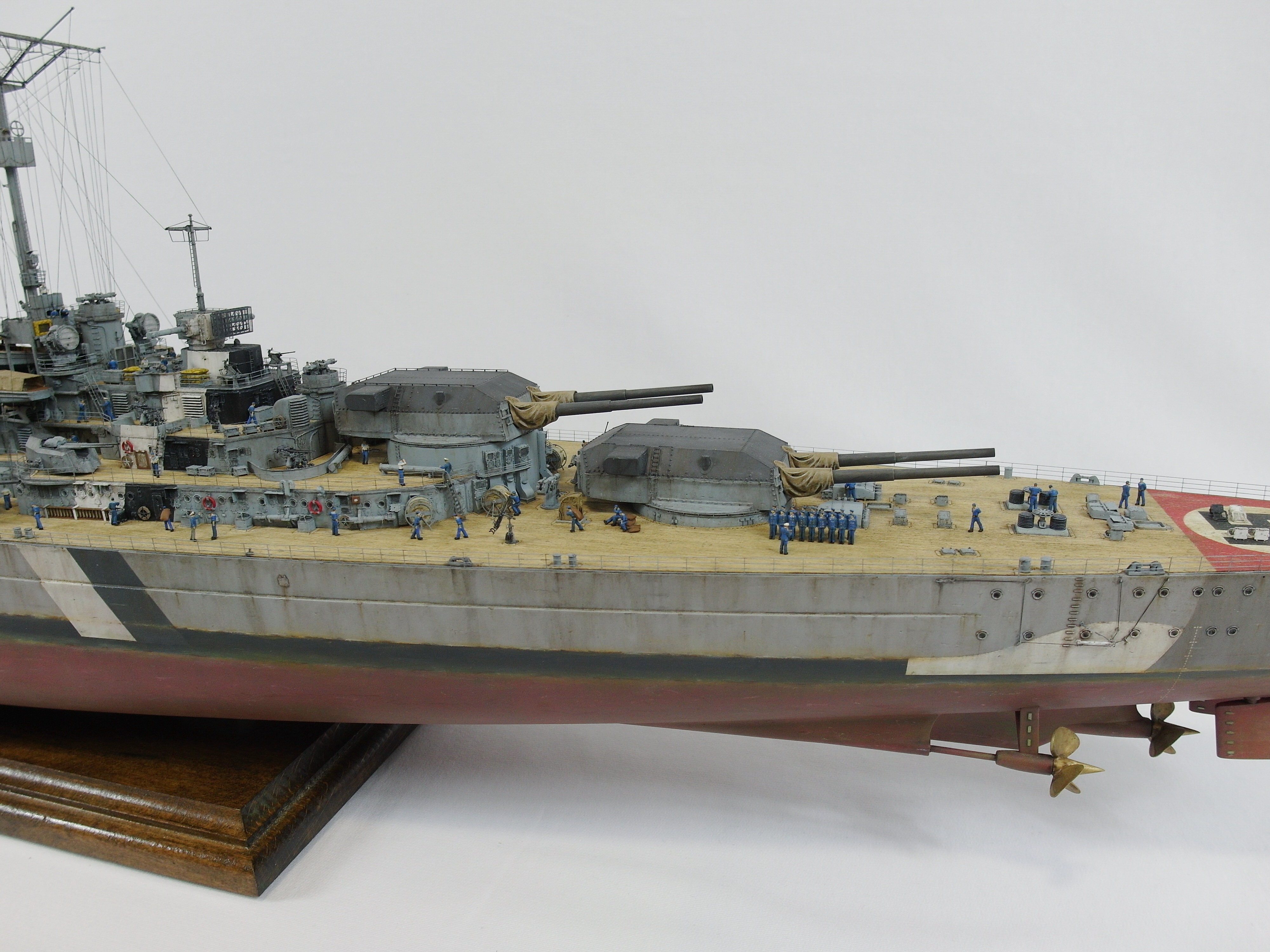

Now it only remains for me to wish you a lot of fun looking at the finished ship.


Attachments:
01.JPG [ 1.31 MiB | Viewed 319 times ]
01a.JPG [ 1.48 MiB | Viewed 319 times ]
01b.JPG [ 1.76 MiB | Viewed 319 times ]
01c.JPG [ 1.81 MiB | Viewed 319 times ]
01d.JPG [ 1.76 MiB | Viewed 319 times ]
1.JPG [ 2.57 MiB | Viewed 319 times ]
2.JPG [ 2.93 MiB | Viewed 319 times ]
3.JPG [ 3.03 MiB | Viewed 319 times ]
4.JPG [ 3.02 MiB | Viewed 319 times ]
7.JPG [ 2.58 MiB | Viewed 319 times ]

_________________
Greetings from Germany.
Jörg
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 11:18 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
And here are the rest of the pictures.


Attachments:
8.JPG [ 2.18 MiB | Viewed 318 times ]
9.JPG [ 2.45 MiB | Viewed 318 times ]
10.JPG [ 2.39 MiB | Viewed 318 times ]
11.JPG [ 2.66 MiB | Viewed 318 times ]
12.JPG [ 2.44 MiB | Viewed 318 times ]
14.JPG [ 2.65 MiB | Viewed 318 times ]
15.JPG [ 3.01 MiB | Viewed 318 times ]
16.JPG [ 3 MiB | Viewed 318 times ]
16a.JPG [ 2.79 MiB | Viewed 318 times ]
18.JPG [ 2.19 MiB | Viewed 318 times ]

_________________
Greetings from Germany.
Jörg
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 12, 2023 11:19 am
:thumbs_up_1: :thumbs_up_1: :thumbs_up_1:


Report this post
Top

Reply with quote
PostPosted: Fri Jan 13, 2023 6:58 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Danke Gregor.

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 13, 2023 8:25 am
Offline
User avatar

Joined: Sun Jul 03, 2011 5:10 pm
Posts: 189
Location: Windsor Junction NS
That's really well done! Over 100 crew on the upper decks! Wow!

_________________
ICBM Address: 44:78N 063:63W

Ex RCN, HMC Ships Gatineau, Athabaskan, Charlottetown, St. John's, Montreal, Charlottetown, Summerside, Montreal.


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 13, 2023 8:33 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Many Thanks.
Yes, I think you should distribute a lot of the guys otherwise it looks unrealistic. After all, the Bismarck had a crew of over 2000 men.

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 13, 2023 9:41 am
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
Top! :thumbs_up_1:

_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 13, 2023 1:41 pm
Offline

Joined: Sat Jul 30, 2016 5:33 pm
Posts: 1641
Location: Stockholm, Sweden
Damn impressive model, this. :thumbs_up_1:

_________________
- @Shipific on IG
my gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jan 14, 2023 4:56 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Thanks for the feedback, gentlemen.

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jan 14, 2023 10:12 am
Offline

Joined: Sat Jul 16, 2022 1:25 am
Posts: 16
Incredible level of detail :thumbs_up_1: . You must have a patience of a saint to be able to cope with that kind of stuff. Truly amazing stuff!

Bismarck is one of my favourites (I did a 1:600 model back in 70s), but after a 40 year break, I need to practise a bit before I can tackle it again.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 15, 2023 11:33 am
Offline
User avatar

Joined: Fri Aug 12, 2022 8:50 am
Posts: 16
Thank you Karih.
I think, learning by doing. :thumbs_up_1:

_________________
Greetings from Germany.
Jörg


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 15, 2023 2:40 pm
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5197
Location: Nr Southampton England
Ahoi Jörg

Very good--consistent modelmaking-the entire ship has an even amount of detail and quality

Bravo ! :thumbs_up_1:

Hut ab !

MFG

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 21 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 14 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
