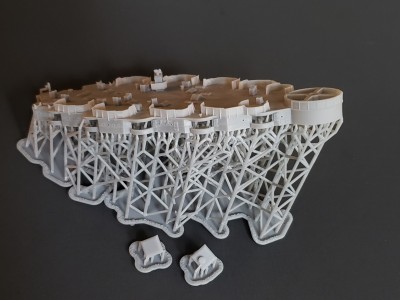

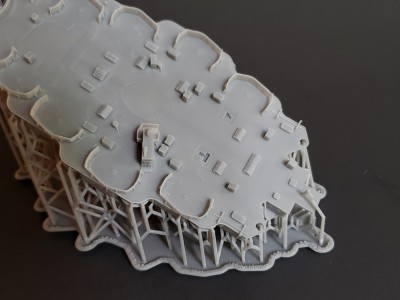

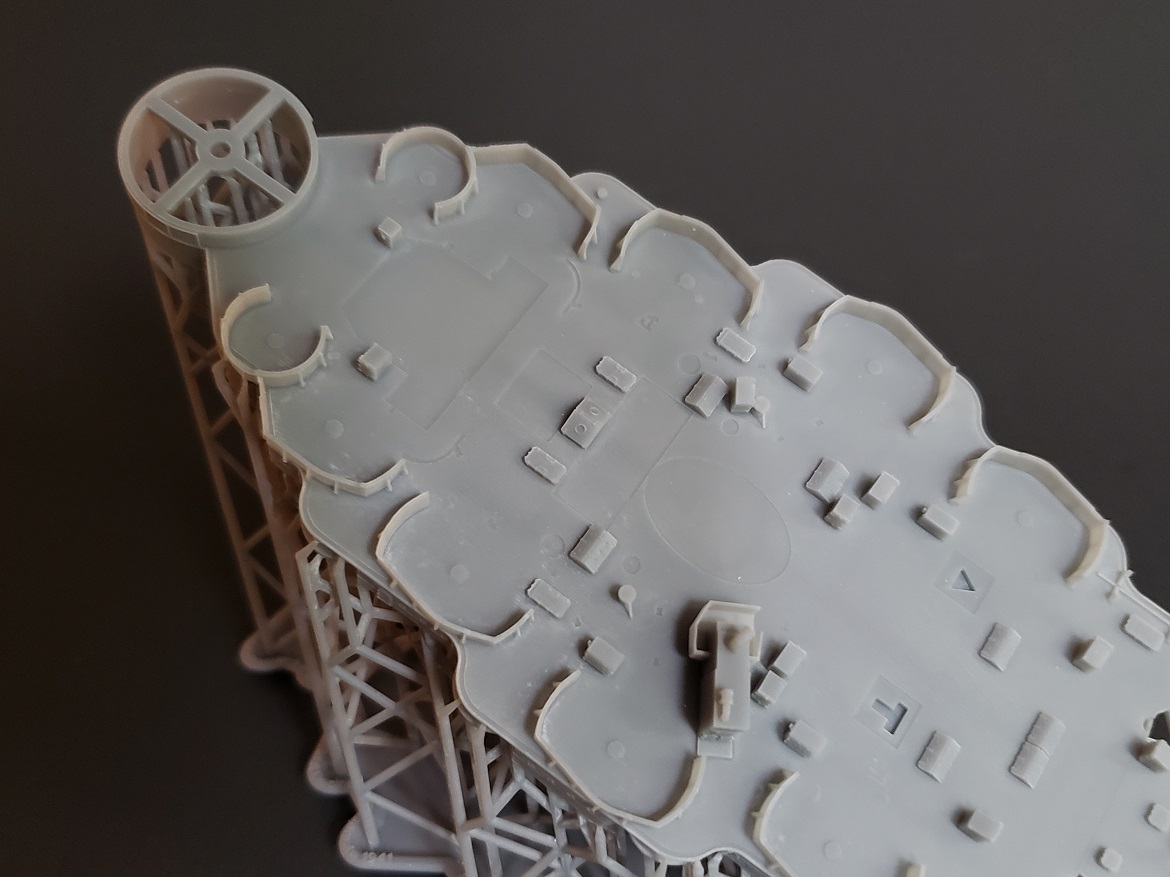

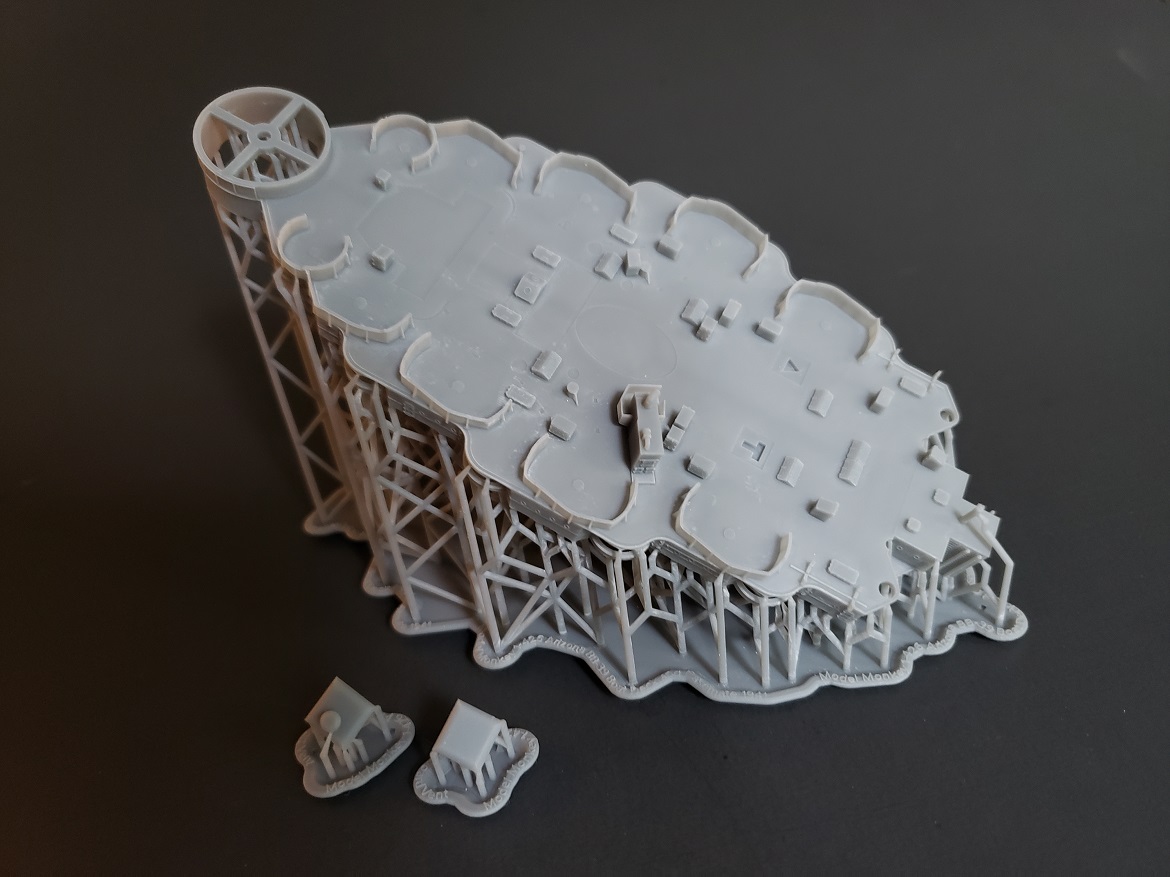

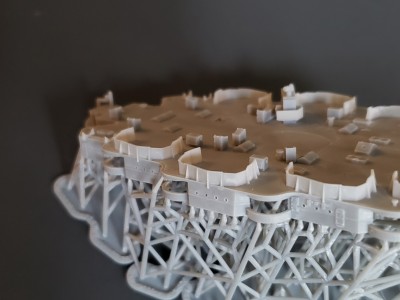

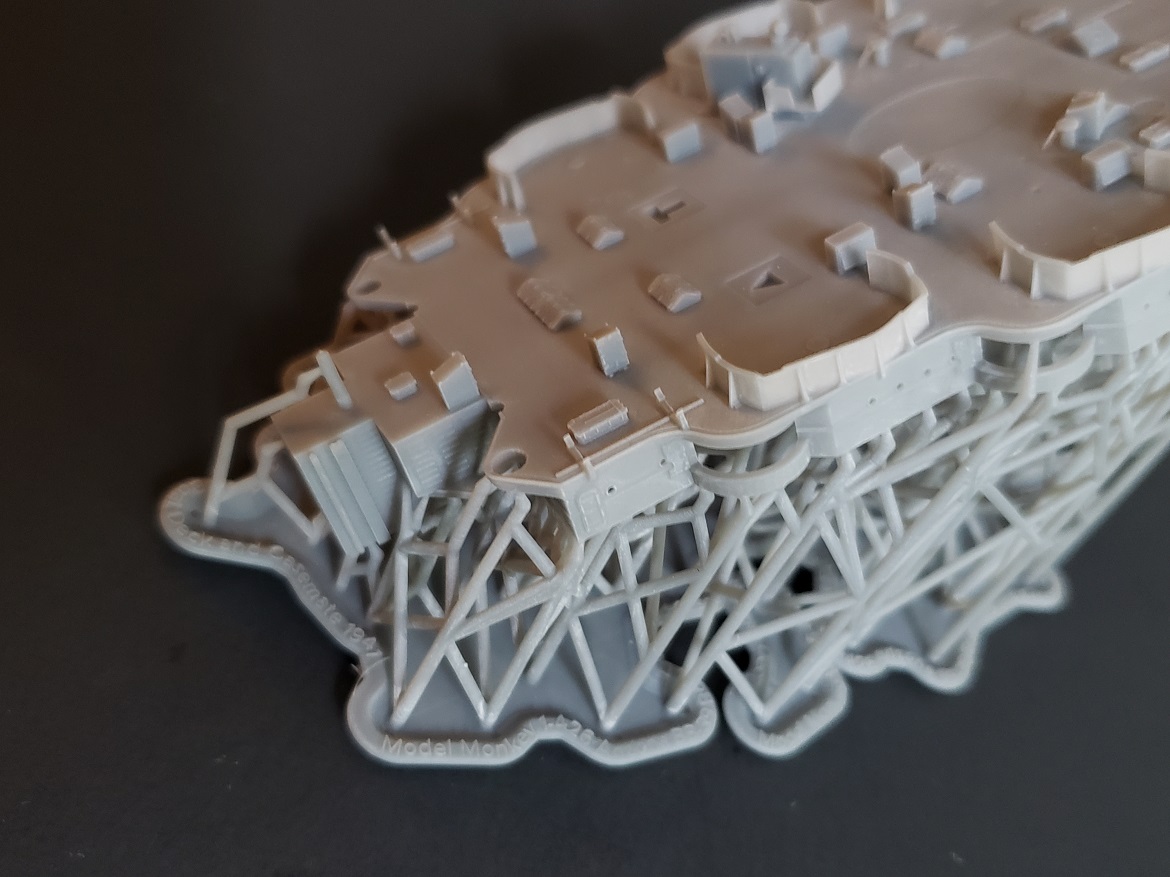

Classic Revell 1/426 scale USS Arizona BB-39 fans! Happy to announce a 1941 boat deck and casemate is now available in 1/426 scale (printed in precisely 1/429 scale to match the Revell kit's true scale).
Link: https://www.model-monkey.com/revell-scale-426

A superstructure, funnel, turrets, fire control director and more are available, too.



Have fun. Monkey around.™

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

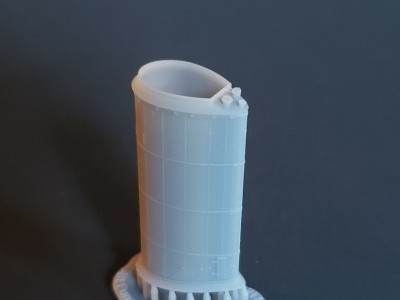

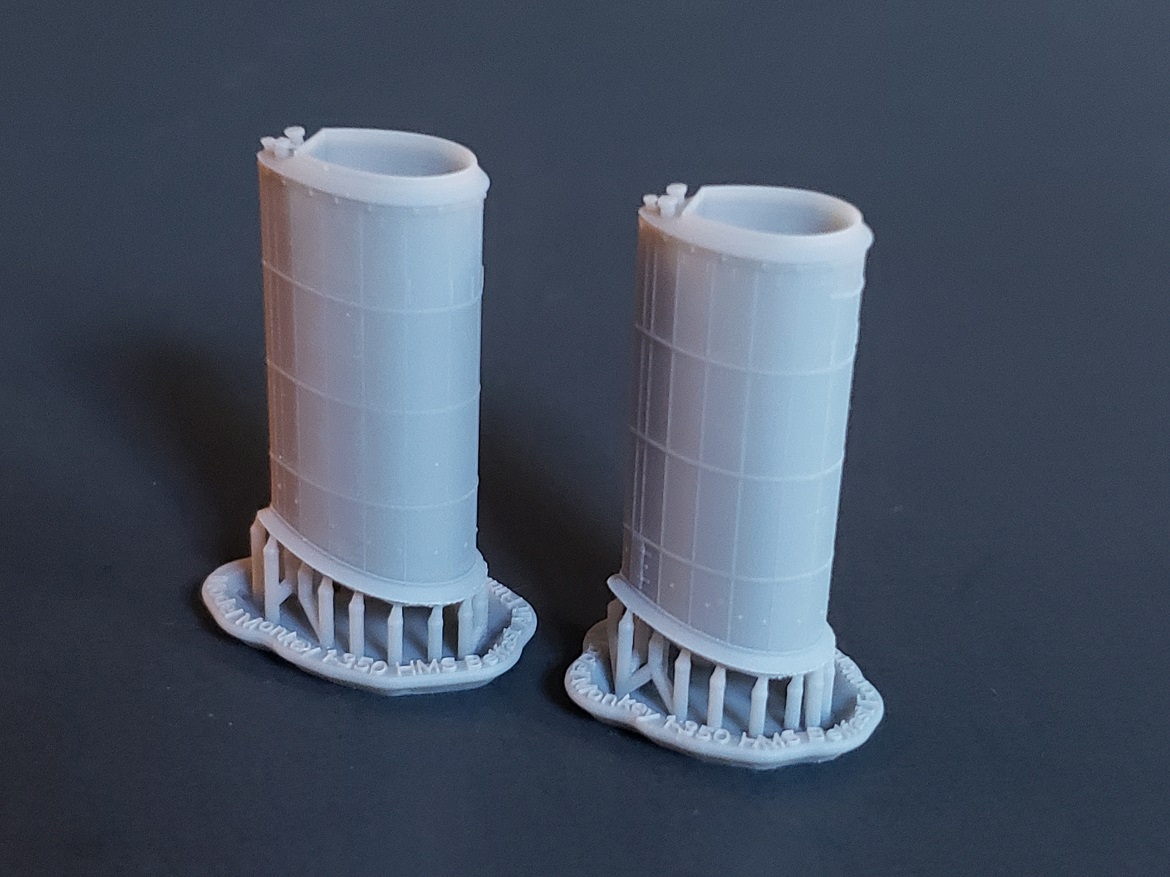

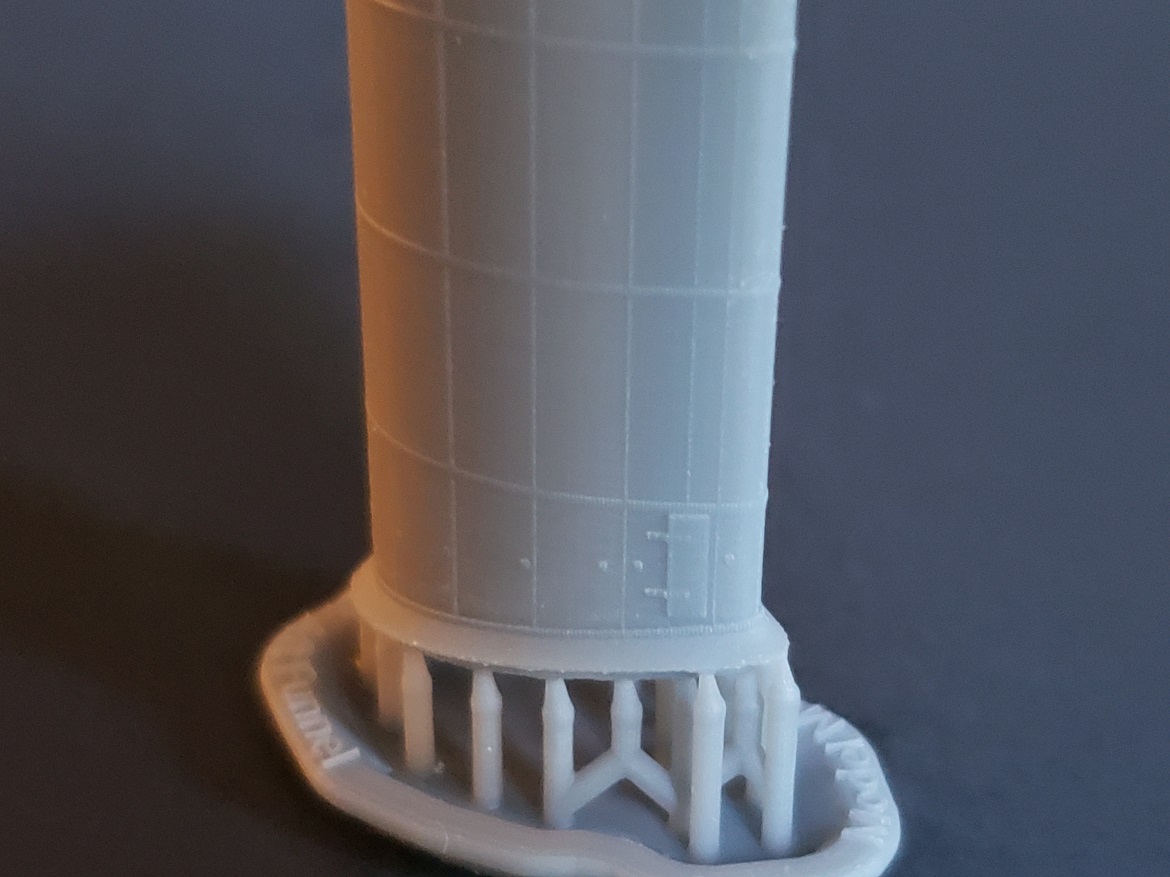

Royal Navy Town-class cruiser fans! Happy to announce funnels for HMS Belfast and HMS Edinburgh in 1/350 scale, 1/600 scale, and 1/700 scale are now available.

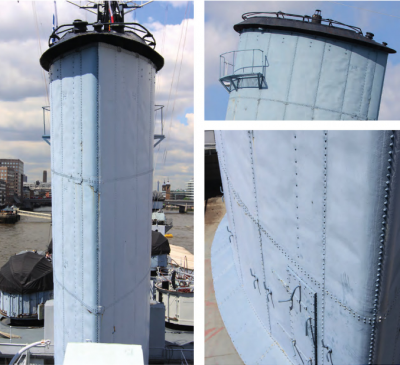

There has been much discussion regarding the size of the real ship's funnels among modelers. Compared to the ship's aft funnel, measurements of the real funnels confirm that the forward funnel is slightly shorter front-to-rear and slightly wider side-to-side.

Most Belfast model kit's funnels are inaccurately shaped and poorly detailed. For example, in 1/350 scale, The Trumpeter Belfast kit's forward funnel is significantly smaller than the aft funnel. The real difference is not as great.

The Model Monkey funnels' size was based on:
- measurements taken of the real funnels.
- official Admiralty General Arrangement Profile “as fitted” series MCD AIO979 plans for HMS Belfast dated 16 November 1942
- official 1936 Admiralty "10,000 ton Cruisers, 1936 Programme" drawing for HMS Belfast and HMS Edinburgh.

Features:
- accurate teardrop shape, designed from measurements taken of the real ship's funnels.
- accurate height, scaled from scans of official Admiralty General Arrangement Profile “as fitted” series MCD AIO979 plans for HMS Belfast dated 16 November 1942.
- accurate rivet count, placement and configuration, unique to each funnel.
- accurate door shape, position and detailing. The door on the forward funnel is on the starboard side, the door on the aft funnel is on the port side.
- accurate​​​​ painters' sheave brackets, reinforcing strap and cleat plate detail, unique to each funnel.

The design of this pair of models benefited from research assistance and advice graciously provided by Mr. Conrad Waters, Mr. Richard Dennis and Mr. Michael Eisenstadt.

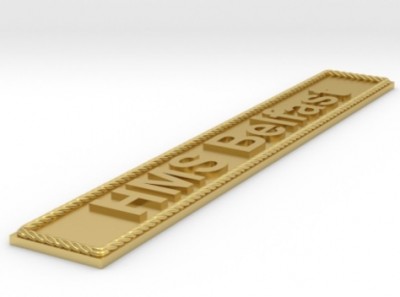

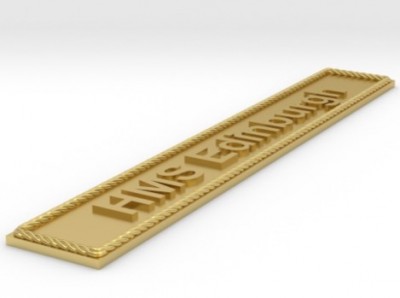

We also offer an attractive nameplate for HMS Belfast, HMS Edinburgh, and all 8 of their sisterships, in your choice of real metal or inexpensive, paintable acrylic plastic.

See these models and many more at https://www.model-monkey.com/

Have fun. Monkey around.™

[edit: added HMS Edinburgh nameplate]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Just received the 1/350 Saratoga boat pockets with 40mm tubs and the 1943/44 island, simply fantastic.
Would the 1971 Independence Island work for a 1976, fit?
Also, working on a WWI Lusitania to Mauretania conversion and would need the ice cream scoop ventilators rather than the mushroom style, can they be done?

Thank you.

_________________
Victoria Nobis Vita.

Hi Roberto,

Thanks so much for your compliments! Very glad to read that you are very happy with your new Saratoga CV-3 products!

Regarding our 1971 Independence island being a good match for 1976, we don't know enough about her 1976 appearance to answer your question with any certainty. You might consider asking if any island features changed much from 1971 to 1976 on the Calling All Forrestal-class and Kitty Hawk-class Fans thread. Some experts there are likely to know. Link:
viewtopic.php?f=46&t=4708&p=1022004#p1022004

Regarding ventilators for Mauretania, I regret to say that there are no plans to research and design Mauretania conversion parts for the 1/350 scale Lusitania kit.

Thanks again and very kind regards!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Hi Steve, I'm sorry if you've covered this before or if I missed it on your website, but have you considered selling the USS Arizona boat deck vents in 1/200 scale as I believe they are missing in the kit? Again if you've already covered this I apologize.

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

Hi Abram,

Great hearing from you!

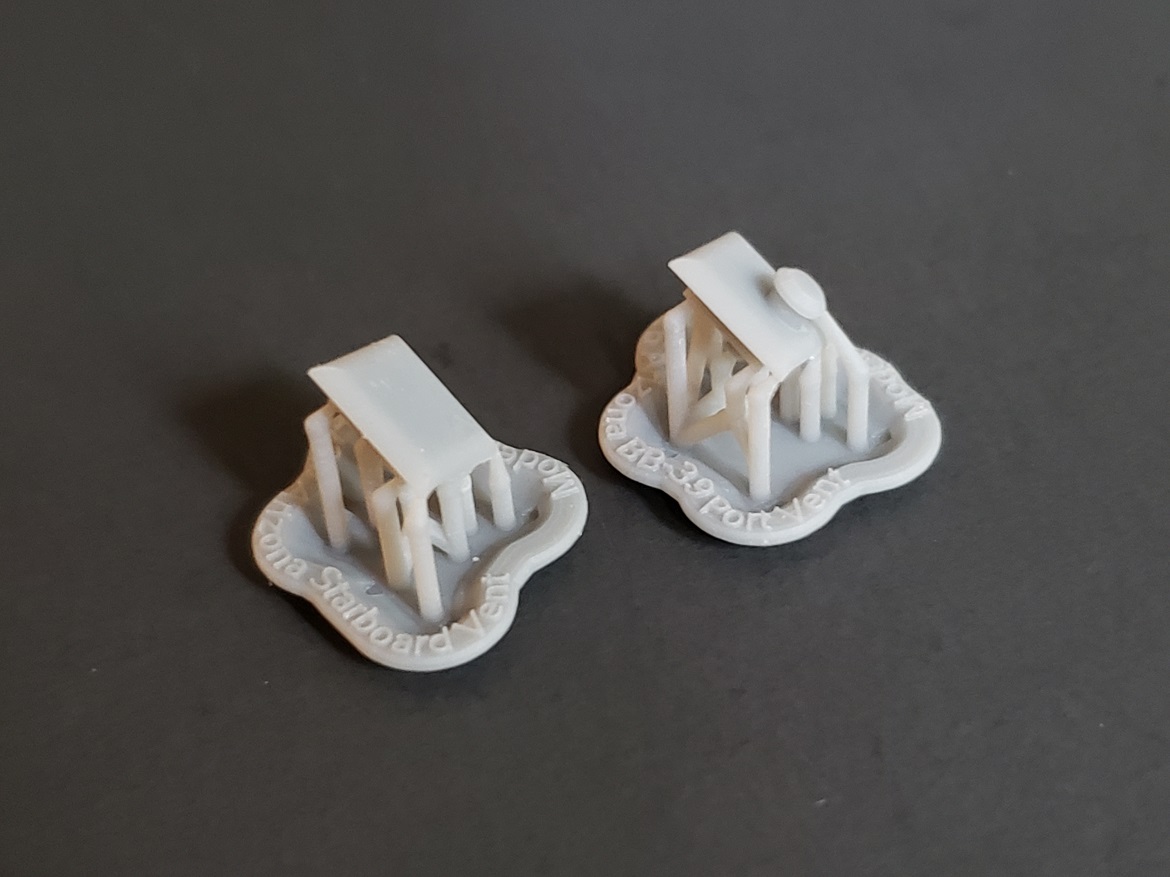

Happy to make the vents available. I'll have a page up in the catalog shortly, photos later this week.

Cheers!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Steve, thank you so much!

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

Steve, another couple quick questions, have you had any luck determining if you can print cage masts in house (1/200 scale) or are those gone indefinitely, and when will your website be taking orders again? Thanks

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

I regret to report that cage masts are discontinued.

If printed with our tech, the masts would have to be smothered in supports. It would be impossible for most modelers to cut away the supports without destroying the masts. Hopefully, Shapeways' successor, Maneuvo in The Netherlands, will at some point open a marketplace so that independent designers can resume offering products printed by them.

Shapeways used a different technology than the kind we use. Shapeways' tech used wax to support overhanging features during printing. The wax was melted away in a low-temperature oven at the factory before the models were shipped to the customer. That kind of technology is far too costly for us to obtain.

I am sorry for any disappointment.

We're temporarily closed due to an injury. We hope to be able to reopen this weekend.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Thanks for the quick reply! I hope everyone is well again soon.

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

Steve, will these be available in 1/350 scale?

Good news, they are included with our Arizona boat deck.

If you are asking to have them made available separately, that is certainly possible.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

I would like them to be made available separately if possible as I am working off and on a 1936 Arizona. Having all of those vents and skylights would save me a ton of scratch building.

Happy to make the vents available for you. Please give me through the weekend to get that done.

The skylights are a bit more problematic. Not sure when I could offer those.

Perhaps some good news for you and others: a 1936 Arizona boat deck is in the design queue. Like the 1941 boat deck, skylights of the correct type and configuration will be present, integrated with the deck. It will be a little while before I can get to that project.

Cheers!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

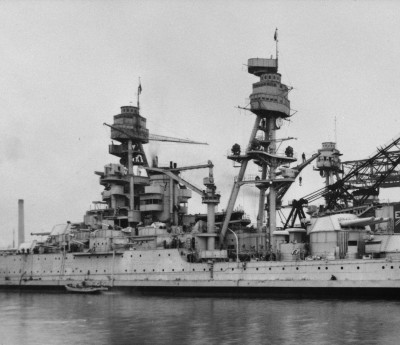

Might a 1941 Pennsylvania boat deck be a future possibility? Or should I just buy an Arizona one and modify it?

- Sean F.

Good news, a 1941 Pennsylvania boat deck is in the design queue.

While possible to modify an Arizona deck, it would be difficult to do so. Pennsylvania's boat deck's features were very different. For example, Pennsylvania's incinerator was located below the boat deck, not on it. The incinerator's smoke pipe passed up through the deck and was mounted to the funnel differently.

The circular tubs for 1.1 inch Chicago Pianos were positioned closer to Turret 2 barbette. This makes the splinter shielding footprint aft to the 5"/25 mounts different.

Pennsylvania had 2 very large, boxy water tanks next to the funnel on the starboard side. Arizona did not.

The skylights, vents, and ready service ammunition lockers are positioned differently.

There are some differences in casemate bulkhead details.

All of these conspicuous differences are captured in the Pennsylvania boat design which is about 75% complete as of this writing. I can't say with certainty when the model will be ready. It will be available in 1/350, 1/426 and 1/700 when done.

It will not be available in 1/200 (too big).

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

That's exciting news!

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

Wonderful news! Thank you, Steve! Definitely going to purchase that one!

Looking forward to my long-stalled-out 1:350 Pennsylvania project coming back online!

- Sean F.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

I noticed an item for US carrier builds that is still unavailable and that bugged me during the builds of my own projects, it could be solved with a 3d print. If you replace the floater net baskets of e g. the Dragon Independence class kits or the Trumpeter Essexes, the PE parts of WEM or Pontos create the box structure of the basket. That is obviously hollow and doesn't contain the floaters that should be in it. In 1/350 these should still be discernible as strains but they can be printed in a few standard blocks. For one Essex you need at least 40 of these blocks.





I found out that you have the nets, but I bet it is not as translucent as a PE net with a resin part in it.
