Thank you all for your insights and help!

Progress on this model is swifter -least it seems that way--than with the Novik-- partly because I am now quite familiar with the various PE parts as well as what bits from my scrap-box that I can use ...

I bought yet another - (No 3 !!) PE fret- they are not cheap--but I was unable to resist the lure of the rather cool 4.7 in gunshields( needed x 8 this time-- Novik (and the Novik PE fret!) only had x 6....

I will NOT be building the other sister.... Izumrud... :big_grin:

--but the remaining shields and other parts will be usable on other ships...

meanwhile progress so far:


Having previously folded up the gunshields it was time to build the 8 x main guns

So as to make the positioning, holding and alignment easier I made a mini-jig
the gun bases were tacked in place with thinned matt varnish

That way I was able to dribble CA onto the trunnion positions using a soft piece of stretched sprue-- and not dislodge the finely balanced barrel!

Attachment:
zhemchug 163.jpg
zhemchug 163.jpg [ 112.4 KiB | Viewed 1423 times ]


Attachment:
zhemchug 172.jpg
zhemchug 172.jpg [ 154.56 KiB | Viewed 1423 times ]


For ease of assembly by less obsessive modellers (!) the rather nice PE shields incorrectly have base plate..

As a temporary measure, I left in place to ease painting- and removed afterwards

Attachment:
zhemchug 175.jpg
zhemchug 175.jpg [ 164.51 KiB | Viewed 1423 times ]


Study of the plans and photos led me to add more doors-as well as the platform ahead of funnel 3; this was made of some PE with wood planking ( Old WEM Askold set from scrap-box )

This platfrom is hard to discern in photos --and it is not that easy to glean from the plans either!!

Attachment:
zhemchug 179.jpg
zhemchug 179.jpg [ 98.1 KiB | Viewed 1423 times ]


Attachment:
zhemchug 181.jpg
zhemchug 181.jpg [ 95.56 KiB | Viewed 1423 times ]




The lower searchlight platform and its braces was made using the excellently rendered PE platform from the North star PE set. and wrapped with WEM ultra-fine PE rails

Attachment:
zhemchug 183.jpg
zhemchug 183.jpg [ 133.54 KiB | Viewed 1423 times ]


The upper fighting top platform was made using again the platform base and shield from the aforementioned PE set--

The wall requires rolling carefully to avoid distortion( and stretching !!) I did this by using brass tubes and exerting pressure evenly on to a 'post-it' note pad

The lower braces / upper mast spreaders where made using 1/350 PE railing longitudinals.

Attachment:
zhemchug 188.jpg
zhemchug 188.jpg [ 166.01 KiB | Viewed 1423 times ]



The capstans on the foredeck and the aft deck were turned from resin-mast scrap in a mini-drill.

Resin turns beautifully --and unlike plastic is a ""clean" material to turn--not un-akin to metal!

Attachment:
zhemchug 193.jpg
zhemchug 193.jpg [ 146.92 KiB | Viewed 1423 times ]


Attachment:
zhemchug 192.jpg
zhemchug 192.jpg [ 113.49 KiB | Viewed 1423 times ]



More soon!


JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Tue Mar 12, 2013 3:39 pm
Offline
User avatar

Joined: Sun Jan 08, 2012 5:36 am
Posts: 422
Location: LA/Cornwall-UK
Great work on the guns, love the way you sorted them in that scale,'whew', tis awsume.

This is truly great working out.

_________________
Cornwall UK


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Thu Mar 14, 2013 1:16 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
Created the anchor beds by outlining with the railing

Attachment:
Winter 2012-2013 211.jpg
Winter 2012-2013 211.jpg [ 124.3 KiB | Viewed 1357 times ]


Once furnished with anchors and handling crane it all looked quite pleasing

Attachment:
Winter 2012-2013 213.jpg
Winter 2012-2013 213.jpg [ 123.31 KiB | Viewed 1357 times ]


I have added the gash shutes and some overboard discharge pipes made of 1/350 PE railing longitudinals )

Attachment:
Winter 2012-2013 212.jpg
Winter 2012-2013 212.jpg [ 125.19 KiB | Viewed 1357 times ]


spent crazy amount of time making a small platform ( using a PE door )

supported on 2 small legs... :scratch: :doh_1:

Attachment:
Winter 2012-2013 216.jpg
Winter 2012-2013 216.jpg [ 196.08 KiB | Viewed 1357 times ]



....spent even more time making 6 x 47 mm guns-- the conical bases were made from cocktail stick tipd immersed in CA. topped with a small styrene sliver-- furnished with shields from a WEM Askold PE fret and a copper wire barrel.

The kit supplied items were too tall and clunky for my liking

Attachment:
Winter 2012-2013 225.jpg
Winter 2012-2013 225.jpg [ 157.85 KiB | Viewed 1357 times ]



The guns on the main deck had drop down flaps like the 4.7 in guns--

LOL--....these were added from one my many Novik frets!!


This evening task will be making 6 x hotchkiss guns--wish me luck!

More teeny weeny stuff to come....


JB :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Fri Mar 15, 2013 3:49 am
Offline
User avatar

Joined: Fri Mar 01, 2013 5:48 am
Posts: 23
Location: Poland
Jim, I admire all your works. Scale 1:700 is a big challenge for me. Could you tell what tools do you use? (especially tweezers and cutting tools).


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sat Mar 16, 2013 10:40 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
Thank you Sotter!


I have answered your question ref the tools etc with images in greater detail


here:


viewtopic.php?f=4&t=151846&p=576325#p576325

JB

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Mon Mar 18, 2013 7:21 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
Onwards to the 6 x Hotchkiss guns

The bases for these were made using a sharpened cocktail stick tip dipped in CA cut to size

Added to that was a cut down and modified old over-scale PE Oerlikon from an early 1990's GMM set

Added small shield and an aiming brace of cut about PE handrail

Attachment:
zhemchug 195.jpg
zhemchug 195.jpg [ 69.27 KiB | Viewed 1251 times ]


Attachment:
zhemchug 202.jpg
zhemchug 202.jpg [ 98.27 KiB | Viewed 1251 times ]


The midships waist Hotchkiss guns had 4 x small gunners platforms that elevate the gun operator to see and fire across the top of the hammock stowage boxes and bulwark

These platforms were made of two cut halves of some small relief etches circles (from an unknown PE source in my box-a-bits! )

Attachment:
zhemchug 213.jpg
zhemchug 213.jpg [ 136.64 KiB | Viewed 1251 times ]


Zhemchug had some truly gargantuan davits--of a pattern that many Russian ships of her era had...

Attachment:
zhemchug davits.jpg
zhemchug davits.jpg [ 119.41 KiB | Viewed 1251 times ]


I have in the past built these either by refining the kit resin items, scratchbuilding by laminating brass and styrene strip so as to obtain the taper and then bending the brass to hole dthe styrene strip in shape etc etc

This time I took a new approach....==> using very sharp Fiskar scissors to cut some tapered strips from some old (and pretty thick !) Railway model nickel silver PE fret waste.

Unlike brass this metal seems to be able to withstand bending ( stretching!) in the 'wrong ' --ie flat plane -

- I tried it with brass first but it kept fatiguing and breaking.

See below the original resin parts as a comparison-- they are too thick, not quite the correct shape, slightly too tall and incredibly fragile ! ( brittle resin)

Attachment:
zhemchug 226.jpg
zhemchug 226.jpg [ 74.1 KiB | Viewed 1251 times ]


After adding some small shards of the same thick PE to the lower bases, a styrene strip on the hull , a dab of white glue below the cradle and some PE brass porthole lids to simulate the twin pulleys ...

Attachment:
zhemchug 233.jpg
zhemchug 233.jpg [ 99.2 KiB | Viewed 1251 times ]




It all looked reasonably convincing once painted compared to the photos of the real thing

Attachment:
zhemchug 238.jpg
zhemchug 238.jpg [ 101.39 KiB | Viewed 1251 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sat Mar 23, 2013 9:18 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
I love a Saturday afternoon of bad weather==> model ship progress! :cool_2:

After the tedium of making wire davits and ships boats ...the fun of erecting masts could commence !

Zhemchug carried outrageously tall masts--three of them.

I have devised a method of enuring the masts all set perpendicular whilst the slow setting epoxy and CA are setting


Simply suspend the ship upside down--the masts dangle nicely... :heh: easier than trying to keep them in position with the ship upright!!-- let gravity be your friend! :thumbs_up_1:

Attachment:
zhemchug 246.jpg
zhemchug 246.jpg [ 127.94 KiB | Viewed 1206 times ]



The ship carried identifying stripes on her main mast--I made these using very thin decal stripes--black thin on white broad....

Attachment:
zhemchug 256.jpg
zhemchug 256.jpg [ 73.86 KiB | Viewed 1206 times ]




The various sections of the masts had the strapping simulated with decal striping--makes just enough of a bump to look interesting....

Attachment:
zhemchug 260.jpg
zhemchug 260.jpg [ 93.73 KiB | Viewed 1206 times ]



The wild nature of the masts..(!!) is evident in these hastily shot images....


More soon

Jim B :wave_1:


Attachments:
zhemchug 253.jpg
zhemchug 253.jpg [ 79.29 KiB | Viewed 1206 times ]
zhemchug 267.jpg
zhemchug 267.jpg [ 132.67 KiB | Viewed 1206 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sun Mar 24, 2013 8:18 am
Offline

Joined: Mon Jan 10, 2005 2:08 pm
Posts: 942
A little gem again Jim. Excellent work! :thumbs_up_1:

_________________
"On some great and glorious day the plain folks of the land will reach their heart's desire at last and the White House will be adorned by a downright moron." H. L. Mencken


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sun Mar 24, 2013 10:32 am
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2205
Location: Paris France
Hello Jim

the method of installation of masts, by gravity,is really "simple" and effective :thumbs_up_1:
thank's for the tip
cheers
Nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sun Mar 24, 2013 11:10 am
Offline
User avatar

Joined: Sun Mar 13, 2011 12:19 am
Posts: 313
Location: Fredericton NB, Canada
Another absolute gem from The Master!

Please don't EVER stop building and posting, your ships inspire ...and motivate us mortals to greater heights.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Tue Mar 26, 2013 12:28 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 6710
Location: In the hills of North Jersey
The fidelity of the details is amazing. One of the best you've ever done, Jim.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Wed Mar 27, 2013 3:24 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
Thank you all for your kind words about my wee boatey!

I liberally scattered some crew members about the decks ( GMM and Eduard)


Attachment:
zhemchug 276.jpg
zhemchug 276.jpg [ 121.17 KiB | Viewed 1096 times ]

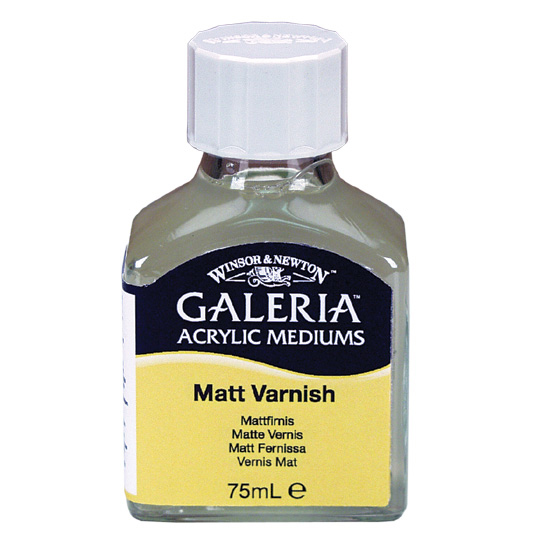

Thereafter the flatcoating was uneventful...( phew!) as usual I was using the Galeria varnish I obtained a very flat even and dead smooth surface.
Attachment:
galeria-matt-varnish.jpg [ 95.69 KiB | Viewed 1096 times ]


The rigging is quite challenging-- funnel stays in particular....

Boat falls have been made. as well as the main boom rigging

Attachment:
zhemchug 273.jpg
zhemchug 273.jpg [ 148.49 KiB | Viewed 1096 times ]




The ship will now be at anchor after all !! :big_grin: :cool_2:


a naval review in 1904 ( fortunately I found a photo to verify this scene...! :thumbs_up_1:

....===> mainly so that I can show her with Big Ensigns on all three masts, as well as on the stern,(!!) with the red white and blue ensign on the fwd jack-staff.

( fortunately I found a photo to verify this scene...! :thumbs_up_1:

Attachment:
zhemchug 278.jpg
zhemchug 278.jpg [ 143.1 KiB | Viewed 1096 times ]


I was toying with the idea of dressed overall

Attachment:
05.jpg [ 128.03 KiB | Viewed 1096 times ]



but felt that in modelform it may look a bit clumsy--nay even overwhelming...

aside from the structural issues with the supper skinny top masts



So as to add some interest to the scene I have placed a rowing gig idling about the accommodation ladder ( waiting for the 'brass to return?)-with the crew engaged in fending her off using a boat spar- no big deal ...as the are on the leeward side...

Attachment:
zhemchug 272.jpg
zhemchug 272.jpg [ 142.82 KiB | Viewed 1096 times ]



Rigging is not an activity that lends itself well to posting on--so there may be radio silence for a day or six....


Regards

JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Wed Mar 27, 2013 4:46 pm
Offline
User avatar

Joined: Mon May 14, 2012 12:18 pm
Posts: 2062
Location: Salt Lake City, USA
Dear god... how is that even possible?! :big_eyes:

Simply amazing work!

_________________
-Jason Channell

Current Project: 1/200 Bismarck


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sat Mar 30, 2013 1:03 am
Offline
User avatar

Joined: Thu Jun 23, 2005 3:47 pm
Posts: 297
You never fail to make my jaw drop, Jim!

Excellent work, daringly skinny masts and rigging that lets seasoned spiders pop out all their half-dozen bulging eyes and crawl away in shame.

If I didn´t know you, I´d think you´re from some other planet!

Wishing you all the best for the final phase of the project

Frank

_________________
AKA "Doc Bear" (a bear of very little brain ...)
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sat Mar 30, 2013 1:27 am
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2205
Location: Paris France
Frank Spahr wrote:
.... I´d think you´re from some other planet!.......


Hello

Franck
it may be that just the skin either of a human,and that Under this one ,it is an humanoid :shock:
because, to do something as fine.........that's incredible
congrats Jim ,it is always impressive to see your work :thumbs_up_1:
Cheers
Nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Sat Mar 30, 2013 6:59 am
Offline

Joined: Fri Mar 13, 2009 2:41 pm
Posts: 436
Handsome ship and breathtaking medeling technique (yet we start to get used to it now :big_grin: )
:thumbs_up_1:

_________________
Someone, somewhere, is making money...


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Tue Apr 09, 2013 2:24 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4589
Location: Nr Southampton England
back from the ( rigging ) wilderness....! :wave_1:

she is complete at last!- there was a lot of very fine rigging to do on some very very skinny masts...

( :mad_1: :Mad_6: :Mad_5: :mad_2: :censored_2: :lol_3: )


- full photo coverage will be in the gallery in due course.

meanwhile..... here are a few taster shots....

onwards to the new project :thumbs_up_1:


Thank you all for following this build--a link to the gallery will be posted when it appears there ....

Cheers

Jim Baumann


Attachment:
zhemchug 369.jpg
zhemchug 369.jpg [ 98.47 KiB | Viewed 950 times ]


Attachments:
zhemchug 298.jpg
zhemchug 298.jpg [ 118.84 KiB | Viewed 950 times ]
zhemchug 310.jpg
zhemchug 310.jpg [ 78.19 KiB | Viewed 950 times ]
zhemchug 335.jpg
zhemchug 335.jpg [ 157.04 KiB | Viewed 950 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Tue Apr 09, 2013 3:01 pm
Offline
User avatar

Joined: Wed Apr 03, 2013 7:05 pm
Posts: 235
Location: Netherlands
incredible!


_________________
WIP:
-1/72 Revell flower class corvette,with GLS PE and lots of Evergreen.
-1/350 Dragon Scharnhorst, Artwox wooden decks, CyberHobby PE, Master brass barrels.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Wed Apr 10, 2013 12:20 am
Offline
User avatar

Joined: Thu Jun 23, 2005 3:47 pm
Posts: 297
There are some limited aspects I might be able to replicate on my own models, but on the whole this is modeling on a whole other level. The flawless and near invisible rigging on these skinny masts simply let my jaw drop, into the depression on my desk created by repeated drops over years of wtinessing your builds, Jim.

Kind regards

Frank

_________________
AKA "Doc Bear" (a bear of very little brain ...)
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Zhemchug
PostPosted: Wed Apr 10, 2013 7:55 am
Offline
User avatar

Joined: Fri Jun 22, 2012 12:02 pm
Posts: 2229
Location: New Orleans, LA
Jim,

Are the flags printed paper? How did you get them to flutter so naturally? I tend to use white glue + paper but it tends to appear overscale in 1/700.

_________________
- Chris


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 50 posts ]  Go to page Previous  1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: JariL, silvershadow, tomcat Fanatic, Triumph68 and 20 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
