Calling all IJN Myoko-class (妙高) fans

[J. Soca]

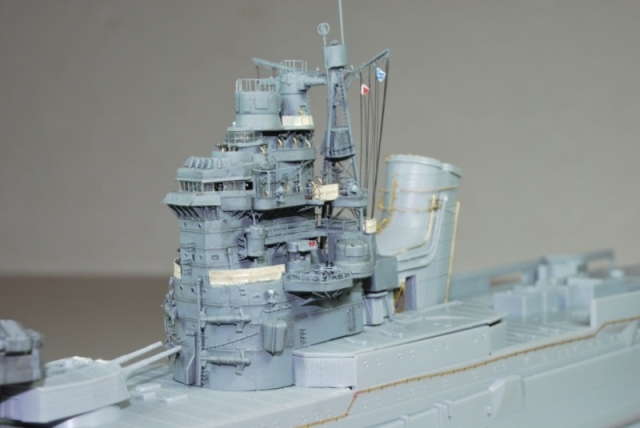

thank you guys! i have been working on the main funnel for some time now, the most i hate about funnels is having to add the footrails around it. it seems i always slack alot when i get to this step but i'll try to have it painted by the end of the week so i can move to the second one.

Jose

[donalyah00]

Very good work! And very clear & informative build processs.
A perfect example, that you can work away without dedicated upgrade set.
Fingers crossed for the continuation.

Regards,
Marek

[chuck]

The details on the rear half of the ship is very sparse, Jose. I am very disappointed.

[J. Soca]

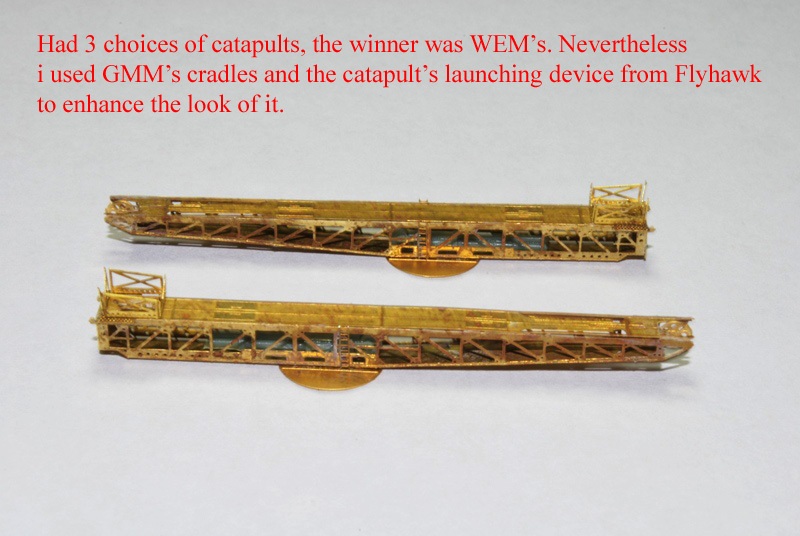

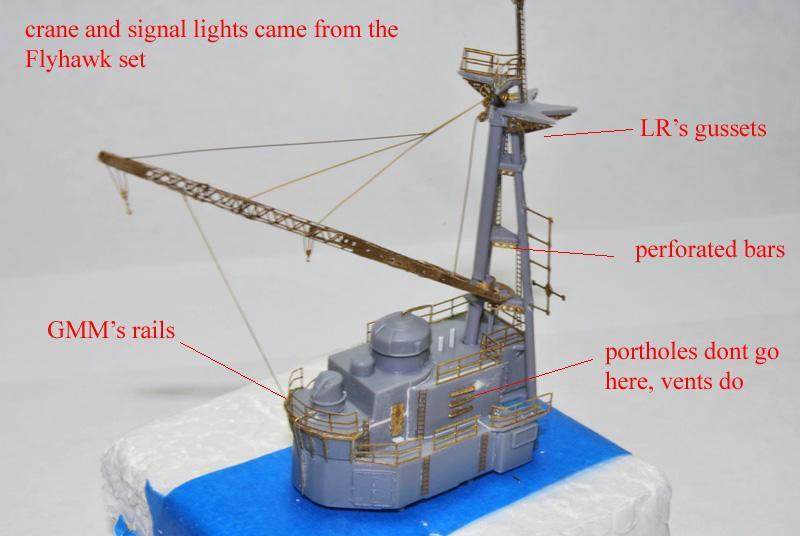

thanks Marek! it's a bit of a challenge when you have 3 different kinds of P.E sets,sometimes it takes me a few minutes to look around all them to see if i can find what i really want to finish up something hehe .

The details on the rear half of the ship is very sparse, Jose. I am very disappointed.

getting there chuck getting there

Jose

[Dan K]

Superb, Jose. Really.

[MartinJQuinn]

Really fine work.

Just a reminder, however, that these threads for questions about the particular class of ship and not for posting work in progress photos, unless the photos are relevant to a question or post. Work in progress photos that are strictly to meant to show where a builder is in their build should be posted in an appropriate thread in the Picture Post - Work in Progress forum.

Forum rules here: viewtopic.php?f=48&t=34966

[J. Soca]

Really fine work.

Just a reminder, however, that these threads for questions about the particular class of ship and not for posting work in progress photos, unless the photos are relevant to a question or post. Work in progress photos that are strictly to meant to show where a builder is in their build should be posted in an appropriate thread in the Picture Post - Work in Progress forum.

Forgive me Martin i should've started my own thread a while back but never did, i"ll start one as soon as im done uploading some fresh shots i took of the painted aft structure. I'm sorry if i caused any ruckus around here. Thanks Dan!!


Jose

[MartinJQuinn]

I'm sorry if i caused any ruckus around here.

No ruckus....just don't want these CASF threads get too big....

[Dan K]

Oh, you mean like the Essex class CASF??????

[Felix C]

Are there any differences between the kits?

[Dan K]

Which kits?

[Felix C]

Nichimo 1/500 series

[Dan K]

I'm not all familiar with them.

[Atma]

Quick question, does anyone knows what time Type 22 radar was added on IJN Nachi ?
Thanks in advance.

[J. Soca]

Quick question, does anyone knows what time Type 22 radar was added on IJN Nachi ?
Thanks in advance.

According to Warship Pictorial 17's Record of Movement for the pacific War she had the experimental Type 21-3 installed on 13 August 1943 and here is the thing that confuses me she had another Type 21-2 and a Type 22-4 radar installed sometime from November 22 to January 22 of 1944 while she was drydocked at Sasebo. it's a little confusing with those dash 2 and 3 radar designations, why 3 and then 2 ? doesn't make sense to me. hope it helps and don't make it worst..


Jose

[Atma]

One picture of Myoko that shows that the rangefinders windows where removed during the late 30's modernizations(or is it at 1940 ? I dont quite remember at the moment) and just the overhangs of number 1# turret remains. Just to clarify a conversation we had with Dan in IJN Takao class thread.I posted a coloured picture of IJN Takao during late 30's sea trails there too.
Link:http://img201.imageshack.us/i/3d714191.jpg/

Edit:What is that white spot she has on the rear of number 1 funnel.Anyone knows ?

[Dan K]

Good eye, Atma. The "white" spot is just a washout from sun glare.

[Atma]

Dan do you know if the heat shields on IJN Myoko class cruisers where different from each ship ? From the kits of Fujimi and Hasegawa's each one had heat shiled minus IJN Ashigara, and IJN Myoko had on number 1#, 2# 3# and 4# turrets while IJN Nachi and IJN Haguro had on number 1#, 2# and 4# and IJN Nachi had also a sligtly different kind/shape of heat shield. At least Fujimi offers seperate turrets for IJN Nachi.

[Dan K]

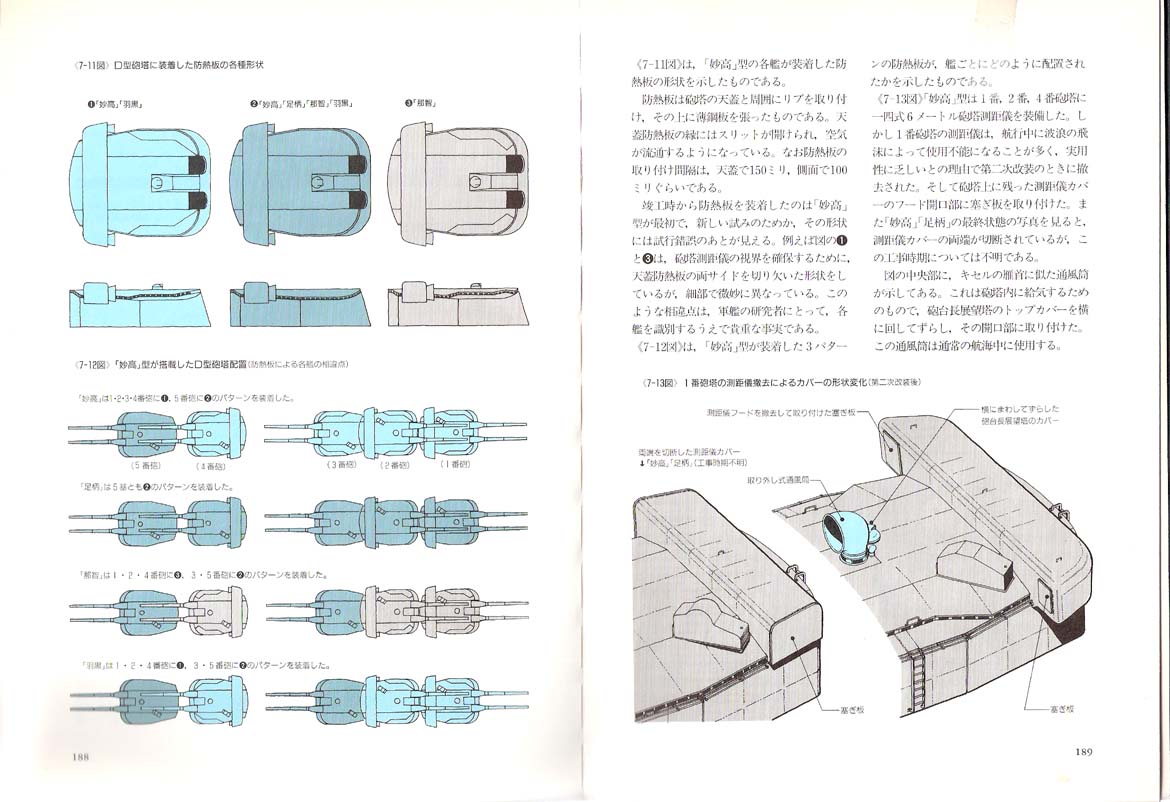

Good for you, Atma, that is an EXCELLENT question. The Myoko class carried the Type D turret and yes, there were variations in the heat shielding configuration between mounts, and ships. Attached is a guide from the Gran Prix Shuppan volume on the IJN CAs. From top to bottom is Myoko, Ashigara, Nachi & Haguro. On the right, note how the #1 rangefinder was cut down to a shell.

[DanCinSD]

The more I learn aboout Japanese ships, the more I think I will never learn!
I was happy as a kid building a takao kit (in the 1970's) thought it was very nice. then when I re-entered ship modeling in the 90's I learned the turrets had a heat shield, now, in the 21st century I learn they had different turrets with different heat shields on the same ship!!
I'm glad it is a hobby!

(but I still dream of building that 100% accurate and perfectly made ship model)
