1/200 IJN NAGATO

[Fliger747]

Very nice job on the accommodation ladder at this scale. I ended up making them from Strathmore paper in a similar manner, but using a plexiglas jig with slots cut at an angle for the spacing. The wood glue I used did not adhere to the plexiglas so easy enough to remove.

Very nice indeed!

[Froggy84]

Hi Song,
it looks amazing, as always. Can you tell us what wood have you used for the gangway and gangway crane? Did you bend the wood or cut a curve shape?
Regards,
Phil

[Song Jung Gun]

Very nice job on the accommodation ladder at this scale. I ended up making them from Strathmore paper in a similar manner, but using a plexiglas jig with slots cut at an angle for the spacing. The wood glue I used did not adhere to the plexiglas so easy enough to remove.

Very nice indeed!

Thank you, Tom!
Show me your plexiglas jig please.
Song.

[Song Jung Gun]

Hi Song,
it looks amazing, as always. Can you tell us what wood have you used for the gangway and gangway crane? Did you bend the wood or cut a curve shape?
Regards,
Phil

Thank you, Phil!
I used both of them.
1.bending : I used Bamboo.(It's davits for boat)
2.cutting :The others(The place of not required tension...)
Song.

[Fliger747]

Song:

I will post a photo of my simple inclined ladder jig as soon as I find it!

Cheers: Tom

[Fliger747]

Song:

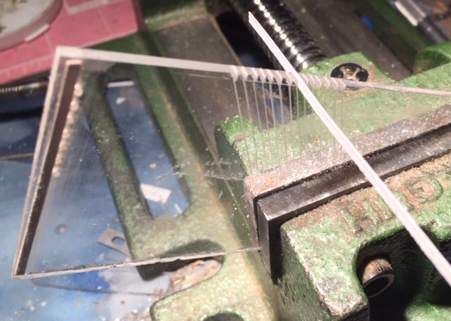

Jig is still hiding so I cobbled up a simple version so you get the idea. Just angled slots cut with a razor saw into a piece of plexiglas at the appropriate spacing for the scale.

First I cut strips for fails and treads. I tape a rail to the back of the jig then insert treads in the slots with the smallest amount of wood glue possible. After the glue sets I add glue to the protruding treads and attach the other rail. When dry I remove the tape and slip the inclined ladder out of the jig, trimming the rails to appropriate length.

For my ladders I have had best luck with Strathmore art paper which is stiffer than styrene. For styrene ladders one would probably have to make an aluminum jig.

Cheers: Tom

[Song Jung Gun]

Hi,Tom!
Thank you sharing photo. It's very useful for me.

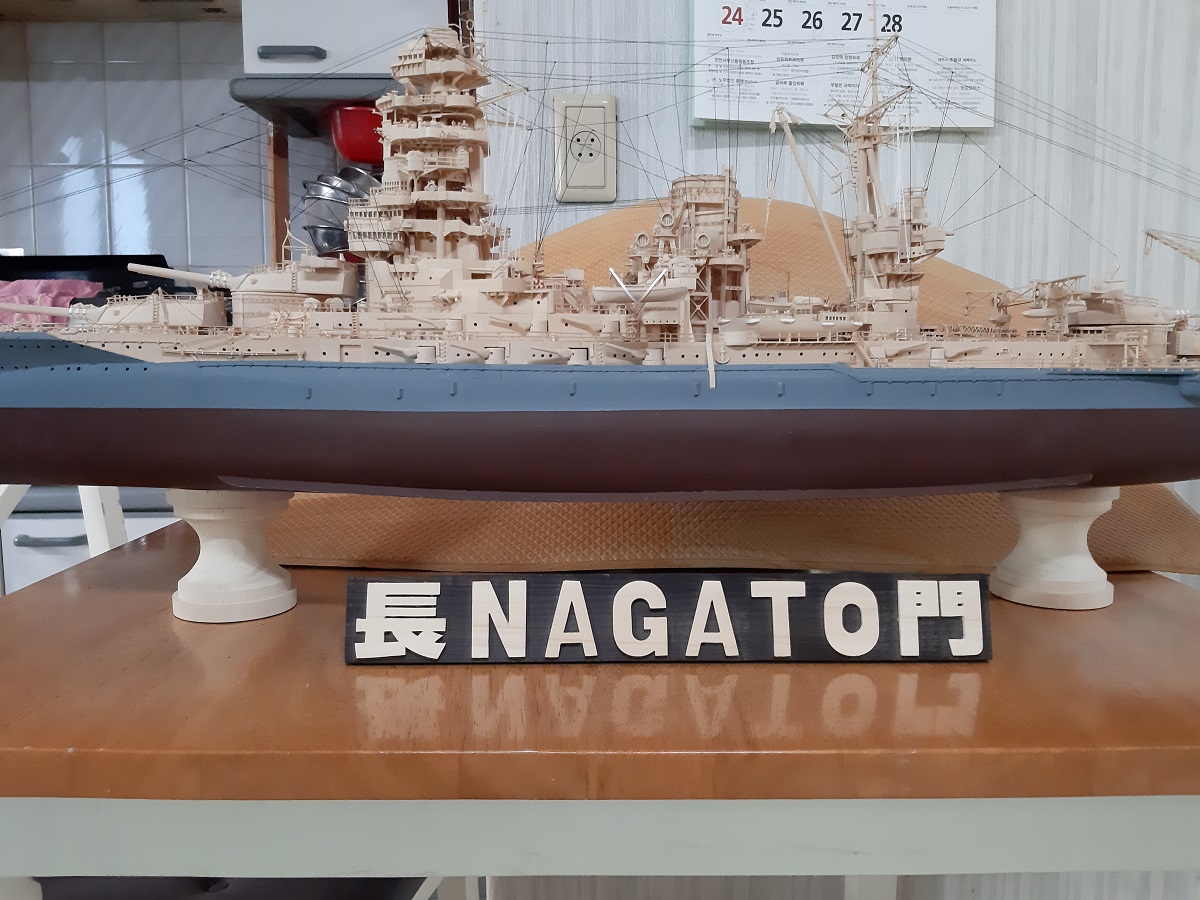

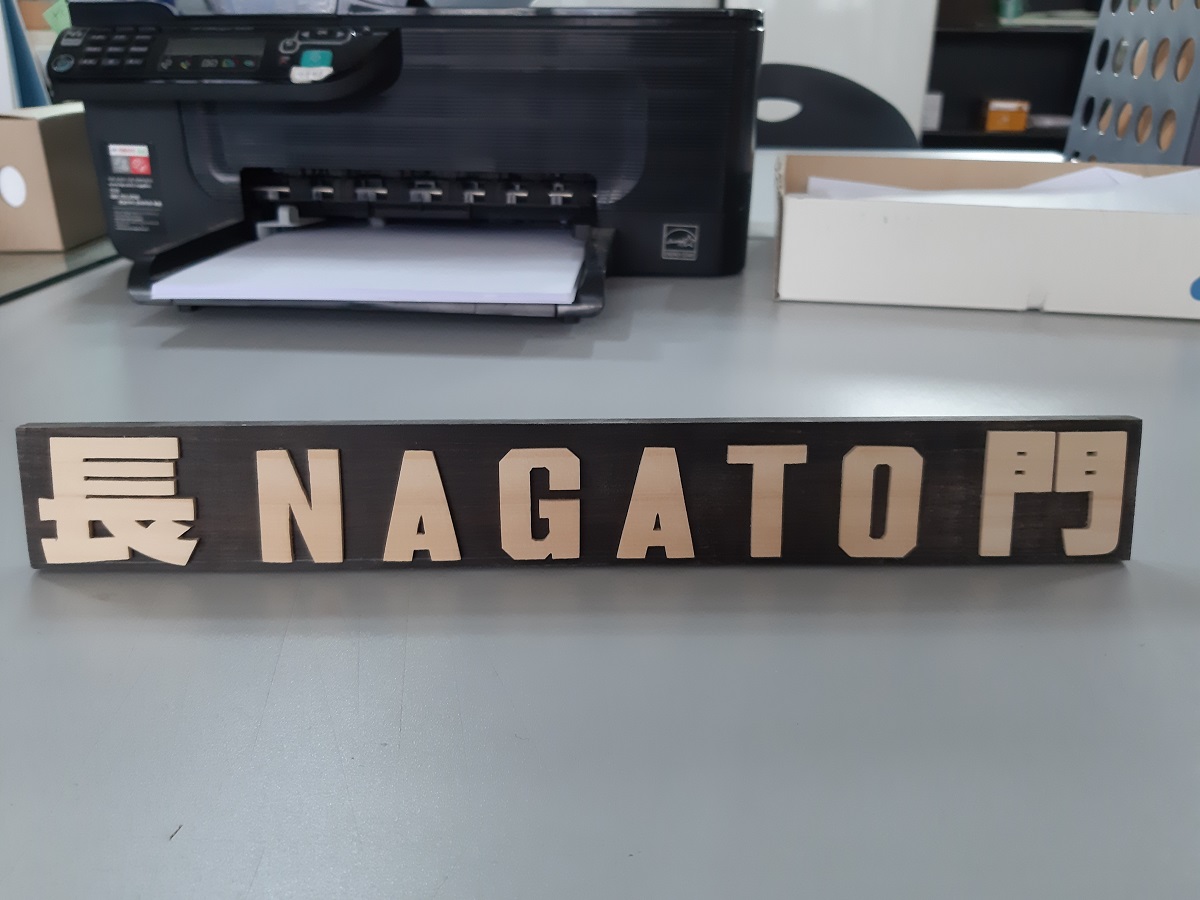

I've made nameplate and pedestal.
But I changed it's font.
Song.

[Dan K]

I just love your work. Precise.

[Fliger747]

Nice, accurate and clever work in the name plate!

Sad to see another chapter finished, so fun for the rest of us to watch and learn!

Cheers: Tom

[Song Jung Gun]

Hi,warshipmodeller!

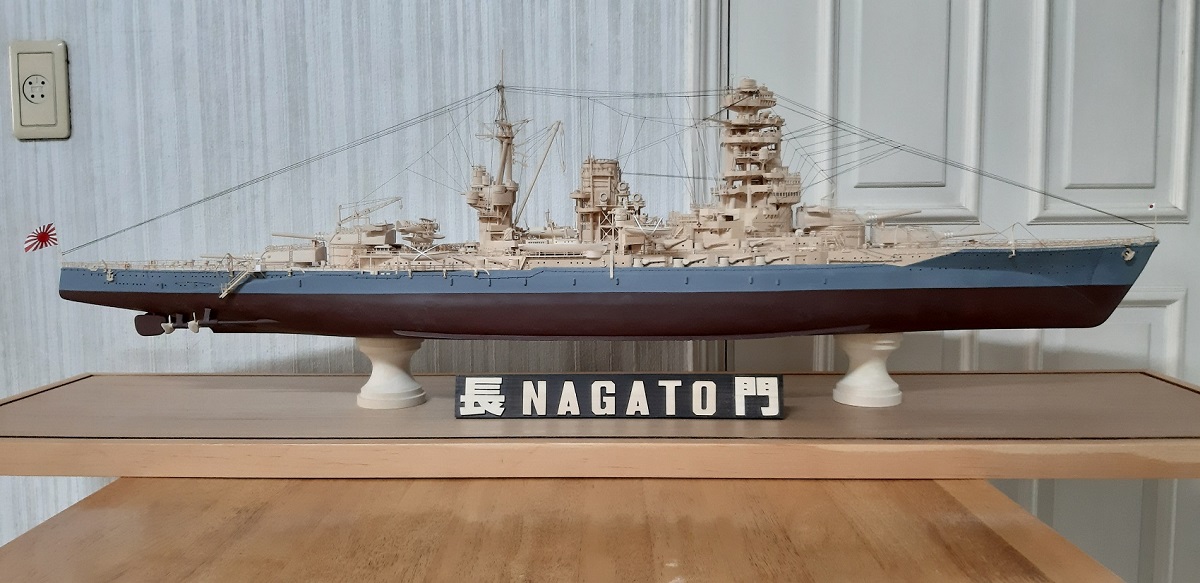

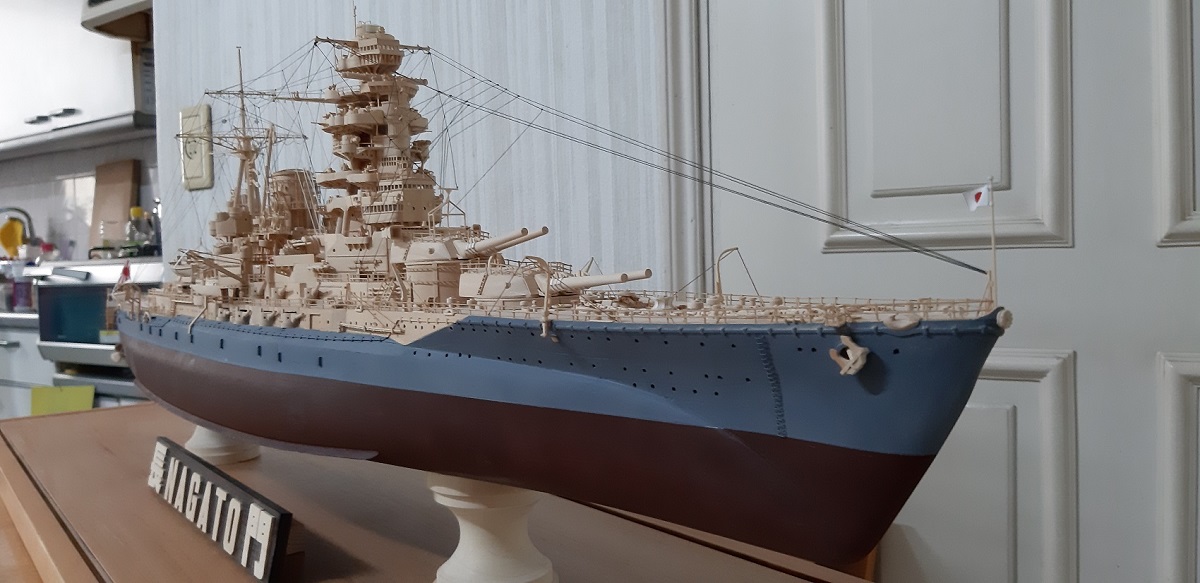

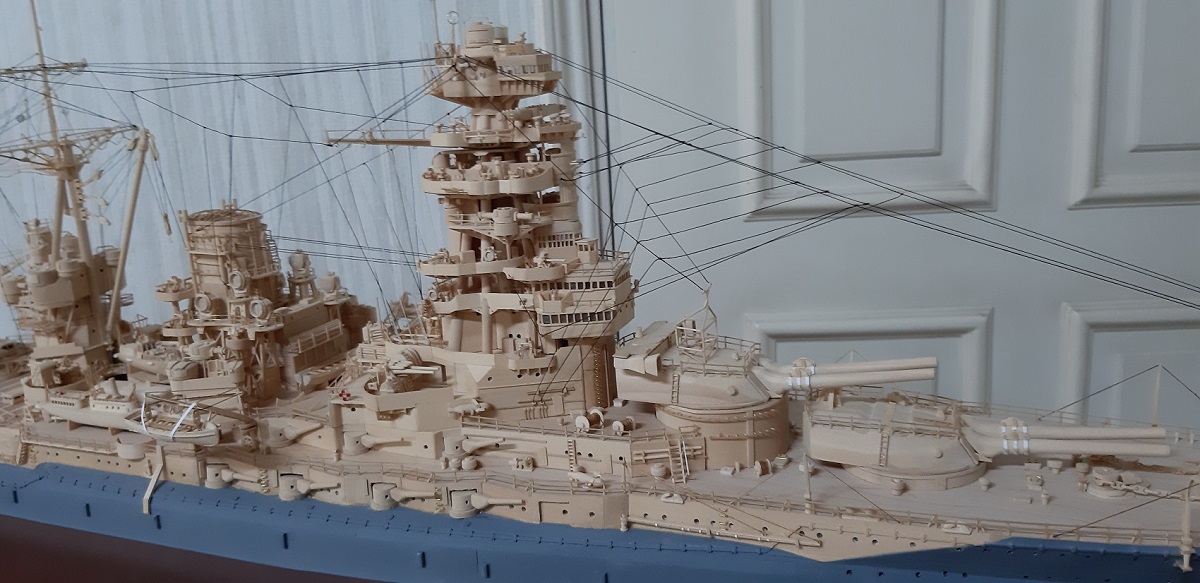

I've done 1/200 ijn Nagato model.
You will see more pictures in the gallery.
I've sent 30 pictures to editor of this site.
Song.

[spottier60]

Well done Song... I'm just feeling like a lazy French snail when looking at your work...
What's next then ? Can't wait to see the new one coming !

[DrPR]

Song,

Well done!

Have you ever counted the number of individual pieces you have made for one of your ship models? There are a lot of parts there!

Phil

[Silenoz]

Superb work, a real pleasure to follow this build and see this one growing...

[Song Jung Gun]

Well done Song... I'm just feeling like a lazy French snail when looking at your work...
What's next then ? Can't wait to see the new one coming !

Thank you!
you've been Korea. You know Budist temple in Korea.

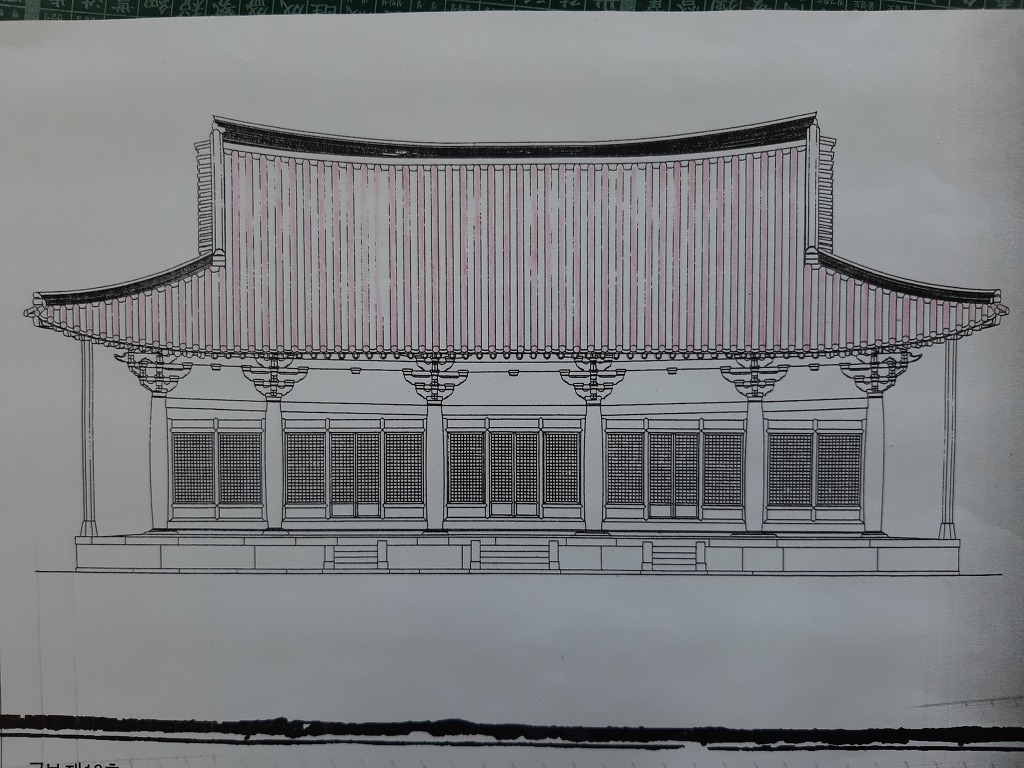

I want to make wooden architecture.
Song.

[Song Jung Gun]

Song,

Well done!

Have you ever counted the number of individual pieces you have made for one of your ship models? There are a lot of parts there!

Phil

Hi,Phil!
I don't count the number of individual pieces. I think it's not importance to make model.
Song.

[Song Jung Gun]

Superb work, a real pleasure to follow this build and see this one growing...

Thank you,Silenoz!
Your kind words encourage me.
Song.

[spottier60]

Hi Song,
I was expecting another warship, yet the Korean Budist temple will do nicely for sure, albeit probably not reported on this forum !
Whatever the subject, the only important point is that you enjoy doing it...
Stephane

[DrPR]

Song,

I have been to Korea and Japan, and the complex wood work in the temples is amazing. Given your talents for working wood your model will be beautiful!

Phil

[J. Soca]

Nagato came out beautifully!




Jose

[Fliger747]

Song has crafted some beautiful non ship models, such as the beautiful Diesel Locomotive!

I have seen some models of temples and the replication of the full scale expert woodworking is quite beautiful to admire!
