Progress on this model is swifter -least it seems that way--than with the Novik-- partly because I am now quite familiar with the various PE parts as well as what bits from my scrap-box that I can use ...

I bought yet another - (No 3 !!) PE fret- they are not cheap--but I was unable to resist the lure of the rather cool 4.7 in gunshields( needed x 8 this time-- Novik (and the Novik PE fret!) only had x 6....

I will NOT be building the other sister.... Izumrud...

--but the remaining shields and other parts will be usable on other ships...

meanwhile progress so far:


Having previously folded up the gunshields it was time to build the 8 x main guns

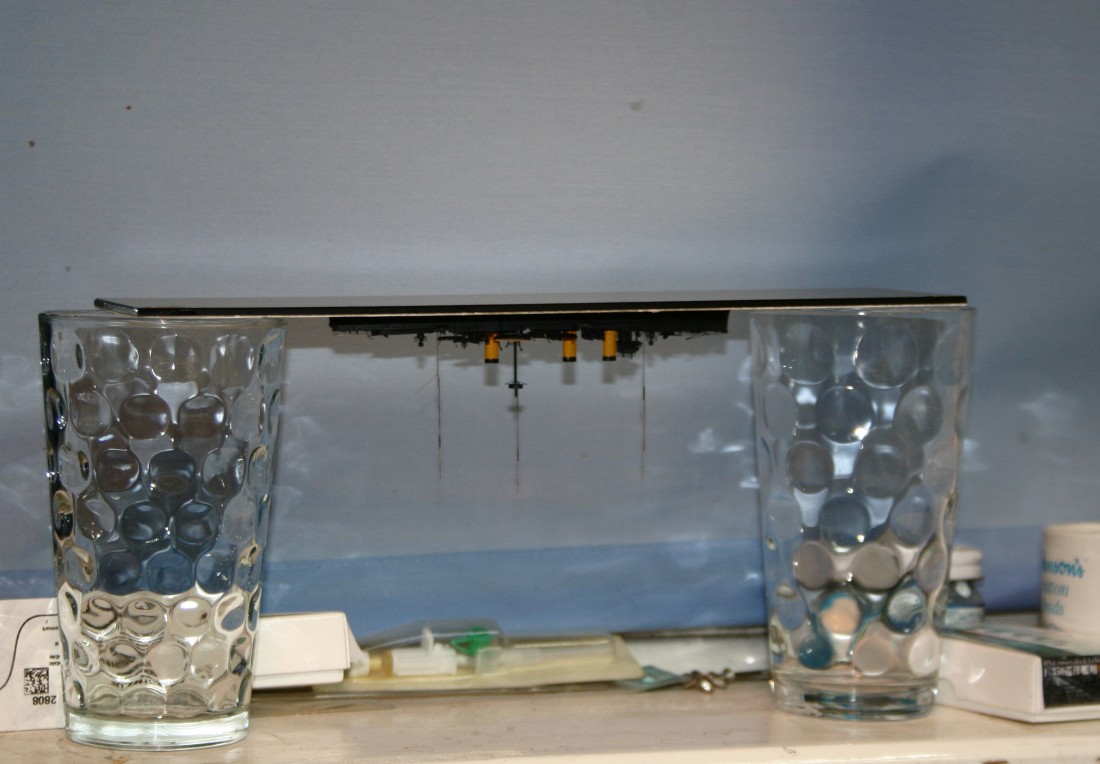

So as to make the positioning, holding and alignment easier I made a mini-jig
the gun bases were tacked in place with thinned matt varnish

That way I was able to dribble CA onto the trunnion positions using a soft piece of stretched sprue-- and not dislodge the finely balanced barrel!
For ease of assembly by less obsessive modellers (!) the rather nice PE shields incorrectly have base plate..

As a temporary measure, I left in place to ease painting- and removed afterwards

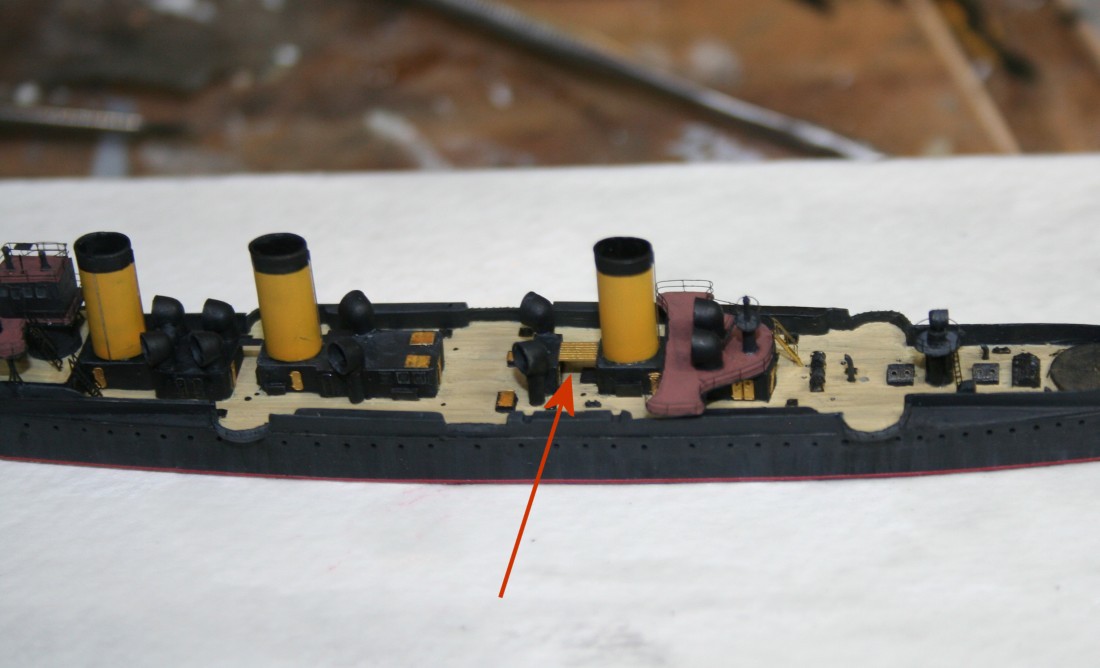

Study of the plans and photos led me to add more doors-as well as the platform ahead of funnel 3; this was made of some PE with wood planking ( Old WEM Askold set from scrap-box )

This platfrom is hard to discern in photos --and it is not that easy to glean from the plans either!!


The lower searchlight platform and its braces was made using the excellently rendered PE platform from the North star PE set. and wrapped with WEM ultra-fine PE rails

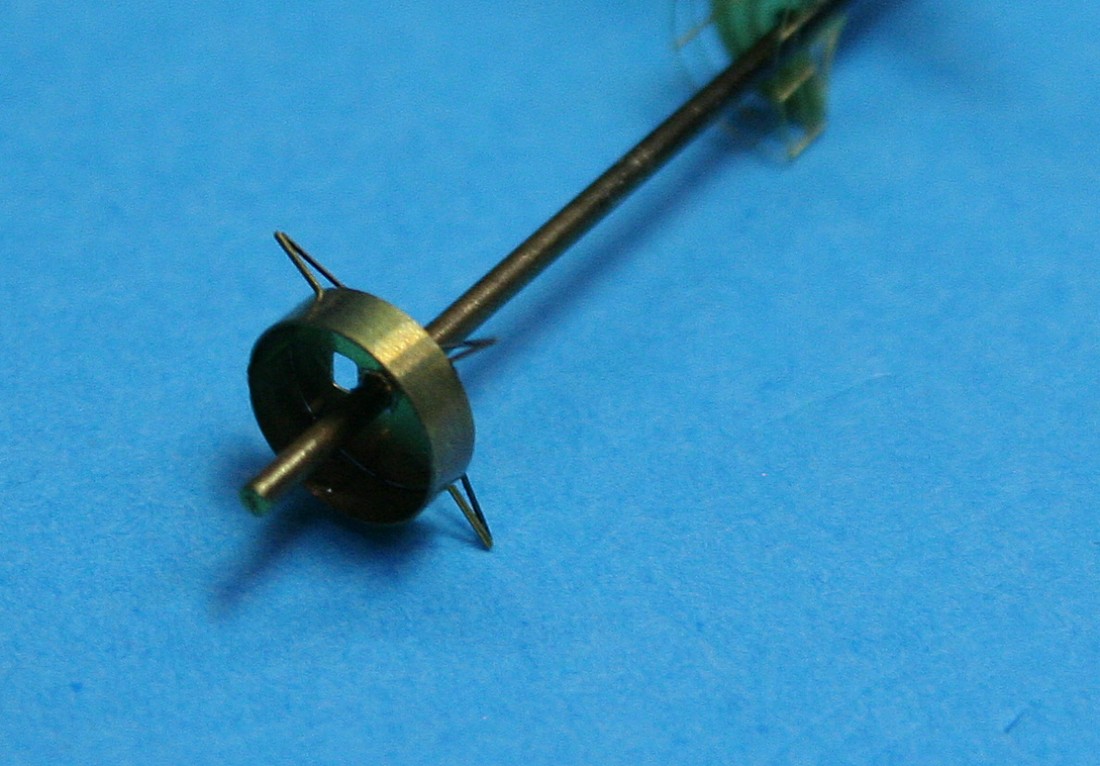

The upper fighting top platform was made using again the platform base and shield from the aforementioned PE set--

The wall requires rolling carefully to avoid distortion( and stretching !!) I did this by using brass tubes and exerting pressure evenly on to a 'post-it' note pad

The lower braces / upper mast spreaders where made using 1/350 PE railing longitudinals.

The capstans on the foredeck and the aft deck were turned from resin-mast scrap in a mini-drill.

Resin turns beautifully --and unlike plastic is a ""clean" material to turn--not un-akin to metal!

More soon!


JIM B

Great work on the guns, love the way you sorted them in that scale,'whew', tis awsume.

This is truly great working out.

Created the anchor beds by outlining with the railing
Once furnished with anchors and handling crane it all looked quite pleasing
I have added the gash shutes and some overboard discharge pipes made of 1/350 PE railing longitudinals )
spent crazy amount of time making a small platform ( using a PE door )

supported on 2 small legs...

....spent even more time making 6 x 47 mm guns-- the conical bases were made from cocktail stick tipd immersed in CA. topped with a small styrene sliver-- furnished with shields from a WEM Askold PE fret and a copper wire barrel.

The kit supplied items were too tall and clunky for my liking

The guns on the main deck had drop down flaps like the 4.7 in guns--

LOL--....these were added from one my many Novik frets!!


This evening task will be making 6 x hotchkiss guns--wish me luck!

More teeny weeny stuff to come....


JB

Jim, I admire all your works. Scale 1:700 is a big challenge for me. Could you tell what tools do you use? (especially tweezers and cutting tools).

Thank you Sotter!


I have answered your question ref the tools etc with images in greater detail


here:


viewtopic.php?f=4&t=151846&p=576325#p576325

JB

Onwards to the 6 x Hotchkiss guns

The bases for these were made using a sharpened cocktail stick tip dipped in CA cut to size

Added to that was a cut down and modified old over-scale PE Oerlikon from an early 1990's GMM set

Added small shield and an aiming brace of cut about PE handrail
The midships waist Hotchkiss guns had 4 x small gunners platforms that elevate the gun operator to see and fire across the top of the hammock stowage boxes and bulwark

These platforms were made of two cut halves of some small relief etches circles (from an unknown PE source in my box-a-bits! )

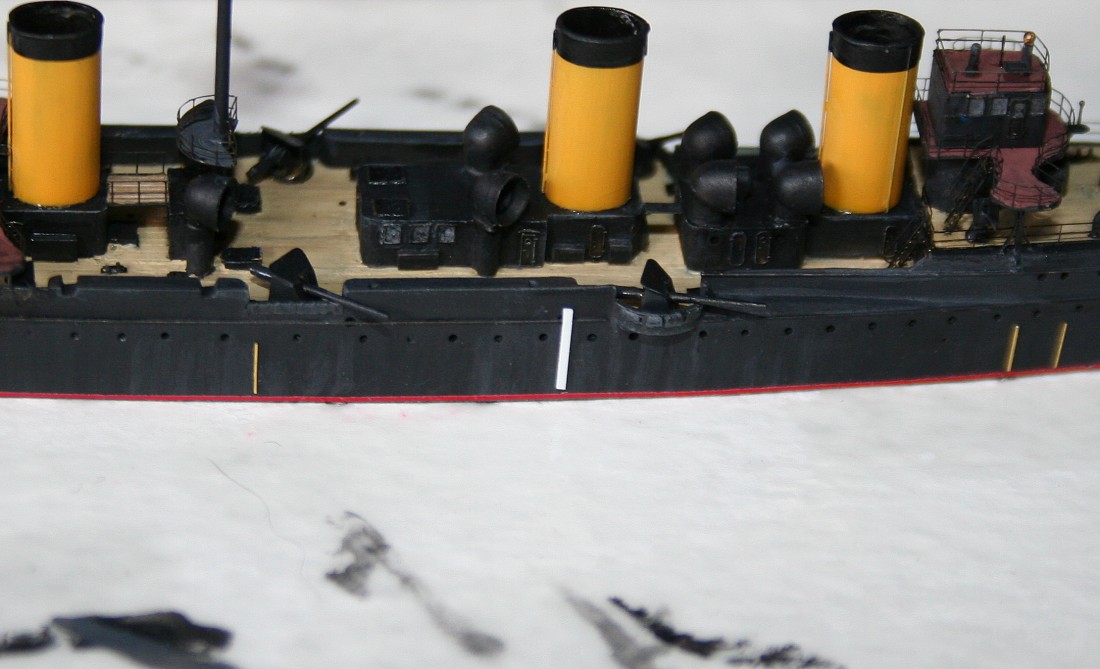

Zhemchug had some truly gargantuan davits--of a pattern that many Russian ships of her era had...
I have in the past built these either by refining the kit resin items, scratchbuilding by laminating brass and styrene strip so as to obtain the taper and then bending the brass to hole dthe styrene strip in shape etc etc

This time I took a new approach....==> using very sharp Fiskar scissors to cut some tapered strips from some old (and pretty thick !) Railway model nickel silver PE fret waste.

Unlike brass this metal seems to be able to withstand bending ( stretching!) in the 'wrong ' --ie flat plane -

- I tried it with brass first but it kept fatiguing and breaking.

See below the original resin parts as a comparison-- they are too thick, not quite the correct shape, slightly too tall and incredibly fragile ! ( brittle resin)

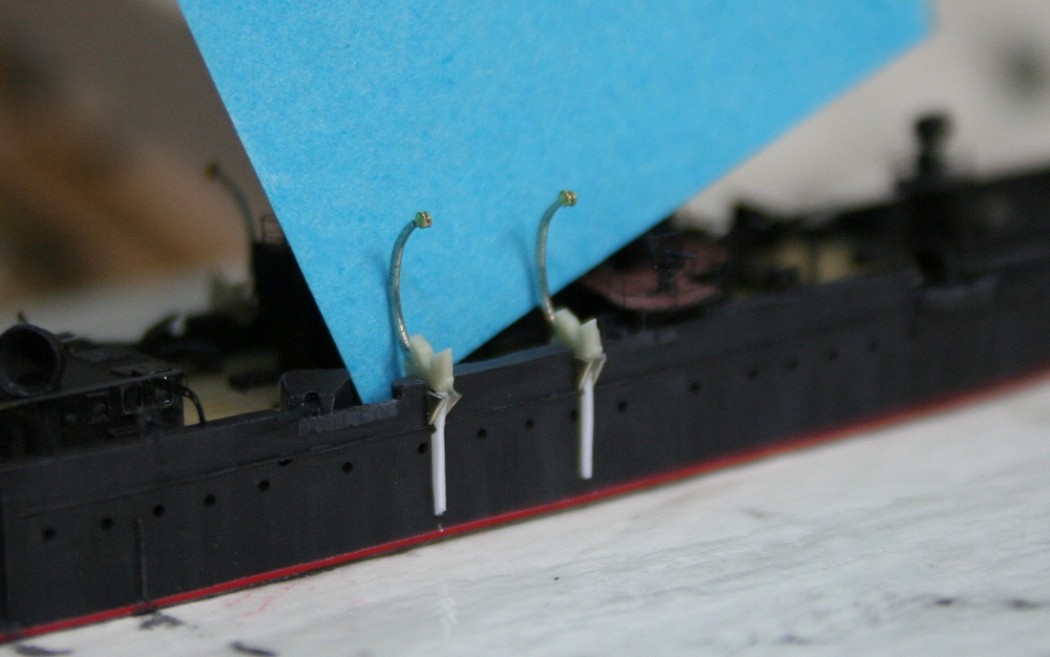

After adding some small shards of the same thick PE to the lower bases, a styrene strip on the hull , a dab of white glue below the cradle and some PE brass porthole lids to simulate the twin pulleys ...
