Calling all Kriegsmarine Prinz Eugen, Admiral Hipper & Blücher fans

[Sauerteig]

Does anyone know if Shipcraft #16Admiral Hipper Class Cruisers covers the 1940/41 configuration of the Prinz Eugen? Thanks.

[Haijun watcher]

I am doing a Blucher out of the Hipper kit and making a PE during cerberus, so I am afraid I don't have another set to spare.
Good luck Dan

Do you have any pics of this Hipper-Blucher conversion?

So you used the Trumpeter 1940 Hipper kit, I take it?


-------------------------------------------------------------------

Gents,

Does anyone know if the Hipper and Blucher ever did sea trials or did training workups together? Both were commissioned in 1939, so that gives sometime before the Blucher was sunk in April 1940 in the Battle of Drobak Sound during the invasion of Norway.

Can't seem to find a picture of the two sisters in the same picture in an online search, if one exists at all.

Lastly, wasn't it a waste that their sister Seydlitz was converted to a carrier when she was 95% complete? Hitler's changing priorities (e.g. focusing on carriers too late) really screwed up their chances in the naval campaigns of that war. The Seydlitz could have at least provided the KM with another raider to attack the Murmansk or Mid-Atlantic convoys.

[Dan Banks]

Hello Sir: Yes I used the TR Hipper kit as a basis and have completed the hull with more pronounced bow, made most of the conversions to the bridge and funnel, put lifejacket bins on turret B & C, and started on mast structures. I used Stein Gildbergs build tutorial for most of the work and added a few things I noticed from photo's and drawings. I am getting a new I-phone next week so I will see if I can manage to send pictures. Outside add ons have included Wem PE, Pontos deck, Flyhawk PE, LaArsenel stuff, and parts bin. Haven't worked much on it lately, back issues make it hard to sit forward for more than 10-15 minutes. I am not aware of Blucher and Hipper ever operating together, but that doesn't mean it never happened. As far as Seydlitz goes, her range was too short and machinery too troublesome to be good as cruiser or carrier. I love the looks of the Hipper class, but they were probably worst use of naval rescources the Germans made. Maybe the K-class light cruisers but at least they were able to serve as training vessels.

[poulw]

Hello to all.

I am scratchbuilding Prinz Eugen in 1/200, and I wondered if the is any interest on the forum to follow my build.
If that is the case I will gladly post pics of the progress (or is there a different subforum to start a thread?)

Here is a pic of my model in its current stage:



Cheers .... Poul

[MartinJQuinn]

Hello to all.I am scratchbuilding Prinz Eugen in 1/200, and I wondered if the is any interest on the forum to follow my build.
If that is the case I will gladly post pics of the progress (or is there a different subforum to start a thread?)

Yes, I am sure there would be interest. Please start a new thread in the "Works in Progress" forum:

viewforum.php?f=59

[DrPR]

Poul,

There certainly is interest here! Looks like you are off to a great start.

You should post in the "Online Scratchbuild Projects" section. Start your own Prince Eugen thread.

Phil

[Dan Banks]

hail ya: your picture looks awsome. did you scratch build everything? if not what aftermarket parts and from where? more please!

[DougC]

The Prinz Eugen and the Hipper and Blucher had slightly differing hulls.

Do the Trumpeter 1/700 kits reflect the different hulls or are do the kits use the same hull?

[maxim]

There is not kit of the Bl�cher by Trumpeter. Admiral Hipper and Prinz Eugen have different hulls. A strange difference between the two hulls in addition to the expected at the bow and the length is that Admiral Hipper is depicted completely empty, whereas Prinz Eugen is fully loaded, i.e. for a waterline model of Admiral Hipper the hull has to be buried about 3 mm in a diorama plate or 3 mm have to be removed.

[Olaf Held]

In addition, a good starting point could be a Hipper kit with a Prinz bow attached, if it is not possible to modify the Hipper bow. With regard to the superstructure, Bl�cher is quite similar to the early-war-Hipper. I strongly recommend Stein Gildberg's 1/350 Bl�cher model. When it comes to smaller details, the differences are piling up, but apart from the bow surgery, most differences should be easy to fix, at least to a point that the model screams "Bl�cher" ...


Happy modelling ~ Olaf!

[poulw]

hail ya: your picture looks awsome. did you scratch build everything? if not what aftermarket parts and from where? more please!

Retired and now approaching 70 years of age, I have plenty of time, but limited funds
Everything so far is scratch built (unless you count the brass rivets used for portholes as parts). I only plan to purchase the props, and gun barrels as I don't have, or have access to, a metal lathe. Maybe I'll have to buy staircases a well.
Planks for the hull are cut from knot free pine timber, deck planks from lime veneer and the superstructure so far is mainly made out of styrene and brass sheets.
Here are some pics of the funnel section during construction:





And here is a picture of my last scratch built model, battleship "Richelieu", also in 1/200:

[Dan Banks]

Very cool, keep up the good work. More questions, whose plans did you use, what period are you going to represent with your fine model?

[poulw]

Very cool, keep up the good work. More questions, whose plans did you use, what period are you going to represent with your fine model?

PG plans are hard to come by, especially in 1/200, and whatever I got hold of had plenty inaccuracies.
So, I've had to draw up my own plans based on various information, mainly from the Prinz Eugen website and the card model "Schwerer Kreuzer Prinz Eugen" from CFM Verlag in Munich. It took me nearly 3 years of research before I had enough information to draw a proper side view and top view to begin the build.
My drawings are too large to post (and is still works in progress), but here is a section from the side view showing the catapult and funnel, just to give you an idea:



My hull plan is based on "Prinz Eugen - SMB bauplan" (W Seiss/Franz Mrva). A fellow modeller in the US was kind enough to email me 'Spantlinien' and 'Langelinien' from his drawing, which in turn I converted to scale 1/200.

The best overall plan I have seen so far is the one from Kagero by Waldemar Goralski in scale 1/350.

Detailed drawings and templates (armament, cranes, fittings, platforms, etc) are constructed 'on the go' as I progress

The model, when finished, will represent early 1945 at the time of handover in Copenhagen (there is a really good description of this period earlier in the thread [Jan 29, 2009] made by Olaf Held).

[Oterlia]

Poul how long time did you use on the Richelieu ?

[poulw]

Poul how long time did you use on the Richelieu ?

It took me 3 years and more than 7,000 parts to build her.

[Oterlia]

That's impressive Poul.

[biegacz90]

Hi guys

step by step I'm preparing to my next model. It will be Admiral Hipper 1:350 And I have a problem with paint scheme. I chose from march 1941 but I found many schemes and I don't know which is correct Just click in the miniature, If you click it will be much bigger

this is instruction from trumpeter



this I found in admiral hipper class website



this I found in kbismarck forum



and this I found in german naval camouflage



In every photo there are difference in paint scheme especially in the upper hull and superstructure

[Olaf Held]

These are all secondary sources. In my opinion you should stick to photos of the actual ship. It could be that all the artists doing those illustrations had photos showing exactly what they painted, maybe the photos were just taken a few weeks apart.

Some camouflage schemes developed over the course of a couple of weeks or months. If you see a stripe here or there in those illustrations, and you can't find it in photos, then just rule it out.


Happy painting ~ Olaf!

[biegacz90]

If you see a stripe here or there in those illustrations, and you can't find it in photos, then just rule it out.


Happy painting ~ Olaf!

You are right, it will be the best solution, thanks

[bengtsson]

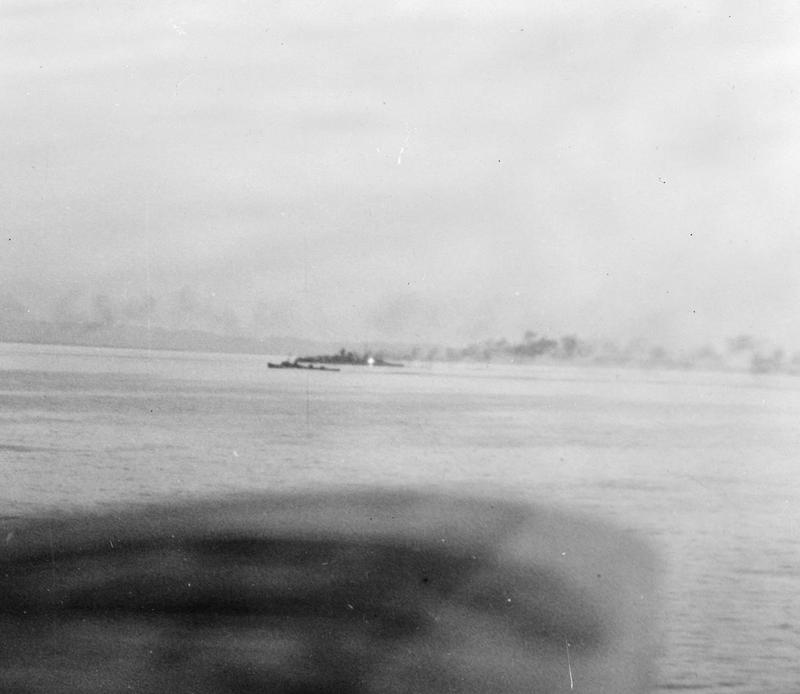

This photo adds nothing for the model builder. But historically it shows Prinz Eugen firing back at a Fleet Air Arm attack in which she shot down 2-3 attackers and avoided damage. Off Norway I believe in 42. Seen from a FAA attacker.
I have been working on Germany's warships versus air attacks. Found this in the hunt for data. Working on a list of all confirmed victories by German surface warships.
