Bismarck 1/100

[Dave Wooley]

Brilliant I never thought of using a compass cutter the way you use it for elliptical shaps. That one will be added to my memory banks. Your model techniques are first rate and you are certainly a master in styrene work. Question which drawing are you working from?
Dave Wooley

[Capit�o Norbert]

Thank you Dave. i am learning with your buildings too. i think it cool.
well i am using the excelente german plans i compiled a Hans Gally and Harhaus plan and redraw my own plan adding what one plan don't having in another plan. i use adobe software to do it. 2 dimension view.
and about the drawings - yes some ellipses in our yes are in true round traces from a distant center point
Regards to UK

[Capit�o Norbert]

more pictures(how i am with no job in this moment...

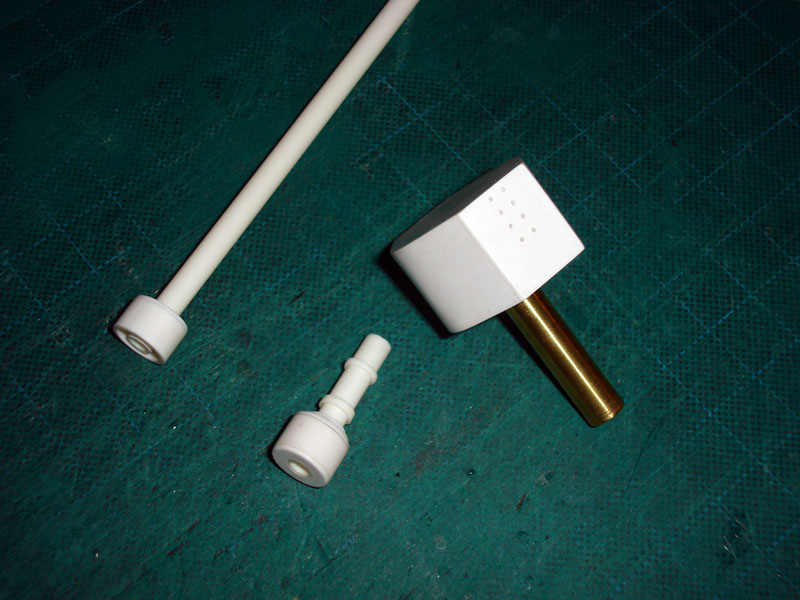

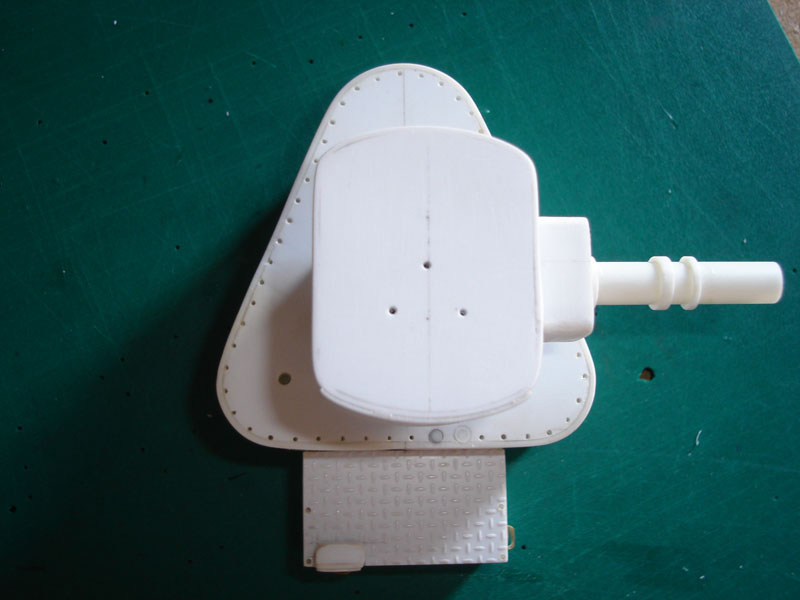

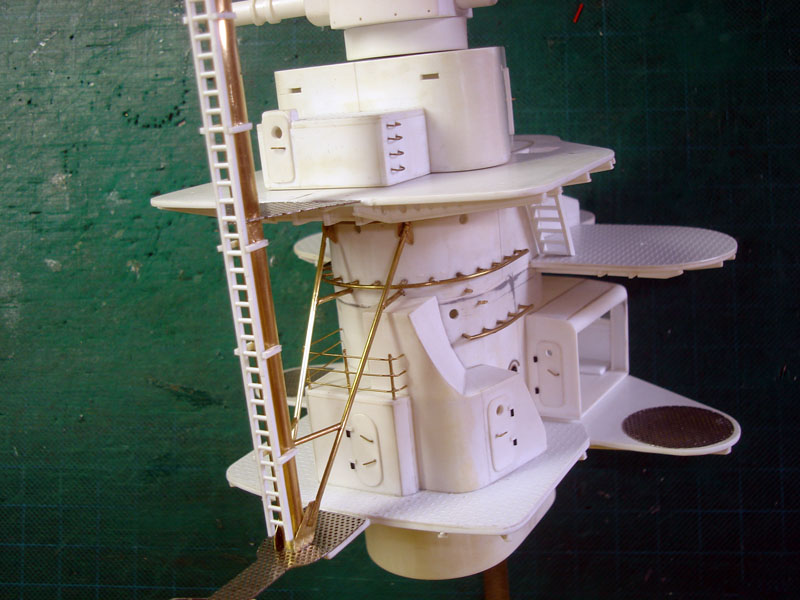

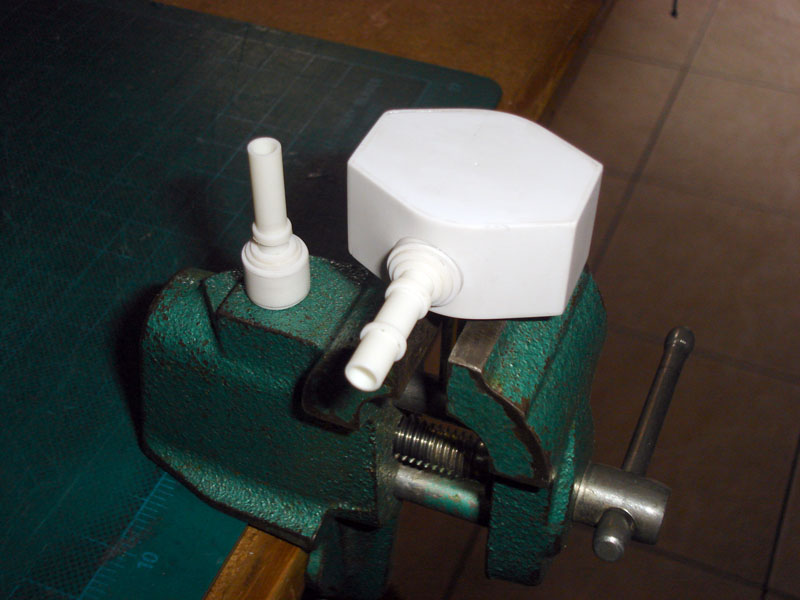

range finder(IN THE TOP OF CONNING TOWER)

[Capit�o Norbert]

[Capit�o Norbert]

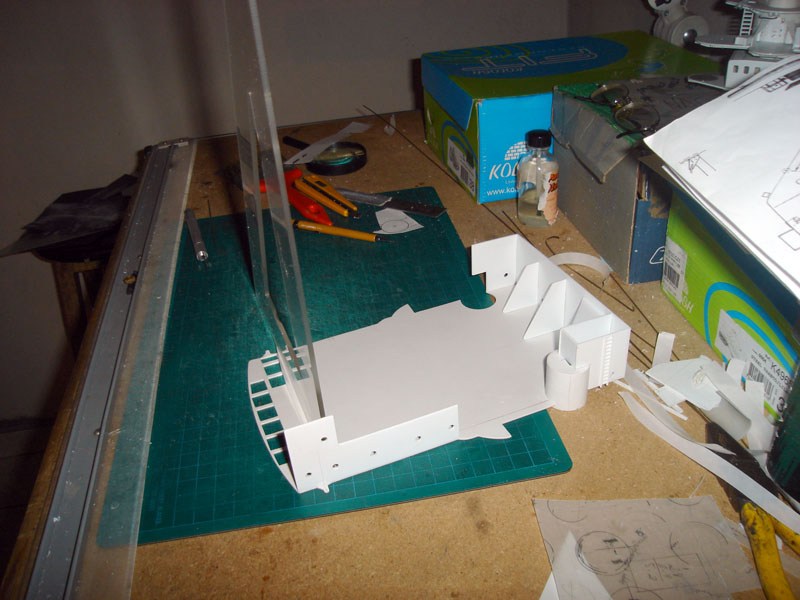

ALIgnment od walls

close view

[Capit�o Norbert]

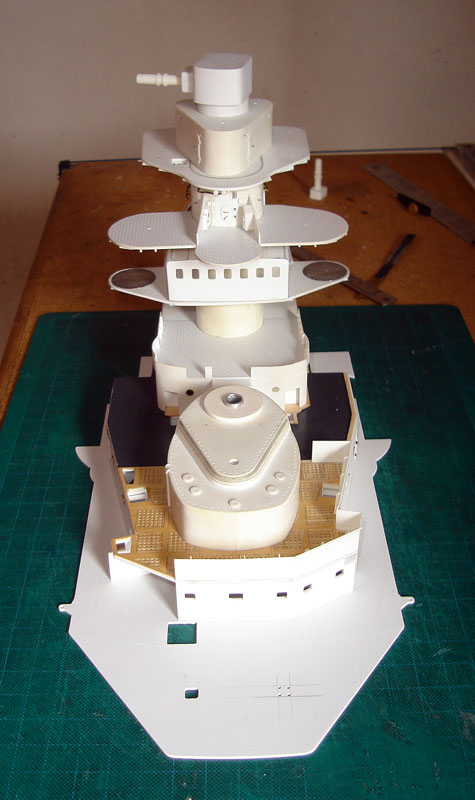

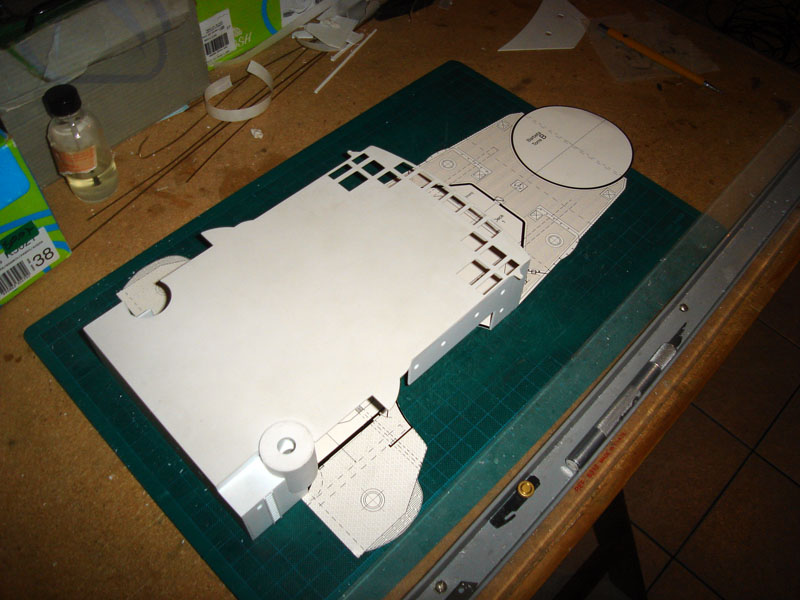

a great deck....

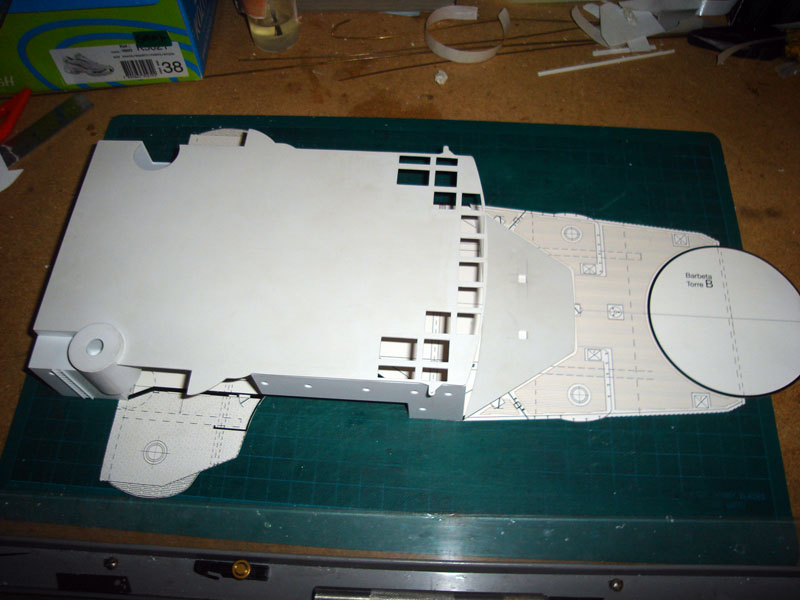

openings for gratings

still not glued

[Capit�o Norbert]

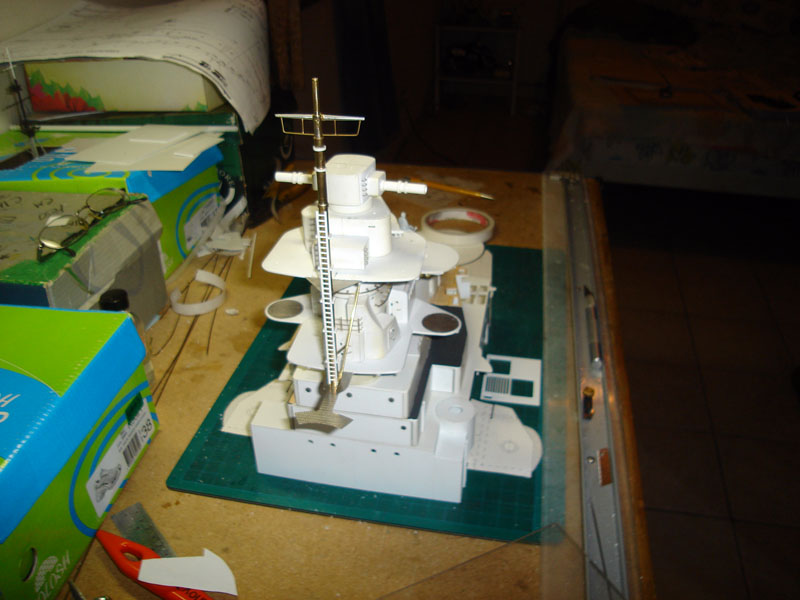

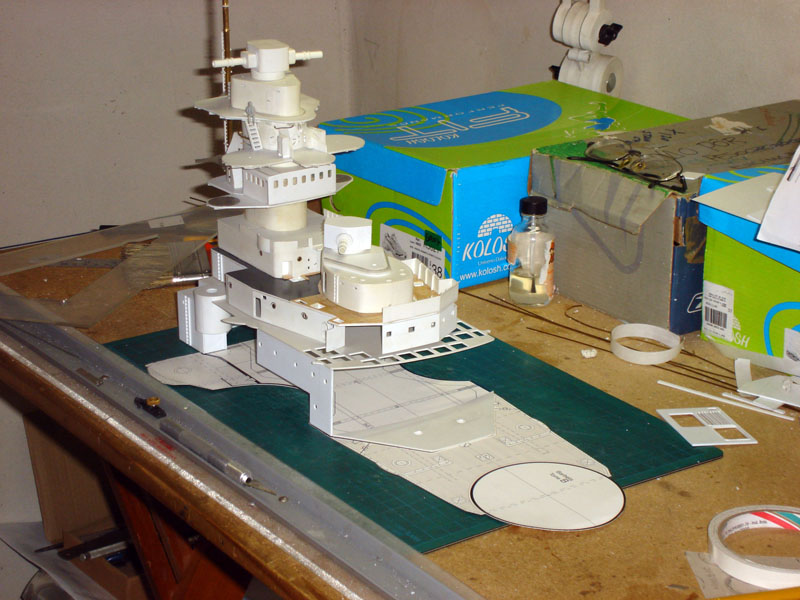

rear view sups...

i go back later....

[Capit�o Norbert]

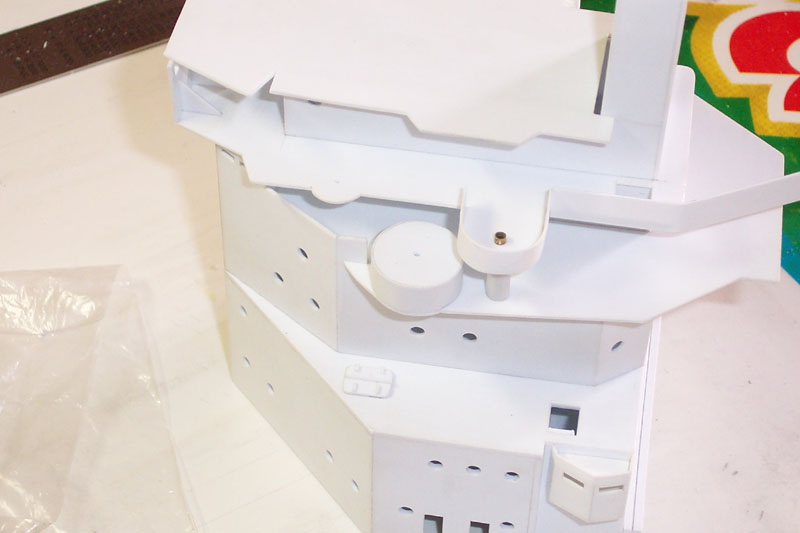

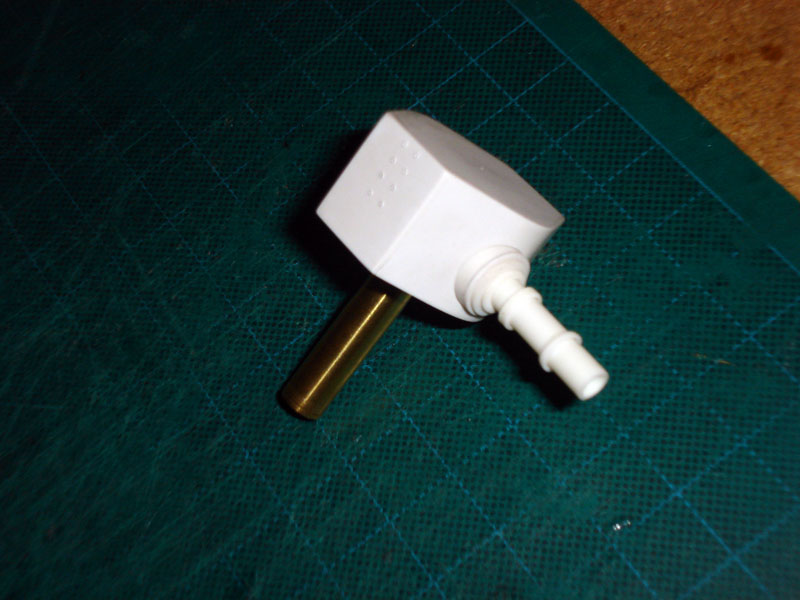

range finder buildings

bending the plate(cold bending)

[Capit�o Norbert]

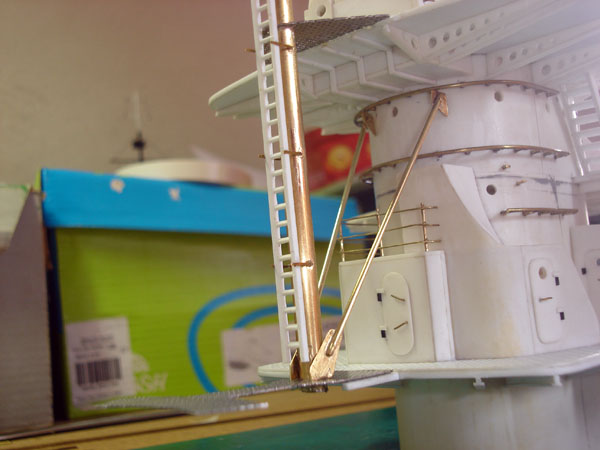

ataching the platform...

[Capit�o Norbert]

[Capit�o Norbert]

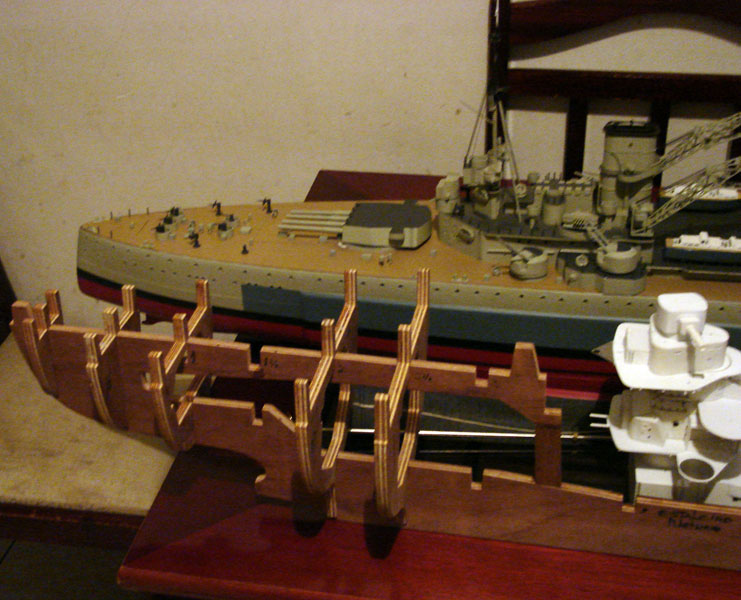

my KGV 1:160 and part of keel o Bismarck

[Capit�o Norbert]

[Capit�o Norbert]

just 2 picttures, tomorrow i come back

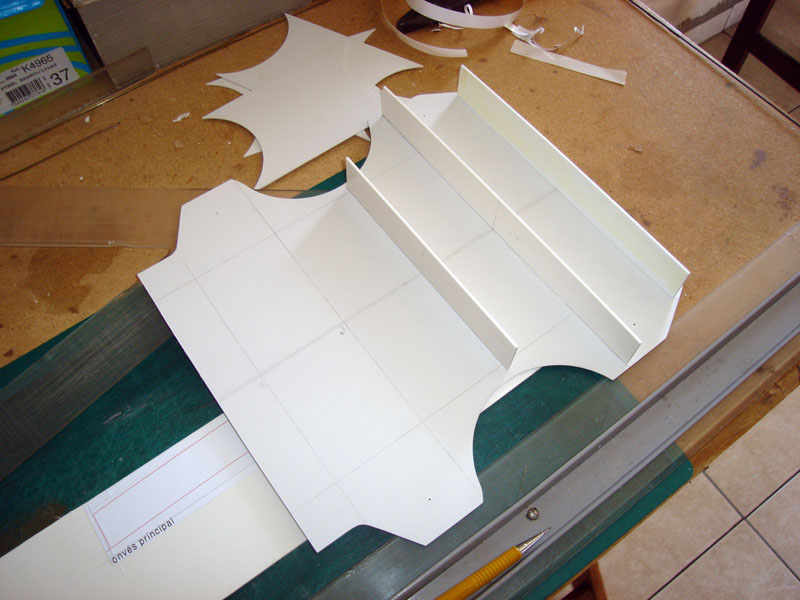

cutting platforms

adding reinforcments(still not finish the reinforc...)

[Capit�o Norbert]

[Capit�o Norbert]

the reinforcments(next time i show the pictures) is leaving strenght of the platform supporting easy the structures above.
Regards all

[Capit�o Norbert]

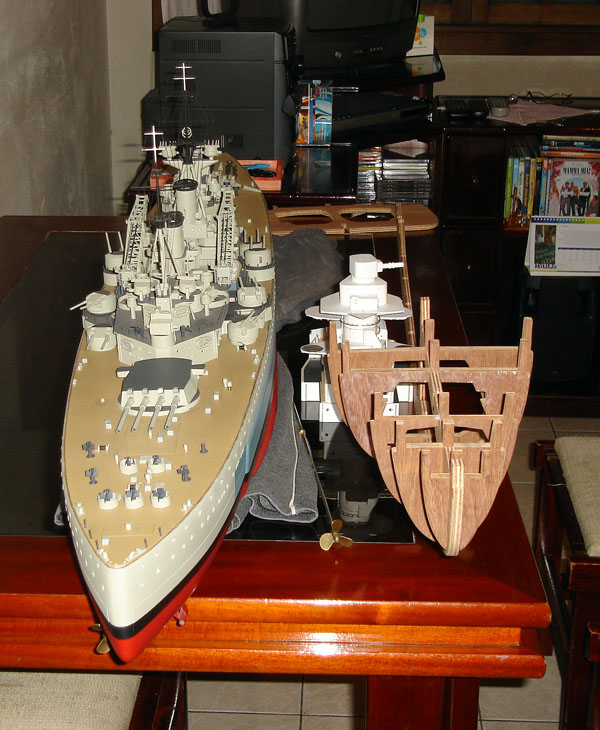

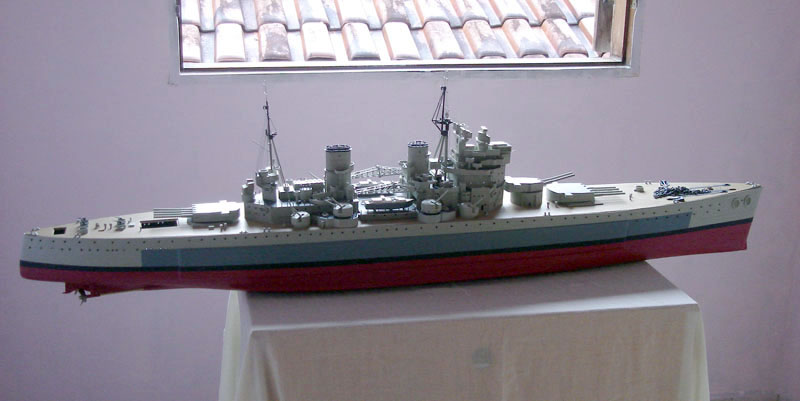

p.s. a picture of my KGV

[Dave Wooley]

What is the scale of your KGV? What did you use for the gratings around the front of the armoured con ? Are they styrene or PE? Great Job
Dave Wooley

[norberto]

Hi Dave..
the KGV is 1:160 scale anda is scratchbuilt too - hull wood and styrene superst. and brass(masts and another parts).
stanchions are made germany by KRICK.
Well about the gratings are made in wood from Cornwell model boats - UK and adapting for my presumed size(i never see in any drawing about this subject:grating)
these gratings are very well made.
Regards

[Capit�o Norbert]

Hi Dave, the KGV is in 1:160 scale and are made of hood hull - styrene superstructure and brass(masts and other parts).
the kgv is in the shipyard to receive a rust in the hull but i don't having time cause the Bismarck
the gratings used in Bismarck are made in UK by Cornwall model boats - the gratings are fine but need cut to adapting your size.
unfortunately the small size are 1mm and for scale is the smallest size who having to use. but is fine grating. and easy to cut and mount.
too is a hard wood.
Regards

[Capit�o Norbert]

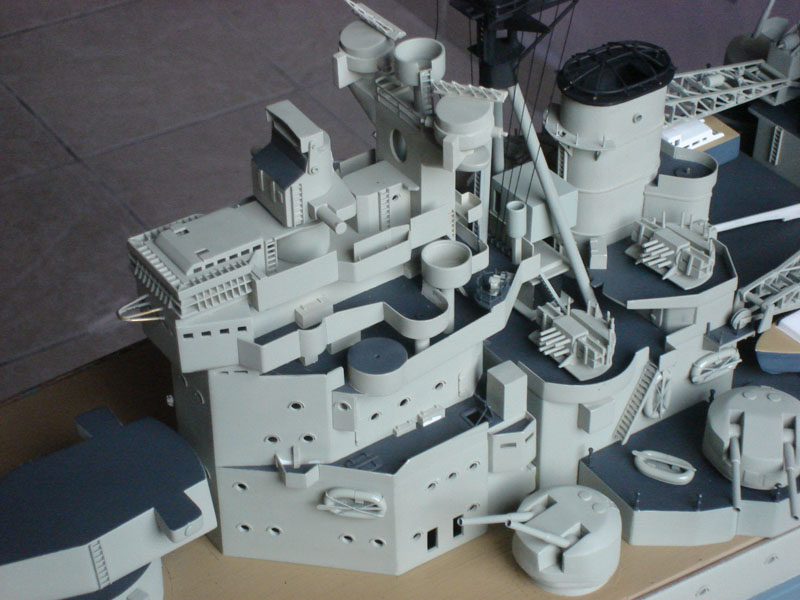

kgv BUILDINGS PIcs
