Hello again all!

The photos below were taken with a flash, indoors, at night.- I hope to supplement the set below with some photos in the near future taken in daylight; the colours are actually flatter and more subtle, but the present set are adequate for illustrative purposes....
---------------------------------------------------------------------------------------------------------------

Having brought the model to 'flatcoated-but-not-yet-rigged' stage it was time to apply some colour to the water surface.
I chose a tone similar to that found around the British Isles and Norther Europe on an overcast day; a dull grey-green mix that forebodes worse weather to come!

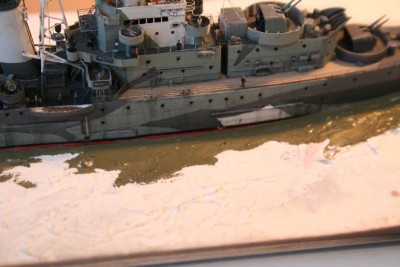

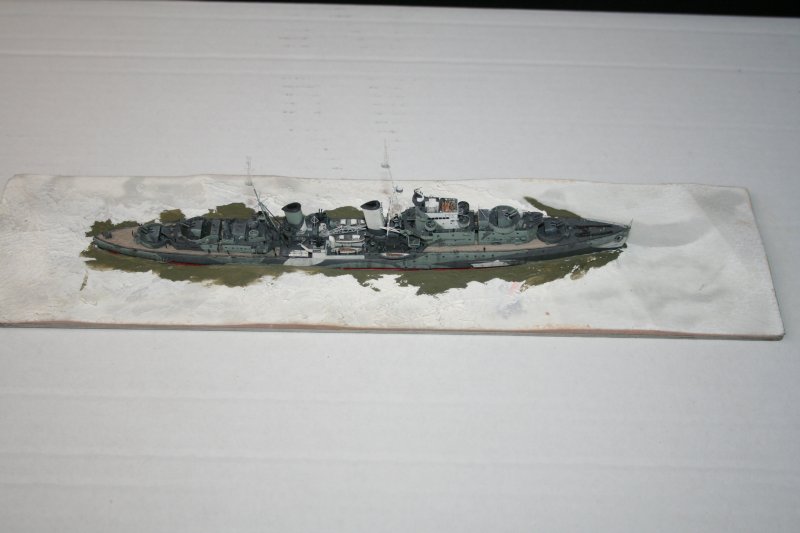

The previously mounted ship had the immediate perimeter around the waterline carefully painted using a fine brush, ensuring that the 'underbelly' of the ship remained visible.
Attachment:
Copy of 20-09-2008 011.jpg
Copy of 20-09-2008 011.jpg [ 68.41 KiB | Viewed 21061 times ]
Attachment:
Copy of 20-09-2008 013.jpg
Copy of 20-09-2008 013.jpg [ 42.87 KiB | Viewed 21075 times ]

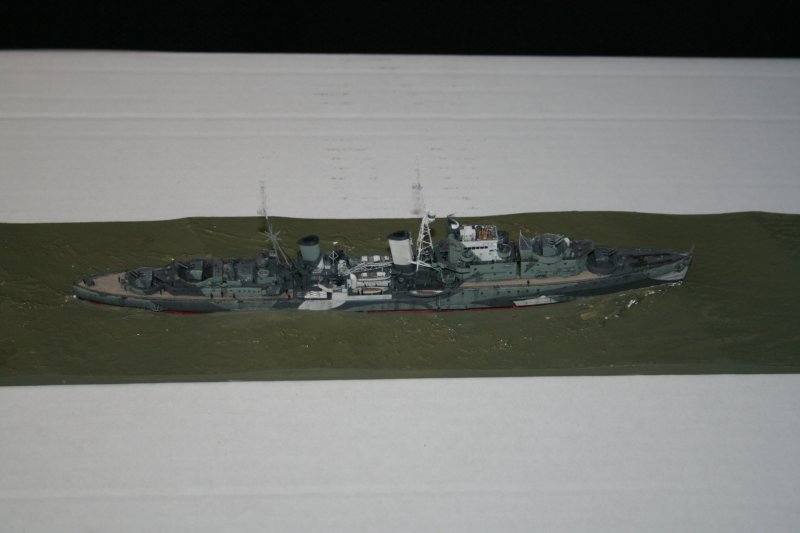

Once completed, the effect was of a dull sea, lifeless and monotone.
Attachment:
Copy of 20-09-2008 015.jpg
Copy of 20-09-2008 015.jpg [ 38.1 KiB | Viewed 21054 times ]

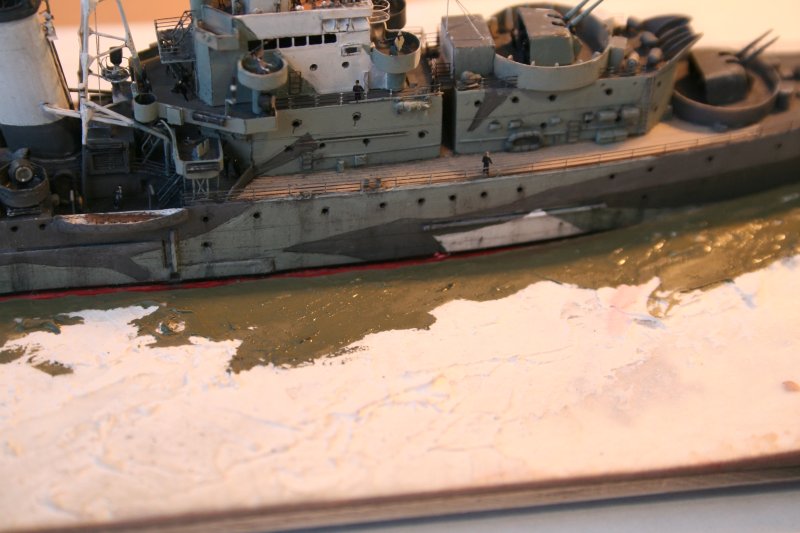

I now applied more of the grey roughly to the still wet surface with copious amounts of thinners and re brushed the surface wet-on-wet
Attachment:
Copy of 20-09-2008 017.jpg
Copy of 20-09-2008 017.jpg [ 69.63 KiB | Viewed 21029 times ]


This was then blended using the thinners to keep it all wet and flowing,the idea being to create subtle highlights and darker tones
Attachment:
Copy of 20-09-2008 018.jpg
Copy of 20-09-2008 018.jpg [ 37.29 KiB | Viewed 20973 times ]
Attachment:
Copy of 20-09-2008 020.jpg
Copy of 20-09-2008 020.jpg [ 47.86 KiB | Viewed 20987 times ]
Attachment:
Copy of 20-09-2008 021.jpg
Copy of 20-09-2008 021.jpg [ 70.39 KiB | Viewed 20979 times ]
Attachment:
Copy of 20-09-2008 022.jpg
Copy of 20-09-2008 022.jpg [ 65.6 KiB | Viewed 20915 times ]


Next the crests of the bow and stern waves were added-using thick white paint, the initial effect is very crude, but more thinners and dry-on-wet paint will give a fairly satisfactory effect yet...
Attachment:
Copy of 20-09-2008 024.jpg
Copy of 20-09-2008 024.jpg [ 77.58 KiB | Viewed 20980 times ]
Attachment:
Copy of 20-09-2008 023.jpg
Copy of 20-09-2008 023.jpg [ 46.48 KiB | Viewed 20939 times ]

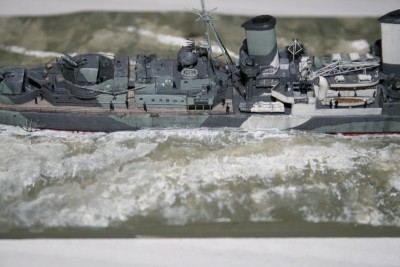

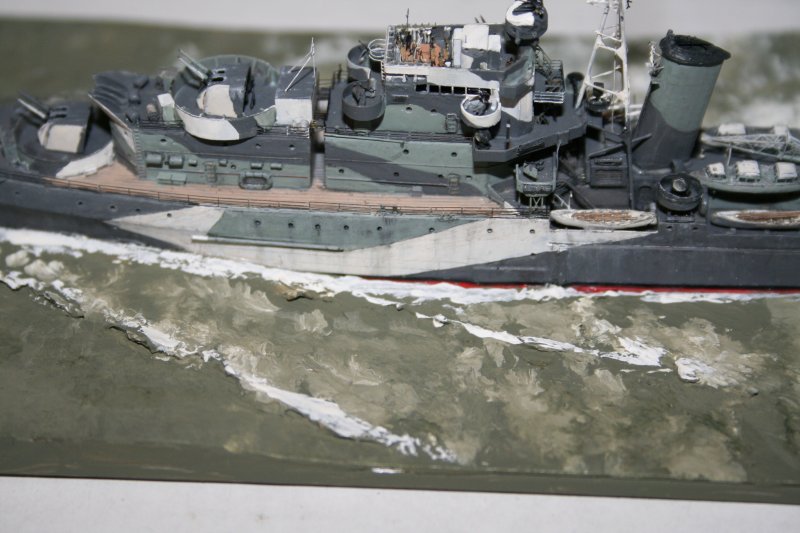

The contrast of blended and un-blended can be seen to good effect below
Attachment:
Copy of 20-09-2008 027.jpg
Copy of 20-09-2008 027.jpg [ 64.31 KiB | Viewed 21018 times ]

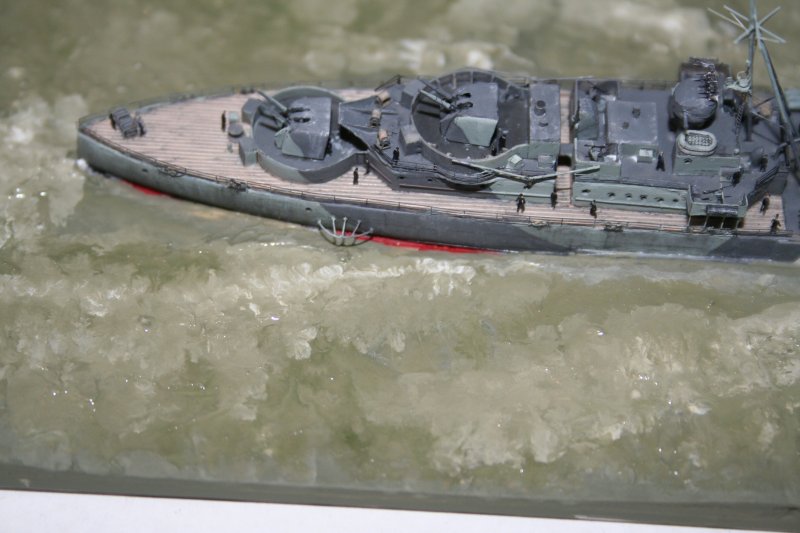

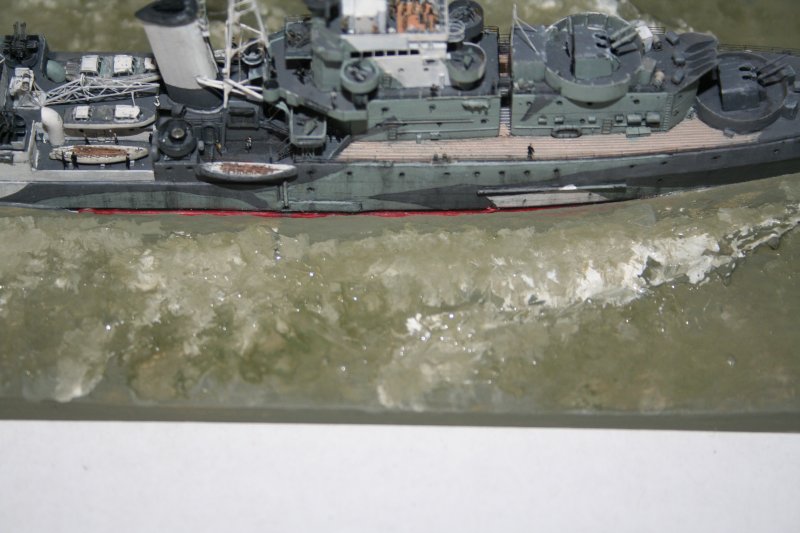

once washed and dry-on wet brushed the results start to look a little like foaming sea
Attachment:
Copy of 20-09-2008 025.jpg
Copy of 20-09-2008 025.jpg [ 87.06 KiB | Viewed 21000 times ]
Attachment:
Copy of 20-09-2008 026.jpg
Copy of 20-09-2008 026.jpg [ 75.4 KiB | Viewed 20908 times ]

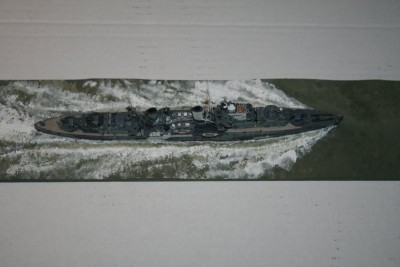

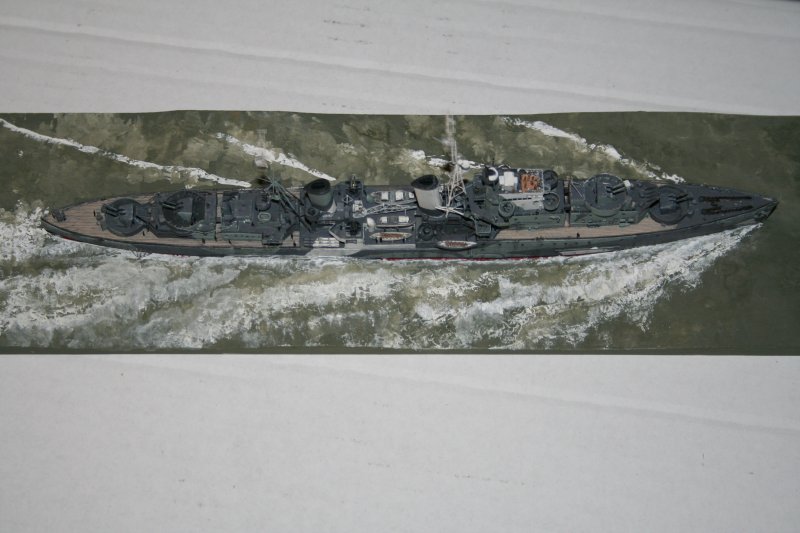

after all the mixing and blending the overhead view was quite pleasing to the eye
Attachment:
Copy of 20-09-2008 028.jpg
Copy of 20-09-2008 028.jpg [ 55.13 KiB | Viewed 20953 times ]
Attachment:
Copy of 20-09-2008 029.jpg
Copy of 20-09-2008 029.jpg [ 94.63 KiB | Viewed 20949 times ]

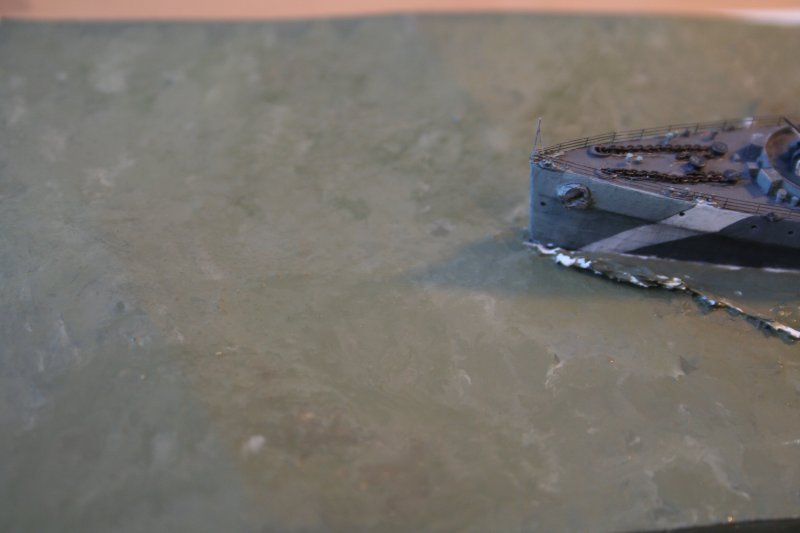

Not forgetting the water ahead of the ship; the swell would require a little spindrift- important not to overdo this as it can overpower the scene
Attachment:
Copy of 20-09-2008 037.jpg
Copy of 20-09-2008 037.jpg [ 71.42 KiB | Viewed 21006 times ]

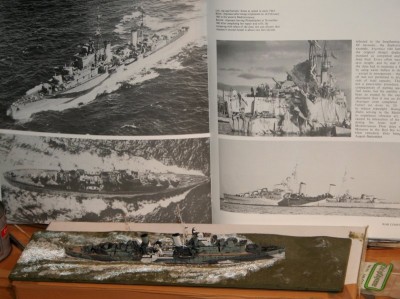

Overhead views of similar ships at a variety of speed are always the best source; the variance of wake pattern and foam distribution varies from photo to photo depending on sea conditions, speed, and direction of travel relative to the wind.
Attachment:
Copy of 20-09-2008 060.jpg
Copy of 20-09-2008 060.jpg [ 104 KiB | Viewed 20997 times ]


Bow wave spray was made of the slightly torn edges of tissue paper, and supplemented with white fluff taken from a tumbledryer filter-this being finer than cotton wool!
Attachment:
Copy of 20-09-2008 061.jpg
Copy of 20-09-2008 061.jpg [ 57.2 KiB | Viewed 21273 times ]


The fluff was also added to a few crests of the quarter-wave--again ...less is more...- even when its windy, surprisingly little spray gets blown off a wave.

I hope the above is of some help to anyone who has not as yet taken the plunge... :roll: haha... to make some miniature water.

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Fri Sep 26, 2008 12:45 am
Offline

Joined: Thu May 10, 2007 9:46 am
Posts: 594
Location: Kyiv, Ukraine
Realistic as real life - I can not belive it is paper, looks like....water!

Very detailed guidance gives me chances I can use it one day.

Thank you for providing information on this great technique!

Yevgeniy


Top
 Profile
Reply with quote
PostPosted: Sun Sep 28, 2008 3:51 am
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4087
Location: Nr Southampton England

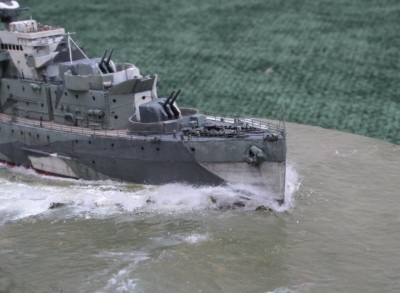

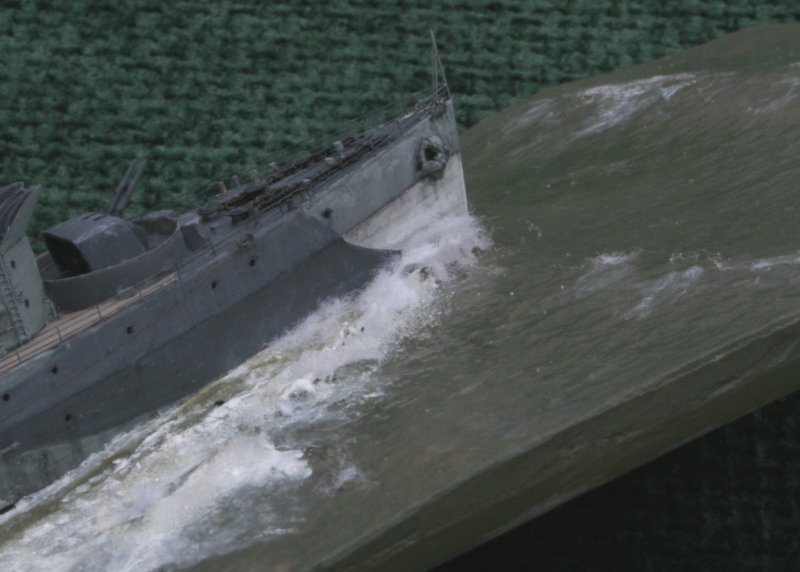

As promised- here are a few better detail photos of the bow wave- using the aforementioned tissue paper and fluff.

The photos are of course very brutal enlargements-but the overall visual effect is pleasing to my eye.
Attachment:
27-09-2008 173.jpg
27-09-2008 173.jpg [ 72.04 KiB | Viewed 21214 times ]
Attachment:
27-09-2008 174.jpg
27-09-2008 174.jpg [ 61.41 KiB | Viewed 21025 times ]
Attachment:
27-09-2008 195.jpg
27-09-2008 195.jpg [ 44.64 KiB | Viewed 21131 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Sun Sep 28, 2008 10:14 am
Offline
User avatar

Joined: Wed Feb 09, 2005 5:45 pm
Posts: 774
Location: Abu Dhabi
I'm really excited with this "How to" Jim,you work is terrific,and truly eye inspiring,it look so easy,but gosh.... must be veryyyyyy hard.
Keep on shooting Jim.


Thank You very much :wave_1: :wave_1:


Top
 Profile
Reply with quote
PostPosted: Mon Sep 29, 2008 7:13 am
Offline
User avatar

Joined: Sun Jun 29, 2008 6:33 am
Posts: 169
:worship_1: :worship_1: :worship_1: :puppy_eyes:
Many thanks for sharing this technique.

_________________
http://gemimodelleri.blogspot.com/


Top
 Profile
Reply with quote
PostPosted: Mon Sep 29, 2008 11:33 am
Offline

Joined: Wed Aug 13, 2008 2:03 pm
Posts: 84
Jim,
I too want to thank you. I have a folder of your work for reference and inspiration.


Top
 Profile
Reply with quote
PostPosted: Tue Sep 29, 2009 1:13 pm
An absolutely stunning technique! Thank you for sharing. I have one Q...

Forgive me if you mentioned it in your post...What sort of paint are you using to paint wet on wet, oils, alkyds? With how thin it looks like you're painting I would think acrylics, unless it's slowed with a retarder, would dry too quickly for wet on wet.


Top

Reply with quote
PostPosted: Tue Sep 29, 2009 2:07 pm
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4087
Location: Nr Southampton England
Glad you enjoyed the method!


I use almost exclusively Humbrol enamels for seascapes.

I mix them roughly 50/50 with thinners to get them to flow into each other...

Cheers

Jim Baumann

Incidentally-- actually making the water using watercolour paper...

can be found here:

viewtopic.php?f=4&t=37223

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Mon Oct 24, 2011 6:12 am
Brilliant work. Your seas look extremely convincing. Most that I have seen elsewhere look artificial and - particularly the bow waves - look like the cotton wool they are made of. Thank you for sharing your techniques, Jim.


Top

Reply with quote
PostPosted: Tue Jul 10, 2012 9:08 pm
Offline

Joined: Tue Jul 10, 2012 8:37 pm
Posts: 3
Jim,

what are you using to gloss the sea with. And I dont understand how the glossing doesnt fill in the texture of the watercolor paper where there is no more texture. I may have missed it in the explaination. Bottom line- awesome work, professional to the max....thanks


Top
 Profile
Reply with quote
PostPosted: Wed Jul 11, 2012 1:31 am
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4087
Location: Nr Southampton England
I use Humbrol Gloss-coat - from a glass jar -- applied quite thinly with a brush.

The varnish adheres to the hollows and raised pasrt equally well

ie it does not selflevel.

works well I find

other examples here
http://www.modelshipgallery.com/gallery ... index.html

cheers :wave_1:

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Wed Jul 11, 2012 12:42 pm
Offline
User avatar

Joined: Fri Oct 17, 2008 11:47 am
Posts: 192
Location: East Sussex, England
That's a fantastic sea effect you have achieved - brilliant in fact.

It's a method I had not considered. My own is having a rigid base, as you say, that the model is screwed to from underneath. Before adding any detail to the hull I wrap it tightly in cling film and fix it to the base. For the sea effect I then apply finishing plaster that I mix up so that's fairly runny but not so that it goes all over the place. I apply this mix to the base and using various implements work the plaster as it dries to the sea state I want to depict.

Once the plaster has set the model can be released. I find the cling film stops the adhesion between model and plaster. Now I go ahead and paint the sea to the colours/tones I want. As you say keeping the paints thin so that they run together is the best way.

Hope you do not mind my adding these few words to your excellent method of representing the sea.
Mike


Top
 Profile
Reply with quote
PostPosted: Wed Jul 11, 2012 9:27 pm
Offline

Joined: Tue Jul 10, 2012 8:37 pm
Posts: 3
thank you both so much for explaining...Makes sense to me now.


Top
 Profile
Reply with quote
PostPosted: Sun Sep 08, 2013 5:35 pm
Offline
User avatar

Joined: Mon Jul 29, 2013 6:35 pm
Posts: 536
That effect with the dryer lint is amazing! One of these days you should make a video on this waterscape process.

_________________
-Shane

Dallas, Tx

Working on: Revell 1/426 USS Arizona BB-39

In the Stash: USS Arizona 1/700 Dragon Premium, DKM Bismarck 1/700 Dragon Premium, Admiral Graf Spee 1/700 Trumpeter, & Prinz Eugen 1/700 Trumpeter


Top
 Profile
Reply with quote
PostPosted: Sat Nov 02, 2013 10:53 pm
Offline

Joined: Thu May 30, 2013 1:50 pm
Posts: 1965
To Jim Baumann - what are the particular properties of 'water color' paper that makes it preferable. Would it be just as effective in 1/350 scale? :wave_1:


Top
 Profile
Reply with quote
PostPosted: Sun Nov 03, 2013 5:02 am
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4087
Location: Nr Southampton England
Watercolour paper has a texture that replicates small wavelets in 1/700 very well

I also use it in 1/350-- it just needs to be remembered there is only half the amount of wind- :thumbs_up_1:

- in 1/350 it will only be blowing about 5 knots of wind

see example photos in 1/350 here

http://www.modelwarships.com/reviews/sh ... index.html

( completed model images on page 5 )

The scene with my Bouvet below shows the shore party boats returning to the vessel in the evening -- with the land-breeze filling in -- the ship has just started her turn to lie to the wind,
riding over her buoy. ==> she will swing round to Port






another example is here:

http://www.modelwarships.com/reviews/sh ... eview.html


_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Sun Nov 03, 2013 10:07 am
Offline

Joined: Thu May 30, 2013 1:50 pm
Posts: 1965
How do you build such great model ships? Your 1/700's are better than my best 1/350! It's not fair! :whistle:
