 Post subject: 1/350 IJN Hiryu
PostPosted: Tue Jul 05, 2016 8:09 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
So after getting really tired of fussing with the San Francisco and setting her aside for a while, I pulled out my 1/350 Fujimi Hiryu.

I am going to do her up for her final air strike against the Yorktown at Midway.

Additional parts being used so far are:
Fujimi PE set
Fujimi wood deck
Fujimi dry transfers
Veteran 12.7s
Veteran 25mms
Veteran Paravains

I will need to also acquire a few more planes and deck crew.

Debating on using the other deck equipment parts but not sure if any are on the kit for the compass, signal laps, deck winch. Also need to figure out which binoculars, fire control directors and range finders were being used on the ship to see if it worth replacing. Any input here is appreciated.

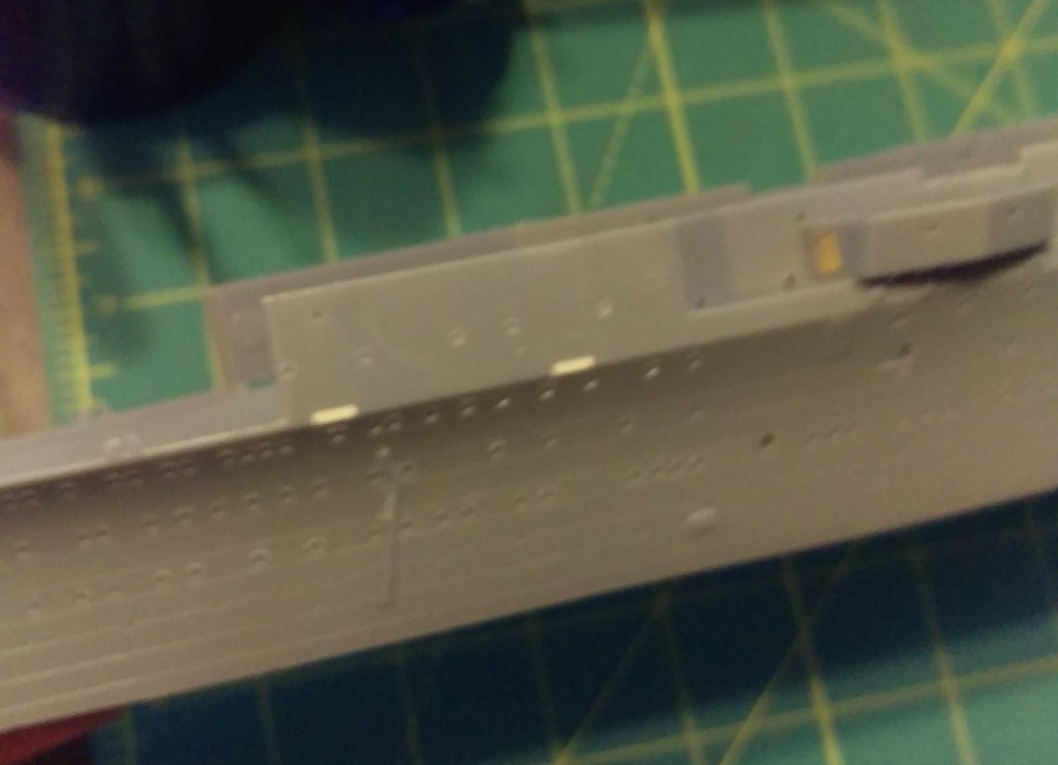

After taking forever to figure out the instructions for the PE and plan the build I spent about 4 hours water lining and attaching the hull halves.

Attachment:
4-1.jpg [ 71.64 KiB | Viewed 3293 times ]


As always, comments and input are very welcomed.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Tue Jul 05, 2016 8:13 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 966
Location: Bangkok, Thailand
Nice project! I love these IJN carriers, especially in 1/350 scale. I wonder if any company will release one of my most favourite IJN carriers, the Taiho.

Cheers,
Aop

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Tue Jul 05, 2016 9:53 am
Offline
User avatar

Joined: Fri Mar 23, 2007 9:25 am
Posts: 99
Excellent. Will watch this one with interest.

Tim W.


Report this post
Top
 Profile
Reply with quote
 Post subject: 6 hours
PostPosted: Wed Jul 06, 2016 5:58 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Well Aop, I would like to see that one too as well as Shinano, Unryu, light carriers etc. Although if current trends keep we could get the last Kido Butai CV from Fujimi - Soryu. <crossing fingers>

I always go through my instructions for anything I am adding to the kit and notate the kit instructions heavily so I have a decent road map for a build. It took me nine hours to figure out where all the stuff goes from the PE set. At least that is done. After that I was able to get just a bit more work done on the kit last night before bed.

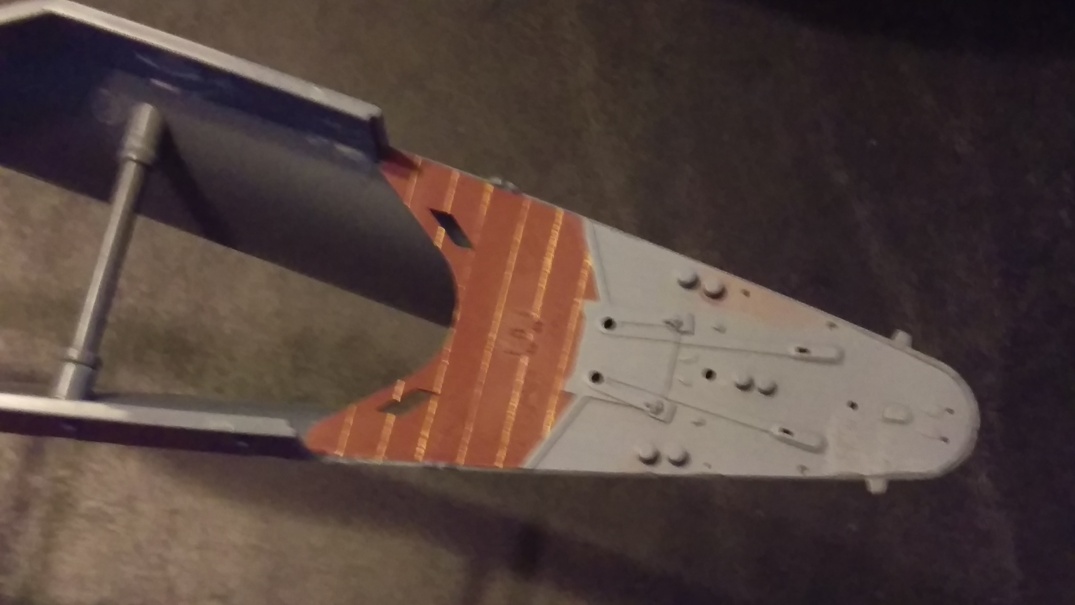

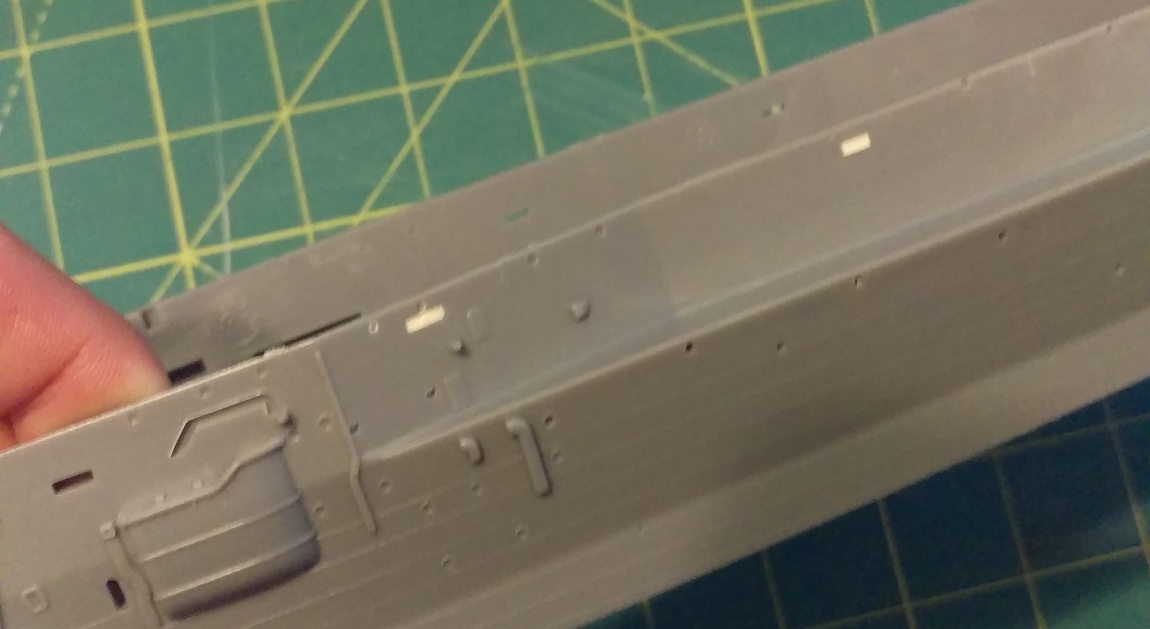

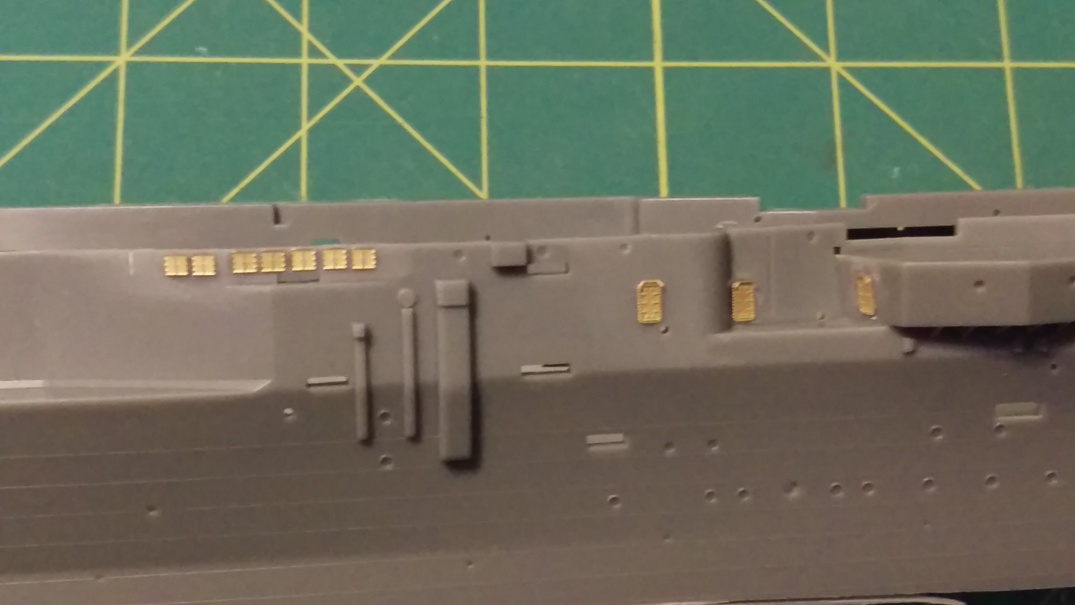

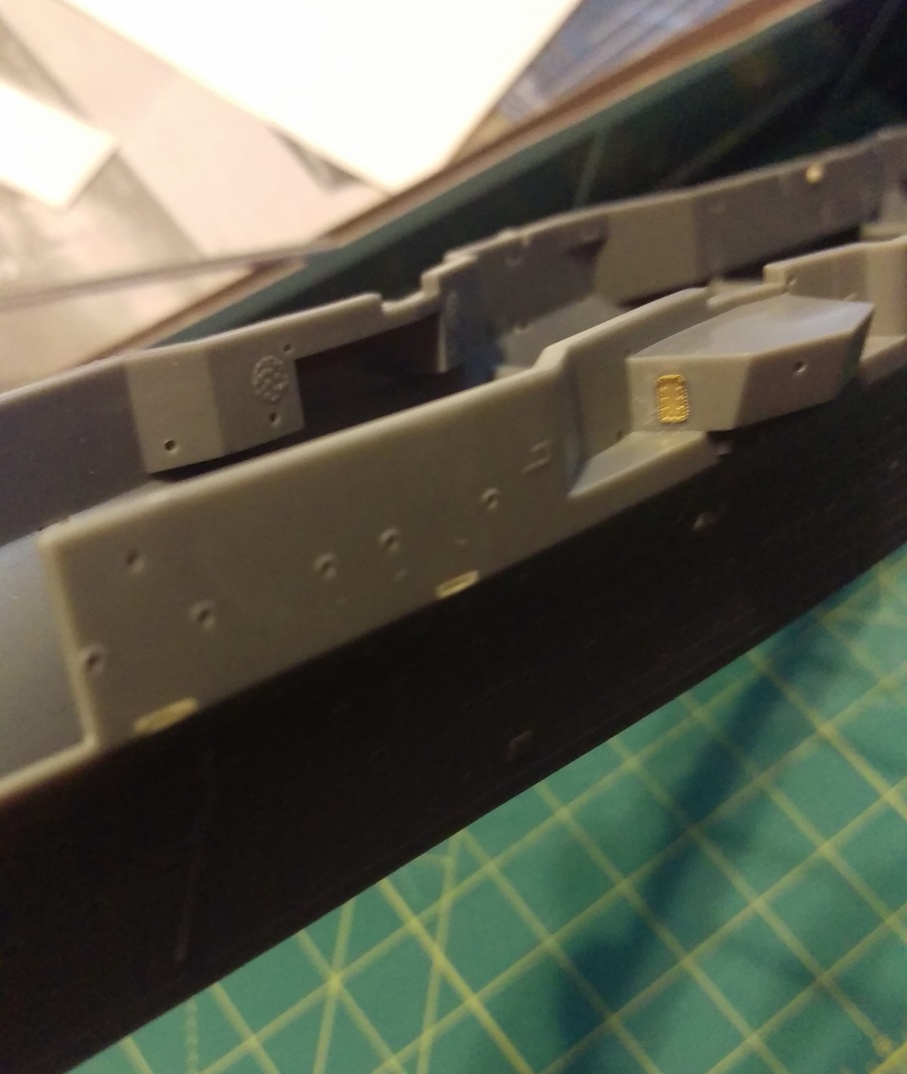

The bow and stern seams are filled as well as the guide holes for two platforms that will be using PE instead. Speaking of PE; I also threw on my first piece of it to the hull assembly.

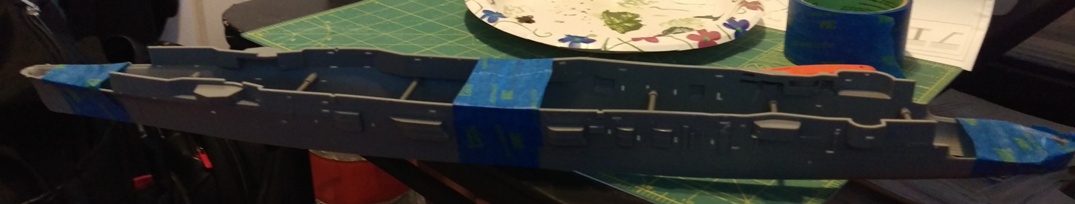

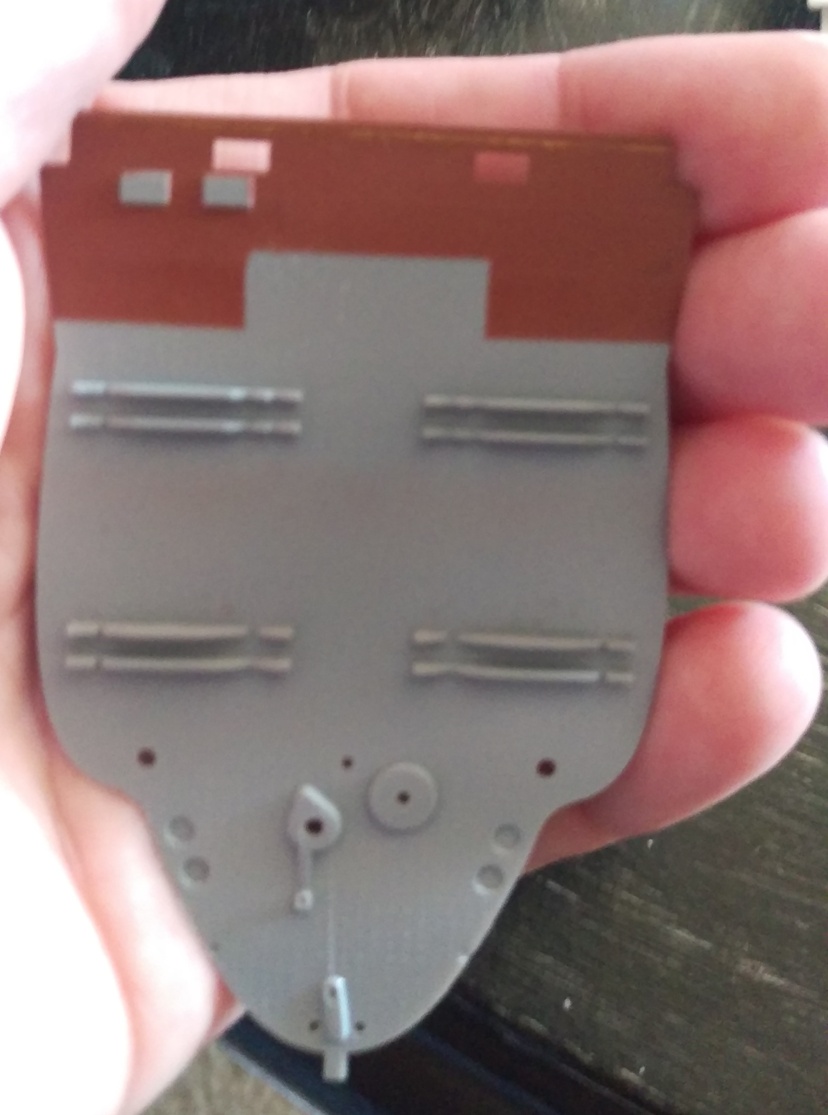

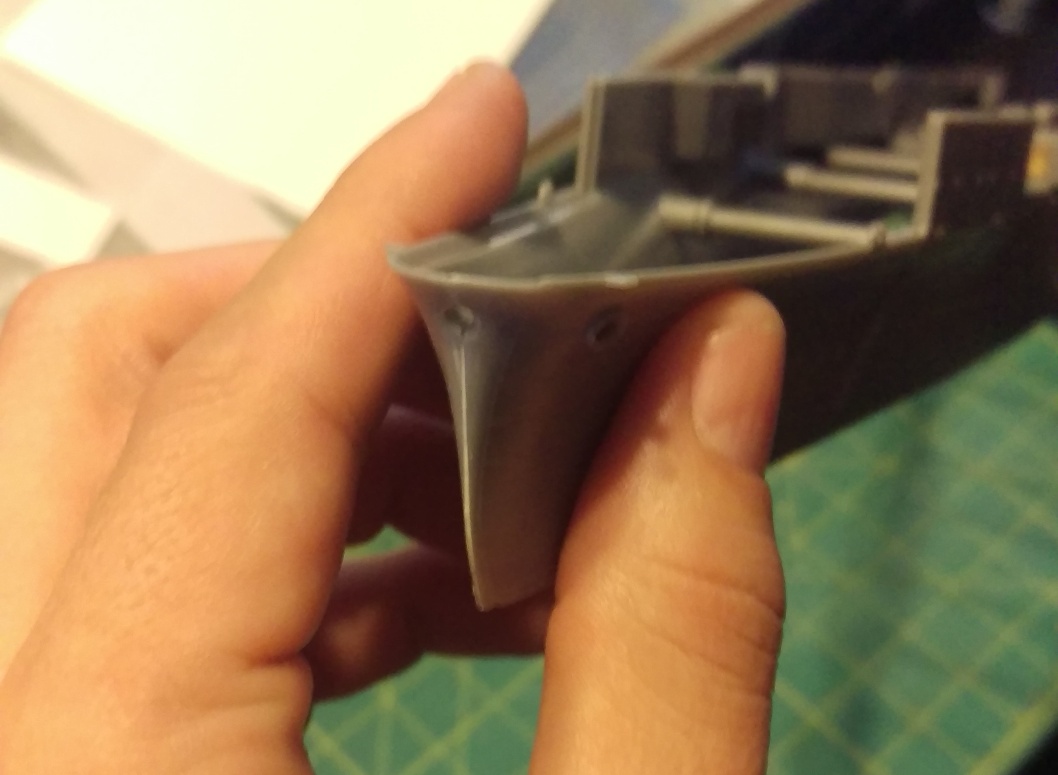

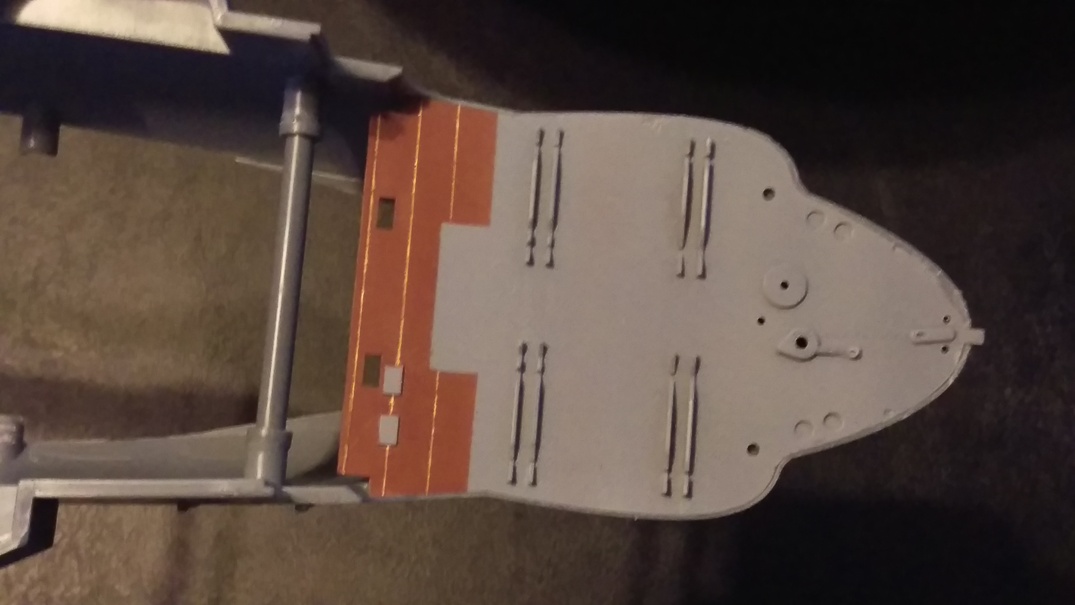

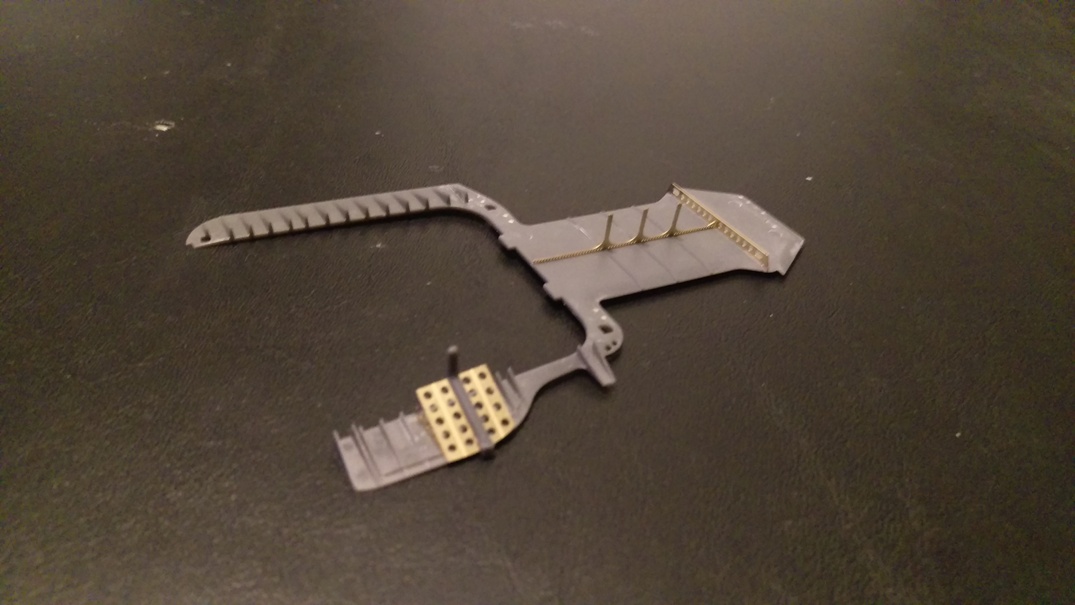

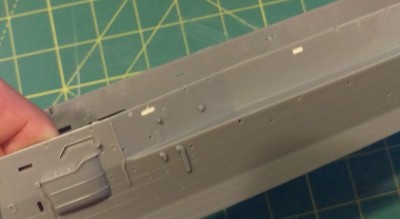

Attachment:
6-1.jpg [ 148.9 KiB | Viewed 3180 times ]

Attachment:
6-2.jpg [ 146.32 KiB | Viewed 3180 times ]

Attachment:
6-3.jpg [ 113.66 KiB | Viewed 3180 times ]

Attachment:
6-4.jpg [ 146.1 KiB | Viewed 3180 times ]

Attachment:
6-5.jpg [ 184.79 KiB | Viewed 3180 times ]


Not too much to look at just yet, but I am already highly motivated to keep going.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Wed Jul 06, 2016 1:21 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6587
Location: New York City
Nice. I'm very curious about your waterlining technique, as I plan to do the same thing. And, what do you think of the fit, so far?


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 6 hours
PostPosted: Wed Jul 06, 2016 1:24 pm
Offline
User avatar

Joined: Fri Mar 23, 2007 9:25 am
Posts: 99
Angeliccypher wrote:
Well Aop, I would like to see that one too as well as Shinano, Unryu, light carriers etc. Although if current trends keep we could get the last Kido Butai CV from Fujimi - Soryu. <crossing fingers>

I always go through my instructions for anything I am adding to the kit and notate the kit instructions heavily so I have a decent road map for a build. It took me nine hours to figure out where all the stuff goes from the PE set. At least that is done. After that I was able to get just a bit more work done on the kit last night before bed.

The bow and stern seams are filled as well as the guide holes for two platforms that will be using PE instead. Speaking of PE; I also threw on my first piece of it to the hull assembly.

Attachment:

Attachment:

Attachment:

Attachment:

Attachment:


Not too much to look at just yet, but I am already highly motivated to keep going.


You should have the planes on deck switching from bombs to torpedoes. Just sayin.' :rolf_3:

Tim W.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Wed Jul 06, 2016 6:36 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Hey Dan. Glad to have you peaking in on my build. :)

The way I did the waterline was with a razor saw. Cutting on the inside. Fujimi uses rod style bracing between the hull halves. If you use the bottom row as a guide cutting right above them, you will end up two plating rows below the water line. The exception is the aft most guide hole. You end up cutting through it a little below the halfway point. Take your time.

I have not seen too much fit wise yet. The hull halves are a little finicky but not unworkable. This is likely partially to do with waterlining. The rest of what I have seen is good so far.

Tim, you are so cute......wanting to do things historically incorrect. :)

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Wed Jul 06, 2016 7:39 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6587
Location: New York City
Oh, believe me, Gabriel, I am extremely interested in this build. What do you plan for the waterline plate itself?


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Wed Jul 06, 2016 9:32 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Likely some thick styrene strips crossing the beam with a perpendicular piece on each strip. These will be directly attached to a wood base from Grandpa's Cabinets.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Thu Jul 07, 2016 6:01 am
Offline
User avatar

Joined: Fri Mar 23, 2007 9:25 am
Posts: 99
Angeliccypher wrote:
Hey Dan. Glad to have you peaking in on my build. :)

The way I did the waterline was with a razor saw. Cutting on the inside. Fujimi uses rod style bracing between the hull halves. If you use the bottom row as a guide cutting right above them, you will end up two plating rows below the water line. The exception is the aft most guide hole. You end up cutting through it a little below the halfway point. Take your time.

I have not seen too much fit wise yet. The hull halves are a little finicky but not unworkable. This is likely partially to do with waterlining. The rest of what I have seen is good so far.

Tim, you are so cute......wanting to do things historically incorrect. :)


No way! I saw it in a movie! It must be true!

:heh:

Seriously, I am watching this with interest--have not seen you do a Japanese CV. Wonder how this will compare with the Hornet build? I'm hoping there will be less trauma!

Cheers,

Tim W.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Thu Jul 07, 2016 6:52 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Lol. This is my first IJN CV. So far the kit is proving to be substantially less traumatic than the Hornet. Also there are only 15 planes to build instead of the 69 I did for the Hornet.

I am currently sanding off the doors and these shutter looking things that will be replaced with PE on the hull.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Thu Jul 07, 2016 7:19 pm
Offline

Joined: Sat Jan 24, 2009 5:16 pm
Posts: 612
Location: Wisconsin
Looking forward to this one!


Report this post
Top
 Profile
Reply with quote
 Post subject: 10 hours
PostPosted: Sat Jul 16, 2016 11:50 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275

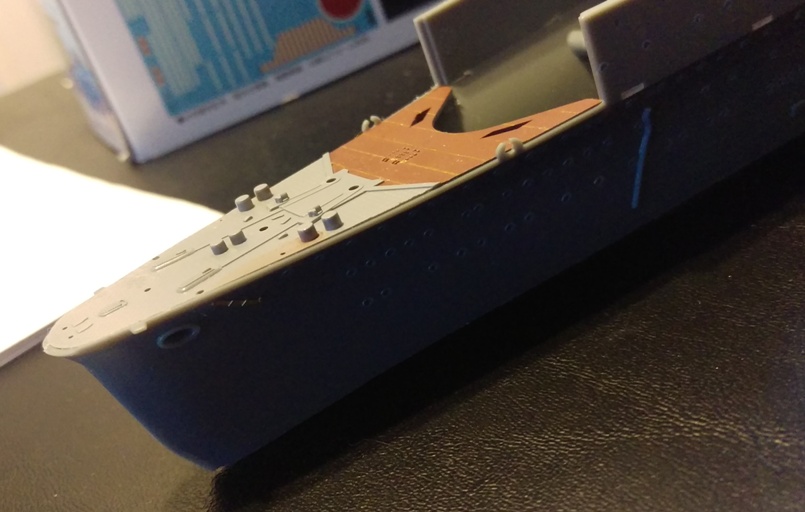

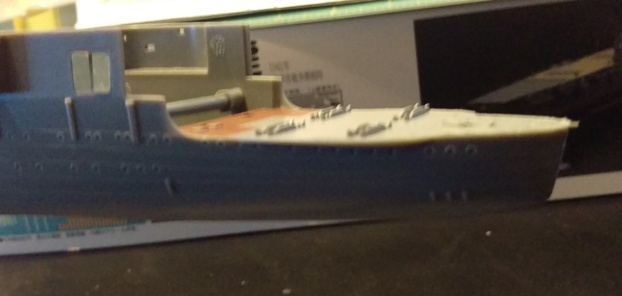

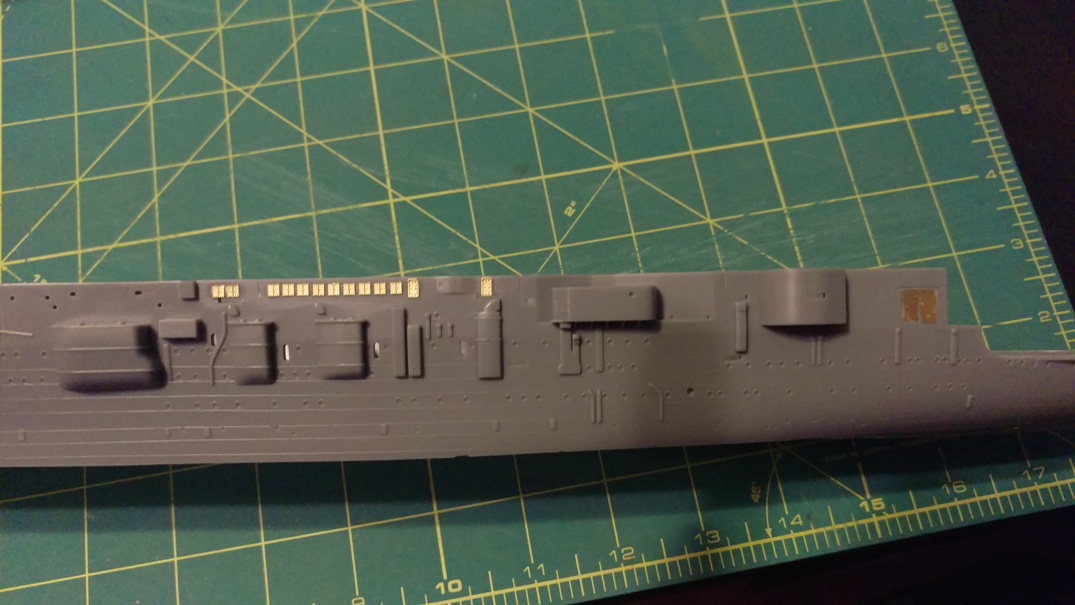

I managed to sneak in a few more hours this evening. All the doors and shutter looking things as well as some larger roller doors on aft port side on the hull have been replaced. I am going to do the degaussing cable next.

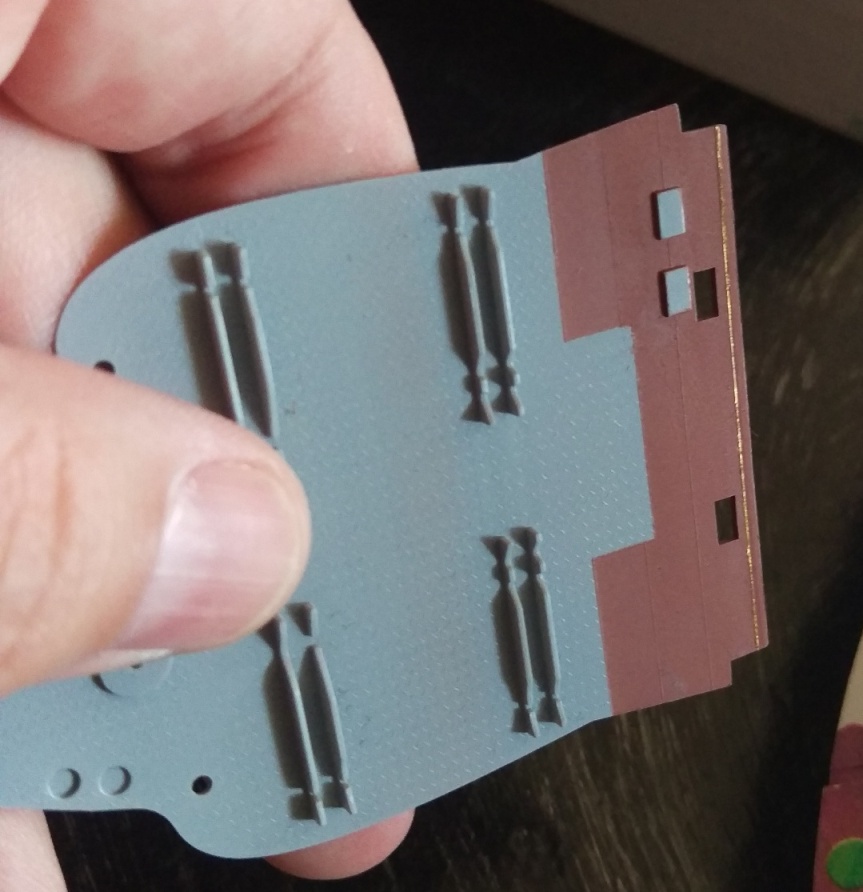

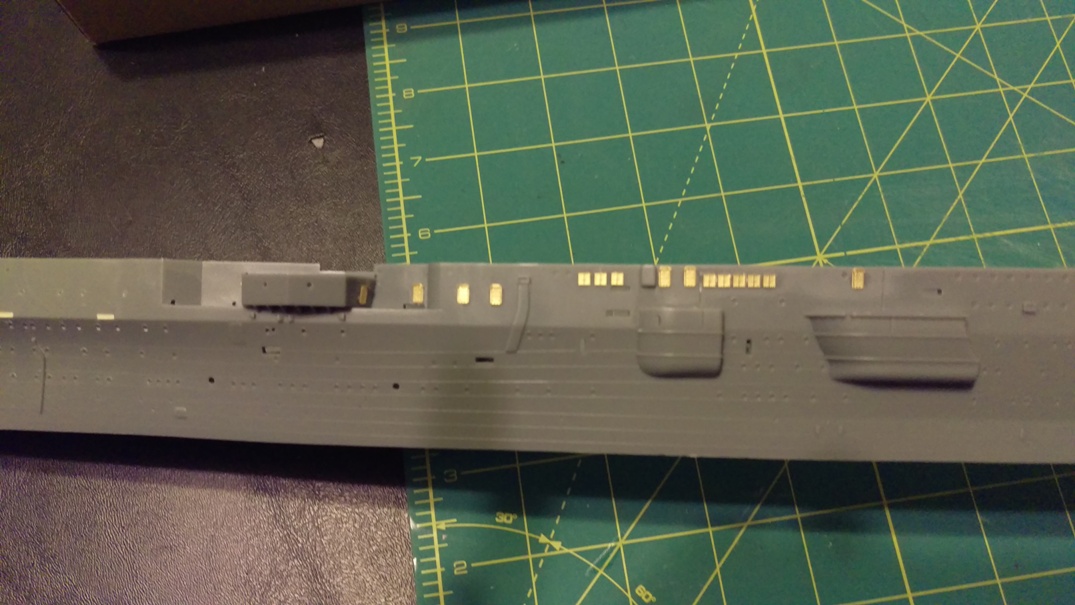

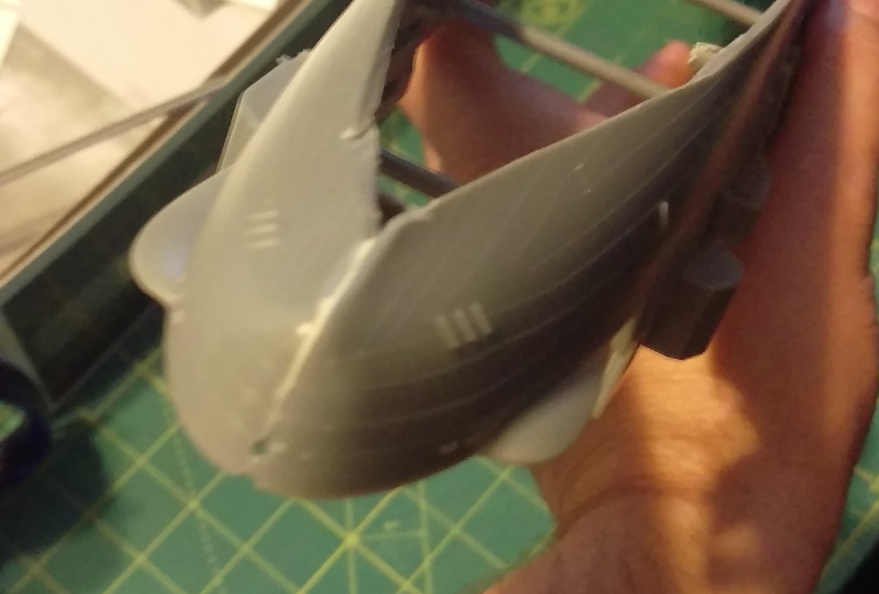

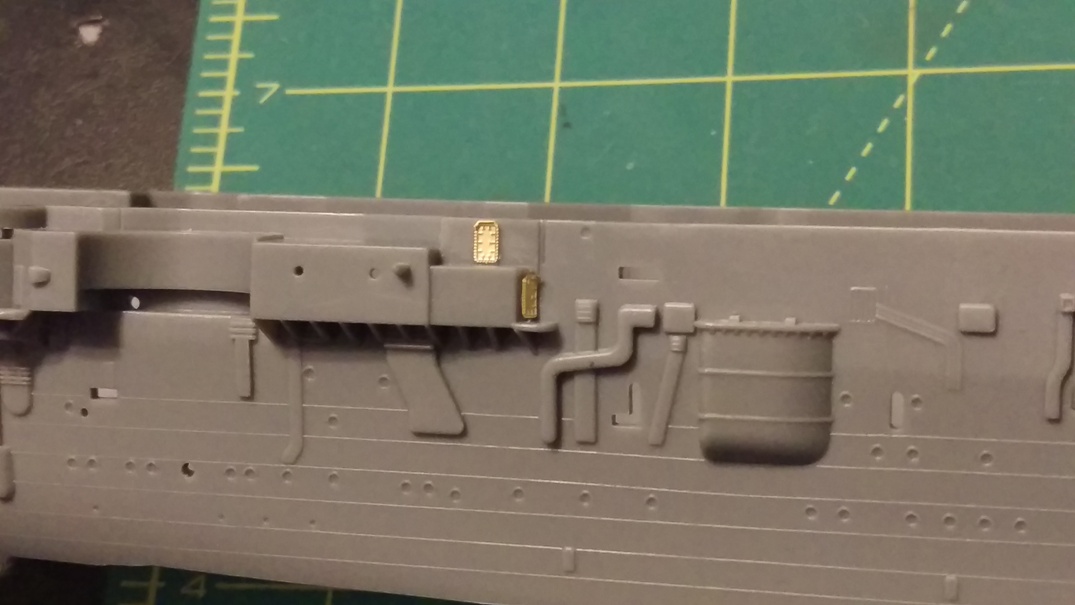

Attachment:
10-1.jpg [ 137.57 KiB | Viewed 2788 times ]

Attachment:
10-2.jpg [ 199.76 KiB | Viewed 2788 times ]

Attachment:
10-3.jpg [ 190.34 KiB | Viewed 2788 times ]

Attachment:
10-4.jpg [ 125.94 KiB | Viewed 2788 times ]


As always comments and advise are welcomed!

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Sun Jul 17, 2016 10:08 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Okay I lied. I cannot do the cable yet because I am missing several sub assembly structures that it runs on the outside of. So onto the fo'csle and fantail.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Sun Jul 17, 2016 10:57 am
Offline
User avatar

Joined: Mon May 21, 2007 5:49 pm
Posts: 1171
Location: Troutdale, OR
Looking good so far :thumbs_up_1:


Matt

_________________
In the yards right now:
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Sun Jul 17, 2016 1:08 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Thanks Matt.

Today has been an adventure of F***ed up modeling. The above derailment I mentioned, then I went to prime the two deck pieces so I could paint the linoleum and brass before attaching them. This was the first time I tried MR Surfacer (using 1000) through an airbrush. Out of the gate I have had both the cotton candy plastered on the model effect or it goes on so thick I loose all detailing. I have some lacquer thinner I am going to try (Tamiya) and see if that works.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Sun Jul 17, 2016 9:08 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6587
Location: New York City
Nice PE work.

The one and only time I used primer, it backfired. Now, I just make sure the model is washed and clean of release agent or oil.


Report this post
Top
 Profile
Reply with quote
 Post subject: 12 hours
PostPosted: Thu Jul 21, 2016 5:10 am
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
Thanks for the PE compliment Dan! :big_grin:

I sorted out the primer debacle (thanks to several suggestions) and got the linoleum color on. I had an idea that although I knew it was going to be slightly tedious I wanted to try for the brass tie downs. I managed to get the effect to be fairly subtle so when you casually look at it you might not even notice the "brass rod".

Attachment:
File comment: Straight on (and severely blown up) you can somewhat make out the one rod I have on this at the top.
12-1.jpg [ 174.24 KiB | Viewed 2590 times ]

Attachment:
File comment: But when you catch it in the light......
12-2.jpg [ 172.31 KiB | Viewed 2590 times ]


It is the simple things in life sometimes. For some of the folk on this forum I have figured out the modeling equivalent of tying my shoes. :big_grin: Regardless I am happy.

More strips have been added but it does take a while to allow for drying time before attempting the next one. This is mainly due to my being kind of lazy and not wanting to sit here and cut up several pieces of tape to fit exactly between each spot. While that is occurring I am starting the needed surgery to allow for photoetch on some of the sub assemblies.

Thank you for looking and please feel free to comment.

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/350 IJN Hiryu
PostPosted: Sat Jul 23, 2016 7:23 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
The tie rods are done. The fo'csle and fantail are now attached.

Attachment:
14-1.jpg [ 119.91 KiB | Viewed 2495 times ]

Attachment:
14-2.jpg [ 123.57 KiB | Viewed 2495 times ]

Attachment:
14-3.jpg [ 52.52 KiB | Viewed 2495 times ]

Attachment:
14-4.jpg [ 112.33 KiB | Viewed 2495 times ]


On to sub assemblies!

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
 Profile
Reply with quote
 Post subject: 15 hours
PostPosted: Sat Jul 23, 2016 9:18 pm
Offline
User avatar

Joined: Wed Mar 30, 2011 9:38 am
Posts: 1275
I have added several kit pieces to the starboard side hull. It does not look like much yet. As a result I have not taken any pictures of that work yet. I did however manage to get some of the PE work done on the bottom of what I think would be called the boat deck (it sits above the fantail).

Attachment:
15-1.jpg [ 159.68 KiB | Viewed 2476 times ]

_________________
Gabriel
Current Builds:
Fujimi Hiryu 1/350
Trumpeter San Francisco 1/350
Dutch Harbor PBY 1/350

Gallery


Report this post
Top
