Hello al!

with the completion of the Winston Churchill sailing schooner
viewtopic.php?f=59&t=165003
I vowed to build a steam ship as the next project..

Here we go!

Racecourse Minesweepers of WW1 HMS Athelstone
==================================

Attachment:
hms athelstone.jpg
hms athelstone.jpg [ 192.44 KiB | Viewed 1328 times ]


She is the only ship of the class for which I could find a photo which had the pilothouse left as a panelled unpainted wood structure
( as per the side elevation image of the IWM model of HMS Ascot ( alas in IWM storage...)
and the above image

Attachment:
IWM model of Ascot .i.jpg
IWM model of Ascot .i.jpg [ 128.31 KiB | Viewed 1328 times ]




The model will be built using the much lauded HMS Ascot kit from AJM Models of Poland
reviewed here @ Modelwarships.com
viewtopic.php?f=84&t=159972

and built here by Felix Bustelo (who is the moderator @ Steel Navy)
http://www.steelnavy.net/AJMModelsHMSMe ... stelo.html

Potted history of the real ship: ( lightly abridged from wikipedia! )
=============================================

Built by Ailsa SB at Troon in Scotland, she was launched on 14 April 1916. For the rest of the war she served with the Auxiliary Patrol. Post war she was transferred to the Mine Clearance Service.

at the end of WW1 She was sold to The New Medway Steam Packet Company on 12 August 1927 and converted for excursion work on the Medway and Thames.
She was renamed Queen of Kent. For the next twelve years she could be found working from Sheerness and Southend.
Regular excursions took her to Gravesend, Margate, Clacton and Dover as well as cross-channel voyages to Calais, Boulogne and Dunkirk.


In September 1939 she was requisitioned by the Admiralty for minesweeping duties once more and commissioned as HMS Queen of Kent, pennant number J74.
For Operation Overlord in June 1944 she was stationed at Peel Bank off the Isle of Wight as the Mulberry Accommodation & Despatch Control Ship.
Subsequently she was stationed at Dungeness.
After the war she was returned in 1946 to her owners to recommence excursion work around the Thames Estuary.


In January 1949 she was sold to Red Funnel and transferred to Southampton.
After refitting at Thorneycroft's yard at Northam she was commissioned in the spring as the company's second Lorna Doone.
For the next three years she operated excursions from Bournemouth in the summer.

She was finally withdrawn and scrapped by Dover Industries Ltd at Dover Eastern Docks in 1952.

====================================================================================================================

The plan is to build the 1/350 version as the RN Minsweeper HMS Atheslstone, and the 1/700 version in civilian service with Red Funnel lines
as the excursion steamer Lorna Doone, pertient to me as I live near Southampton on the Solent--the erstwhile steaming ground of Lorna Doone.

onwards with the HMS Athelstone !

The kit at first sight does look pretty good and comprehensive; the wooden deck( which I usually don't like to use- preferring a painted deck)
in this instance looks sharp and subtle

First job was to remove the huge casting flange block on the underside

Attachment:
P1200398.jpg [ 137.15 KiB | Viewed 1328 times ]

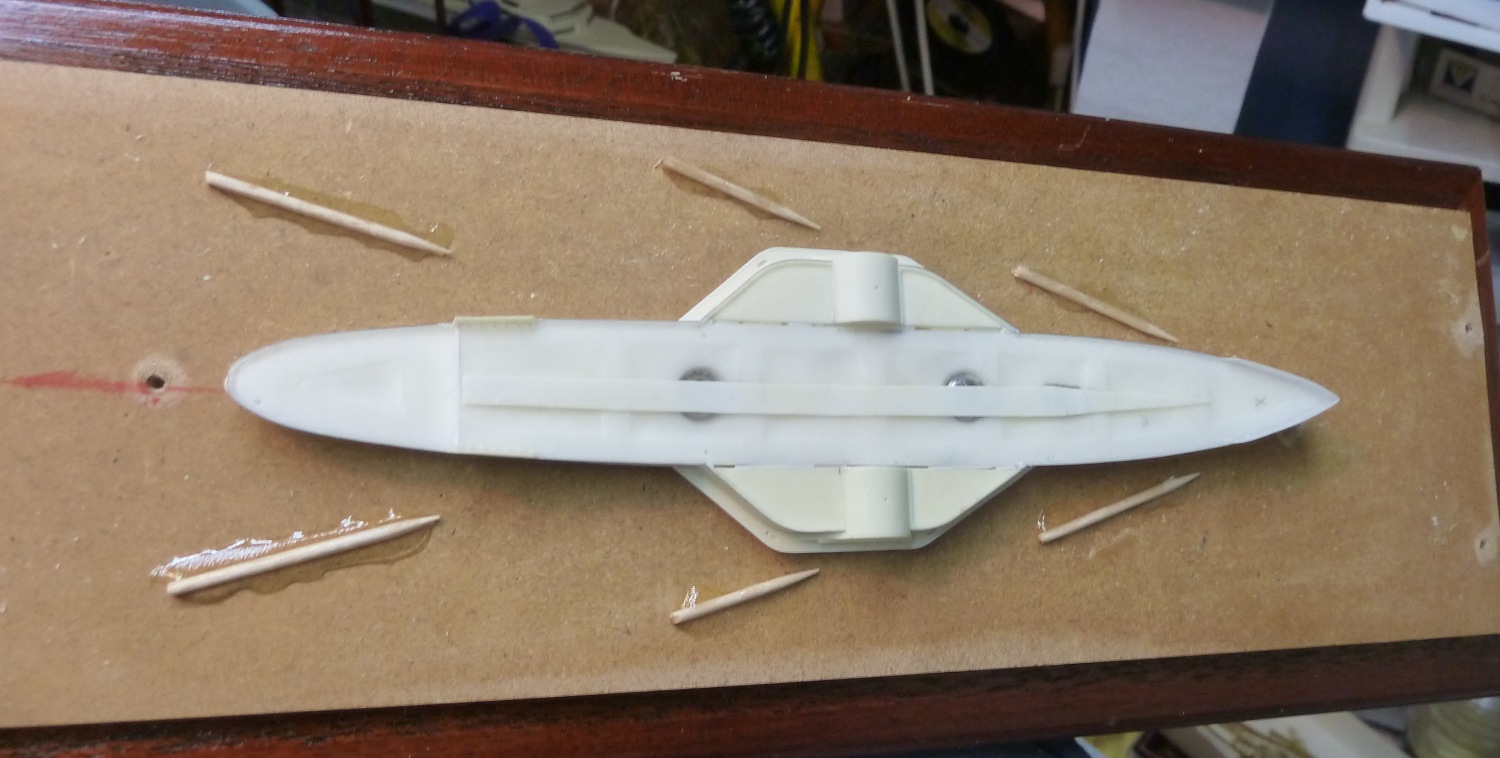

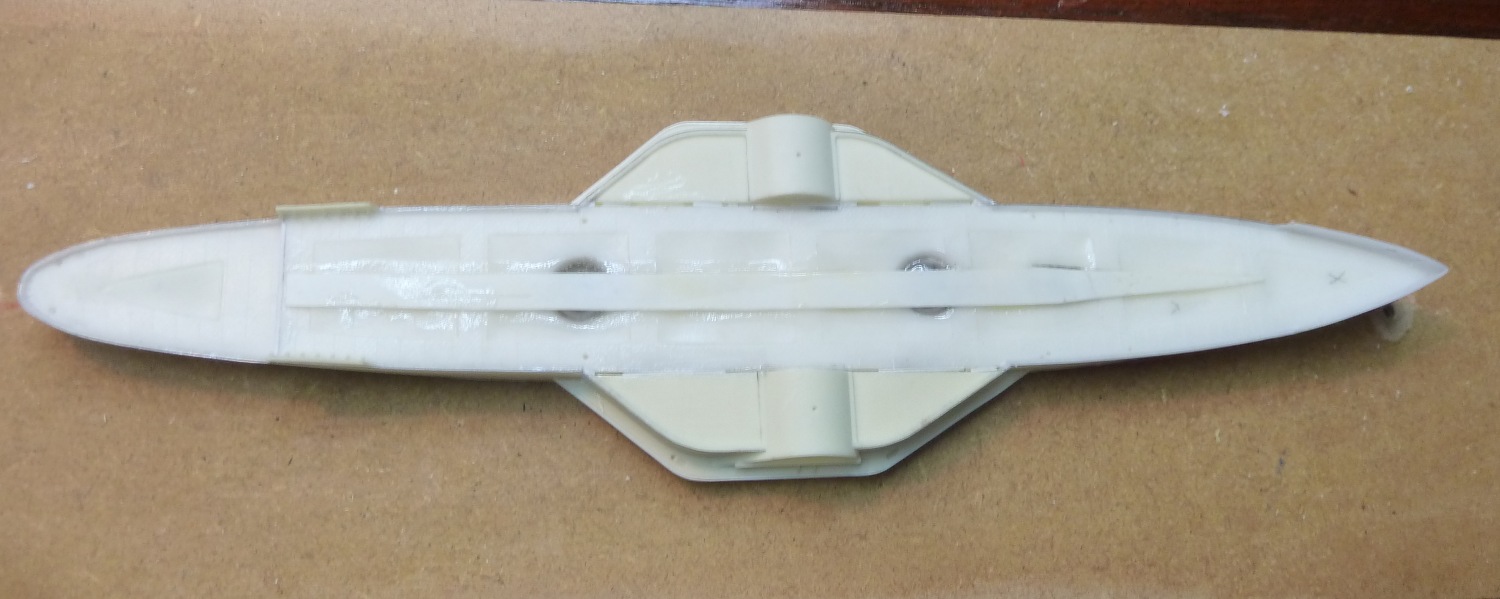

To be able to portray a ship at speed I always add a layer to the underside , so as to be able to have the underwater portion showing midships in the typical displacement wave pattern of bow wave, stern wave and a hole in the middle!

Lacking a huge plank of styrene--- I used some square section evergreen

Attachment:
P1200411.jpg [ 199.19 KiB | Viewed 1328 times ]


It gives a stable base and a sharp guide line for the underwater portion of the ship

Attachment:
P1200413.jpg [ 202.8 KiB | Viewed 1328 times ]

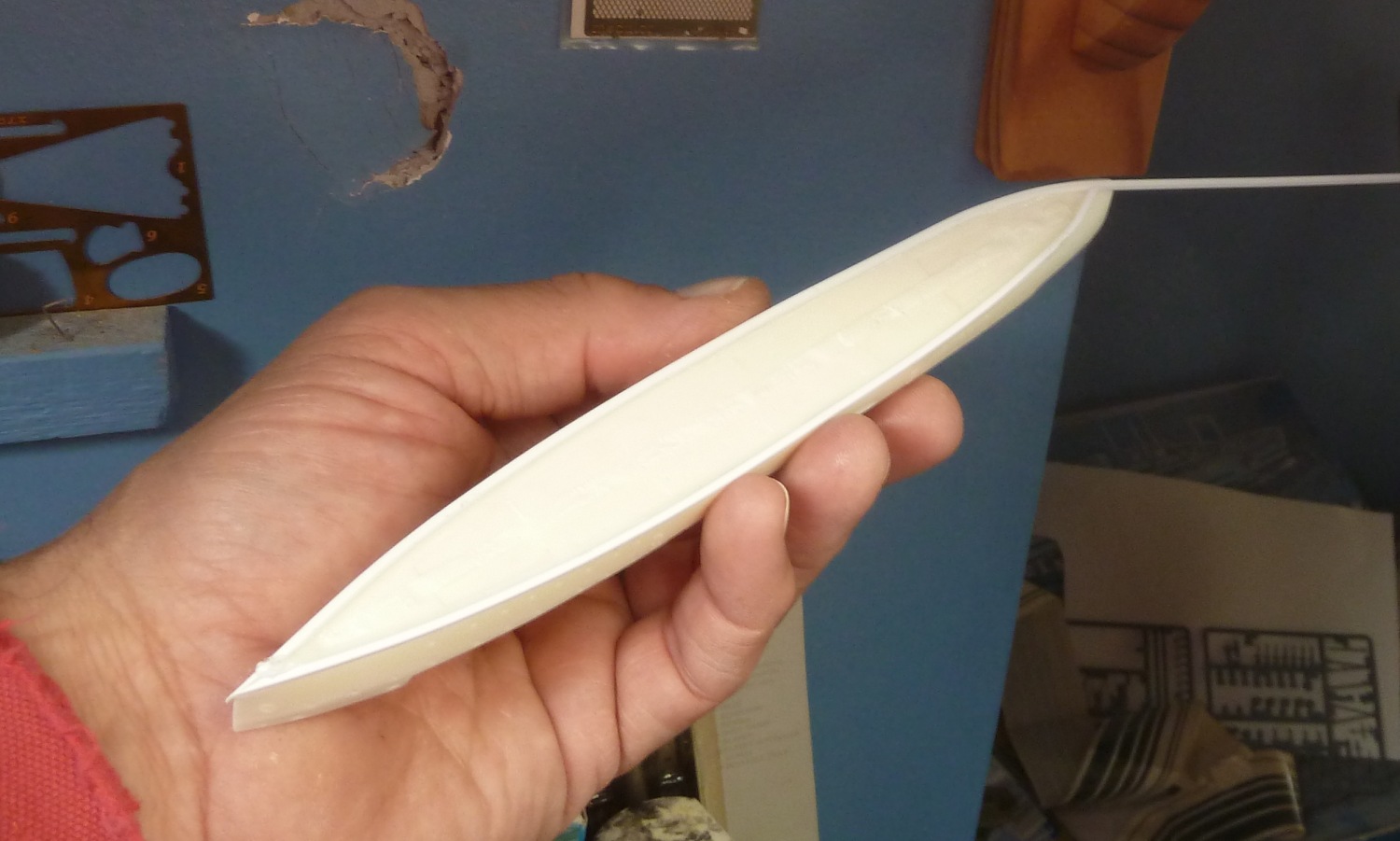

Some of the parts have been rapid prototyped -digitally printed I think-- some of the smaller structures showed the typical Layer ribbing on the flat surfaces, r
removed with a quick pare of a Stanley blade

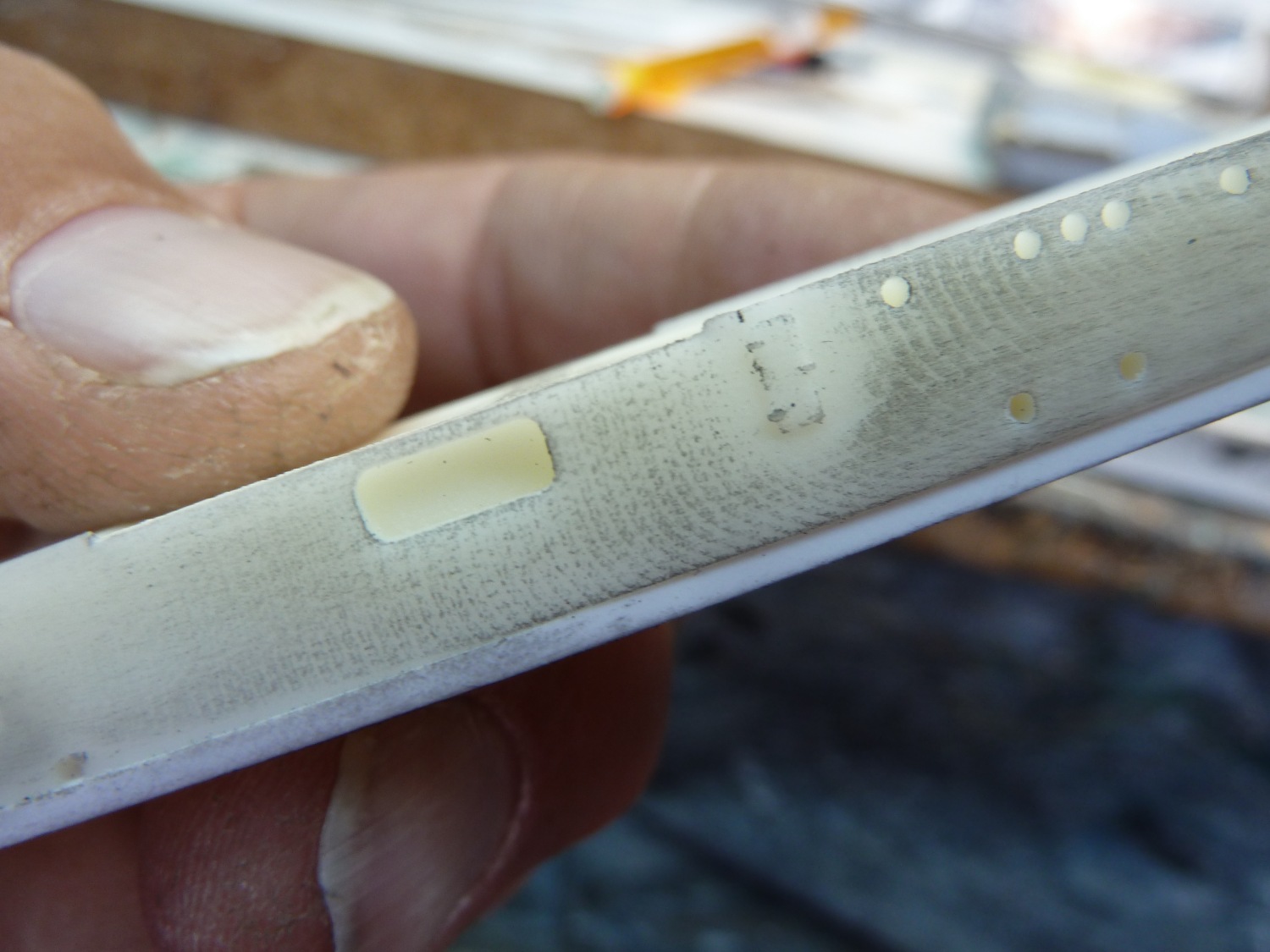

The hull also had some marks of that ilk I think ( highlighted here with Graphite dust

Attachment:
P1200416.jpg [ 245.63 KiB | Viewed 1328 times ]

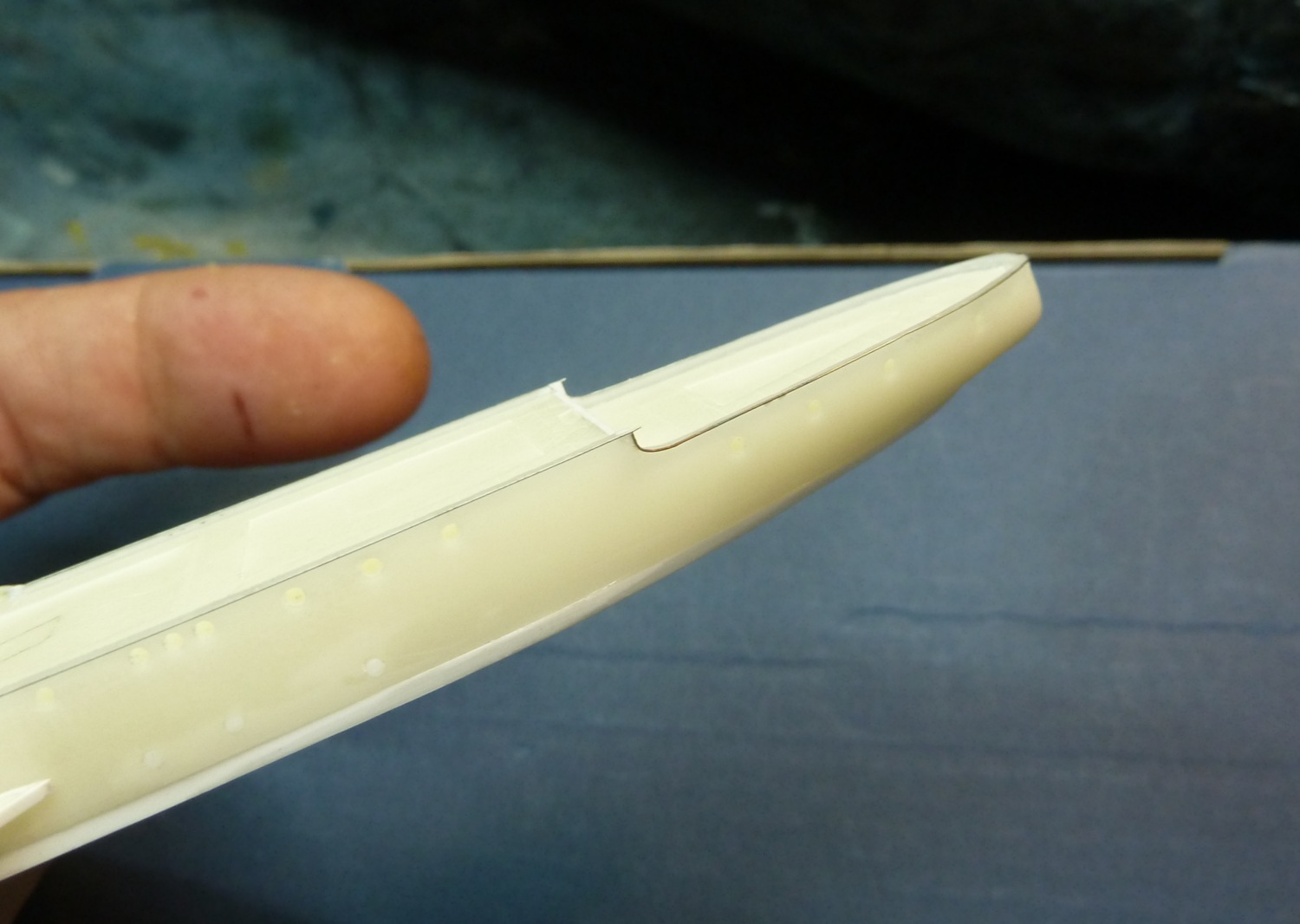

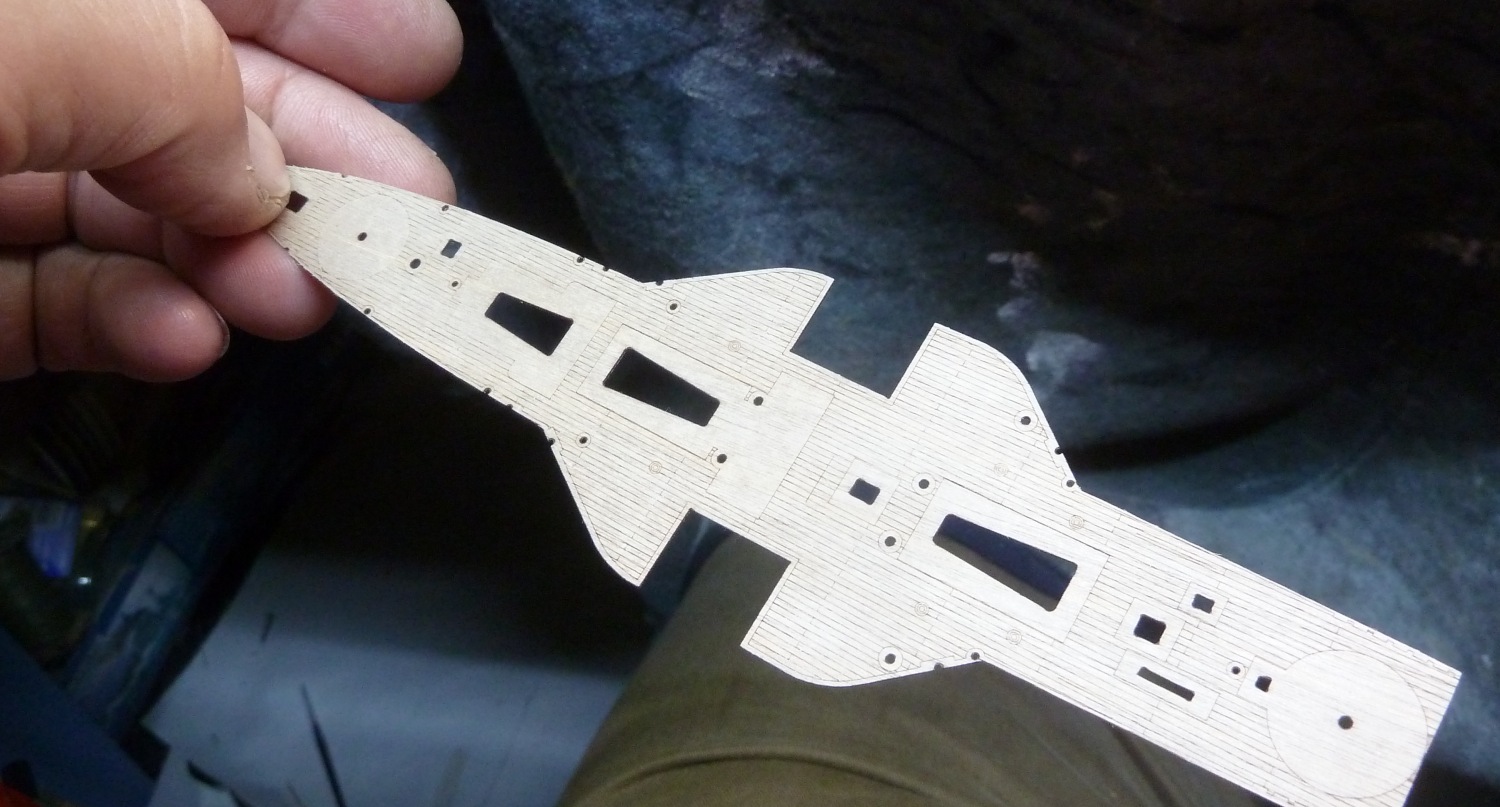

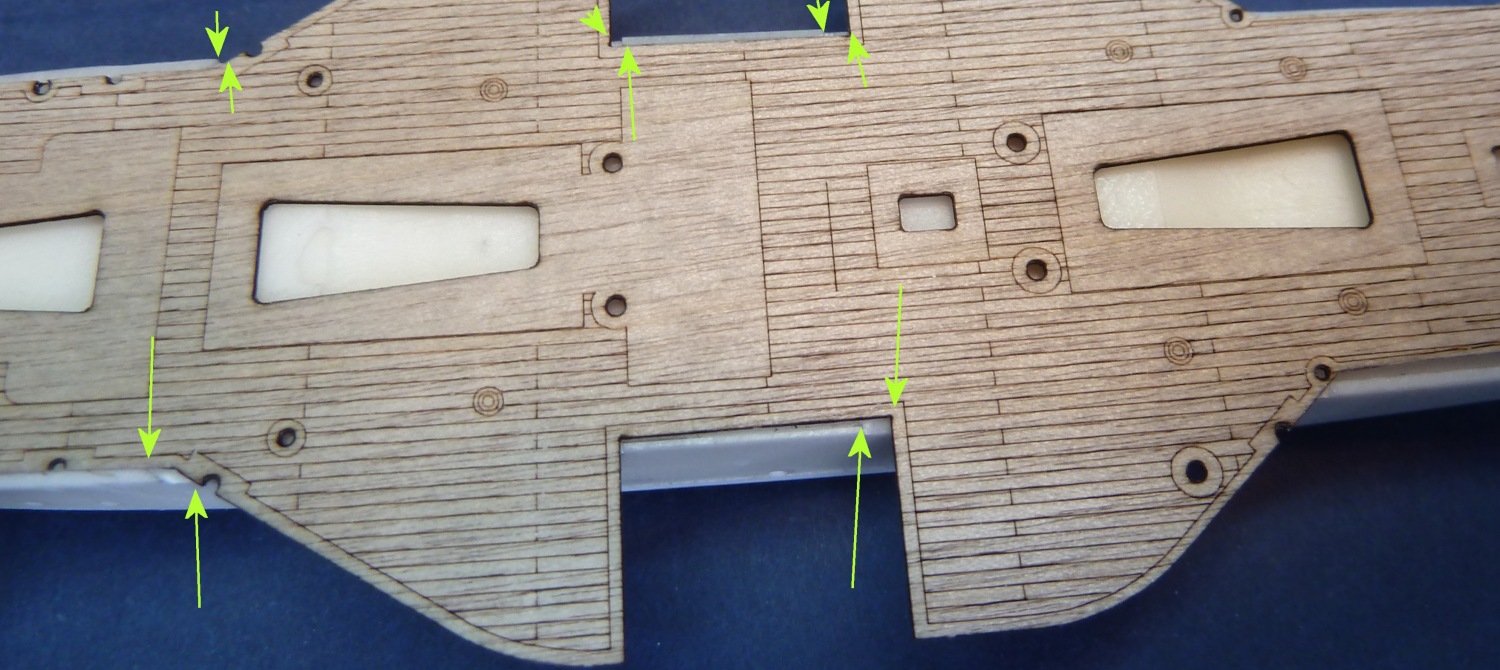

The first thing thereafter I did was to check the wood deck fit....

which alas was not entirely ideal, being a bit over-length on the weather deck and over-width on the paddle boxes.

The fore and aft location I optimised by removing a bit at both extremities, the lateral width problem was not as easliy re-solved-- as the margin planking even if partially removed would have looked odd.

I elected to shim outboard the paddleboxes, and build up the angled planes fwd and aft--
quite fiddly with much checking the deck against the unglued paddleboxes and for symmetry

( small tabs of double-sided tape on the paddleboxes and a sharp pencil were the key method!)

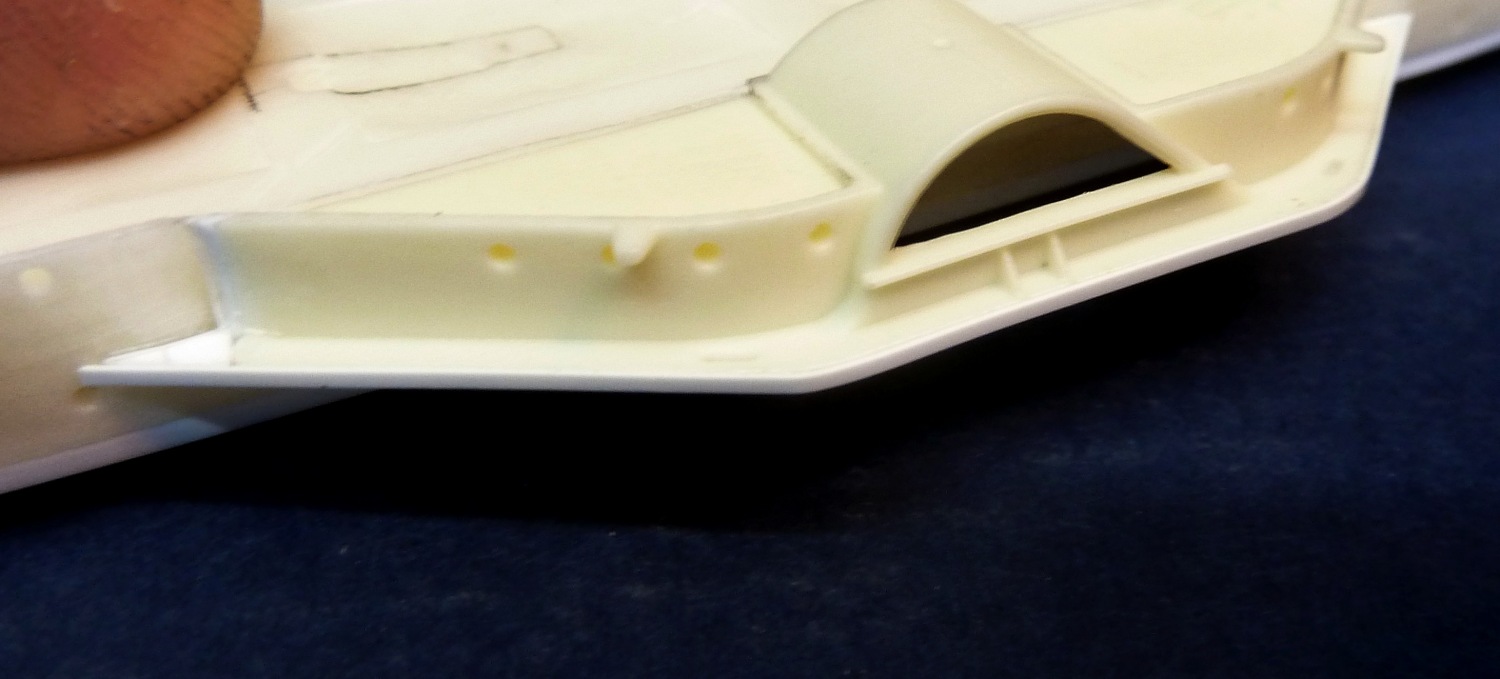

My paddleboxes had a casting offset on the inboard side- my shimming was not pretty

Attachment:
P1200421.jpg [ 213.96 KiB | Viewed 1328 times ]

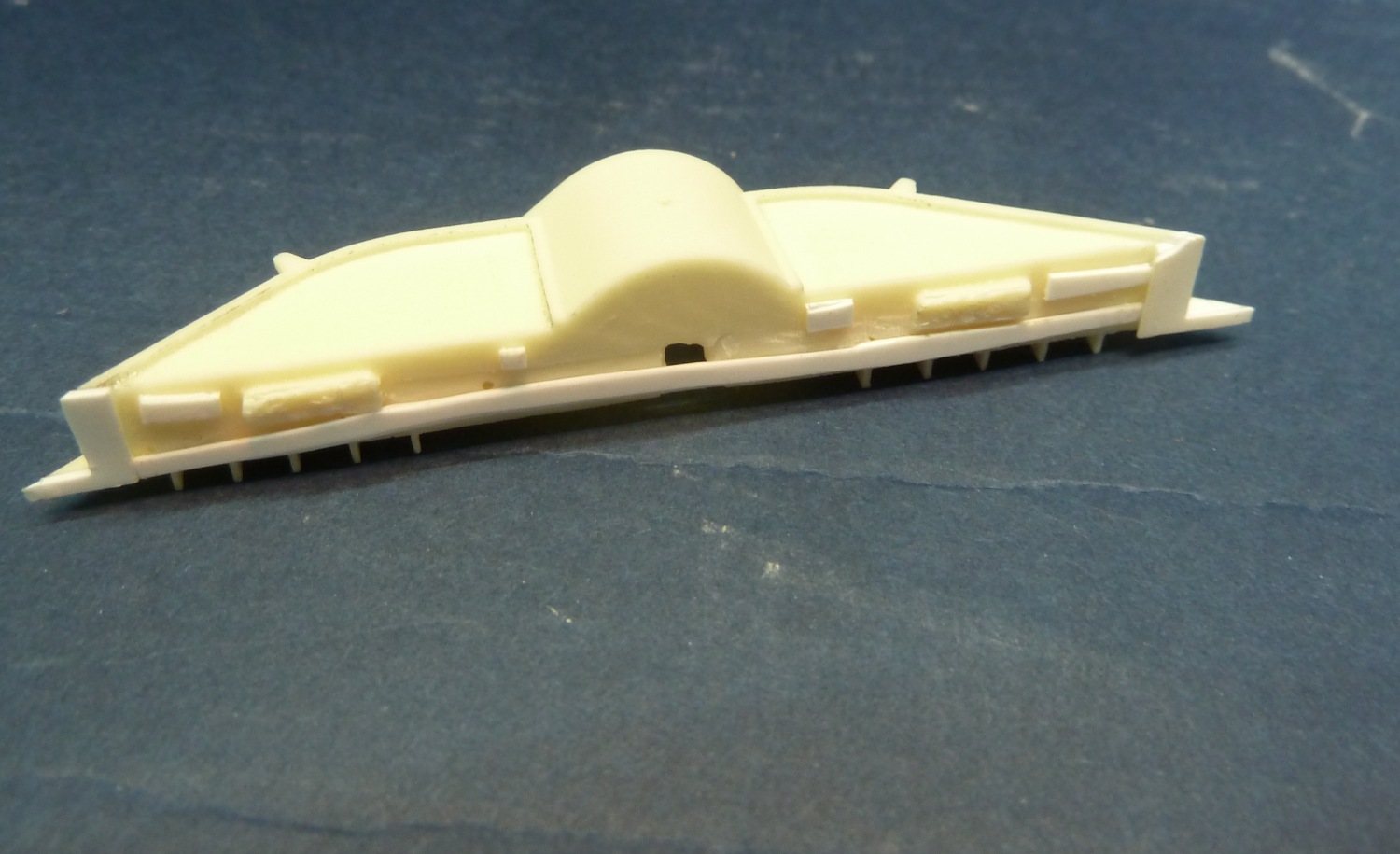

The enlargement of the fwd and aft facets were made piecemeal with strips of styrene

Attachment:
P1200423.jpg [ 315.66 KiB | Viewed 1328 times ]


More soon

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Oct 24, 2017 2:34 am
Offline
User avatar

Joined: Thu Mar 31, 2016 1:52 pm
Posts: 351
Location: Inverness
Pop-corn and beer opened in anticipation.

Cheers, Jabb

_________________
On the way - a rusty Liberty with lots of goodies!

----------------------------------------------------------

I used to be indecisive, now I'm not so sure.


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Oct 24, 2017 4:16 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Hi Jabberwock!

building anything ...? :cool_2: Telford this year?

meanwhile...

The challenges continued!

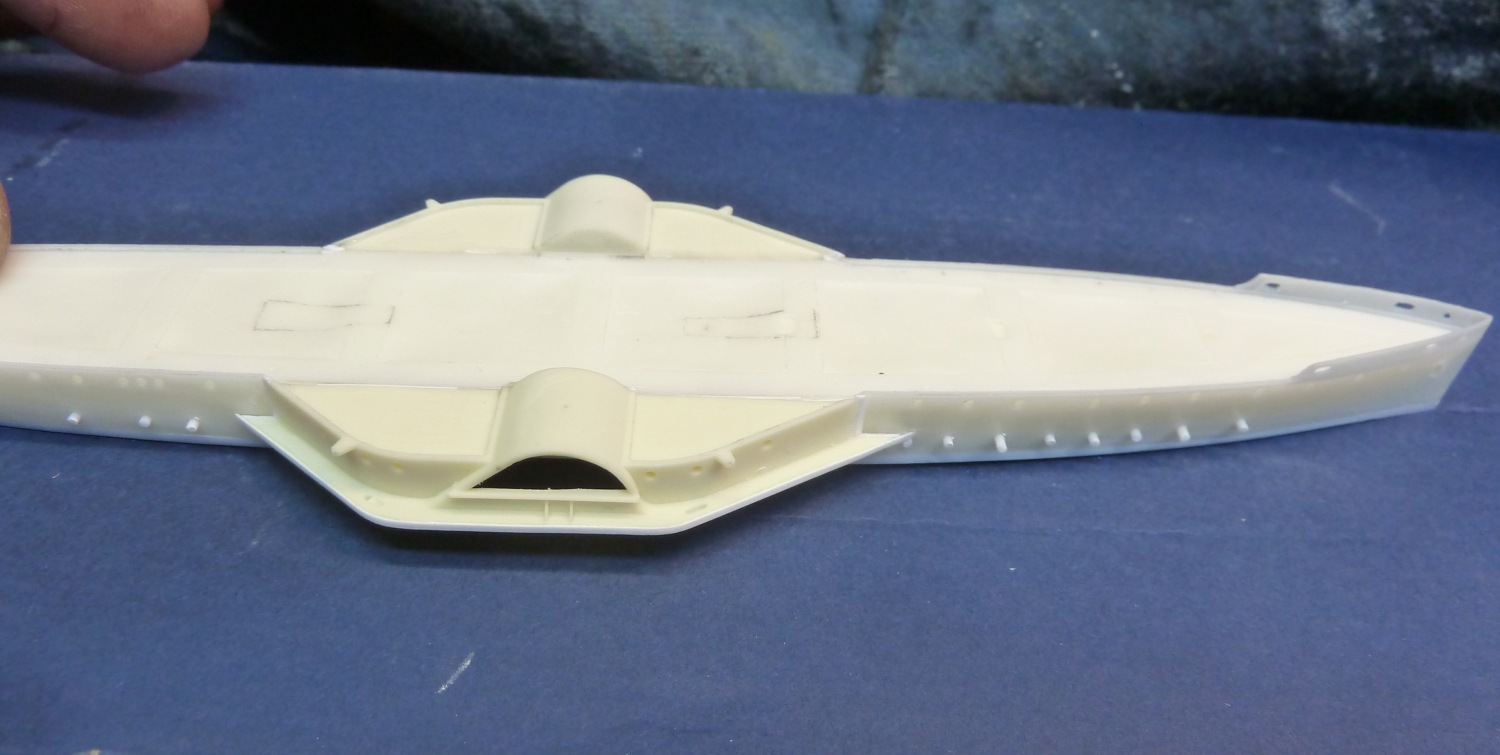

getting the paddle boxes to align athwartships correctly relative to the fore and aft position versus the enforced compromise of the deck...

The useful position blocks I reduced in size to gain fore and aft wiggle room ( in fractions of a mm albiet! )
--along with the cast on paddle box access doors--I shall replace them with PE items

It is possible that my hull's resin may shrunk slightly?

either way I had fit issues with the deck v. the hull

Nothing insurmountable

but more time

Attachment:
P1200426.jpg [ 280.95 KiB | Viewed 1284 times ]


Attachment:
P1200427.jpg [ 144.56 KiB | Viewed 1284 times ]

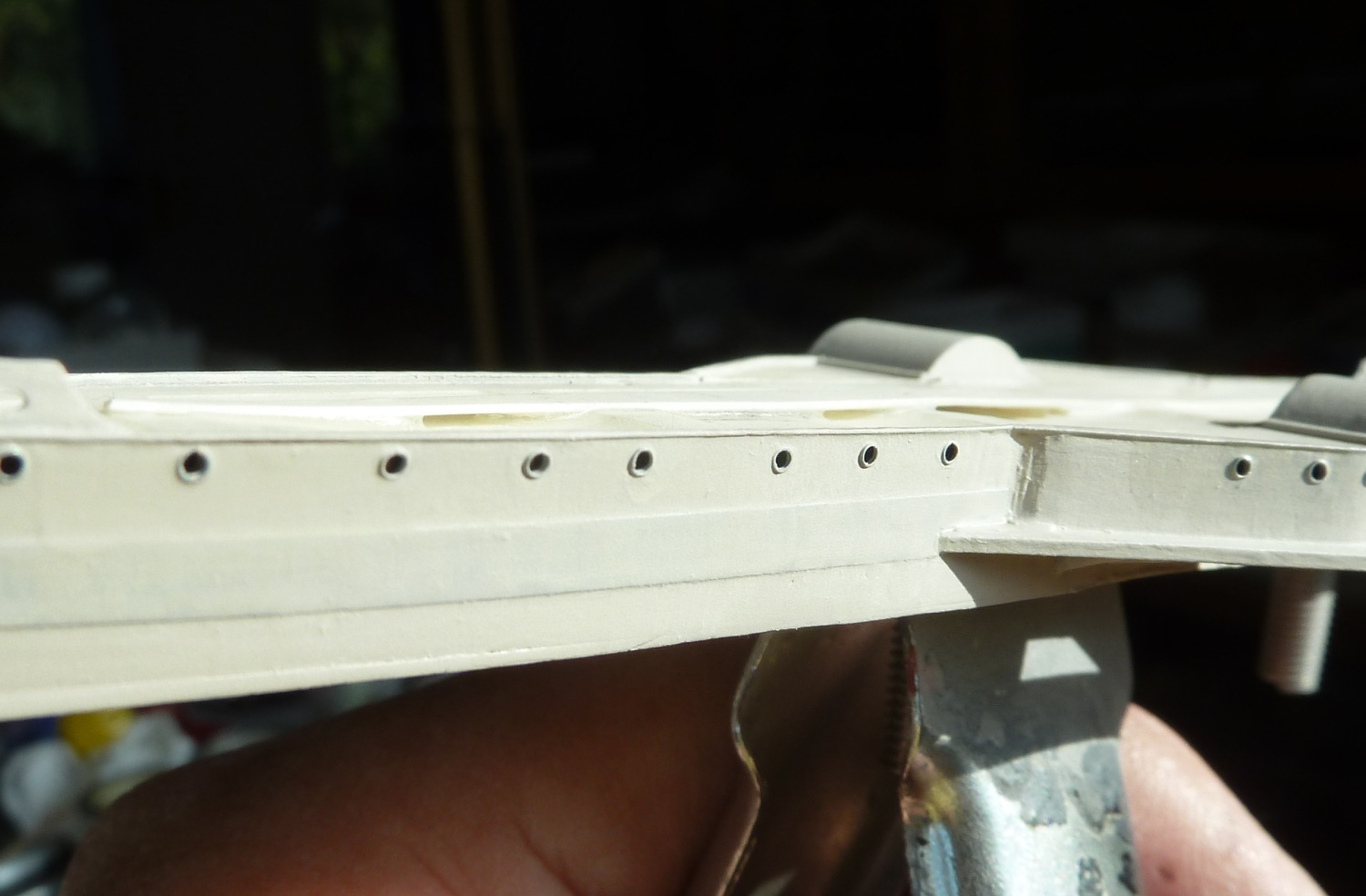

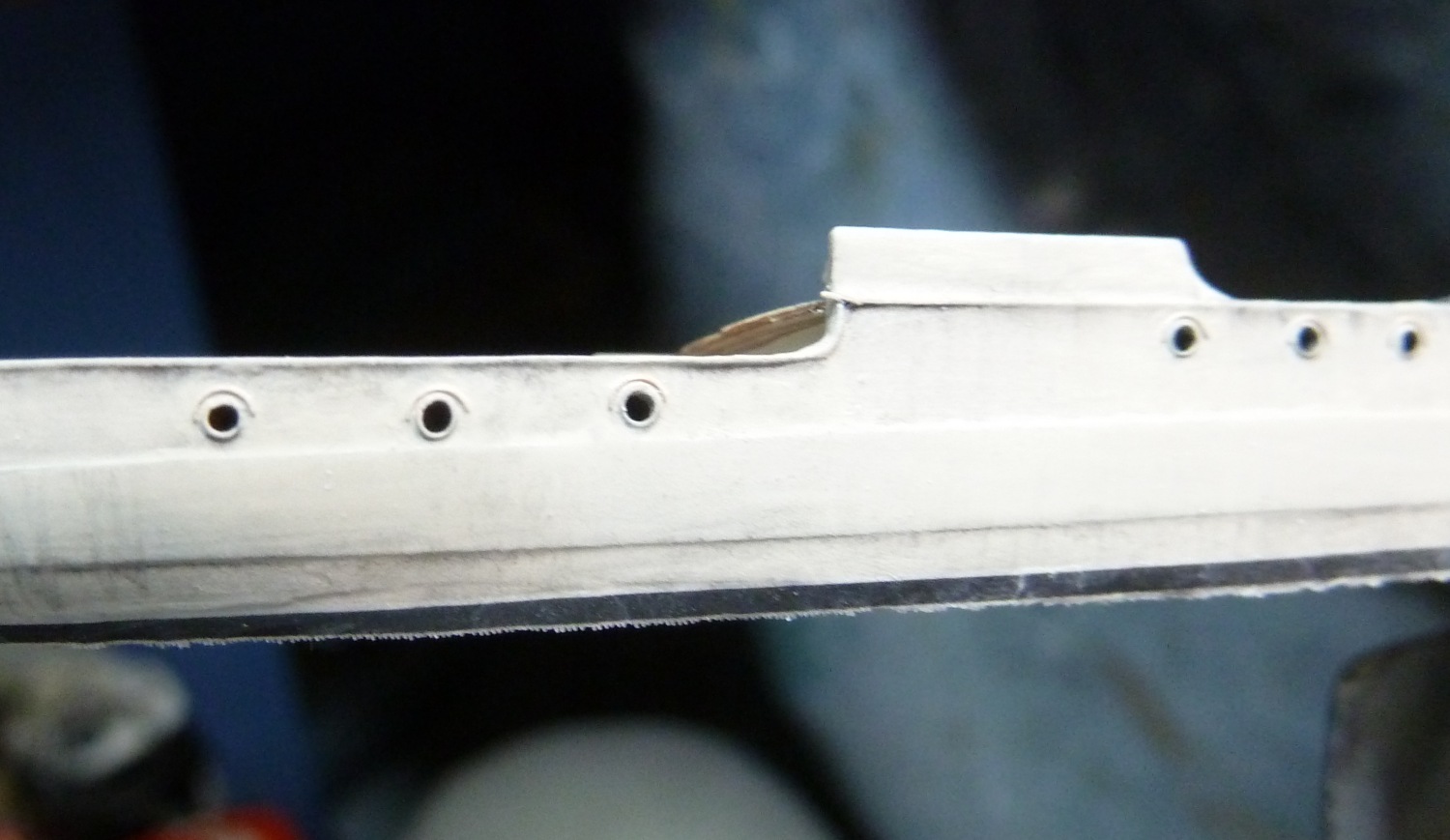

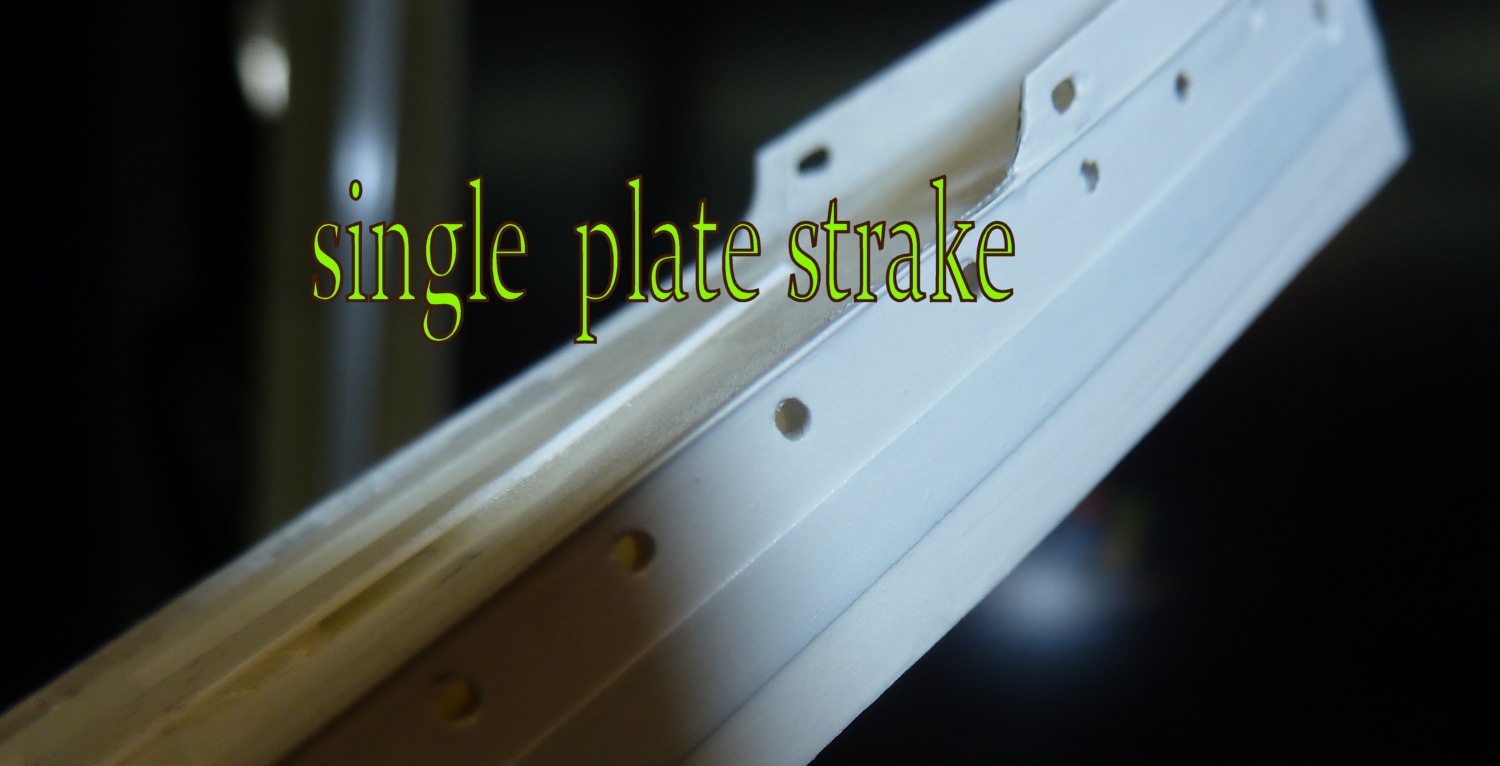

I was not completely happy about the edge of the rubbing strake around the paddle box,
as such I sanded it down in size to a squarer edge to allow me to make a crisp and tidy job
of the whole e thing once the boxes were installed with a strip of thin styrene strip

Attachment:
P1200429.jpg [ 186.95 KiB | Viewed 1284 times ]


Infuriatingly --after staring at photos--I realised that there was a bit of an issue again with the portholes... (!!)

It seems the same hull casting was used for the WW2 Thanet version of the kit as the WW1 Ascot version...
Aarghhh!!

As a Navy built ship she had an upper row of portholes only
the lower portholes were added after WW1 in civilian service...

here is Athelston in her inter-war pleasure steamer guise as Queen of Kent- with lower portholes

Attachment:
Queen of Kent.jpg
Queen of Kent.jpg [ 423.37 KiB | Viewed 1284 times ]



and as its should be in WW1....

Attachment:
hms atherstone.jpg
hms atherstone.jpg [ 253.26 KiB | Viewed 1284 times ]


as can be seen on the Ascot builders model and every other image of the ship in W1 service... ( see image in my previous posting)

Hmnnn...

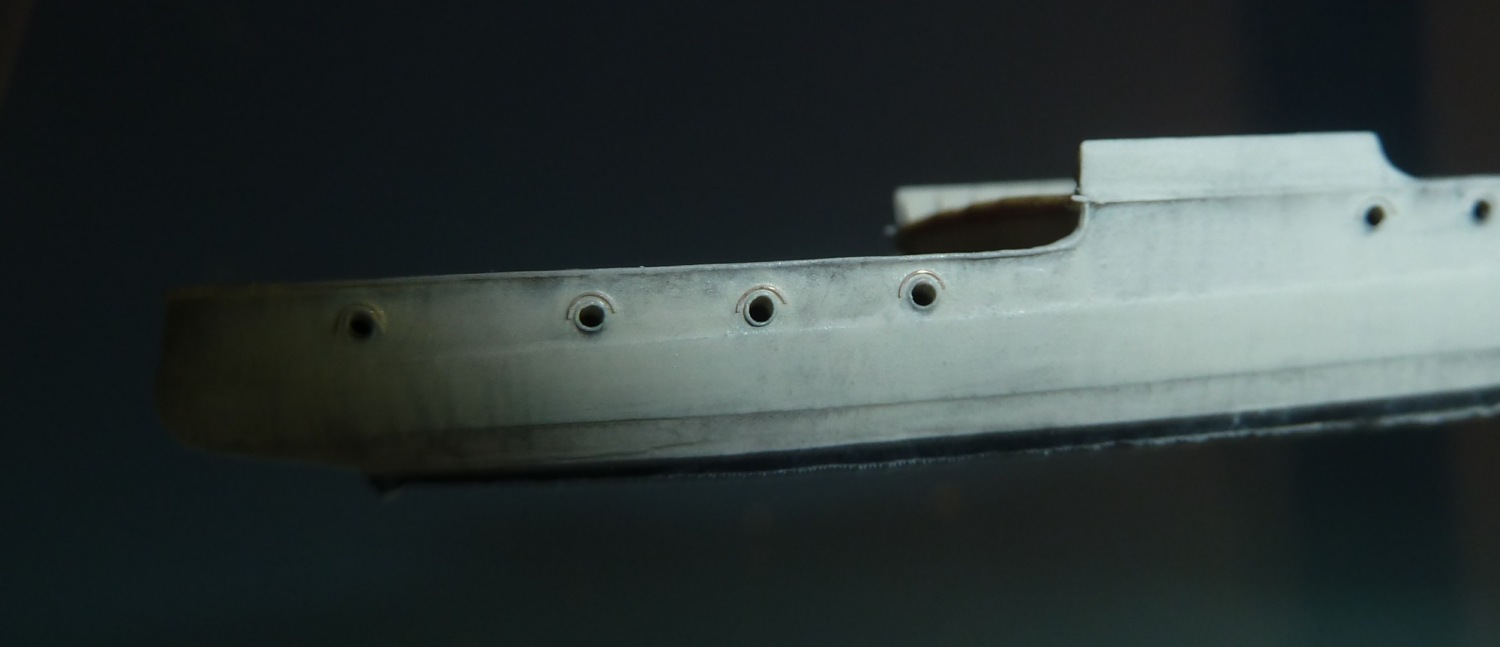

so this is the current status quo-- "HMS Porcupine..." :cool_2:

Attachment:
P1200451.jpg [ 167.95 KiB | Viewed 1284 times ]


Attachment:
P1200450.jpg [ 210.13 KiB | Viewed 1281 times ]





more soon

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Oct 24, 2017 5:39 am
Offline
User avatar

Joined: Fri Aug 29, 2008 6:17 am
Posts: 356
Location: Lerici
a paddle minesweeper...that's so...so...so...steampunk? :D

that is really interesting!!!

_________________
On the bench: evolution of Royal Italian Navy Ironclads-1/700

-Regia Nave Formidabile


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Oct 24, 2017 8:56 am
Offline
User avatar

Joined: Thu Mar 31, 2016 1:52 pm
Posts: 351
Location: Inverness
Quote:
Hi Jabberwock!

building anything ...? :cool_2: Telford this year?


Still persevering with a Liberty and loads of add-ons.

Sadly won't be there, the 'Telford Show' entry in my social diary was crossed out in crayon and a subsequent, spouse initiated appointment, has been added in!

This looks really interesting tho' - will be following closely!

All the best Jim

Jabb

_________________
On the way - a rusty Liberty with lots of goodies!

----------------------------------------------------------

I used to be indecisive, now I'm not so sure.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 25, 2017 2:09 am
Offline

Joined: Thu Dec 18, 2014 7:58 am
Posts: 55
Location: Oslo, Norway
Stefano Salesi wrote:
a paddle minesweeper...that's so...so...so...steampunk? :D

that is really interesting!!!


Almost as steampunk as a paddle aircraft carrier! (Even one without a hangar.)


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 25, 2017 2:25 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Sadly deceased Modelwarship scratchbuild supporter Bill Waldorf created a fabulous model in large scale of USS Wolverine

Paddle driven Aircraft carrier (! )

just google Bill Waldorf Wolverine...

( edit JB !! ) and right here:==> right here at modelwarships.com !!

http://www.modelwarships.com/reviews/sh ... p2/p2.html

link to other images
https://www.google.co.uk/search?q=bill+ ... 80&bih=611

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 25, 2017 4:40 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Onwards and backwards..(???!) :heh: :Mad_6: :Mad_6:

The kit rather disappointingly seems to have issues...

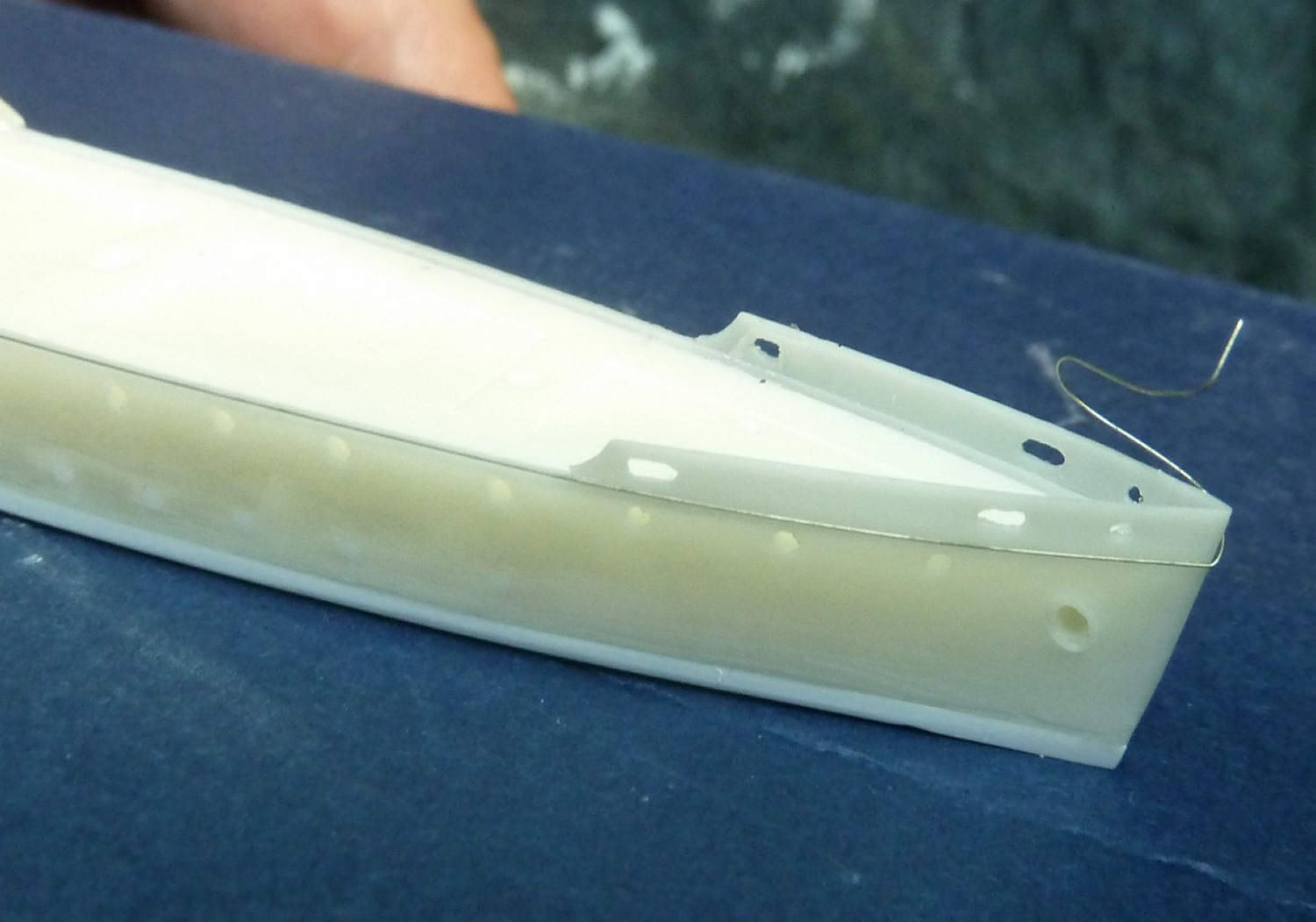

...a minor issue is that the forward hollow tumble-home is insufficiently deep


the real thing has rather more than the kit ( photo courtesy of screenshot of IWM image )

Attachment:
undercut hollow on bow.jpg
undercut hollow on bow.jpg [ 162.29 KiB | Viewed 1120 times ]



I shall at this stage live with it ...and use some subtle shading to accentuate the slight hollow tumblehome that is there

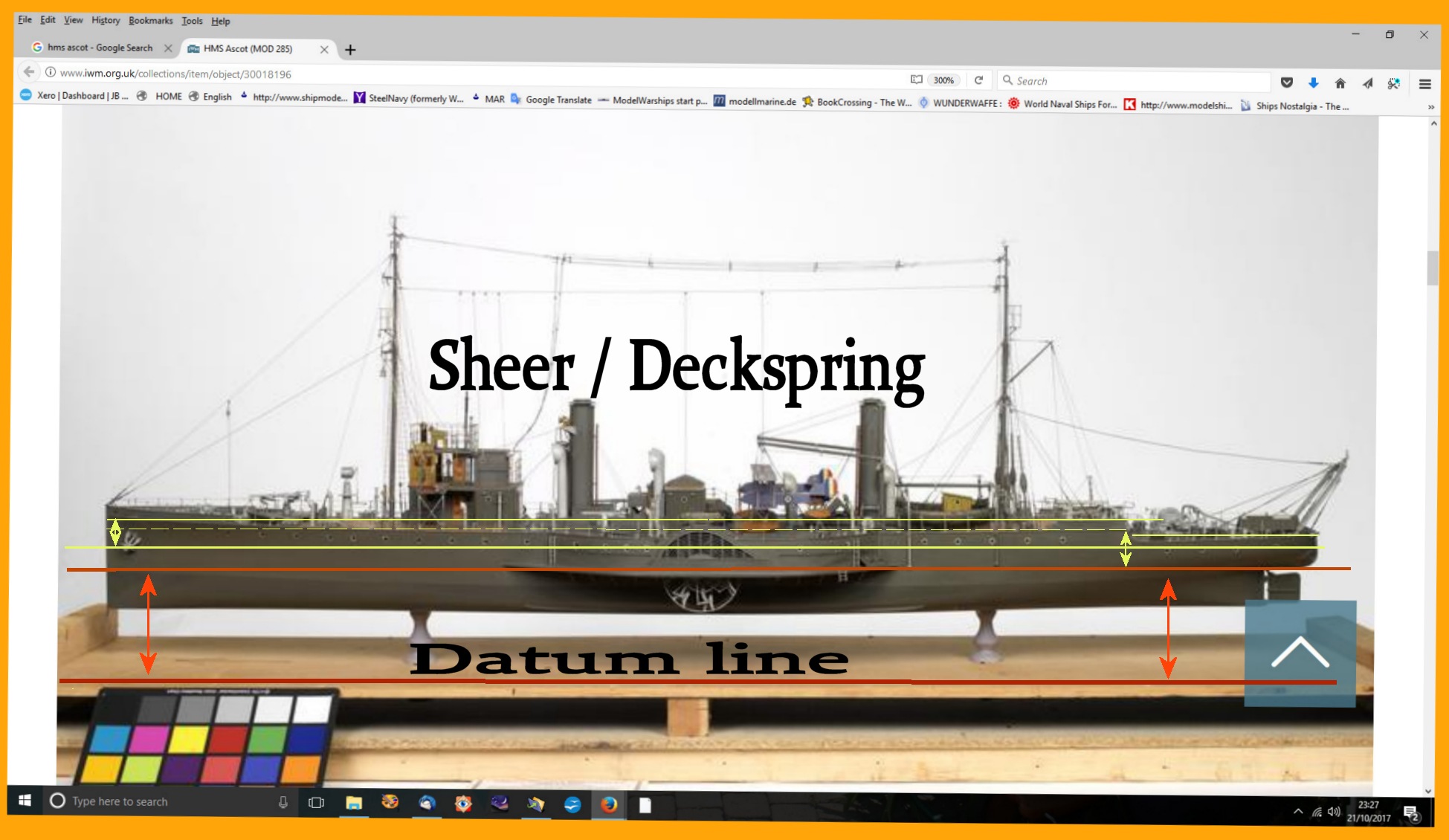

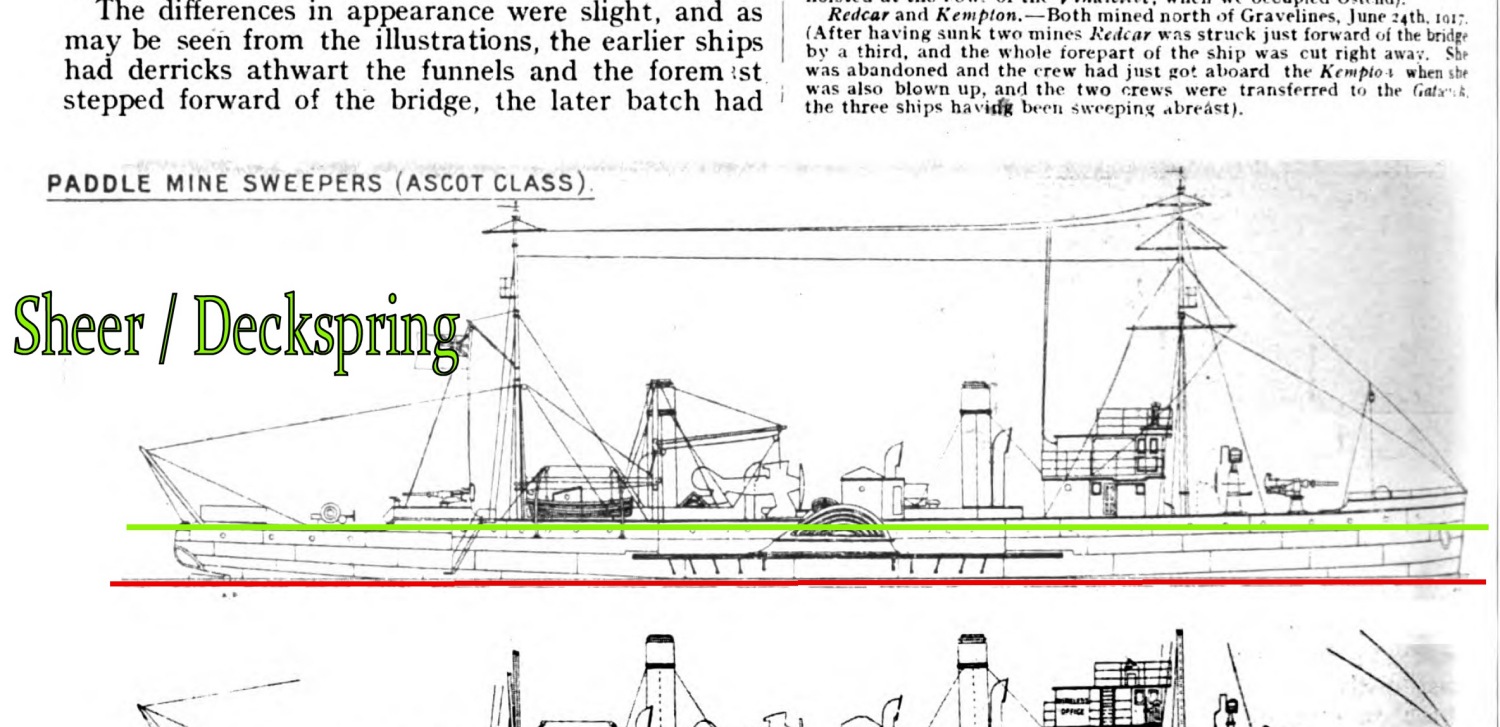

A rather bigger issue is the virtually entire absence of any sheerline ( deckspring )

The real ship and the builders model demonstrably have quite a bit

Attachment:
sheer deckspring.jpg
sheer deckspring.jpg [ 245.62 KiB | Viewed 1120 times ]


Attachment:
ascot sheer.jpeg
ascot sheer.jpeg [ 257.42 KiB | Viewed 1120 times ]


Attachment:
declskprinmg ascot class.jpg
declskprinmg ascot class.jpg [ 320.75 KiB | Viewed 1120 times ]

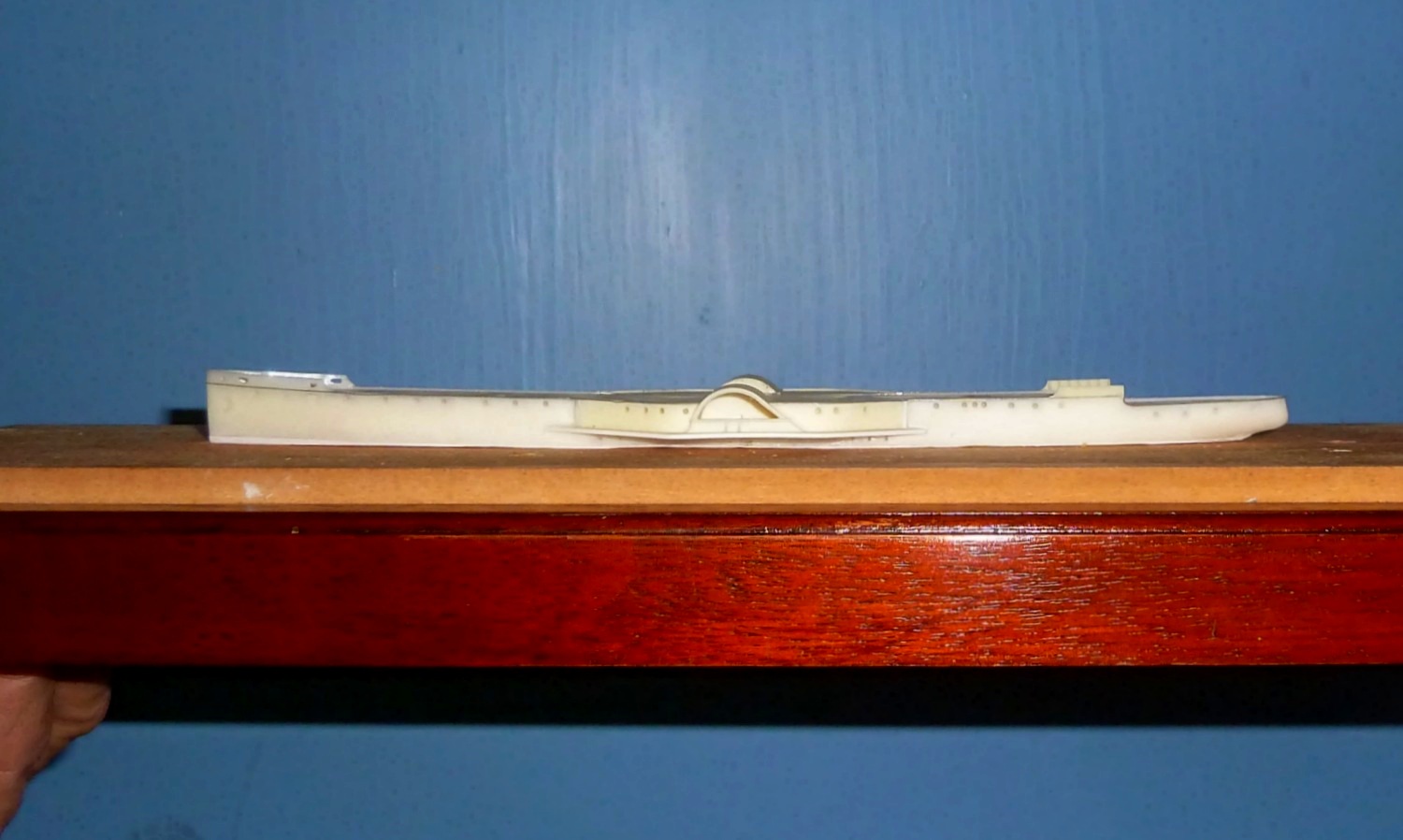

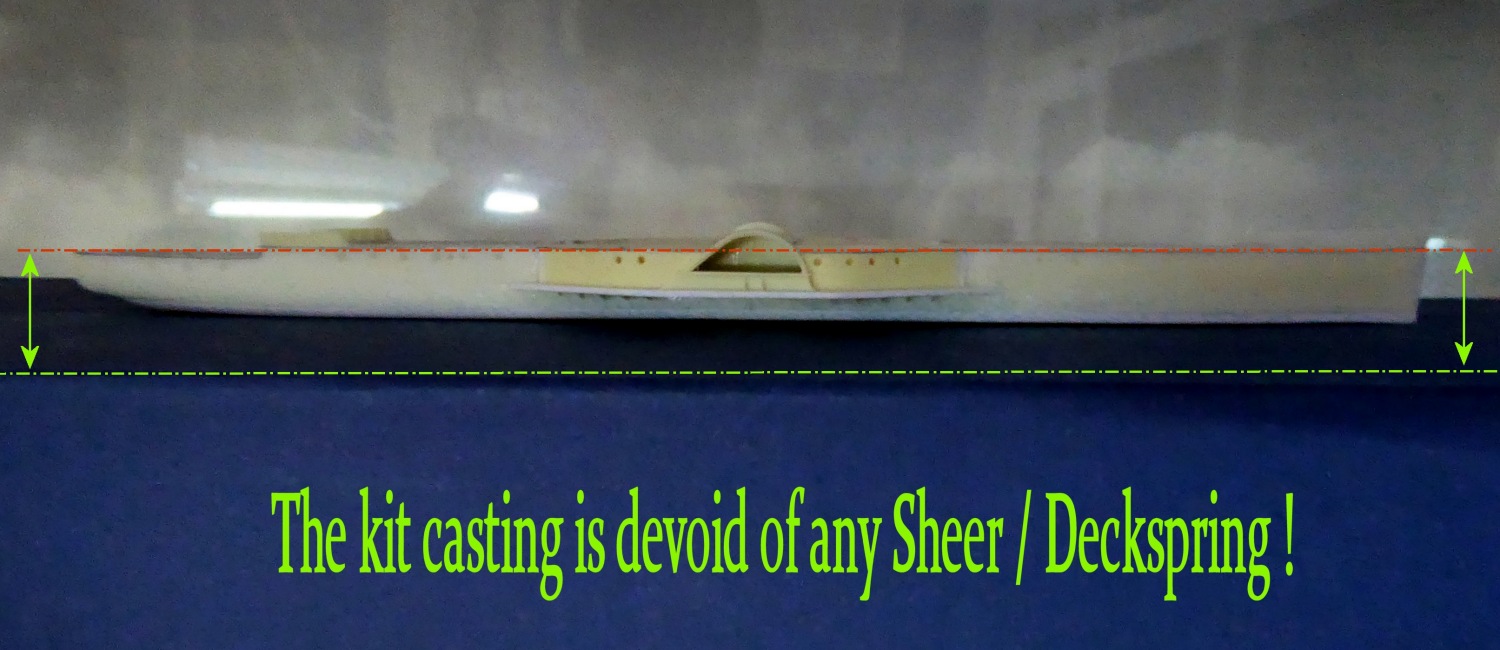

The model sadly quite evidently does not have any discernible spring

Attachment:
P1020069.jpg [ 217.38 KiB | Viewed 1120 times ]



Fortunately I have devised a cure...

will report after the cure ( or destruction!)

Best wishes

JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 25, 2017 5:40 pm
Offline

Joined: Thu Dec 18, 2014 7:58 am
Posts: 55
Location: Oslo, Norway
The best of luck with that... a ship without sheer just looks wrong.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Oct 26, 2017 7:02 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Note to self...

....So you want to retrospectively induce the sheerline...... ?


well here is how I did it.
=============================

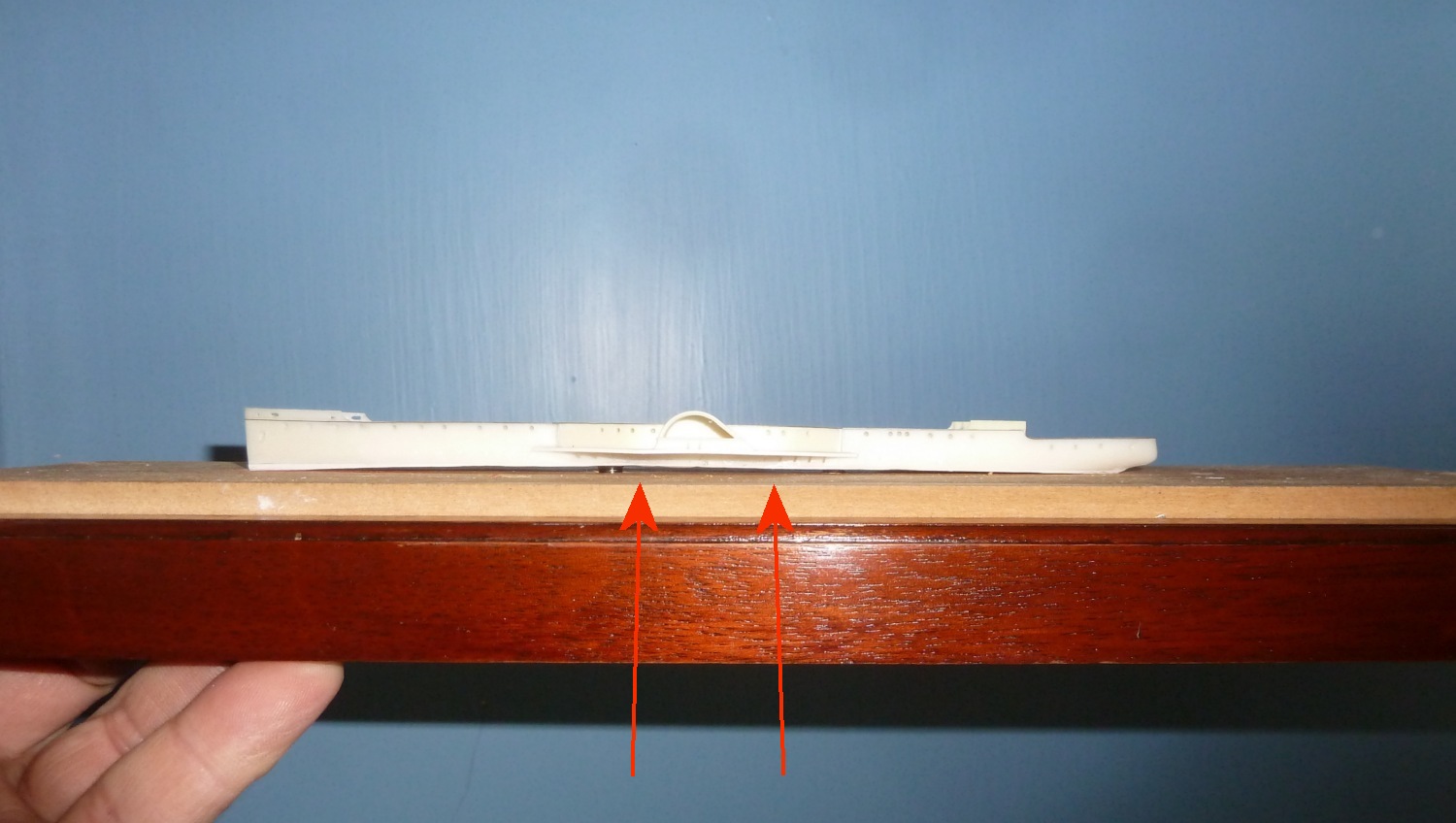

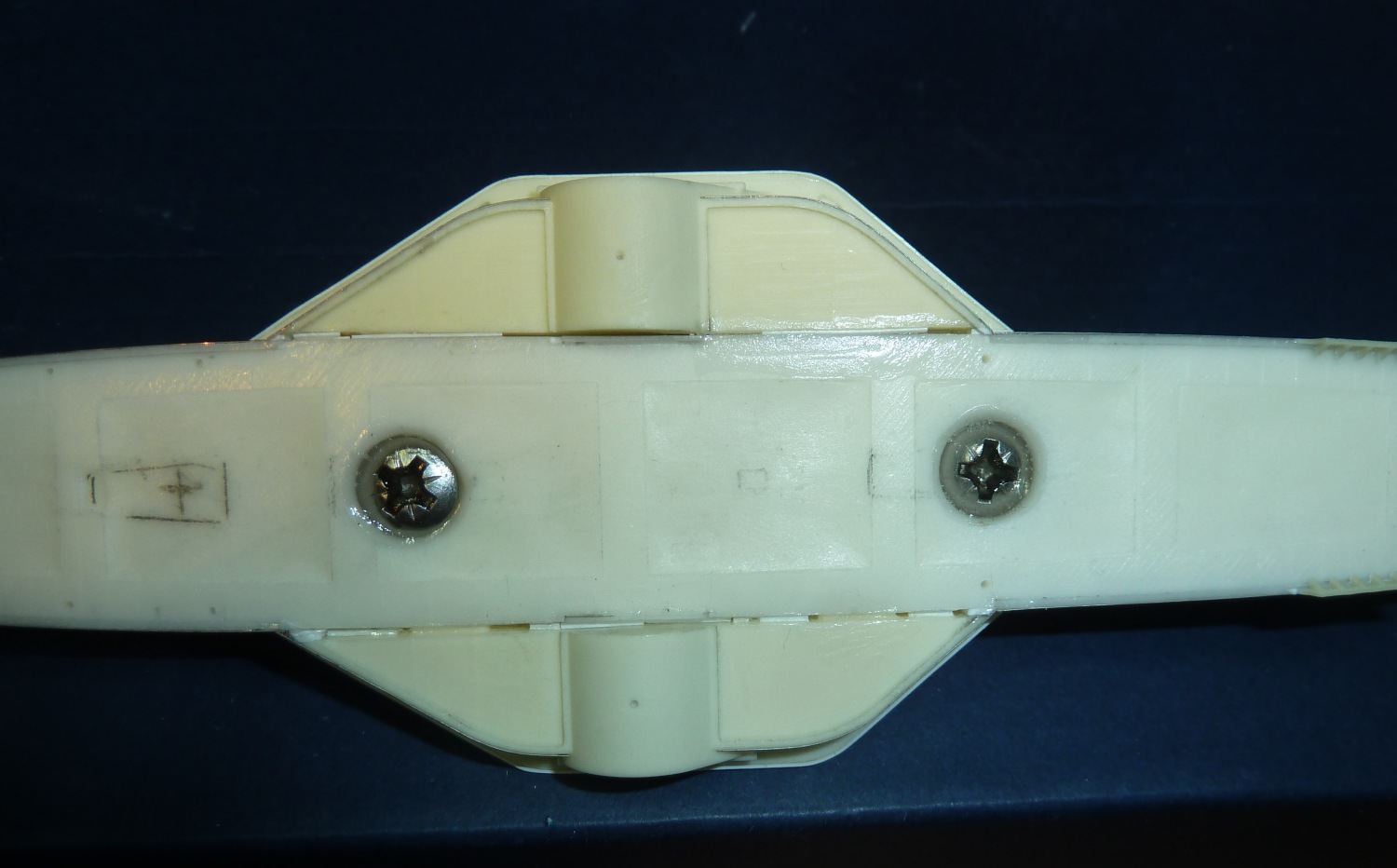

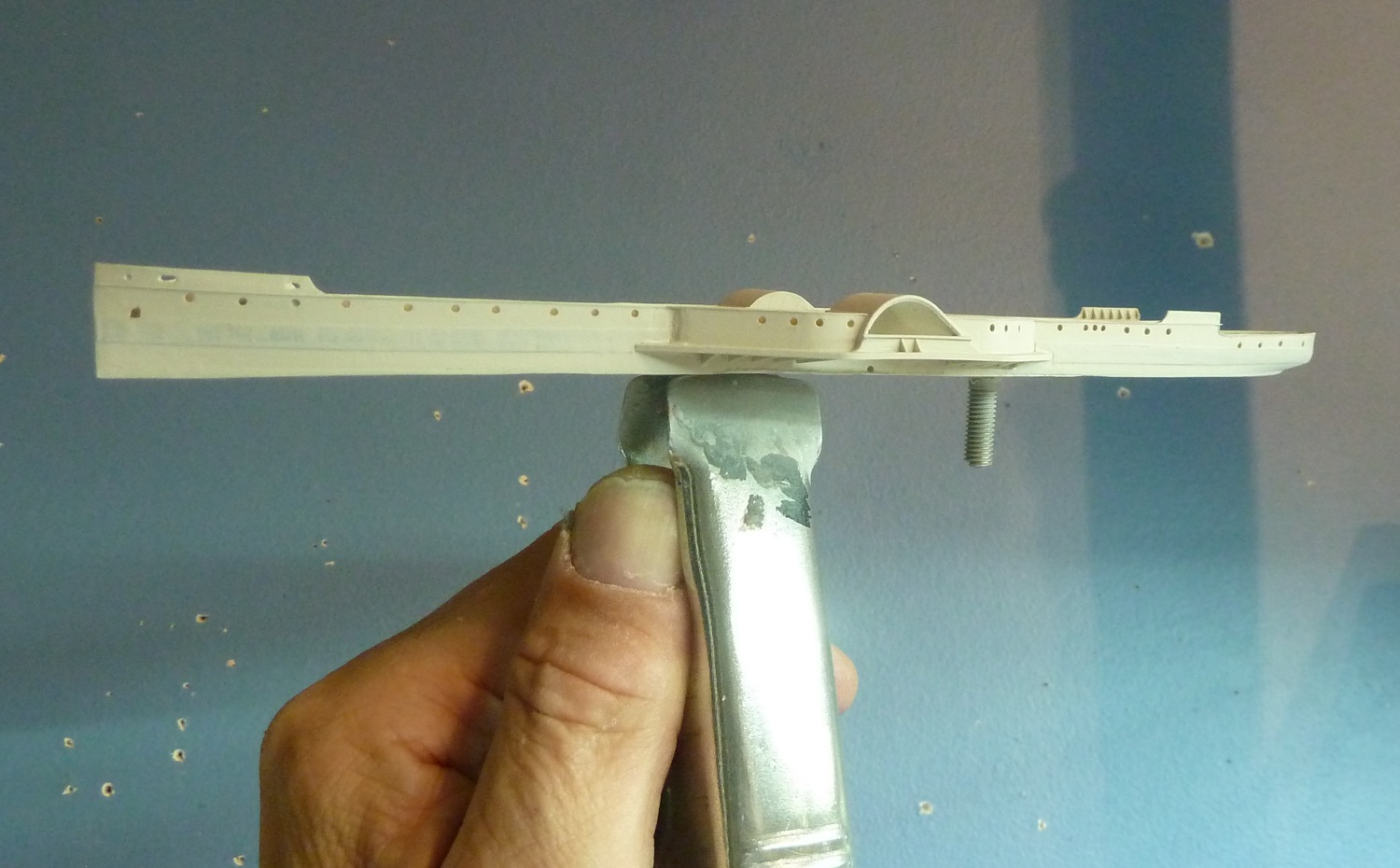

I drilled two 5.5 mm holes in the ship, countersunk the holes deeply enough so that
the bolt-heads were below the deck level and installed 2 x M5 stainless steel bolts.

I ensured I had clearance for 'wiggle' room as well not risking the resin hull casting splitting ...
These were glued in with epoxy from underneath and flooded with CA from above

Attachment:
P1200465.jpg [ 135.53 KiB | Viewed 1031 times ]


Attachment:
P1200469.jpg [ 175.82 KiB | Viewed 1031 times ]


Attachment:
P1200470.jpg [ 177.76 KiB | Viewed 1031 times ]

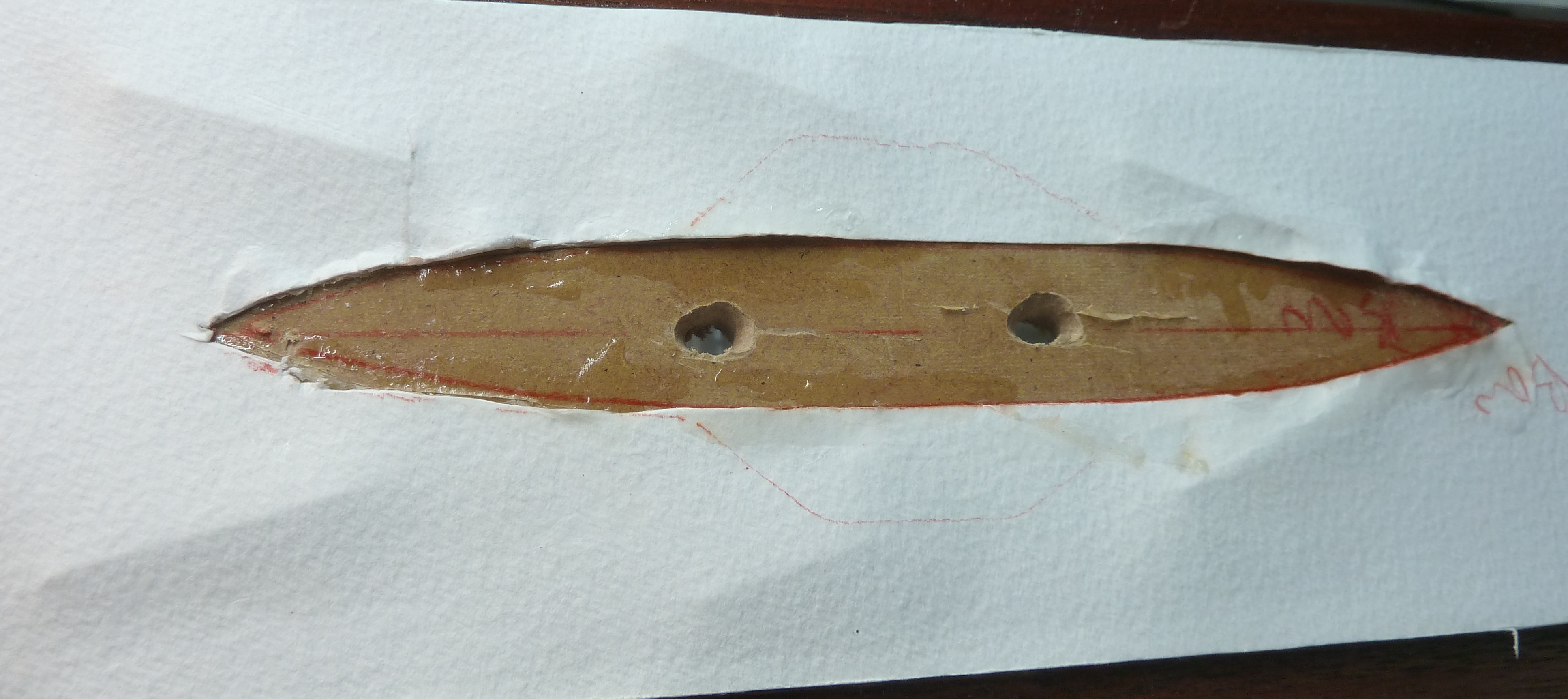

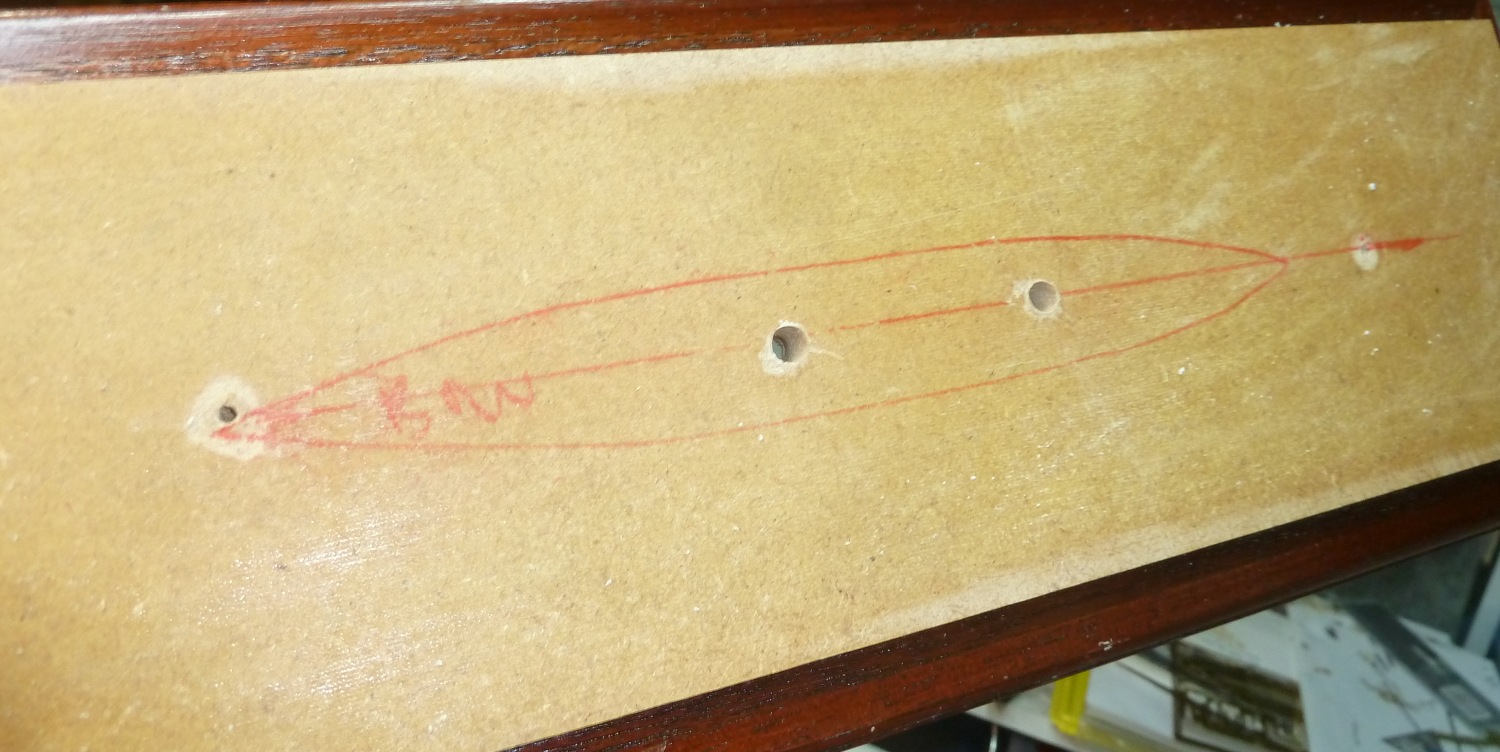

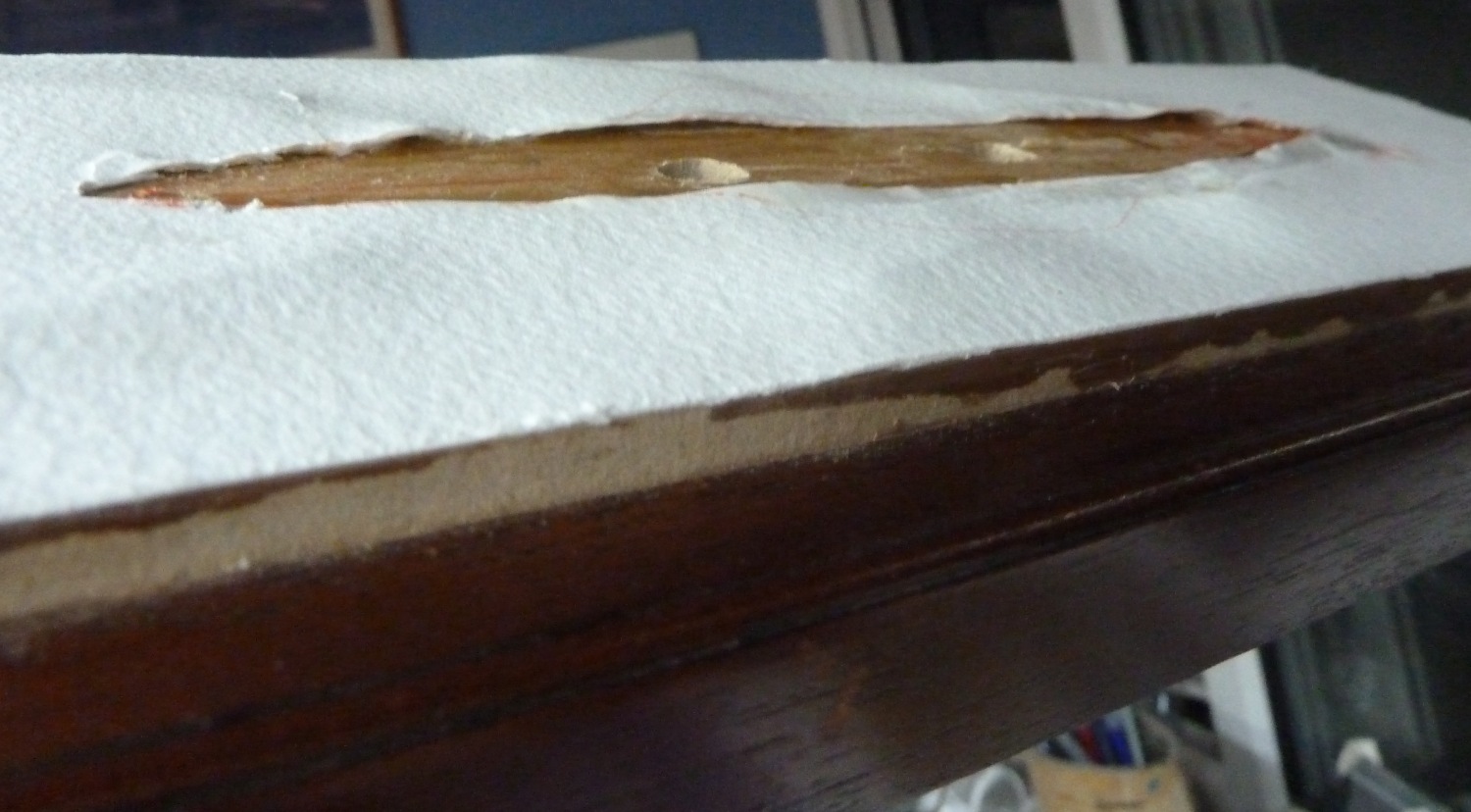

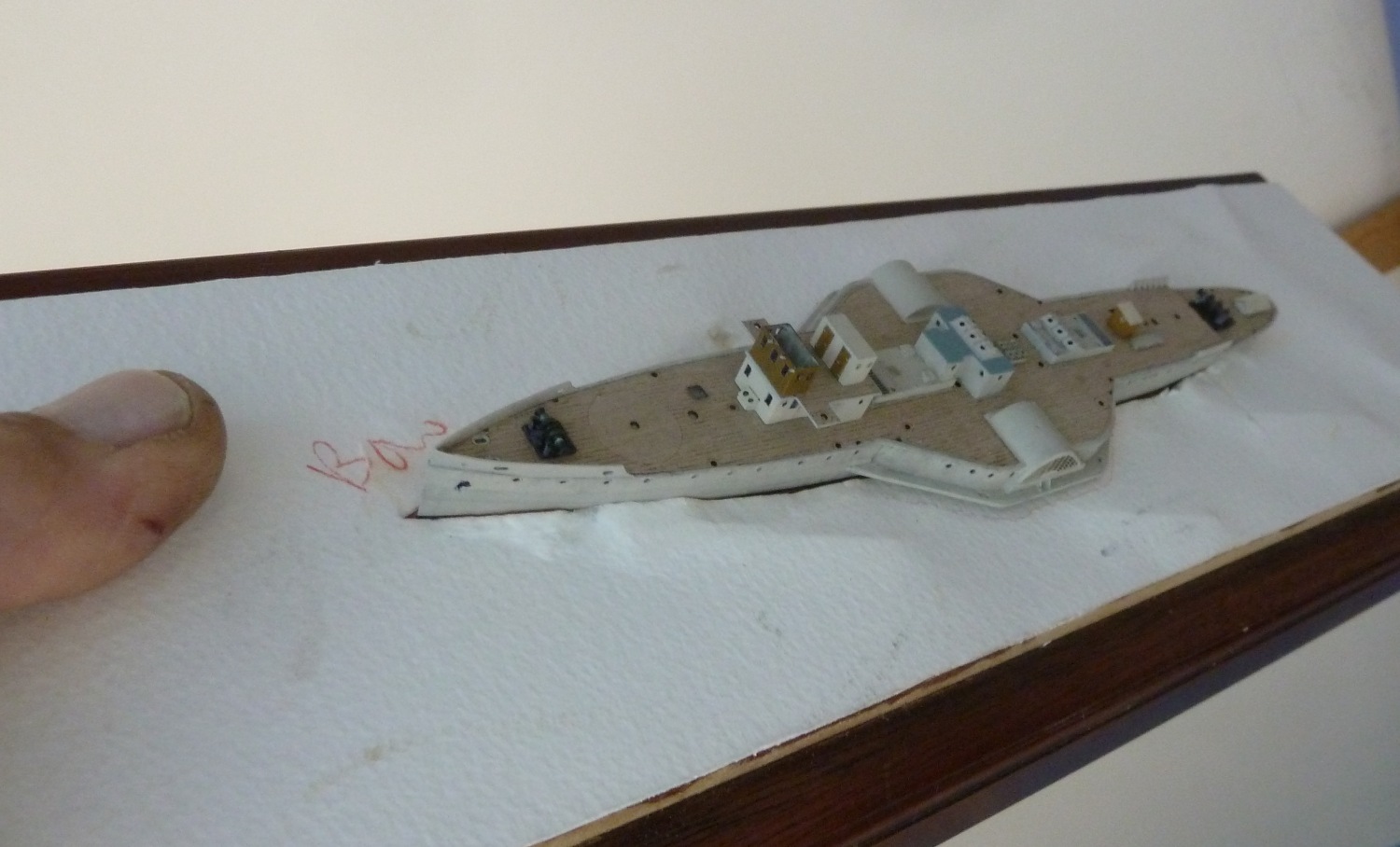

I took the base of the glass case--which is made of solid mahogany framing with an MDF insert.
I drilled matching 6 mm holes

Attachment:
P1200462.jpg [ 264.79 KiB | Viewed 1031 times ]





The rise and fall of the displacement wave pattern and the bow and stern wave was laid out with cocktail sticks glued in place

Attachment:
P1200489.jpg [ 219.86 KiB | Viewed 1031 times ]



This was covered with artists textured watercolour paper ( as per my usual method described in much greater detail here)

link: viewtopic.php?f=4&t=37223

Attachment:
P1200490.jpg [ 1014.66 KiB | Viewed 1031 times ]


Attachment:
P1200491.jpg [ 224.28 KiB | Viewed 1031 times ]




Fortunately I had previously added that thick square strip of styrene along the perimeter of the hull to give some waterline play

Attachment:
P1200413.jpg [ 202.8 KiB | Viewed 1031 times ]


I sanded this out ( carefully!) so that at the centre of the hull the the styrene was sanded away almost completely,
then tapering out evenly fwd and aft-,with more materialremoved from the stern
than towards the bow ---
==> which needed to be higher with a more pronounced sweep

Placed on its base without the washers and nuts drawn up on the underside,

it looked like this, evidently showing the hollow that had been created

Attachment:
P1200472.jpg [ 195.53 KiB | Viewed 1031 times ]





Once the nuts were drawn up ( and very 1/4 of a turn allowed me to 'tune' the sheerline to my liking)

Attachment:
P1200474.jpg [ 178.13 KiB | Viewed 1031 times ]


The hollow was sucked down with the nut tension and the result was that "we " now have a sheerline ,
that looks akin to the photos of the real ship as well as the builders model.

Attachment:
P1200475.jpg [ 174.19 KiB | Viewed 1031 times ]


So now onwards with making progress... :thumbs_up_1:



So as to create the deck-camber --which is noticeable on these ships

Attachment:
Deck camber.jpg
Deck camber.jpg [ 186.88 KiB | Viewed 1031 times ]



I added a thin strip of styrene down the centreline of the casting

Attachment:
P1200488.jpg [ 164.11 KiB | Viewed 1031 times ]


The wooden deck will be glued down at both outer edges--
very gently curving over this centre spine,
==> thereby giving the desired deck camber :smallsmile:



After that slight setback of changing the hull shape...(!)

I added the distinctive and visible deck-edge strake, made of thin copper wire,

this was surprisingly tricky to accomplish neatly

Attachment:
P1200453.jpg [ 228.5 KiB | Viewed 1031 times ]

Attachment:
P1200458.jpg [ 186.23 KiB | Viewed 1031 times ]

Attachment:
P1200455.jpg [ 202.62 KiB | Viewed 1031 times ]




JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Oct 27, 2017 6:59 am
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2103
Location: Hoboken, NJ
Nice work, Jim. I have this kit in the stash and have nearly started it on several occasions. That you're fpointing out all the issues for the rest of us.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Oct 28, 2017 4:05 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1185
Location: Belgium
Interesting project, and great work so far! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

How did you go about attaching the deck-edge strake? Simply a lot of pre-bending to get the wire strait and conforming to the curves, then gluing section by section with superglue while adjusting the wire as you go? Or is there more to it?

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Oct 28, 2017 6:44 pm
Offline
User avatar

Joined: Sun Mar 18, 2012 7:31 pm
Posts: 1280
Location: Wilson, NC
Hey Jim,
Fantastic work there, I too someday would like to build a paddle wheeled steamer but got to burn threw my stash still. I am going to be following along this build closely....................learning :cool_2: :cool_2: :cool_2:

_________________
Jim Varnell
ABH2 USN/RET.
89-00


Up coming projects:
1/700 scale rebuild of diorama project 960 square feet.
(Table 1 underway)Feb.2017
1/350 USS ALASKA CB-1(started Aug. 2017) 70% completed


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Oct 29, 2017 8:09 pm
Offline
User avatar

Joined: Sat Feb 08, 2014 1:58 pm
Posts: 262
Location: Boise, Idaho, United States
Great work Jim sorting the sheerline and the deck camber!

Looking satisfying so far!

_________________
Si hortum in bibliotheca habes, nihil deerit.
- Consul Marcus Tullius Cicero


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Nov 02, 2017 5:35 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Progress continues in fits and spurts!

I was a little bit bothered about the " flatness" of the hull; certainly plating runs are visible in some images.

I concluded that sometimes less-is-more and rather than emulate complete plating - which easily could look too busy-
-I opted for a single run
Attachment:
P1200510.jpg [ 240.27 KiB | Viewed 779 times ]


Attachment:
P1200504.jpg [ 139.96 KiB | Viewed 779 times ]


I was next bothered by the lack of sharpness/ definition of my potholes

certainly these had a profile--which in model-form--would help define them
Attachment:
aa porthole.jpg
aa porthole.jpg [ 157.7 KiB | Viewed 779 times ]

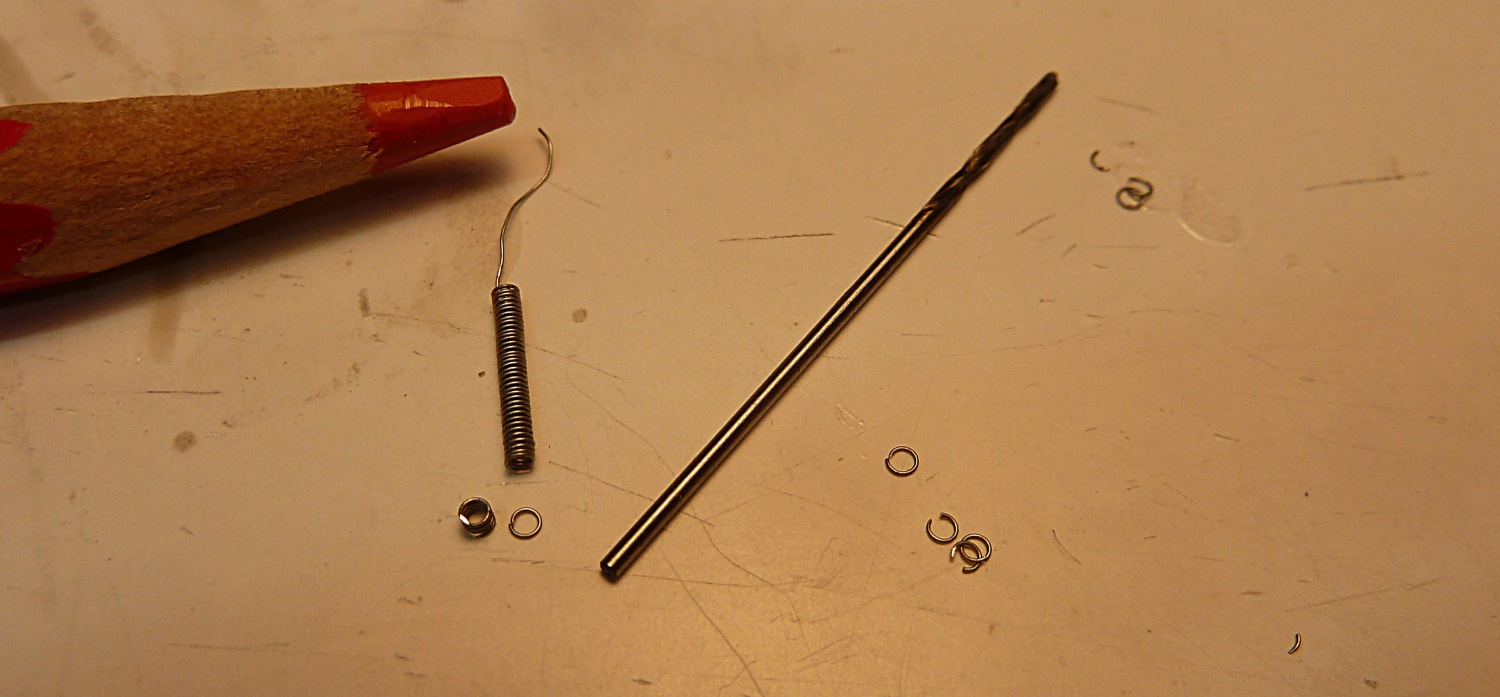

I started making porthole frames of thin wire --this was formed into a spiral ' spring' around a drill shank,
then cut off in sets of two,

then halved to make circles.
...........tedious --but strangely... satisfying!

Attachment:
P1200514.jpg [ 195.46 KiB | Viewed 779 times ]

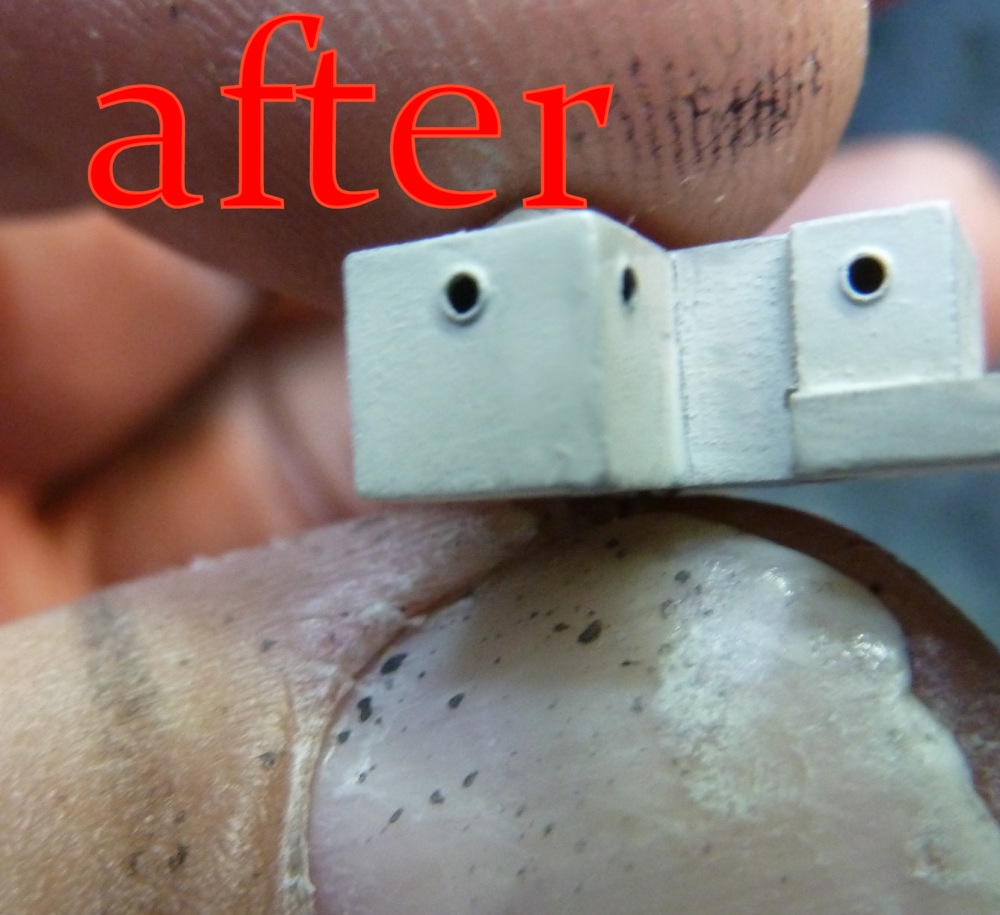

once installed it looked a bit more pleasing

I know I know-... :thinking: -albeit it overscale--but in the overall perception of the model by the viewer...
( I hope ) it will blend...

Attachment:
P1200521.jpg [ 171.9 KiB | Viewed 779 times ]


Attachment:
P1200519.jpg [ 130.41 KiB | Viewed 779 times ]


Attachment:
P1200516.jpg [ 171.25 KiB | Viewed 779 times ]






next will be making the eyebrows on the hull side portholes -- ( but seems there are none on the paddleboxes)

meanwhile cowl vents....

The kit supplied items to my eyes are incorrect in shape--being too oval in the mouth.
I have started preparing some spare plastic items of the correct ( ish) diameter

Attachment:
P1200495.jpg [ 390.32 KiB | Viewed 779 times ]


I shall mount the cowls on piece of brass / copper/ aluminium tubing for the various heights

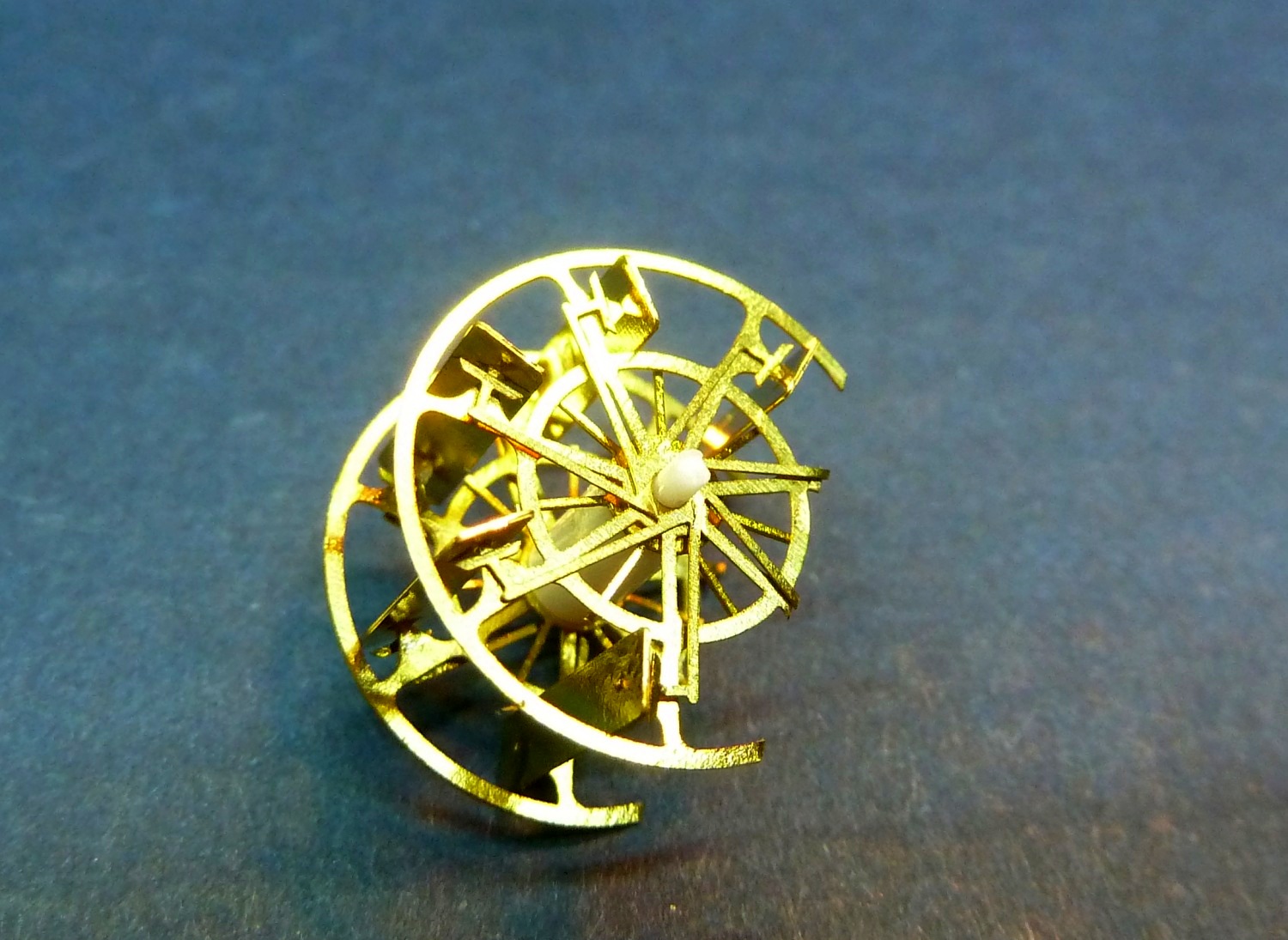

Meanwhile--as a pleasant diversion I assembled delightful photo-etched paddle wheels .
==>and then ... as the model is being presented in a waterline format, "brutally" cut away the surplus !

Attachment:
P1200438.jpg [ 312.59 KiB | Viewed 779 times ]



More soon!

Jim Baumann :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 03, 2017 2:49 am
Offline
User avatar

Joined: Wed Sep 28, 2011 12:04 pm
Posts: 745
Location: Paris
Quite impressive the paddle-wheel including the various levers at this scale ...

_________________
wefalck

-----------------------------------------------------------------------------------------------------------------------

Image Image Image Image


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 03, 2017 6:22 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
@ Marjinn who wrote;

How did you go about attaching the deck-edge strake? Simply a lot of pre-bending to get the wire strait and conforming to the curves, then gluing section by section with superglue while adjusting the wire as you go?

My apologies for no response yet --

I did not pre-bend the wire per se-- I straightened and stretched the copper wire ( tinned 38swg) between pliers for each length.

I attached one enc with CA--and with the hull supported on its side ( tricky with the paddle boxes! ) I then laid the wire down and tacked it on with CA

I eyeballed it to straight--and the infilled with more CA from above--ie deck to strake--this filled the ' valley' twixt casting an wire.

afterwards with 1500 grit gave it a light sand from above to make flat
HTH

JB

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Nov 07, 2017 4:55 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
further good but slow progress;

I had removed the cast on doors each side of the paddleboxes early on for my convenience ( to ease the adjustment of fit)

however closer inspection of photos shows the doors to have been fitted inter-war for civilian service ease of access

Attachment:
P1200416.jpg [ 271.06 KiB | Viewed 656 times ]


The paddlebox surround platform access being via ladder in initial WW 1 naval service

Attachment:
atherstone5.JPG [ 230.8 KiB | Viewed 656 times ]



I have sanded all the wooden decks down a bit with 1500 grit for more subtlety and less contrast of the caulking lines.
I also scraped down the butt join lines to be less prominent

Attachment:
P1200543.jpg [ 257.09 KiB | Viewed 656 times ]

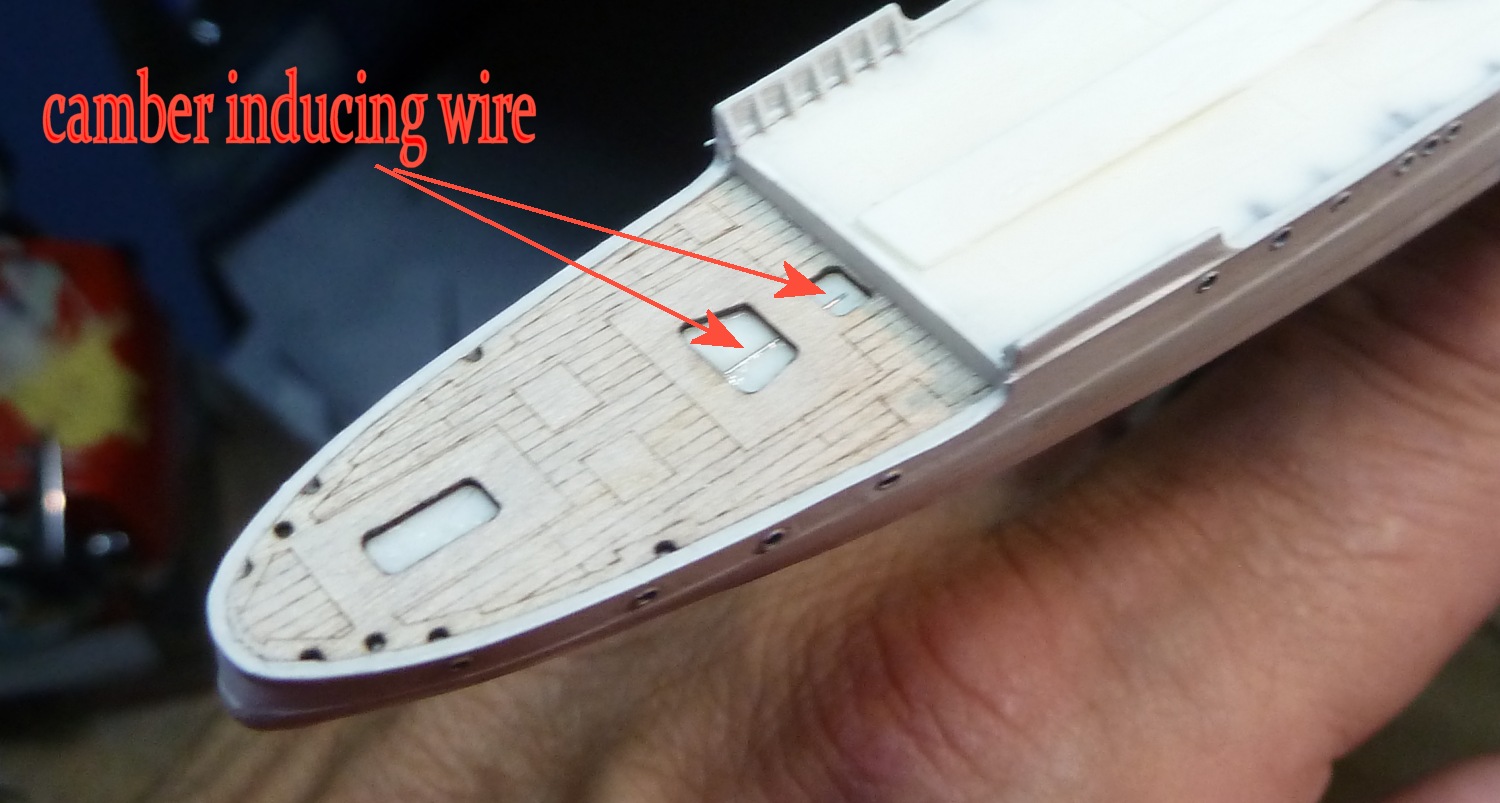

I added a thin piece of wire at the fwd end of the aft deck to induce a bit of camber there also at the fwd end
This has worked well-- being " almost " not noticeable...
Attachment:
P1200541.jpg [ 210.27 KiB | Viewed 656 times ]


Off to Telford in 48 hours (!) --so will pick up when we get back!

JB

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Nov 07, 2017 5:02 pm
Offline
User avatar

Joined: Sat Feb 08, 2014 1:58 pm
Posts: 262
Location: Boise, Idaho, United States
It's nice to see the effect of the camberwire (if I may coin that) although it is difficult to communicate the effect fully via photograph.

I bet it is more noticeable to the touch and in person.

_________________
Si hortum in bibliotheca habes, nihil deerit.
- Consul Marcus Tullius Cicero


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Nov 23, 2017 8:17 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Hello all again!

after the excitement of Telford, normal service has resumed.
I wanted to get the hull mounted as it did not want cause inadvertent damage to paint or ( very sharp!) bows etc

but before I could do that In needed to get eyebrows installed

These were made from a spiral of very fine copper wire cut into circles then cut into semi-circles
These were applied to the hull using thinned paint-

Attachment:
P1200721.jpg [ 90.97 KiB | Viewed 558 times ]




-when set another light coat with a brush over the top rendered them more subtle

Attachment:
P1200727.jpg [ 193.21 KiB | Viewed 558 times ]


there are quite a lot of them, ad an awful lot of failed copper wire half circles on the floor !

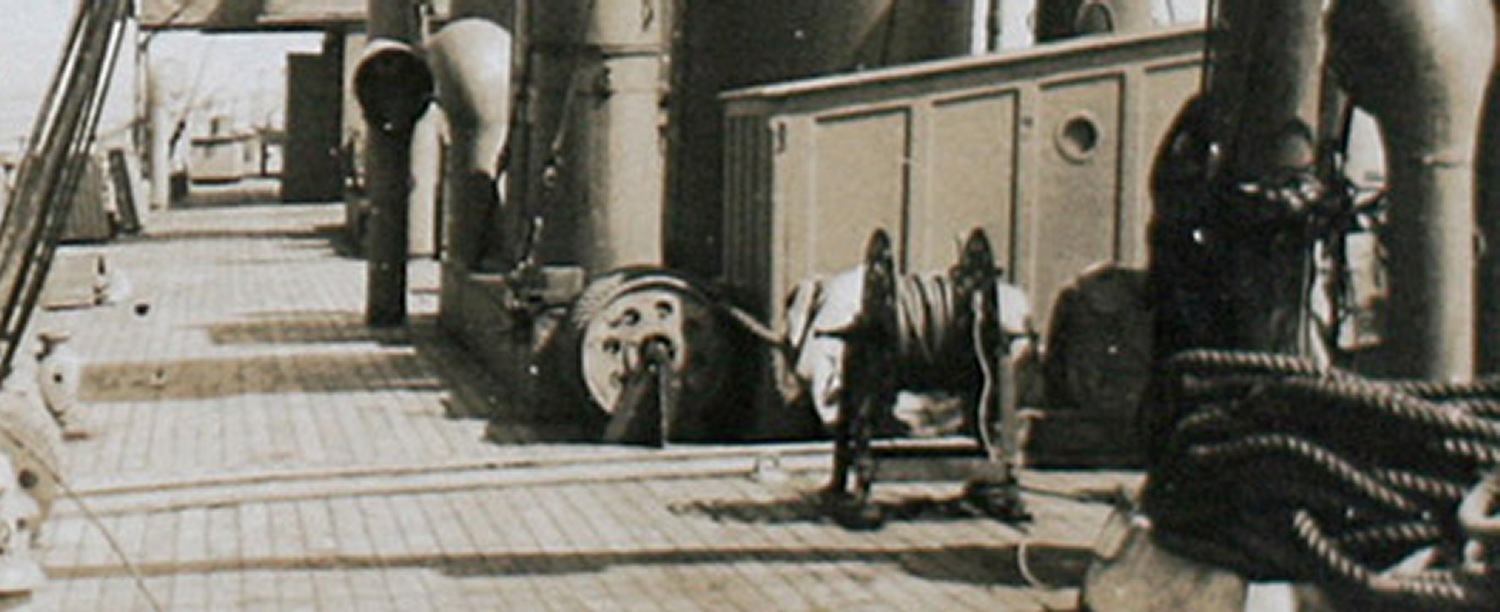

I noticed that some of the structures on deck had a distinctive strake/ capping on them

Attachment:
aa -PADDLE MS-1916-27..jpg
aa -PADDLE MS-1916-27..jpg [ 92.24 KiB | Viewed 558 times ]

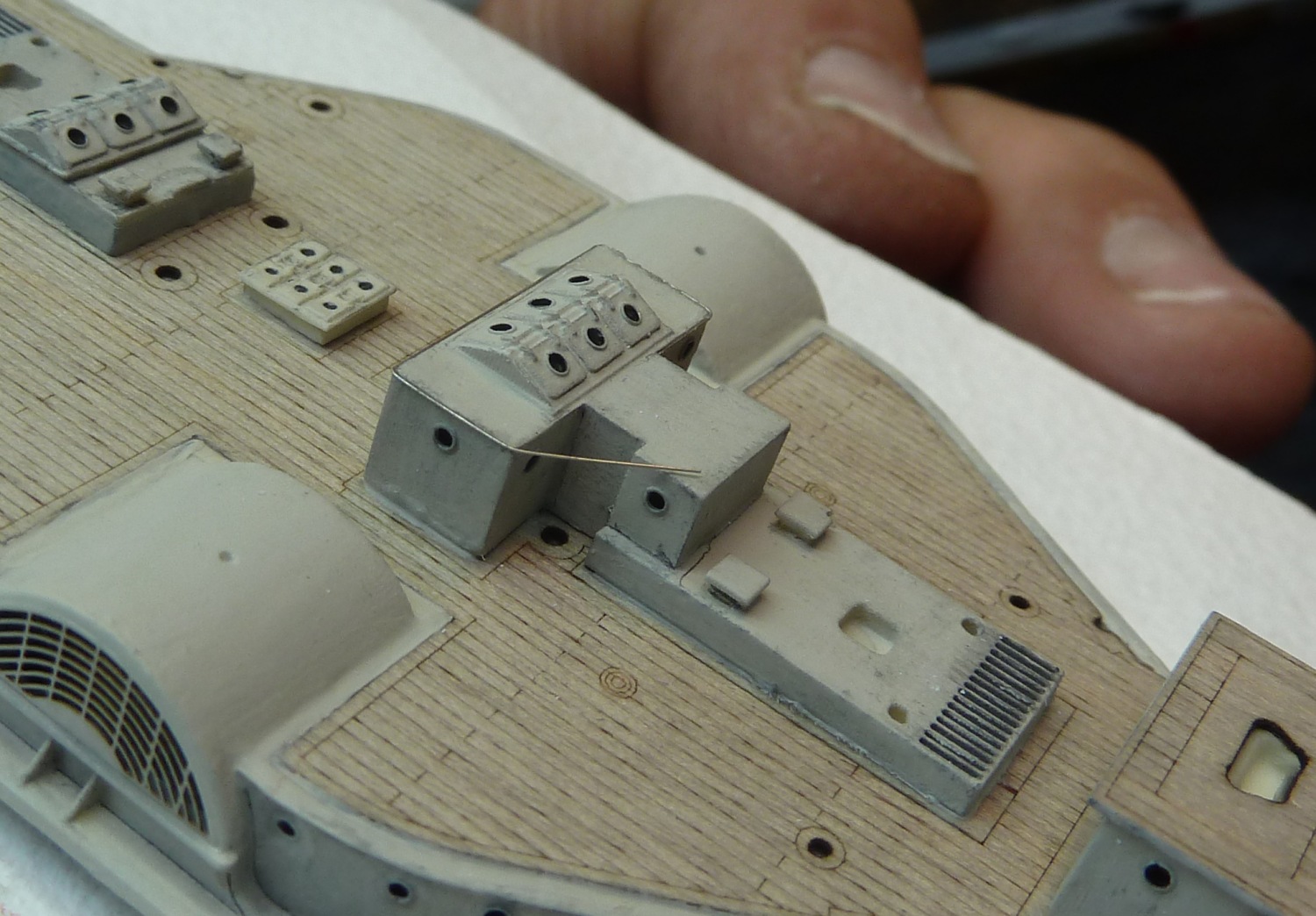

I made mine using thin wire bent and installed in situ--( not without failures! )

Attachment:
P1200731.jpg [ 333.93 KiB | Viewed 558 times ]


withe the recess of wire to structure top filled with white glue and then painted it all became more pleasing to the eye
( the garish bright grey has since been toned down! )

Attachment:
P1200735.jpg [ 238.92 KiB | Viewed 558 times ]

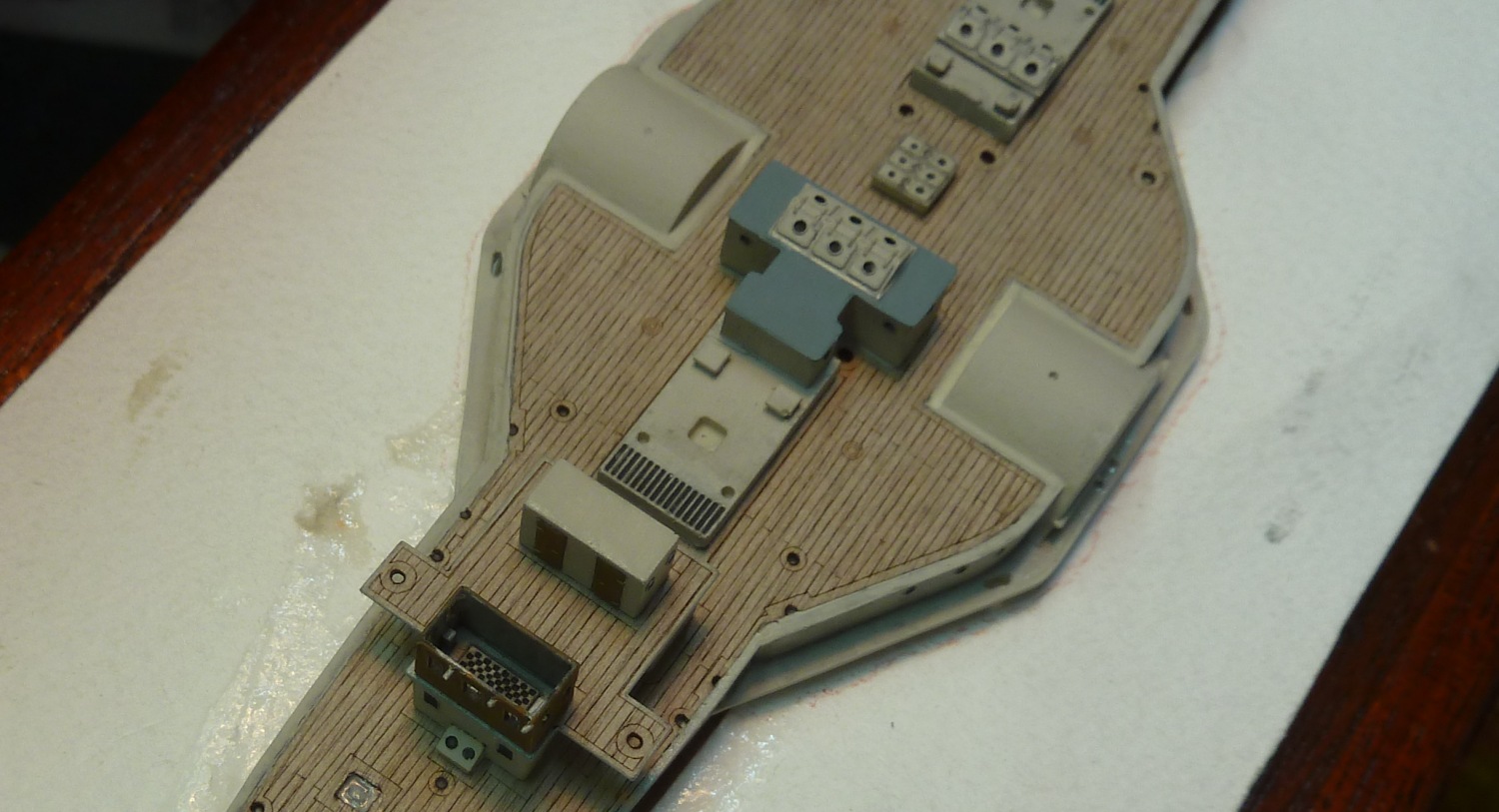

The hulll has now been mounted and is much easier to manhandle!!!

Attachment:
P1200742.jpg [ 224.54 KiB | Viewed 558 times ]



More soon

Jim Baumann :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 58 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: nikosmadakis, Sebastien Lausdat and 14 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
