Installation of photoetch catwalks under the flight deck overhangs (bow, stern and port). Scratch-built girders and stringers under the flight deck, in the hangar deck and beneath the 20mm Oerlikon platforms' can be seen in these views. The catwalks are from the excellent Gold Medal Models Essex set which contains catwalks for both the short-hull and long-hull ships of the class.

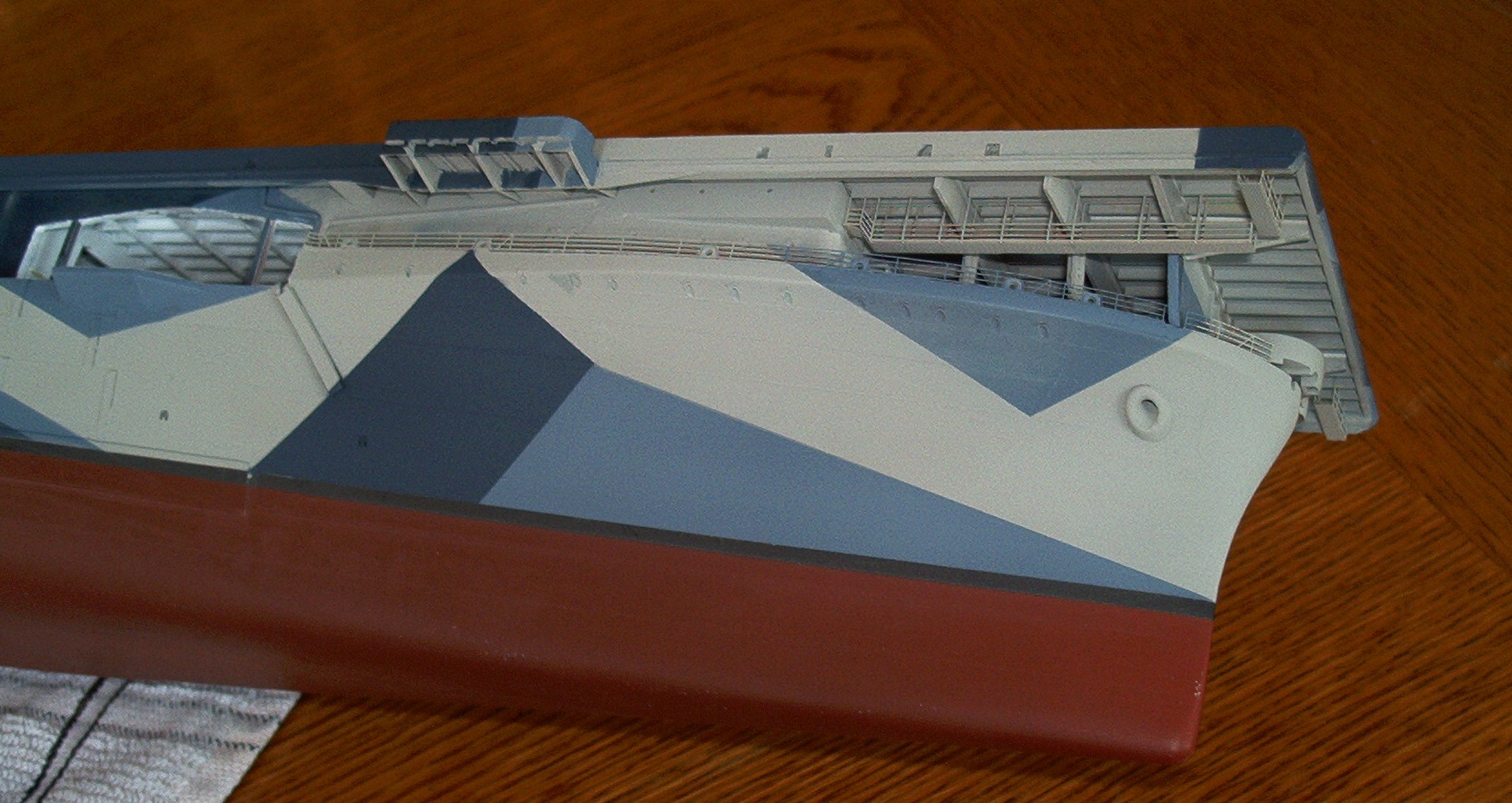

- GMM catwalks for the short-hull Essex installed onto the bow
flight deck overhang. Some painting touch-up still needs to
be done as well as installation of the gallery deck catwalks
and rails. When complete, the ends of the catwalks will be
enclosed with additional rails.

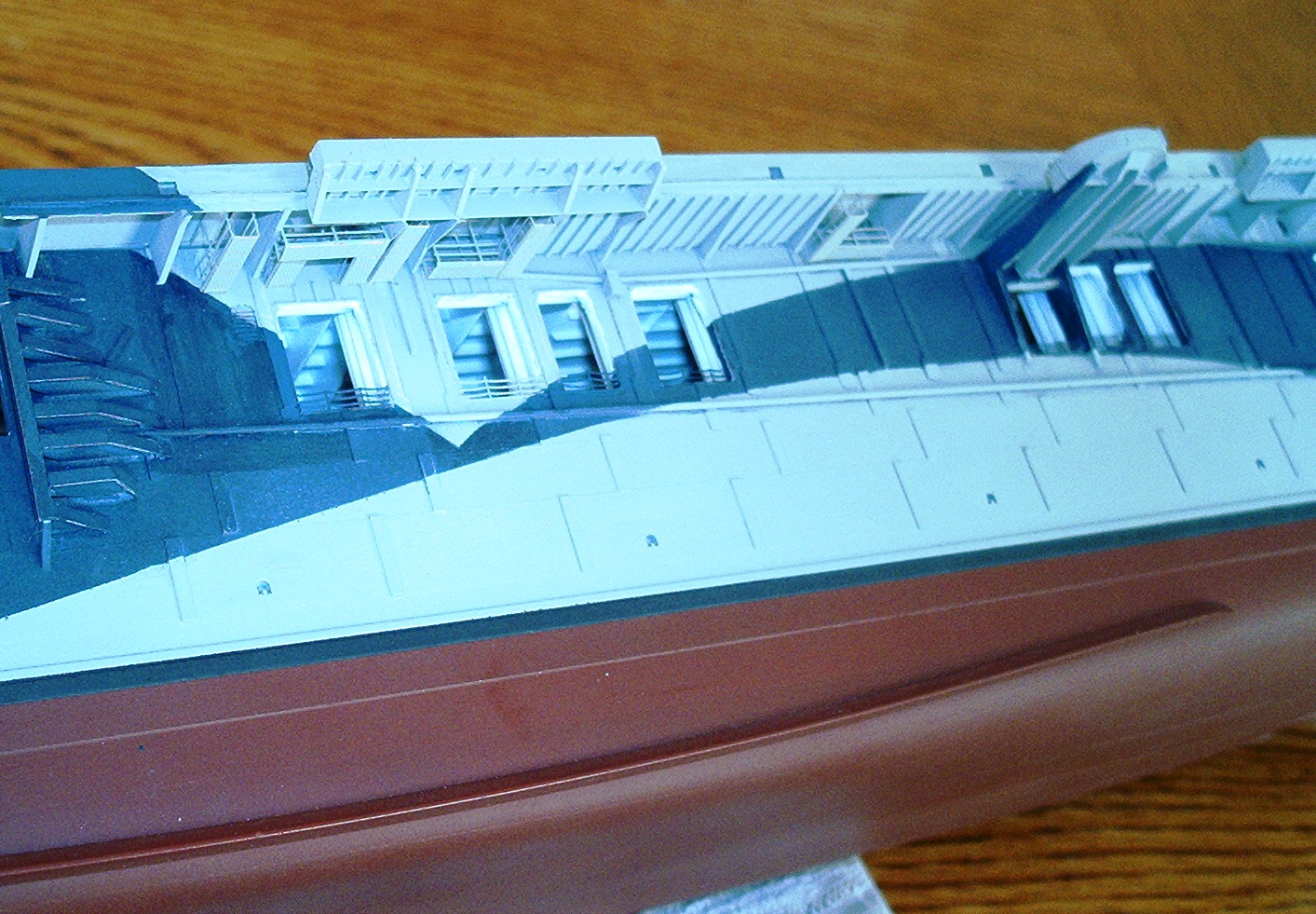

- The GMM parts, although not intended for this area, work
perfectly. You can also see how the deep girders line up
with butt straps on the bulkheads.
That is because the roller door at this location is recessed into the opening unlike other roller doors which are flush with the bulkhead exterior. Generally, where there are bollards on the hangar deck, the roller door just outside it is recessed. All other roller doors are flush.
- When complete, the ends of the catwalks will be enclosed
with additional rails.
Now what I see leaves me doing this
Awesome build so far, look forward to completion. Can't wait to get back into carriers again, I just have to kick this destroyer and cruiser disease I have right now.
