Calling all IJN Myoko-class (妙高) fans

[Gernot]

OK, I have an old but rather useful book on the Myoko class, will do some scans on the weekend from that. At work and cannot remember the details...

Gernot

[J. Soca]

OK, I have an old but rather useful book on the Myoko class, will do some scans on the weekend from that. At work and cannot remember the details...

Gernot

I'll appreciate it Gernot, thanks


Jose

[Dan K]

I'll try to do some research this w/e as well. I believe the Hara Shobo planset has Myoko 1941.

[Dan K]

I'm lookiing at an on-line version of L&W and the answer appears on p.267 in an overhead comparison of bridge views of Nachi vs Myoko. This deck level is 2 decks below the compass bridge. These are crew rest areas, mostly for the 25mm AA positions. The Myoko's does not extend as far aft as Nachi's. I need to look more closely at the kit photo in comparison to the plans, etc. to render an opinion on the kit's accuracy.

[J. Soca]

I'm lookiing at an on-line version of L&W and the answer appears on p.267 in an overhead comparison of bridge views of Nachi vs Myoko. This deck level is 2 decks below the compass bridge. These are crew rest areas, mostly for the 25mm AA positions. The Myoko's does not extend as far aft as Nachi's. I need to look more closely at the kit photo in comparison to the plans, etc. to render an opinion on the kit's accuracy.

crew rest areas hhmmm those 2 structures do look like some sort of locker rooms for ammuntion and that kind of stuff but now that you mentioned that those are crew rest areas it could be for sure. every drawing i have indicates that whole aft area was interconnected to the structure and this is something completely different to the way the kit was made. if you refer to the picture i took you'll see those 2 structures stand by themselves. i alwyas thought Myoko had the biggest bridge of them all?? let me know whatever you can dig up on this specially on the rest areas. thanks again Dan. I just went over Kym's Myoko and it seems once you've added the bulkheads on that level those 2 structures will get connected with the main structure, i got s%it load of homework for tomorrow but i'll try to get those bulkheads on to get this doubt out of my head already

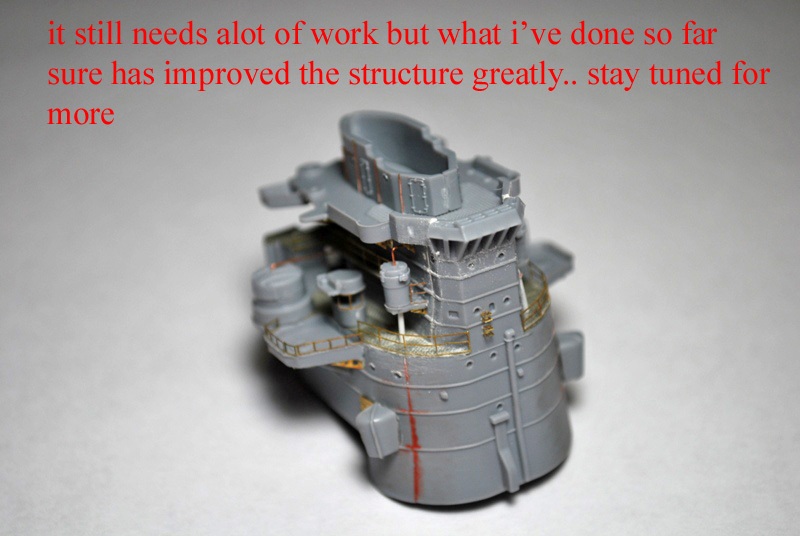

this is what i've done so far, is not that easy getting those iron steps aligned but you know the saying no pain no gain..

Jose

[J. Soca]

it's just as i thought Dan ,those little structures don't go attached to the bridge. i want to scratchbuild the following level i didn't like how the floor rested on top of these little structures.

Jose

[Dan K]

I've looked thru the L&W volume, the Classic Warships pictorial, Gakken #s 27 & 67, and the Hara Shobo planset. As far as I can tell, this particular level is the same on all 4 ships, though there may be differences in the size of the crew rest area from ship to ship. For instance, the L&W vol. indicates that Nachi (and perhaps the other sisters except Myoko) have larger compartments that extend even further aft on this level.

I believe the kit representation to be correct. The just released Navy Yard #13 has an excellent build of the 1/350 Myoko and would be a good reference source. I scanned this page as a reference point for you.

[J. Soca]

Looks rather good Dan i'm sure it will help me on a couple of things, i'll place an order tonight when i get home

the deck is almost finished..

thanks again Dan
Jose

[J. Soca]

Dan I got the magazine on saturday, some beautiful models there i specially liked Yahagi. Myoko's modeler added tons of detail to the kit but he left untouched something im not sure about.. like right behind the bridge structure right beneath the main tripod mast there are two housings on both sides of the mast and i'm not satisfied to see those there all drawings i've seen point there is nothing there

Jose

[Dan K]

Great work, Jose. I those housings my be the same crew rest quarters but, according to my references, they do not enclose the lower foremast on a 1941 Myoko.

[J. Soca]

Great work, Jose. I those housings my be the same crew rest quarters but, according to my references, they do not enclose the lower foremast on a 1941 Myoko.

thanks Dan, Gernot came through he scanned plenty of drawings specially one that shows aft of the bridge one of the best drawing i've ever seen and those housings do go there.. gotta go now i'll have a better update on things next weekend but with all this info i've gathered from several guys i'm sure i can finish it now. i thank you all again from, Peppe, Gernot, to you Dan. alot of work ahead of me now, 10 months of work that ought to keep me busy again


Jose

[Dan K]

Curious what references Gernot scanned. If I don't have them, I'd love to get a copy.

[Gernot]

The book is titled Japanese Heavy Cruiser MYOKO Class By Fuji Art Model Publishers, published in 1976. It is a hard-cover book in a nice protective box, and features a build of the 1:500 scale plastic kit then available (Nichimo?), and a scratch-built 1:200 Nachi as in March 1944, for which additionally a 1:400 plan set is provided at the back of the book. As you can see, the models are of superlative quality, and the drawings equally so. No doubt new information has become available since then; however, I would reckon this book is still worth having in one's library.

Best regards,
Gernot Hassenpflug

Front cover (box)


Back cover (box)

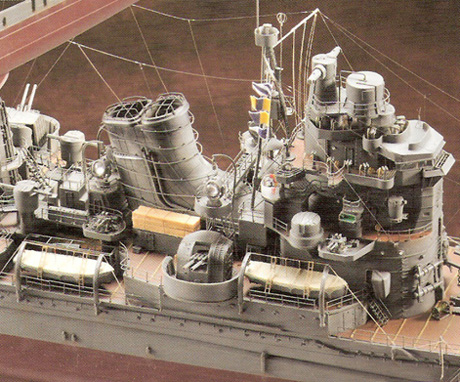

Bridge comparison (1:500)

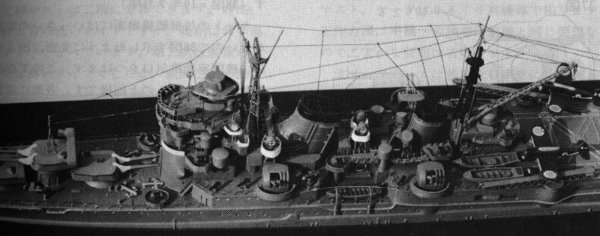

Amidships (1:500)

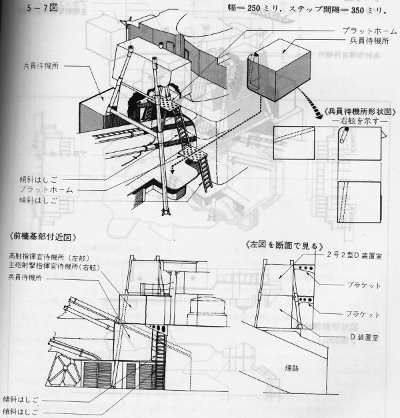

Bridge details

Bridge details


[Dan K]

I thank you, Gernot. Hmm, if that's the scratch build from wood model, I might have it.

[J. Soca]

Thanks for answering Dan's question Gernot, i've been real busy with the finals good thing today was my last day i got a free week or so to work on the ship until the summer semester.



Jose

[J. Soca]

Gernot your Haguro's drawings clearly shows an enclosed compass bridge so next step on that level will the construction of bulkheads

Jose

[Dan K]

Most compass bridge levels in the IJN were not closed off; bulkhead with entranceway.

[J. Soca]

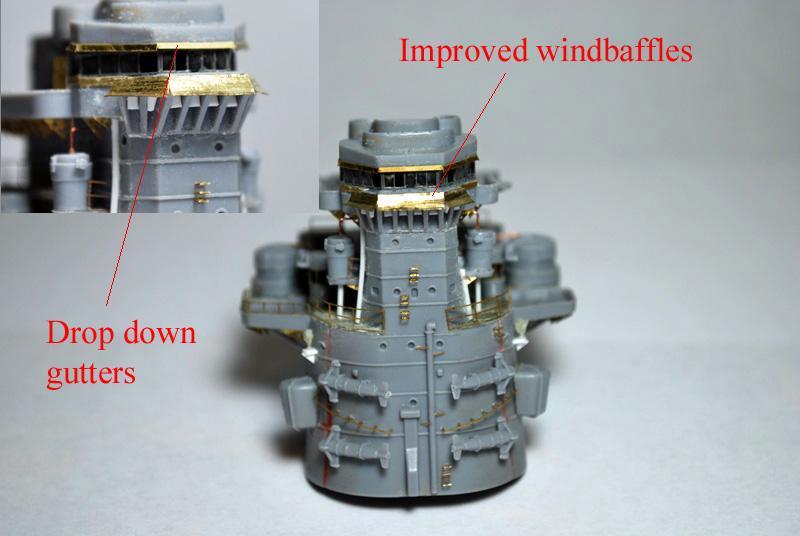

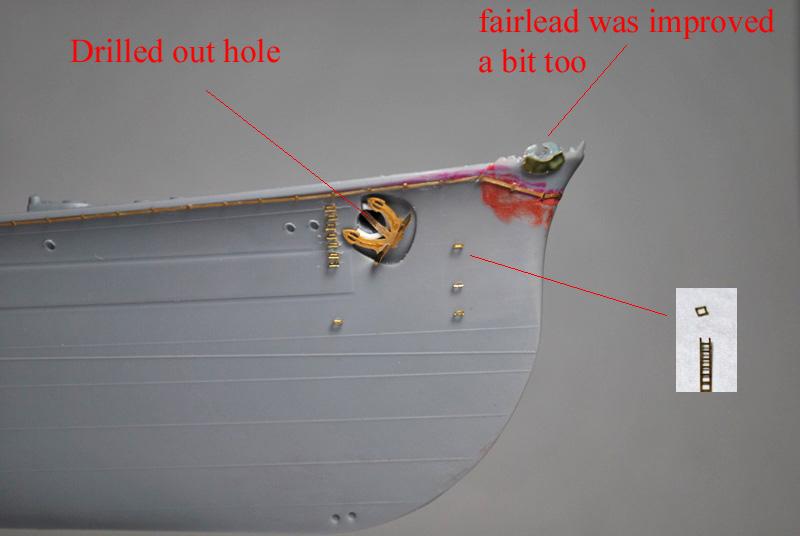

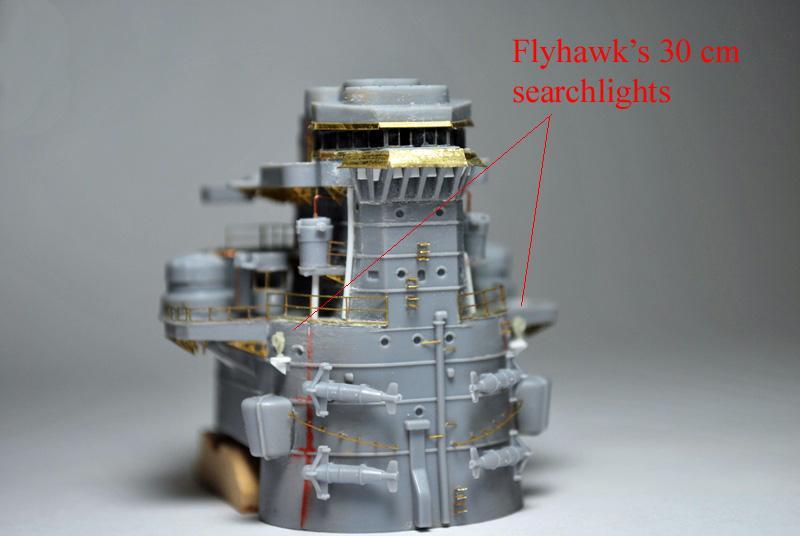

Thanks again Dan i was aware of that though i just didnt get into much detail when i wrote. this is what i've done so far,

Jose

[J. Soca]

time for work..


Jose

[Dan K]

Beautiful, absolutely beautiful, Jose. Not sure about the doors behind the compass bridge, though. Don't think there are any, just an open pass thru.
