Mounting on lamp finials on a wood base

Post by MightyJJK »

This being my 3rd ship, and my 1st full hull, I plan to mount it on an oak base supported by brass lamp finials
I just executed the following process and found it to work well.
Prior to joining of the lower hull to the upper hull, did the following:

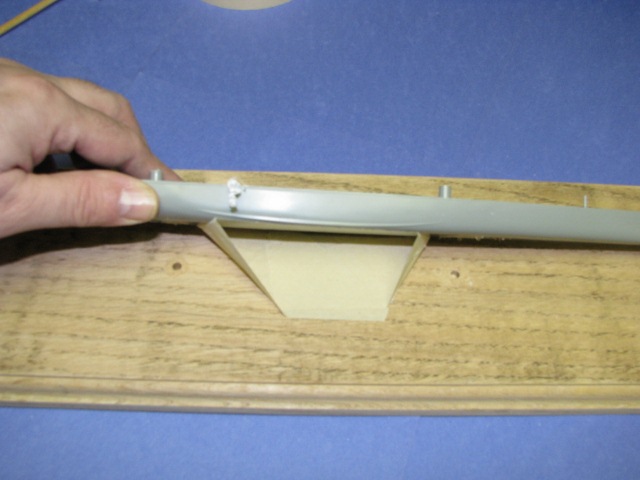

Re-enforced the finial attachment spot on the lower hull with 3 layers of .60mm sheet styrene about a 1/2 inch square and super glue
Dry-fit the deck and full hull, then properly aligned and located the ship on the base and marked the lower hull outline on the base.

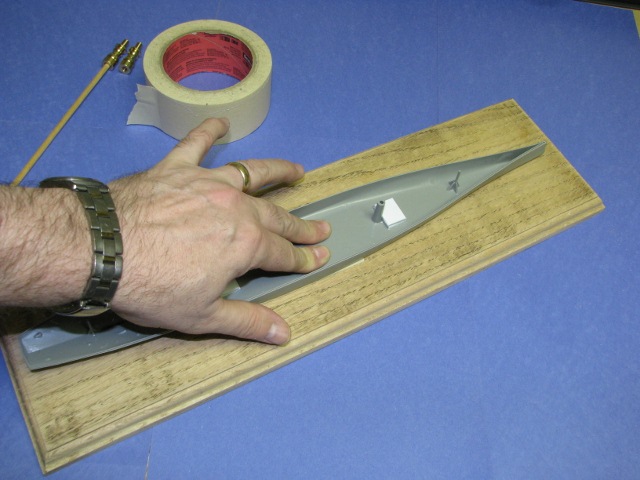

Double sided taped the lower hull to the base as marked above

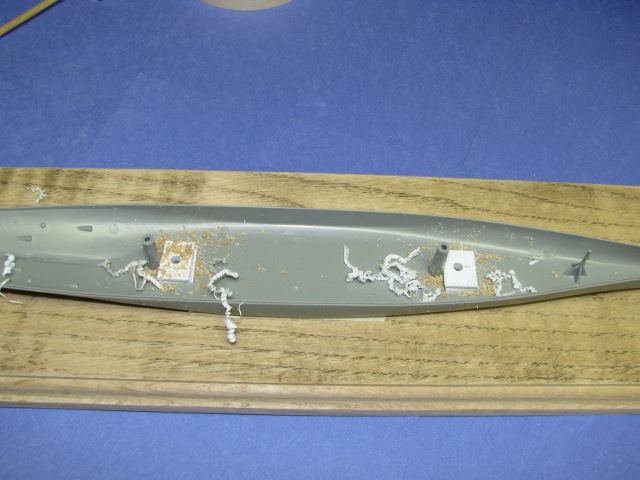

Drilled with the doll rod width bit through ship hull and into base wood
Followed on the lower hull only with finial treads width bit

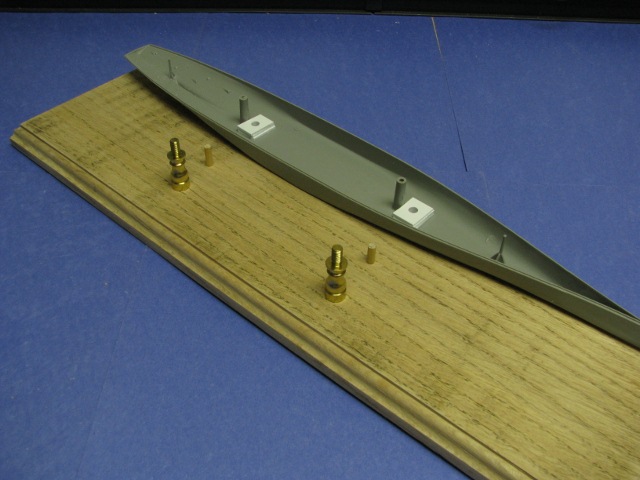

Placed doll rods in the base

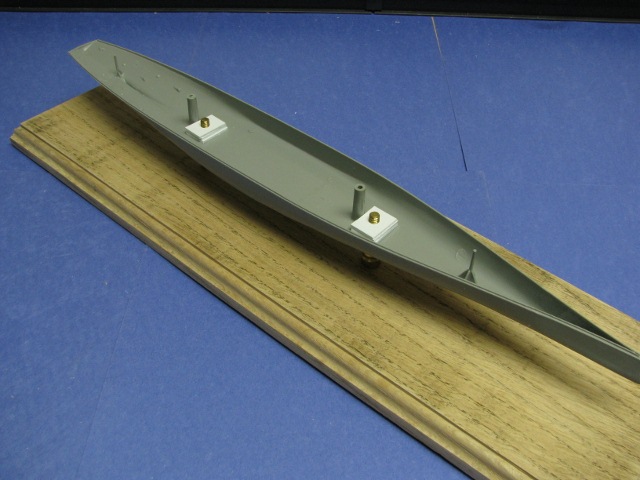

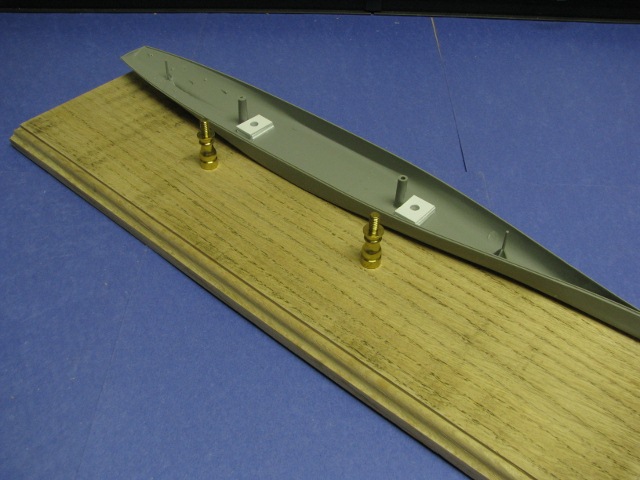

Placed finials other doll rod

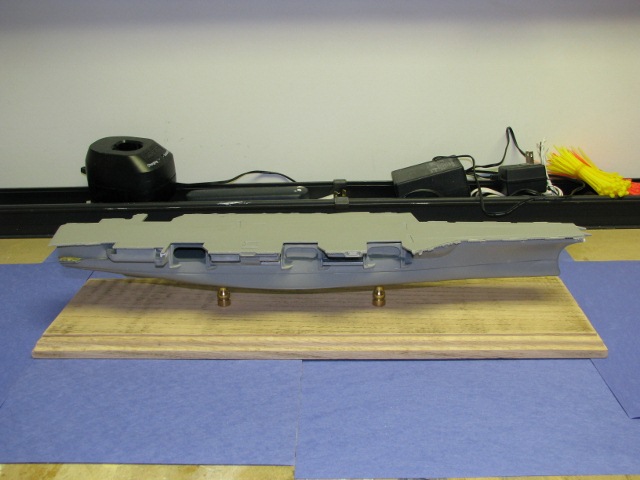

Dry-fit the ship one last time
Proceed on ship construction and or base prep; the two will mary up with epoxy or super glue when appropriate.
Attachments
IMG_2302 (640x480).jpg
IMG_2307 (640x480).jpg
IMG_2314 (640x480).jpg
IMG_2315 (640x480).jpg
IMG_2316 (640x480).jpg
IMG_2331 (640x480).jpg
IMG_2333 (640x480).jpg
IMG_2334 (640x480).jpg
IMG_2347 (640x480).jpg
John
