A solution for wrapping searchlights

Post by sargentx »

Just a little solution I came up with for wrapping searchlights in tarps with ropes. The pictures say it all. This is part of a build log/tutorial in Photo post, but thought I'd put it here as well since it's a tip and it's tricky. : )
Attachments

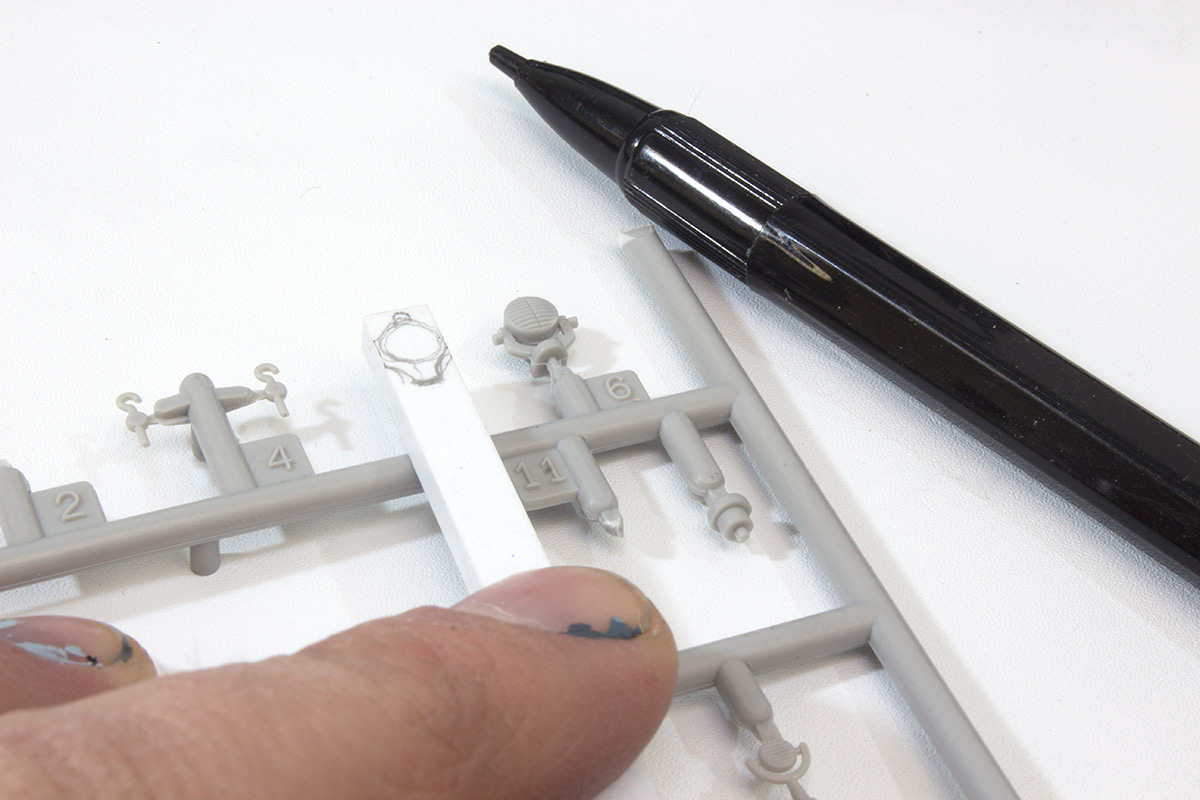

I want to have my searchlights covered and bound in a rain tarp. Instead of covering the part with tissue or foil, I quickly carve a tarp covered light, paint it, and wrap that in caenis. Here I've drawn the search light silhouette on the end of an appropriate sized evergreen strip.
I want to have my searchlights covered and bound in a rain tarp. Instead of covering the part with tissue or foil, I quickly carve a tarp covered light, paint it, and wrap that in caenis. Here I've drawn the search light silhouette on the end of an appropriate sized evergreen strip.

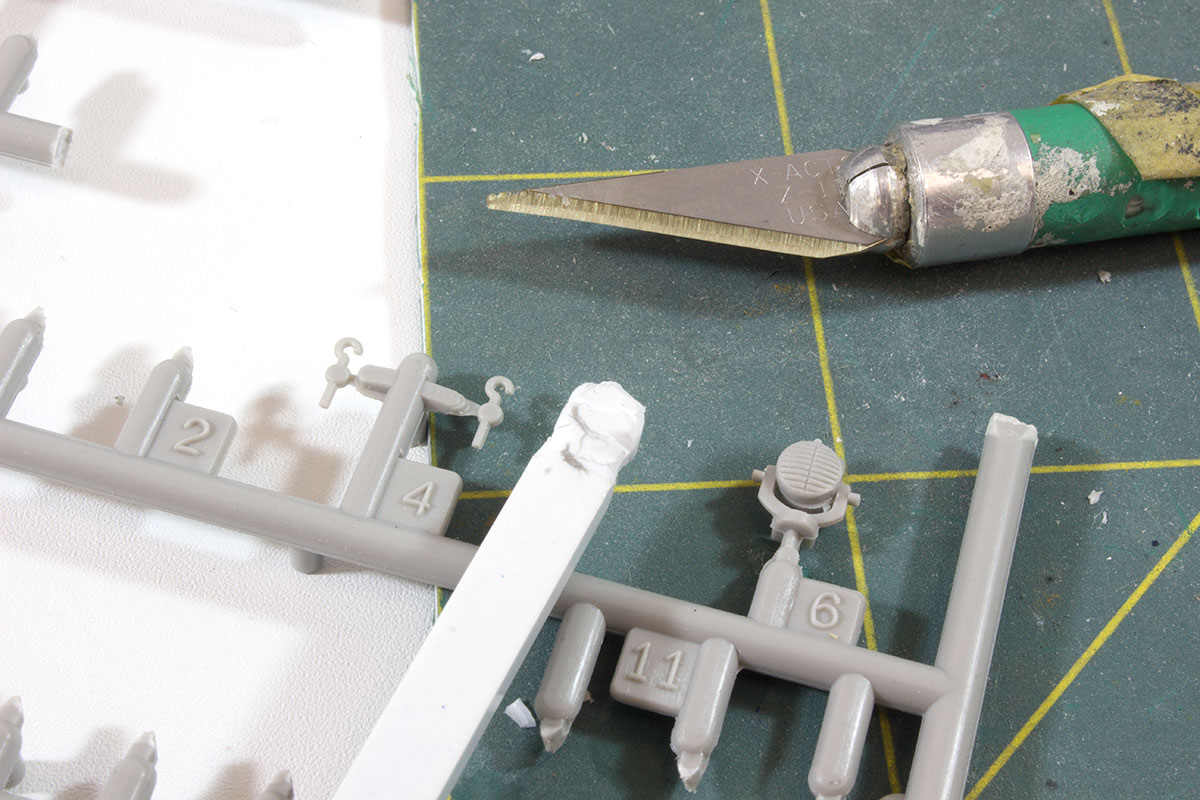

I've carved the tarp covered light on the end of a strip of Evergreen sprue. The sprue is a good handle. I carve notches and folds for my caenis thread that will come later.
I've carved the tarp covered light on the end of a strip of Evergreen sprue. The sprue is a good handle. I carve notches and folds for my caenis thread that will come later.

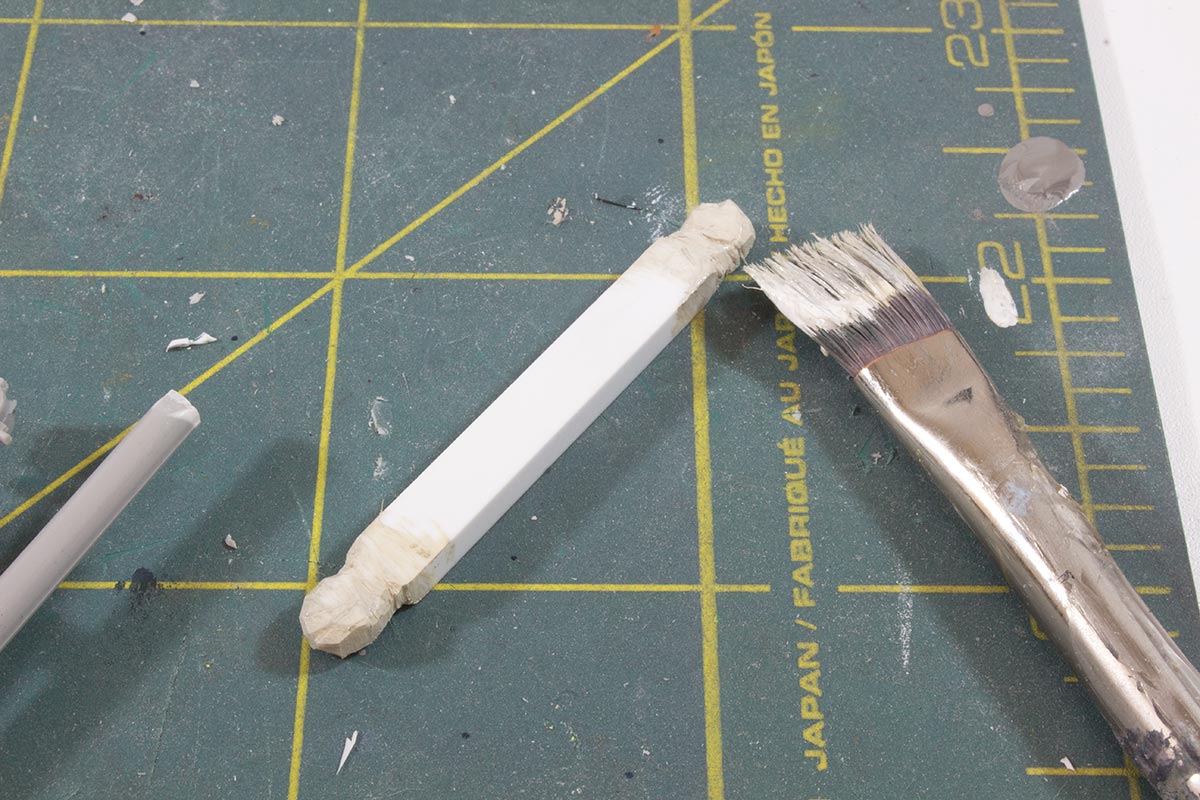

I've carved both searchlights on either end of the evergreen sprue. I've painted it a dingy tarp colour.
I've carved both searchlights on either end of the evergreen sprue. I've painted it a dingy tarp colour.

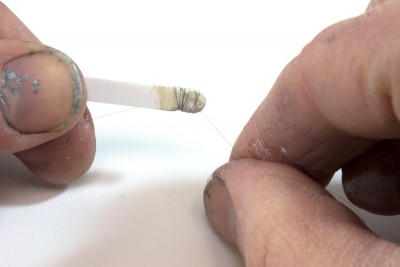

It's easy to now wrap the painted searchlight in caenis thread.
It's easy to now wrap the painted searchlight in caenis thread.

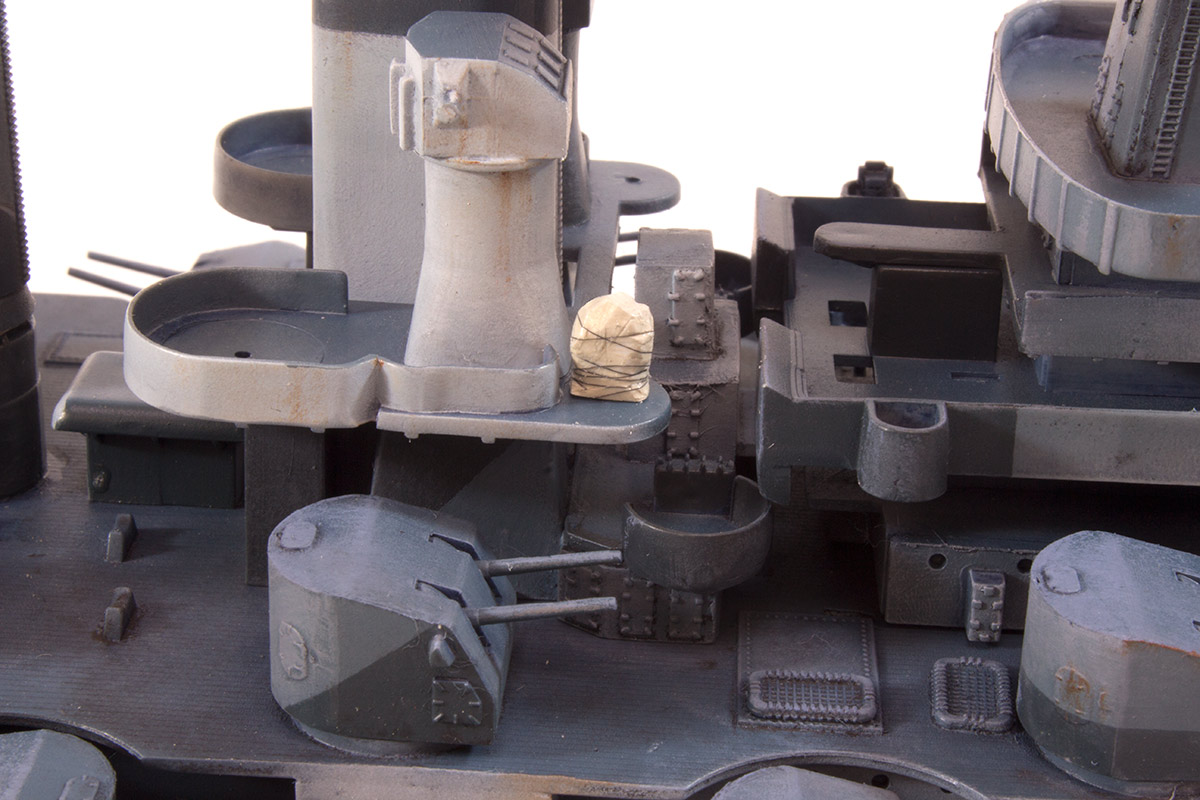

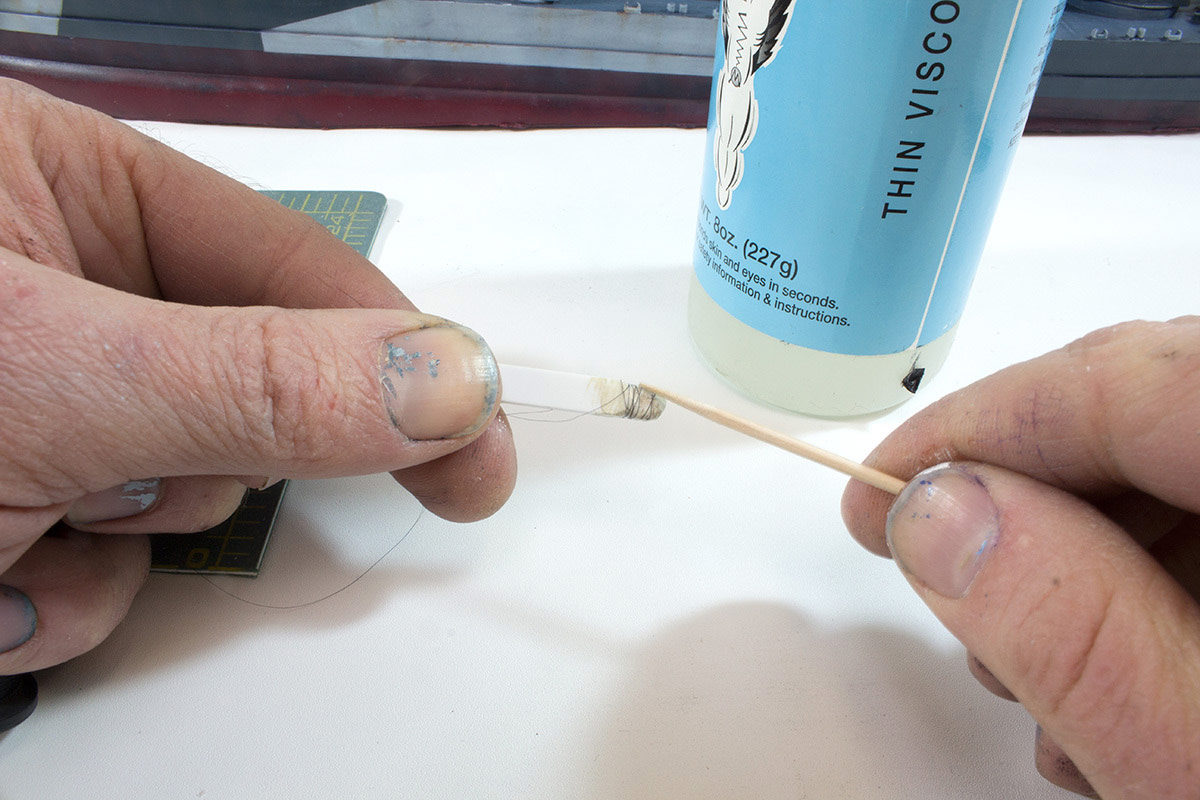

A touch of thin CA adheres the caenis in place. It's now a simple matter of cutting off the light and mounting it on the ship.
A touch of thin CA adheres the caenis in place. It's now a simple matter of cutting off the light and mounting it on the ship.
Last edited by sargentx on Sun May 31, 2015 11:30 pm, edited 2 times in total.
Every time the PE sticks to your tweezers, you lose a minute off your life.
Top
User avatar
Senkan
Posts: 586
Joined: Sat Dec 19, 2009 12:11 pm
Location: Virginia

Re: A clean, simple solution for wrapping searchlights

Post by Senkan »

Talk about good timing. I was just about to get to my Yamato searchlights and low and behold...

Thanks for the post.
