Hi guys,

I have one little question:

On the enclosed deck where the torpedoes are kept, was the deck linoleum or metal? I suddenly found myself at that step in my build.

Thanks

Ed Blesch


Top
 Profile
Reply with quote
PostPosted: Fri Aug 22, 2014 2:09 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
Impossible to say. No documentation that I know of.


Top
 Profile
Reply with quote
PostPosted: Tue Aug 26, 2014 1:16 am
Offline
User avatar

Joined: Sun Jun 12, 2011 10:37 am
Posts: 1500
Location: Massachusetts.
I wondered this awhile ago. I went with it would not be linoleum. Seeing how it was not in direct contact with the weather.

_________________
On the Bench
1/350 Independence
1/350 Dunkerque
1/350 Shimakaze
1/350 Sharnhorst Dragon
1/350 Belfast


Top
 Profile
Reply with quote
 Post subject: IJN Tone in cardstock
PostPosted: Sat Jan 17, 2015 4:10 pm
It's been under plexiglas but still got a bit dusty. Anyway this what can be done using card stock;no plastic here. At time I could not locate plans or many photos and thus had to draw my own. Whereas I also couldn't find info on decking, I simply left it gray. May repaint the deck brown now that I have the info. Forget what scale I built it to but its about 43" LOA.

http://s16.photobucket.com/user/francis ... 3.jpg.html

http://s16.photobucket.com/user/francis ... 9.jpg.html

http://s16.photobucket.com/user/francis ... 9.jpg.html

Below are two views -throught Plexiglas- of my all-card stock RC PTG in 1/2" = 1' scale.
The crew are plastic, modified from auto racing pit crew. 20 & 40mm scratch built. Card stock was waterproofed with fiberglass resin.

http://s16.photobucket.com/user/francis ... f.jpg.html with fiberglass resen,

http://s16.photobucket.com/user/francis ... f.jpg.html


Top

Reply with quote
PostPosted: Sat Jan 17, 2015 8:19 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
Nice. On the face of it, that would be approximately 1/180 scale..


Top
 Profile
Reply with quote
PostPosted: Tue Jun 16, 2015 12:14 pm
Offline

Joined: Wed May 09, 2012 6:01 pm
Posts: 135
Location: South Carolina
Found a YouTube video from November 2014 on Japanese heavy cruisers
https://www.youtube.com/watch?v=jhiBdgbGLdY
It's about 12 minutes long with Japanese? narration. It is a video (not a collection of still images like some of the postings on YouTube).
It has some Takao class and other heavy cruisers in closeup; it shows torpedo firing, floatplane launching, secondary weapons firing, etc.

I pulled a couple still frames off it that appear to be of a Tone class cruiser:


Attachments:

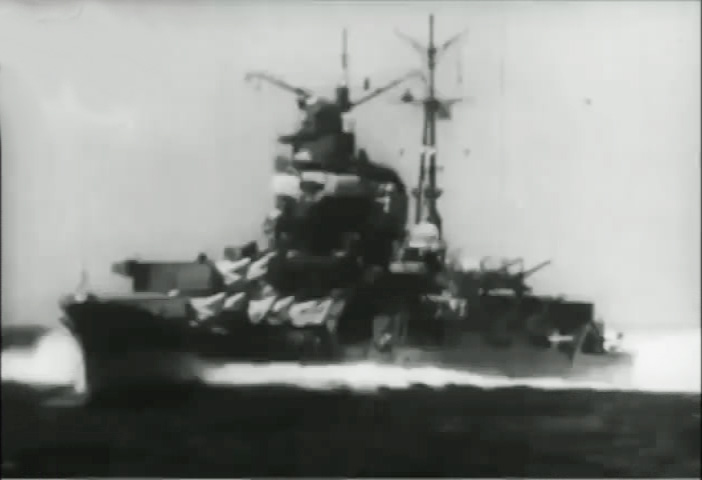

Tone class maybe-at high speed.jpg
Tone class maybe-at high speed.jpg [ 52.81 KiB | Viewed 2656 times ]

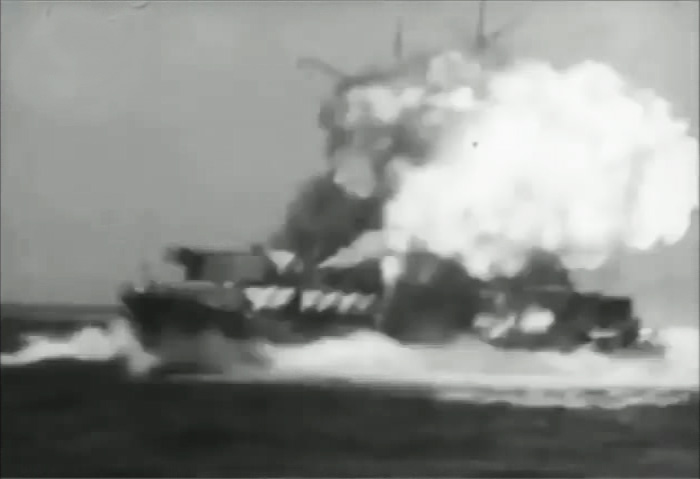

Tone broadside2.jpg
Tone broadside2.jpg [ 53.06 KiB | Viewed 2656 times ]
Tone broadside1.jpg
Tone broadside1.jpg [ 55.39 KiB | Viewed 2656 times ]
Top
 Profile
Reply with quote
PostPosted: Tue Jun 16, 2015 3:26 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
That's Chikuma.


Top
 Profile
Reply with quote
PostPosted: Tue Nov 03, 2015 8:46 am
Offline
User avatar

Joined: Thu Feb 16, 2012 10:00 am
Posts: 121
Location: Neenah
Hi guys,

Is there a good diagram somewhere of these ships with regards to rigging?

I'm about to wrap my model up once I finish the turrets. A bit of surgery cutting off the guns and replacing them with brass ones. Fortunately, tissue and glue fixes the blast bags.

Thanks

Ed


Top
 Profile
Reply with quote
PostPosted: Tue Nov 03, 2015 8:25 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
Well, FWIW, the online images that I'm aware of on shipbucket.com and on the-blueprints.com seem to echo the IJN plans (reproduced from the actual drawings) in Gakken #49. For that matter, so do those in Profile Morskie #13.

Still, Gakken #49 is the better reference, IMHO.


Top
 Profile
Reply with quote
PostPosted: Wed Nov 04, 2015 7:47 am
Offline
User avatar

Joined: Thu Feb 16, 2012 10:00 am
Posts: 121
Location: Neenah
Those work.

Thanks a lot. :thumbs_up_1:

Ed


Top
 Profile
Reply with quote
PostPosted: Fri Apr 15, 2016 12:22 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
These photos of Tone postwar were taken by Life Magazine. (From the same batch of those taken of Amagi, over in the Unryu class CV thread.)


Attachments:
Tone postwar by Life 1.jpg
Tone postwar by Life 1.jpg [ 161.6 KiB | Viewed 2236 times ]
Tone postwar by Life 2.jpg
Tone postwar by Life 2.jpg [ 133.41 KiB | Viewed 2236 times ]
Tone postwar by Life 3.jpg
Tone postwar by Life 3.jpg [ 188.82 KiB | Viewed 2236 times ]
Top
 Profile
Reply with quote
PostPosted: Wed Sep 21, 2016 12:37 pm
Offline
User avatar

Joined: Wed Dec 08, 2010 8:46 pm
Posts: 69
Good Morning Gentlemen,

I'm currently putting together a fleet of IJN ships in 1/700 that bombed Darwin in 1942.

Which would be the better kit to use of the Tone and Chikuma.

Not being good at judging which kit to use and looking at ebay most of them are 1944-45. If I have to use one of them what do I need to changed to backdate it Feb.1942 version.

Aslo what P/E sets can I get.

_________________
regards,

Brian

"starter of many, finisher of none"


Top
 Profile
Reply with quote
PostPosted: Wed Sep 21, 2016 12:55 pm
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
As you have already deduced, all of Fujimi's recent Tone/Chikuma kits (circa 2010+) are late war fits. Normally, that would mean just deleting the radars and additional AA, but these kits have a lot of molded on deck detail (like ammo boxes) that have to be removed as well. There are some other details that have to go as well, like the window vanes on the bridge.

The earlier Aoshima versions (late 1990s), are earlier fit. Conversely, they could benefit from a little more detailing.


Top
 Profile
Reply with quote
PostPosted: Thu Sep 22, 2016 1:03 pm
Offline
User avatar

Joined: Wed Dec 08, 2010 8:46 pm
Posts: 69
Where can I find a set of plans for a 42 version of IJN Tone/Chikuma so I've got an idea of what changes to make.

_________________
regards,

Brian

"starter of many, finisher of none"


Top
 Profile
Reply with quote
PostPosted: Fri Sep 23, 2016 3:38 am
Offline

Joined: Wed Jan 21, 2009 1:51 pm
Posts: 2265
1938 and 1944 version available at http://www2.odn.ne.jp/miyukikai/sub2.htm


Top
 Profile
Reply with quote
PostPosted: Tue Feb 28, 2017 4:34 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 6438
Location: In the hills of North Jersey
List of kits added to the first post of this topic, courtesy of Dan "IJN" Kaplan.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Wed Apr 18, 2018 6:35 am
Online

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6554
Location: New York City
VeryFire is releasing a comprehensive photo etch set for the Tamiya 1/350 Tone. It may already be out. Pricey, but available: https://hlj.com/product/VRFVFM350007


Top
 Profile
Reply with quote
PostPosted: Mon Sep 03, 2018 2:00 am
Offline

Joined: Mon Jan 15, 2018 1:07 am
Posts: 3
Hello everyone,

First I like to introduce myself: my name is Alexander, and I'm from Munich in Germany and I have a question for all the experts -as i'm not- on IJN ships in this forum.
I bought Fujimis "Tone 1945" (# 401027) in 1/700 and Flyhawks PE Set (# 700192).
When I compare both instructions, there's a difference: Fujimi tells me, to use eight triple 25mm AA on the aft deck, whereas Flyhawk says to use ten single 25mm and two triple.
Now I Wonder which is right????

Thank you in advance
Alex


Top
 Profile
Reply with quote
PostPosted: Mon Sep 03, 2018 1:43 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10504
Location: Calgary, AB/Surrey, B.C., Canada
Flyhawk 700192 is meant for Fujimi kit 410166, which is Tone in October 1944: https://www.1999.co.jp/eng/10098695

That should explain the discrepancy. Whether Fujimi's count for the number of AA guns is correct is something maybe one of the others can answer.

_________________
De quoi s'agit-il?


Top
 Profile
Reply with quote
PostPosted: Tue Sep 04, 2018 12:47 am
Offline

Joined: Mon Jan 15, 2018 1:07 am
Posts: 3
Timmy C, Thank you for the answer.

Then I have a second question: is it difficult to backdate the Tone in 1945 to its design in Oktober 1944.
And what would I have to change?

Many thanks to all!!!

Alex
