Plan for Swiftsure Class or british pre-Dreadnoughts

[Chrissi]

Hello,

in August I visited the Historic Dockyard in Portsmouth and I saw the Model of the "HMS Swiftsure" in the Royal Navy Museum .
Since this visit I'm looking for plans of the Swiftsure-Class or the british pre-Dreadnoughts but I cannot find any plans for scatchbuilding.

Knows anyone a address where I can buy plans from this ships?

I'm a shipmodeller from Germany and I will be very glad for informations

Yours

Chrissi

[Chrissi]

No, the pre-dreadnought battleship from 1903. These two battleships (HMS Swiftsure/HMS Triumph) were launched for chile and buyed from england.

[JIM BAUMANN]

There are some side and overhead elevation drawings in one of the Burt books

they are usable for a smaller scale model--up to 1/350; ideally waterline
as no hull lines though.

send me a PM or e-mail if you want me to scan my drawings.

there is also a pretty good 1/700 resin kit of the ship from Combrig #

review
http://www.modelwarships.com/reviews/sh ... iumph.html

a build is here;


http://www.modellversium.de/galerie/26- ... mbrig.html

tschuess

Jim Baumann

[Chrissi]

Hello Jim,

thank you very much for your message

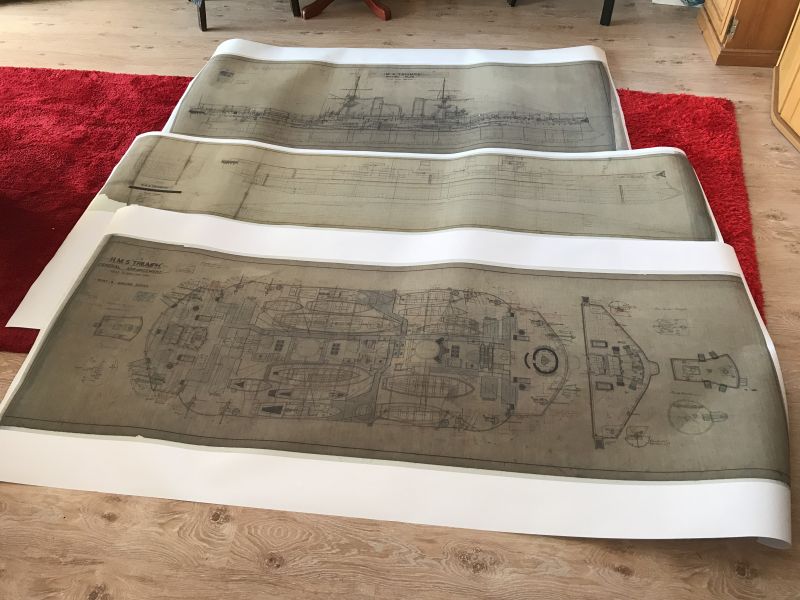

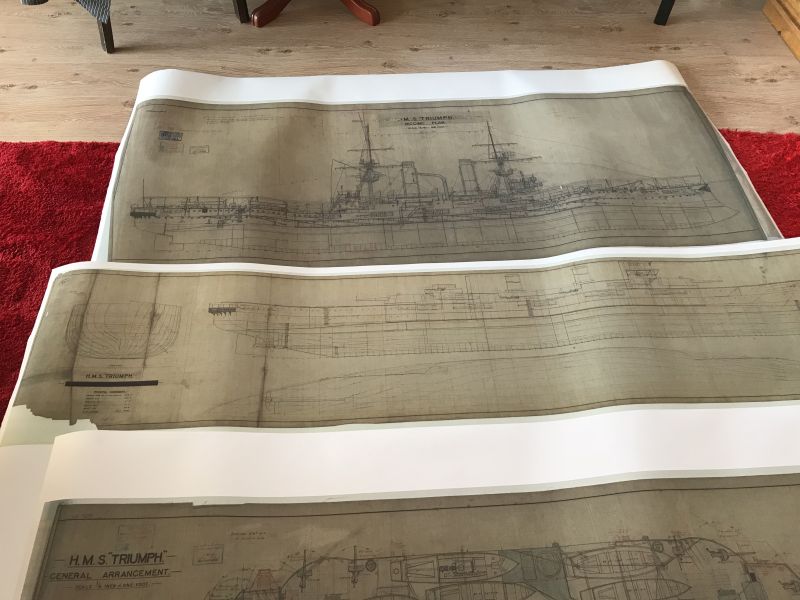

Last year, I bought three plans for the "HMS Triumph" from the Royal Maritim Library in Greenwich. In Spring (or Summer) I want to begin to build the "HMS Triumph" in 1:96. Currently I collect plans, pictures and other material to build this interresting ship. I got the plans as the scan of the original plans. Here Pictures of the paper plans.

I send you an E-Mail and I'm very glad to get informations from you .

Chrissi
