Oh man!!!!!! Now I can rebuild my 2 Blue Water BBs!!!!!!

Dude - you are going to put me in the poor house.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

+1


I just received the Independence CV-62 Island in 700th scale. Holy buckets that is nice!!!

Now to scratch build the rest of it......

I know how you feel Mark!

Hi Steve, what is the height of your masts and have they been test fitted on the resin kits that are out there? It is very important that the masts lineup even at the top.
Thx, Jeff

Hi Jeff,

The heights of the 3D-printed acrylic masts match scaled drawings of the real masts of USS West Virginia and USS Tennessee. They are:
Foremast: 28.87 mm
Mainmast: 74.57 mm

Aligning fighting tops to fit specific resin kits will be up to the modeler. No two resin manufacturers' Tennessee/California/West Virginia kits are scaled exactly the same. This difference is further exacerbated by resin kit shrinkage during curing. As you know, resin kits' shrinkage during curing is mostly a function of resin mass, therefore shrinkage often noticeably affects larger-scale models, such as battleships in 1/350 scale.* Environmental conditions also affect resin kits' shrinkage rates, meaning that two resin kits' hull and superstructure parts produced by the same resin manufacturer on different days with different temperature and humidity can and do shrink differently. This means that no two Tennessee/California/West Virginia resin kits' superstructures are exactly the same height.

Therefore, it is impossible to design a set of 3D masts that will perfectly fit every resin kit since every single one of them is slightly differently sized.

The best that can be done is to design 3D acrylic masts to match the scaled dimensions of the masts of the actual ship. That's what these 3D-printed acrylic masts are, perfectly matched to the real mast heights of USS West Virginia.

Hope this helps.


* For example, the sample 1/350 kit provided to me from which to design a West Virginia superstructure, when compared to US Navy BoGP drawings of the ship, was differently scaled longitudinally than it was laterally (smaller longitudinally), and vertically (least difference). Worse, the difference in any dimension changes along the length, width and height of the hull. There is more of a difference at the center of the hull where the mass is greater than at the ends. This tends to indicate that the sample resin hull likely had shrunk differentially during curing, a normal characteristic of resin kits. The hull shrinkage occurred greater longitudinally than it did laterally or vertically. This posed a very difficult 3D design challenge in creating a 3D acrylic superstructure that was intentionally scaled differently in all three dimensions, differently along each dimension, in order to produce a 3D acrylic superstructure that would fit a differentially shrunken resin hull.

There is also the consideration of differences that occur during building. No two modelers are likely to achieve exactly the same superstructure height with the same resin kit once parts' casting blocks are removed, etc.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

I’ll let you know in a couple of days

Should ship tomorrow

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Shrinkage is never a good thing! I also have the Blueridge mast that I was very critical of. At first glance yours appears to be more accurately shaped. I don't see any platforms with yours. Is that correct?

Steve, just received the Tico mast and pilot house- really sporty!! Now, maybe I can get back to my Cowpens.
Thanks, Walt

Thanks, Walt!


Indeed! From a design perspective, resin shrinkage makes my hair hurt.


Thanks to Martin Quinn who provided high-res photos from the National Archives. An accurate shape and structural member count was achieved by superimposing the 3D design over several of his high-res photos as the design was being created. The members are slightly thicker than scale, necessary to meet printing requirements for strength. Even so, the masts are fragile so please be careful with them as you build and paint.


Correct, no interior platforms. BoGP plans and photos for Tennessee indicate what some portray as interior platforms were actually netting suspended over a widely open lattice composed of narrow pipes. To create that in this scale, they would look cartoonish so it seemed best to omit them. See:

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

The Model Monkey Dream Boat has arrived....

No modifications, just plunked onto a old BWN hull


Look pretty darn good to me

Matt

_________________
In the yards right now:
USS Utah AG-16
On Hold
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist

Indeed it does look pretty darn good. Very much an improvement over the Blueridge version! I love the fact that Steve recognized that there were no platforms inside the masts but just netting. Here is a view of that netting.

Jeff,

Great photo - not to disagree with your comments, but I would argue that the "netting" is actually a walkable expanded metal platform as there is actually in your photo a rounded edge or lip and that the direction of the metal ribs is consistent with a flat plane rather than a vertical "net". And I think the angled ladder goes up to that expanded metal platform. Comments?

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

I don't want to hyjack Steve's info page with discussions of details. Maybe we should move this discussion to the CASF section?

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Now that I am retired. I can work on these build that I have. Steve have a lot of stuff that I can use.

Best wishes on your retirement, Mardis! I hope you'll be enjoying yourself, family and friends so much that you'll need a retirement from your retirement.

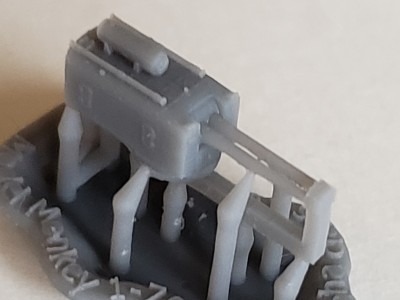

Happy to announce 6"/53 cal. Mk.16 twin-gun turrets for Omaha class light cruisers are now available.

The models are available in several popular scales.



As always, nameplates with decorative nautical rope border made in real metal (brass, bronze, silver or gold-plated), or inexpensive acrylic for easy painting, of any ship of the class can be designed for your model. There are ready-to-print nameplates for 356 ships to choose from.
