PostPosted: Sat Feb 22, 2020 11:02 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 10045
Location: EG48
The silver would have been the pre-war carriers and we don't know when its use was stopped, so it's possible that Hornet was commissioned with white bulkheads and overheads. It's something the modeler is going to have to decide on their own at this point as we don't even have documentation that proves silver paint, let alone orders discontinuing its use.

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Top
 Profile
Reply with quote
PostPosted: Sun Feb 23, 2020 12:29 am
Offline

Joined: Thu Apr 19, 2018 2:17 am
Posts: 22
Thanks for the feedback Tracy. Attached are a couple of photo's of the Hornet around commissioning time that I found. The overheads in both photos appear to be metal and not white. The bulkheads I'm not sure.It would be great if we could one day find the documents proving one way or the other.


Attachments:
1941_10_25_hanger_deck__cv8_crew.jpg [ 146.96 KiB | Viewed 1409 times ]
1549403297793.jpg [ 279.82 KiB | Viewed 1409 times ]
Top
 Profile
Reply with quote
PostPosted: Mon Feb 24, 2020 3:44 pm
Offline

Joined: Wed Jan 26, 2005 10:12 pm
Posts: 1232
Location: Up The Street From Sam Wilson's House
If going strictly by probabilities, what would the most likely color be? The ship was ordered late and commissioned so close to wartime, that if they new there would be a transition in colors coming, they would have for sure tried to stay a step ahead and paint it via what the new regulations would require.

_________________
Thomas E. Johnson

http://www.youtube.com/user/ThomasEJohnson


Top
 Profile
Reply with quote
PostPosted: Tue Feb 25, 2020 7:11 am
Offline

Joined: Thu Apr 19, 2018 2:17 am
Posts: 22
Difficult to tell, but in the last pic I posted, the more I look at it the more I think the overheads are metal and the bulkheads are white.


Top
 Profile
Reply with quote
PostPosted: Thu Apr 30, 2020 12:22 pm
Offline
User avatar

Joined: Sun Mar 19, 2006 4:22 pm
Posts: 274
Location: NAZARETH PA
HORNET WRECK PHOTOS

I now have all Hornet wreck photos taken by the Petrel. So does Martin Quinn.

As with Juneau for anyone willing to accept facts and photos there was no repainting of the hull. The island paint is pretty deteriorated or coated in crud.

If you want the photos email me.

_________________
FRED BRANYAN


Top
 Profile
Reply with quote
PostPosted: Thu Apr 30, 2020 6:13 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
A few stills, all courtesy of RV Petrel:
Attachment:

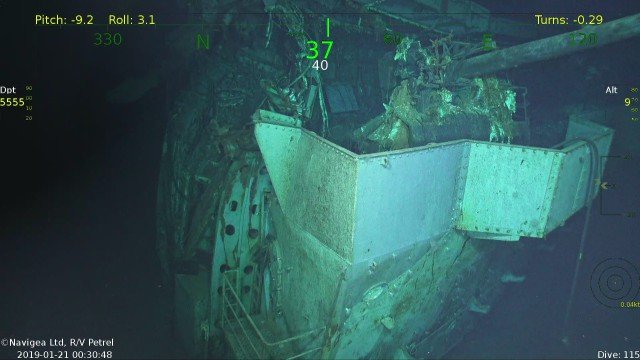

File comment: 1.1 inch gun under forward end of flight deck
Petrel_HornetWreck_Bow1point1.jpg [ 26.3 KiB | Viewed 1038 times ]

Attachment:
File comment: Forward bow and hull number. Note the "scalloped" camo coming DOWN from the deck. Most modelers miss this on their Hornet models.
Petrel_HornetWreck_PortBowandHullNumber.jpg [ 25.23 KiB | Viewed 1038 times ]

Attachment:

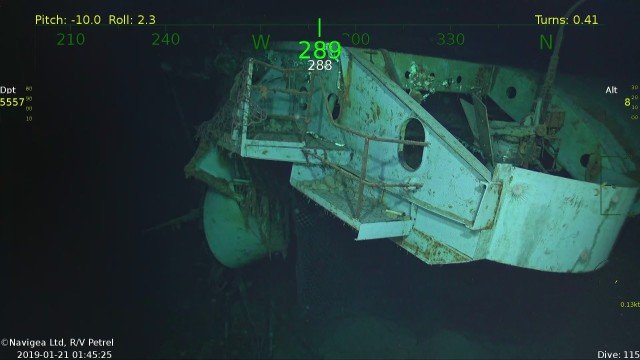

File comment: Portside forward 5 inch gun tubs. Note the stripe camo on the sides of the gun tubs
Petrel_HornetWreck_Port5inchguntub_00.jpg [ 34.65 KiB | Viewed 1038 times ]

Attachment:
File comment: Portside forward 5 inch gun tubs. Note the stripe camo on the sides of the gun tubs
Petrel_HornetWreck_Port5inchguntub_02.jpg [ 32.8 KiB | Viewed 1038 times ]

Attachment:
File comment: Portside forward 5 inch gun tubs. Note the stripe camo on the sides of the gun tubs
Petrel_HornetWreck_Port5inchguntub_03.jpg [ 27.74 KiB | Viewed 1038 times ]

Attachment:
File comment: Note how the camo is on the aft side of the gun tub as well. This is mirrored on the starboard side
Petrel_HornetWreck_Port5inchguntub_04.jpg [ 41.84 KiB | Viewed 1038 times ]

Attachment:
File comment: Same as above
Petrel_HornetWreck_Port5inchguntub_05.jpg [ 31.89 KiB | Viewed 1038 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Thu Apr 30, 2020 6:16 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
More...
Attachment:

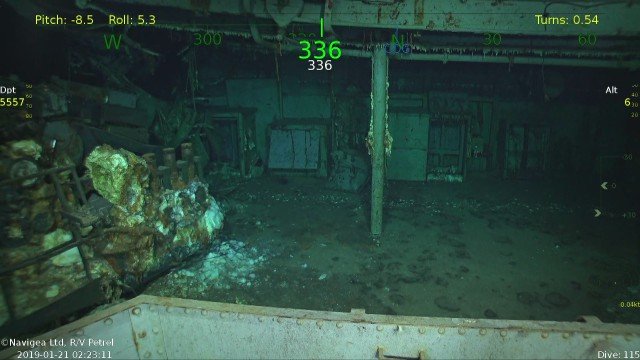

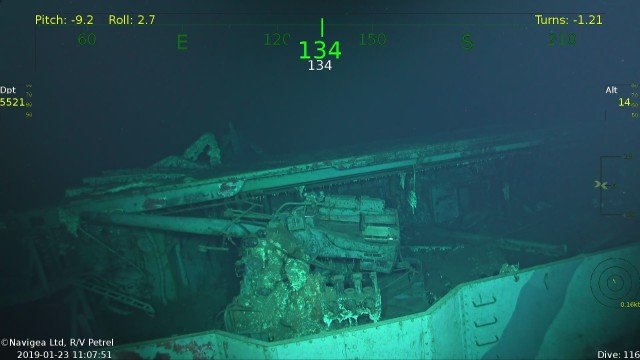

File comment: 20mm guns on the port side hangar deck, somewhere before the break in the hull
Petrel_HornetWreck_HangarDeck20mm.jpg [ 52.03 KiB | Viewed 1037 times ]

Attachment:
File comment: 20mm guns on the port side hangar deck, somewhere before the break in the hull
Petrel_HornetWreck_HangarDeck20mms.jpg [ 45.36 KiB | Viewed 1037 times ]

Attachment:

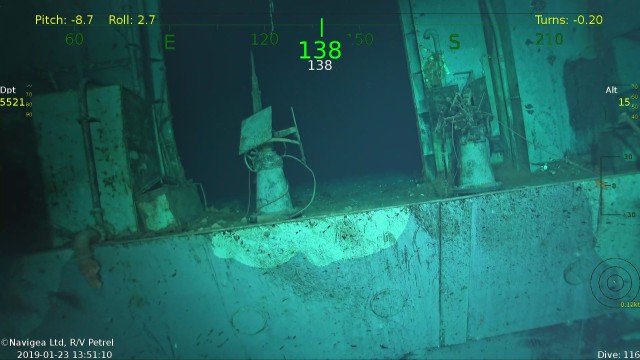

File comment: 20mm gun tub on the aft port quarter of the flight deck
Petrel_HornetWreck_Aft20mmTub.jpg [ 36.42 KiB | Viewed 1037 times ]

Attachment:
File comment: Looks like primer on the bulkhead behind the 20mm
Petrel_HornetWreck_Aft20mmTub_Primer.jpg [ 39.72 KiB | Viewed 1037 times ]

Attachment:
File comment: Bomb hole in a deck. I think this is inside the hangar deck
Petrel_HornetWreck_Bombhole.jpg [ 22.41 KiB | Viewed 1037 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Mon May 04, 2020 10:02 pm
Offline

Joined: Thu Jan 10, 2013 9:25 pm
Posts: 225
Incredible pictures! Thanks for posting them, Martin. Hornet looks to be in great condition... :thumbs_up_1:

_________________
- Greg


Top
 Profile
Reply with quote
PostPosted: Thu May 28, 2020 5:48 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Yes, considering the pounding she took, parts of her are in great shape. And all the thanks goes to Fred, for pestering Petrel for access to these! All photos courtesy of RV Petrel.

I had downloaded a few more, which I neglected to post. Here is the first batch.
Attachment:

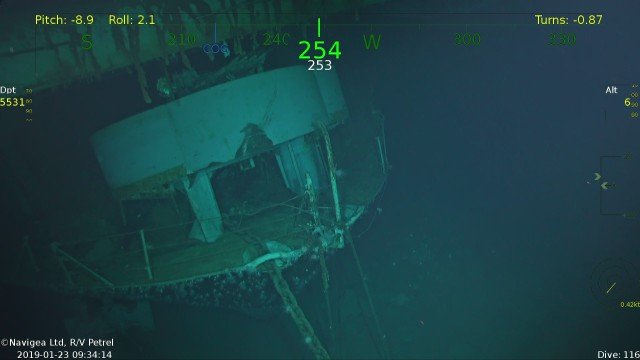

Petrel_HornetWreck_Aft5inchGunTub.jpg [ 44.08 KiB | Viewed 731 times ]

Attachment:
File comment: Note the camo on the corner of the gun tub platform
Petrel_HornetWreck_Aft5inchGunTub01.jpg [ 22.94 KiB | Viewed 731 times ]

Attachment:
Petrel_HornetWreck_Aft5inchGunTub02.jpg [ 22.82 KiB | Viewed 731 times ]

Attachment:
Petrel_HornetWreck_Aft5inchGunTubPort.jpg [ 49.34 KiB | Viewed 731 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Thu May 28, 2020 5:50 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Last few....again, courtesy RV Petrel
Attachment:

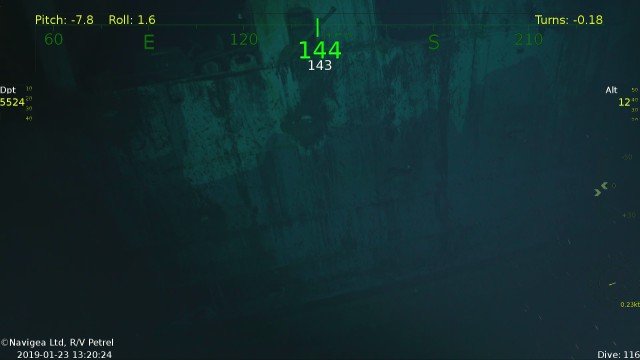

Petrel_HornetWreck_portsidecamo.jpg [ 22.3 KiB | Viewed 731 times ]

Attachment:
Petrel_HornetWreck_portsidecamo_01.jpg [ 29.92 KiB | Viewed 731 times ]

Attachment:
Petrel_HornetWreck_TractorwithShellhole.jpg [ 67.54 KiB | Viewed 731 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Tue Aug 25, 2020 11:49 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Attachment:
gms350-21M.jpg [ 56.59 KiB | Viewed 428 times ]

GMM includes these access ladders/platforms from the catwalks to the flight deck. After going through this entire thread, looking at the Maryland Silver Plans and also photos, I'm still not sure where they go. Anyone have an idea?

I want to add them to the catwalks before I go much further:
Attachment:
Hornet_082520.jpg [ 1.48 MiB | Viewed 428 times ]

As an aside, after reading this whole thread, I'm aghast to see just how many years this model has been kicking around. :doh_1:

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Tue Aug 25, 2020 2:17 pm
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 2627
Enterprise 1940 plans alright? shows 2 of those inclined stairs on either end of the 5" gun decks. 2 of them at the forward end of the aft boat bay, 1 from the catwalk to a platform halfway down & the 2nd from that platform down to hanger deck level.


Top
 Profile
Reply with quote
PostPosted: Tue Aug 25, 2020 6:52 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
DavidP wrote:
Enterprise 1940 plans alright? shows 2 of those inclined stairs on either end of the 5" gun decks. 2 of them at the forward end of the aft boat bay, 1 from the catwalk to a platform halfway down & the 2nd from that platform down to hanger deck level.

Thanks. I'm not sure those are the same things, and I can't find my Yorktown plans. These are short inclined ladders that lead from the catwalks to a railed platform just below the deck edge.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Tue Aug 25, 2020 8:14 pm
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 2627
CV-5 – USS Yorktown – Booklet of General Plans, 1940, Yorktown Class https://www.hnsa.org/wp-content/uploads/2014/08/cv5.pdf


Top
 Profile
Reply with quote
PostPosted: Wed Aug 26, 2020 8:27 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
DavidP wrote:
CV-5 – USS Yorktown – Booklet of General Plans, 1940, Yorktown Class https://www.hnsa.org/wp-content/uploads/2014/08/cv5.pdf


Duh. Forgot about those. Thanks David.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Wed Aug 26, 2020 9:24 am
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 2627
no problem.


Top
 Profile
Reply with quote
PostPosted: Wed Aug 26, 2020 12:42 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Well, after looking at more plans and more photos, I don't think these platforms actually exist. Not sure why they were included, but all I can find are some short vertical ladders leading up to the flight deck from the catwalks.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Wed Aug 26, 2020 1:43 pm
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 2627
http://www.navsource.org/archives/02/020857e.jpg
http://www.navsource.org/archives/02/020867.jpg
http://www.navsource.org/archives/02/020801.jpg
did you look at the models at the bottom of the page?
http://www.navsource.org/archives/02/08.htm


Top
 Profile
Reply with quote
PostPosted: Thu Aug 27, 2020 8:44 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Thanks. I never trust anyone else's models for accuracy, as I don't know where they are getting their information from. I could just be repeating someone else's misinterpretation.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Fri Sep 18, 2020 12:58 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7084
Location: In the hills of North Jersey
Are the circled items floater nets?
Attachment:
HornetIsland02a.jpg [ 746.86 KiB | Viewed 38 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
