Bismarck 1/100

[Capit�o Norbert]

the opened door in the conning tower

[Capit�o Norbert]

until next

[Dave Wooley]

First class workmanship . . I am impressed on how you worked in the detail on the underside platform supports. A part of the build that seldom gets that level of attention . Please keep the build photos coming .
Dave Wooley

[Capit�o Norbert]

Thank you Dave.
i like so much to see your buildings too, soldering and many scratch skills too.

[J. Soca]

That is truly impressive Norberto the vast amount of work you've put in so far will pay back when you finish her..


Jose

[Capit�o Norbert]

Gracias Jose.
yes work on Bismarck or another model you like
is a satisfaction and a lot of work to do...
thank you

[Bill Waldorf]

All I can say is a Beautiful Job! Looks very well built. Congrats on a job well done. Keep up the great modeling. We are watching..........

[bismarck builder]

hello
i might not be building at the moment but im still inspired
gary
who should be building the fleetscale bismarck but is not

[Capit�o Norbert]

Bill and Bismarck builder , thank yours by the encouragment.
i am studying the funnel construction's in hard paper to make a final piece in styrene.
when progress i post new pictures.
Bill your models are wonderful too

[Capit�o Norbert]

First of all i wanna to present my logotypes(i own create) of my two shipyards.
the first Netuno was created in 1995 and the new Marlim was created last week.
sure the two logos are ficticious i have no firm i work on an agency of publicity.
but represent a mark of my shipyards.

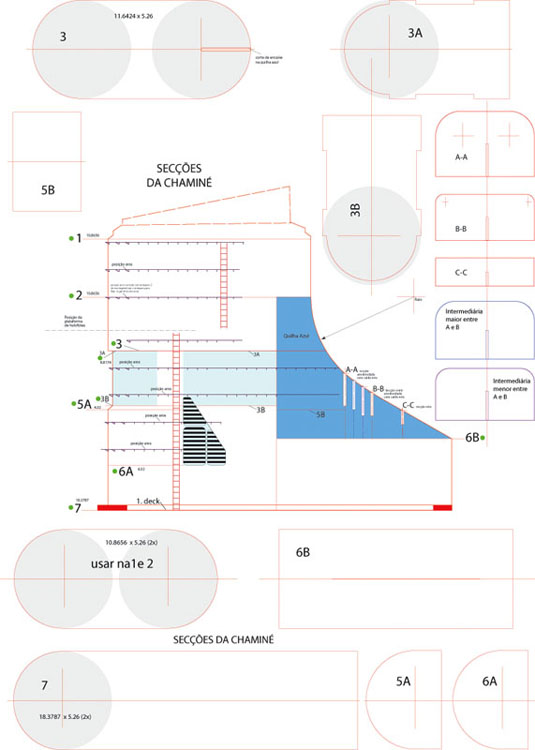

second i am showing the drawing i am doing to mount my funnel(wish me luck please).
some parts are round and this difficult a little the mount.
regards



[Jimmy Conway]

Amigo Norberto, fiquei na curiosidade sobre que planos vc est� usando para construir seu navio........... tem muitos detalhes, essa referencia para constru��o est� muito complexa, ou vc se baseia apenas em fotos e tem uma planta simples???
Trabalho show de bola!!!!
Abra��o: Jimmy

[GTDEATH13]

Wonderful build and thorough explanation of the building methods and techniques...

Looking forward to more progress...

[Capit�o Norbert]

Thank you GTDeath13.
Jimmy, esse desenho ai partiu da minha cabe�a de engenheiro miniaturizado.
� que eu costumo imaginar como vou construir as estruturas e vou fazendo sketches..
depois eu mesmo redesenho. isso ai que vc viu nao tem em planta alguma.
Jimmy are drawings made by my heads and hands..
i stay thinking how i can do determined piece and i make progress and try to make this reality

[Capit�o Norbert]

� verdade, esse desenho � bem complexo e me tomou muitos pensamentos....

[Capit�o Norbert]

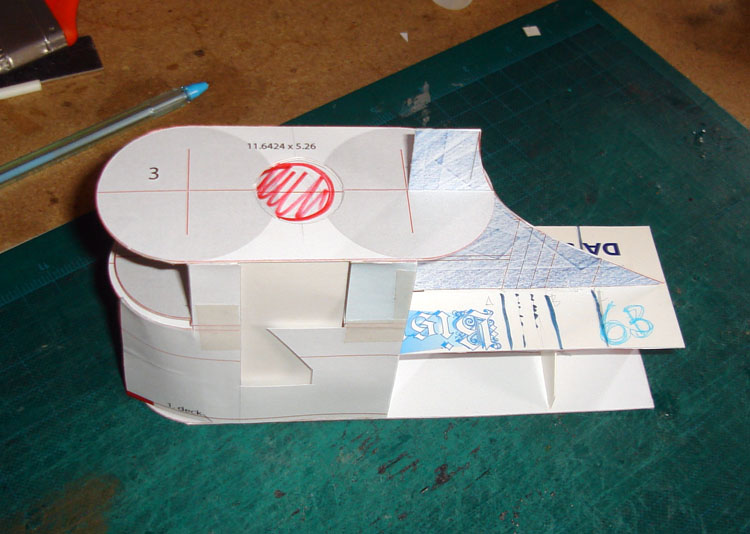

the drawings are based in this card paper model i am doing...
but i prefer still not use the central nervure cause i need make holes to prevent a possible
smoke who i can use if i decided to install a smoke funnel system.
maibe no... but....

[Capit�o Norbert]

just more image and lot of paper

[Capit�o Norbert]

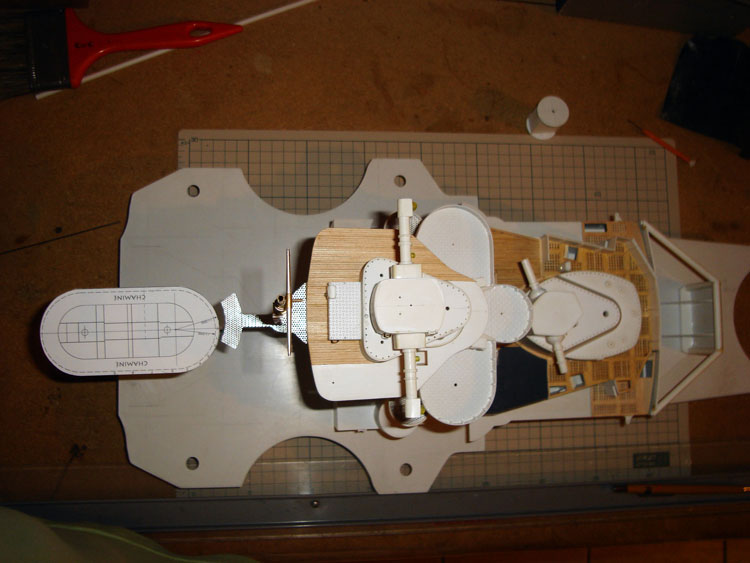

new advances on funnel's building.
i change the mode to do. not central nervure just part of it.
i need put a tube on the centre of funnel.
and i change some parts of drawing too.
but still in hard paper study.

Regards

[JIM BAUMANN]

Very intersting build--I am watching!

Jim Baumann

[Jimmy Conway]

� verdade, esse desenho � bem complexo e me tomou muitos pensamentos....

Show de bola esses desenhos, you are a smart guy.
This thread is very interesting, the way you show your progress captivates so many people!

Espero que vc esteja bem, e assim vamos tendo amostras desse belo trabalho.
Abra��o: Jimmy

[Capit�o Norbert]

Thank you and Jim Baumann to kind words.
yes i am studying the funnel's and updating the drawing as well i feel needed.
this type of battleship have so much pieces. but is interesting to do too.
a great design for era.
new progress i inform
regards all
