AGSS 569 Albacore

Post by Fritz »

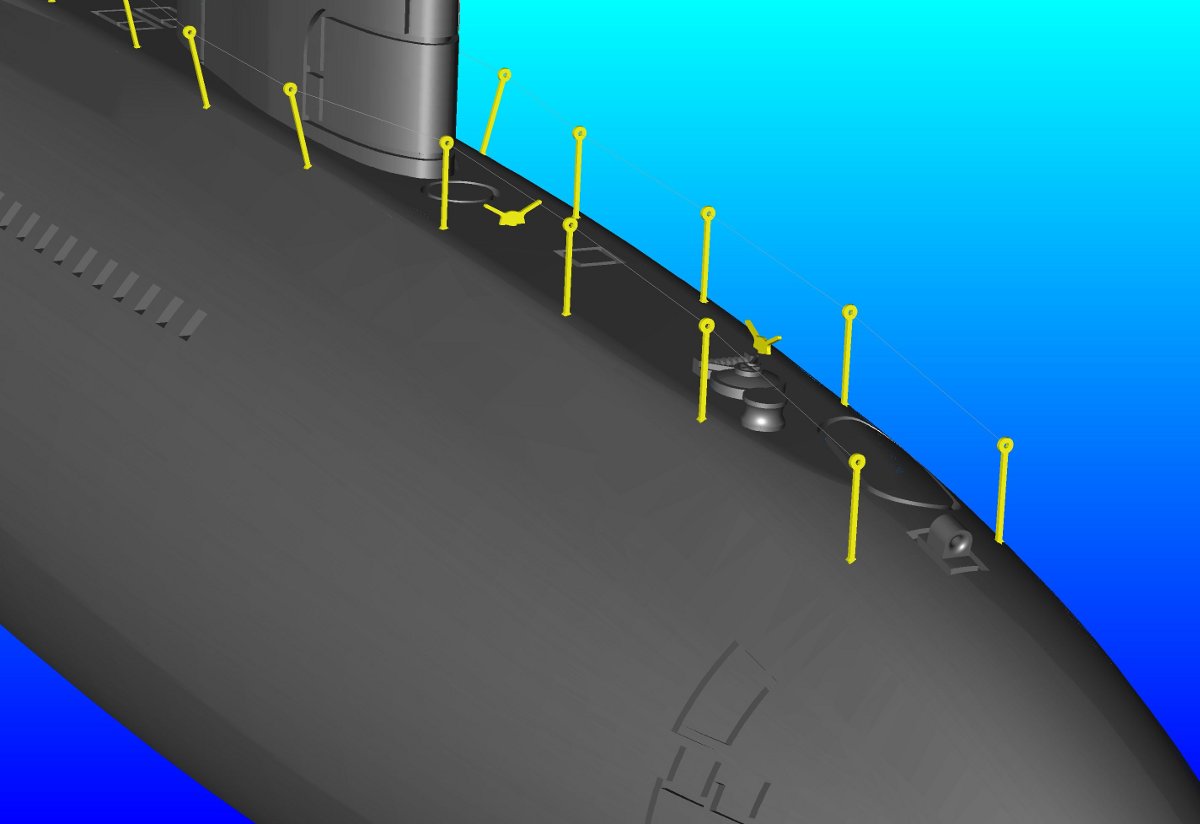

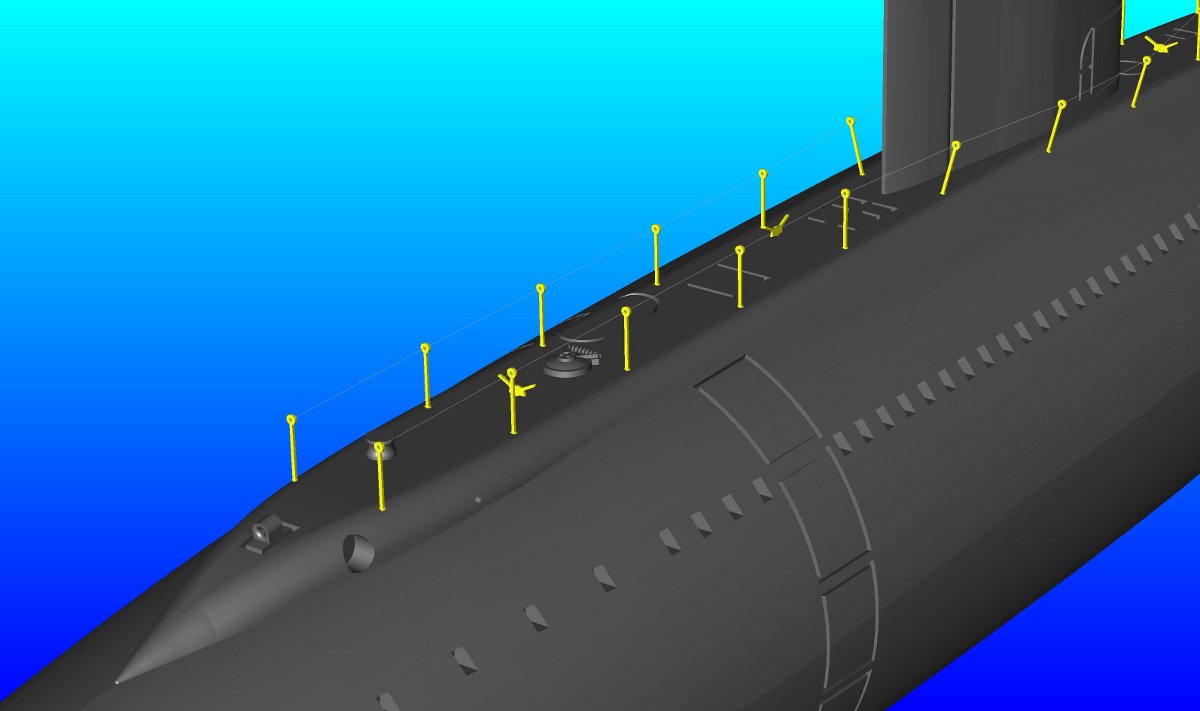

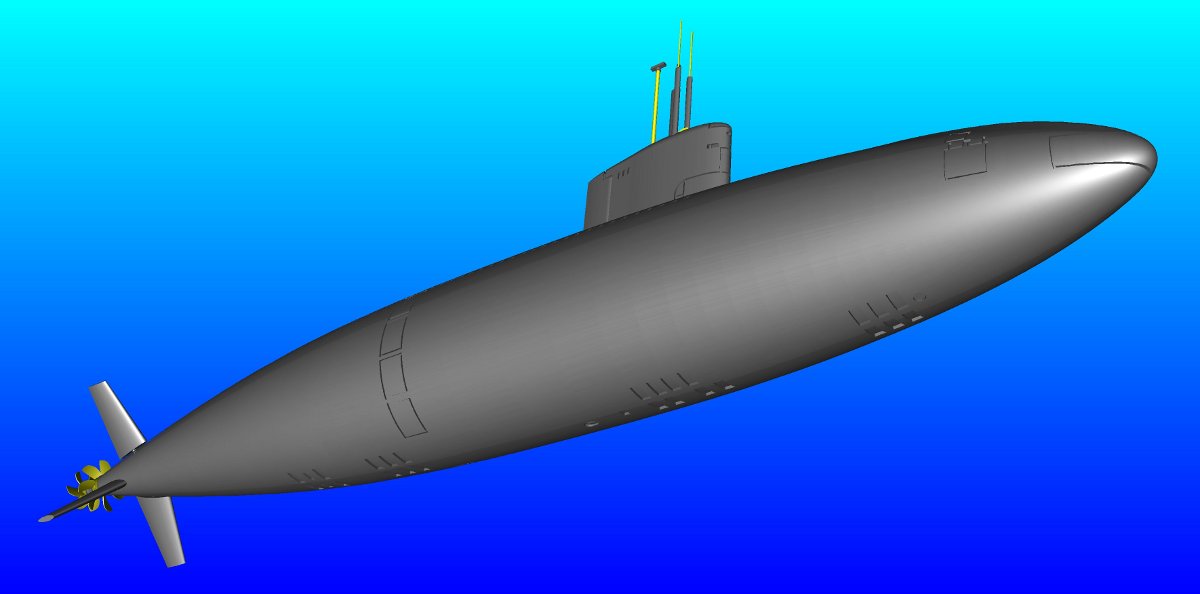

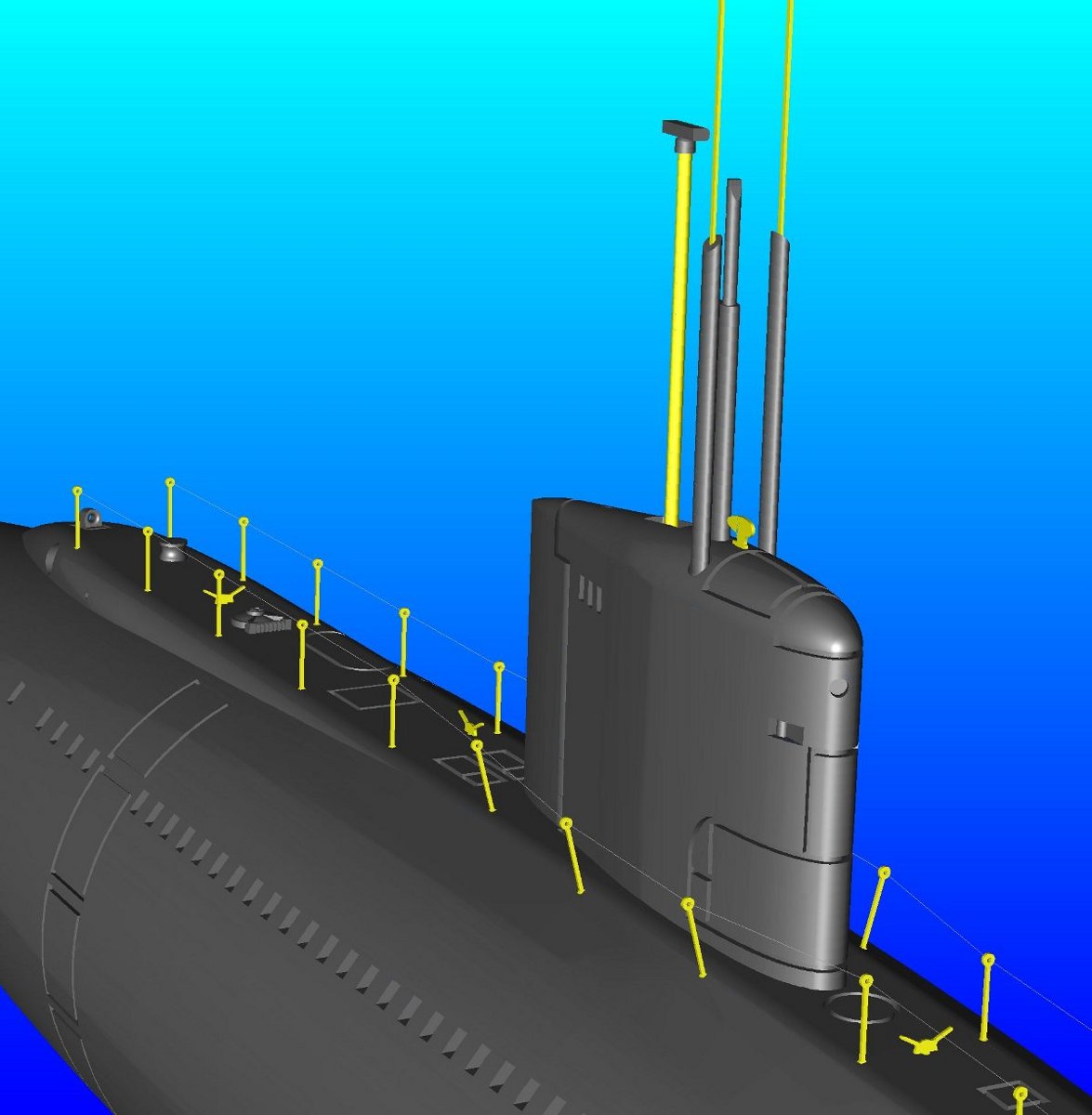

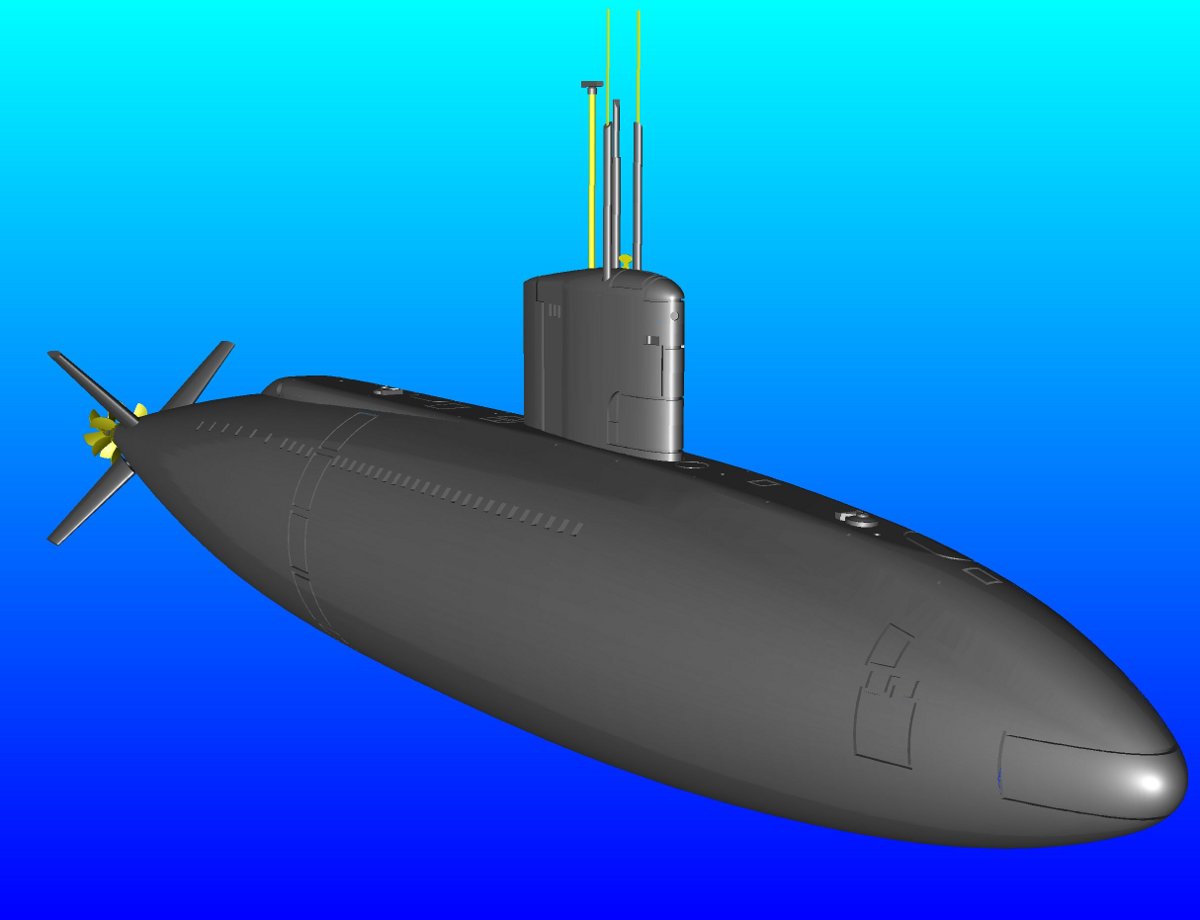

And this is the next project in the works. Again, She's set up for 1/350 scale. This is the first kit specificaly designed for BRM, who will be announcing the kit at the Nats. No set release date yet. The kit is designed to have optional parts to represent her as either phase III, with the single five blade prop, or as Phase IV with parts for the 10ft shaft spacing, or the 5 ft shaft spacing.
Best Regards

Fritz K.
User avatar
Fritz
Posts: 125
Joined: Fri Aug 04, 2006 12:03 pm
Location: Salem, MA, USA

Re: AGSS 569 Albacore

Post by Fritz »

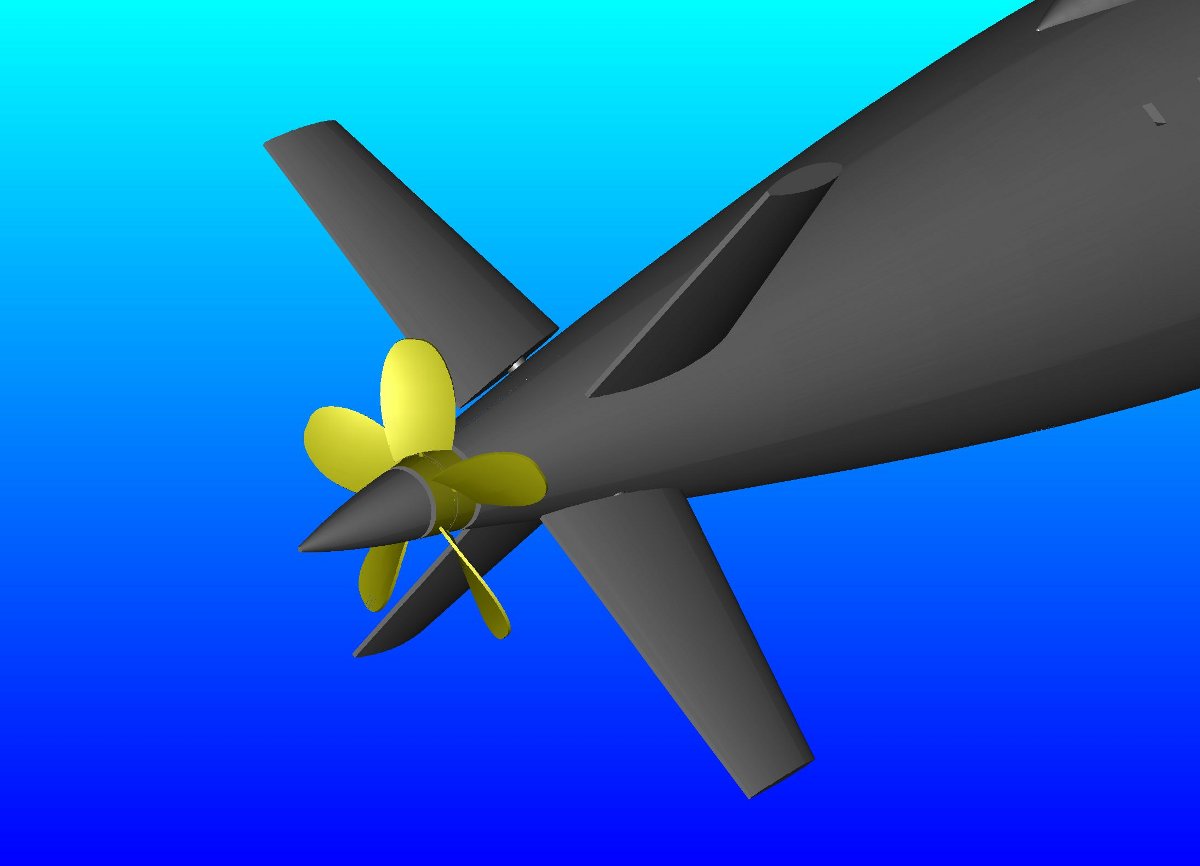

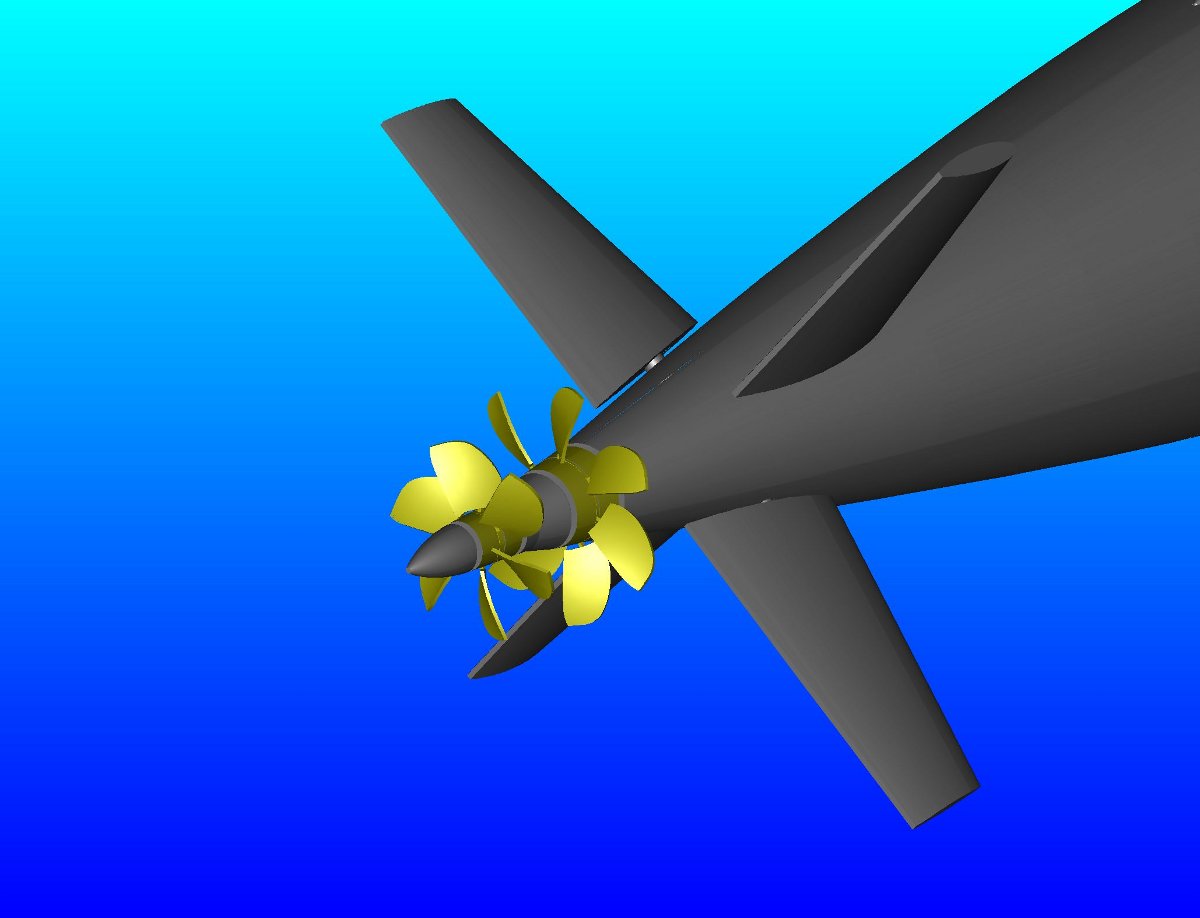

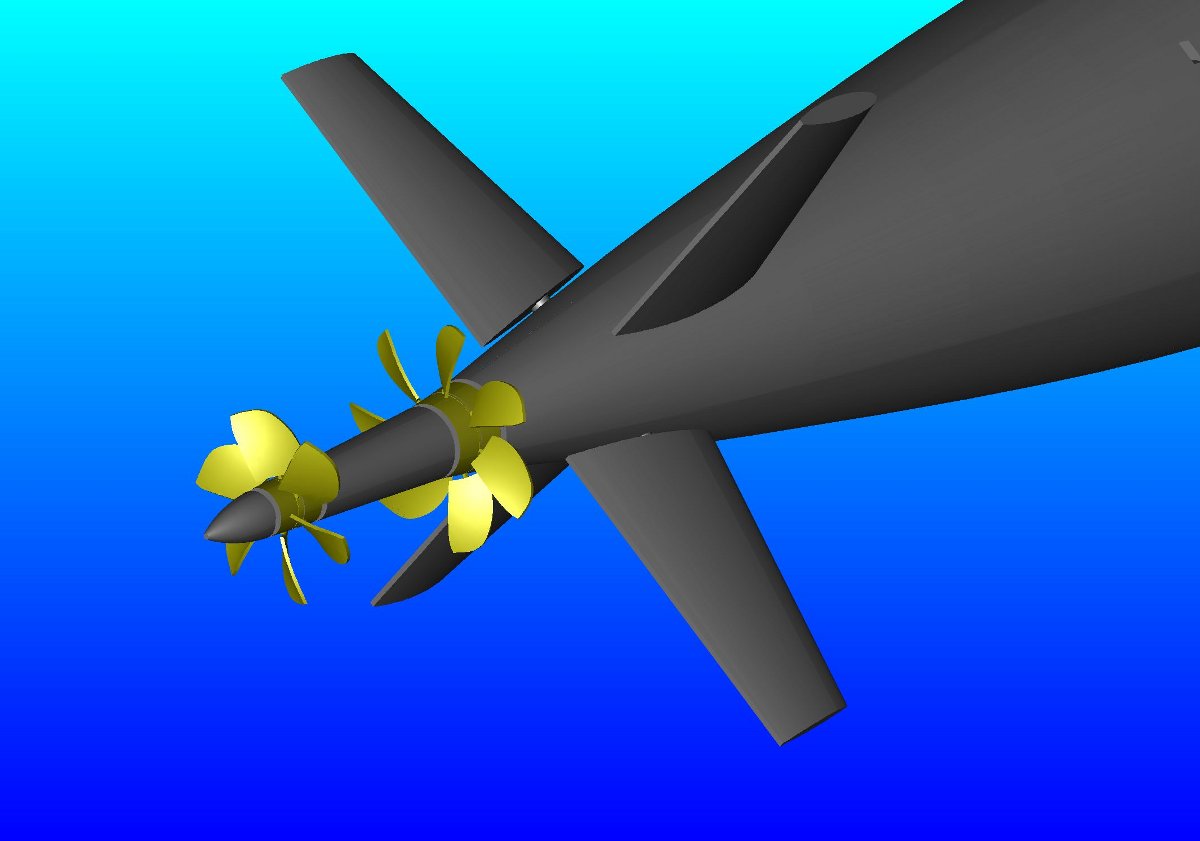

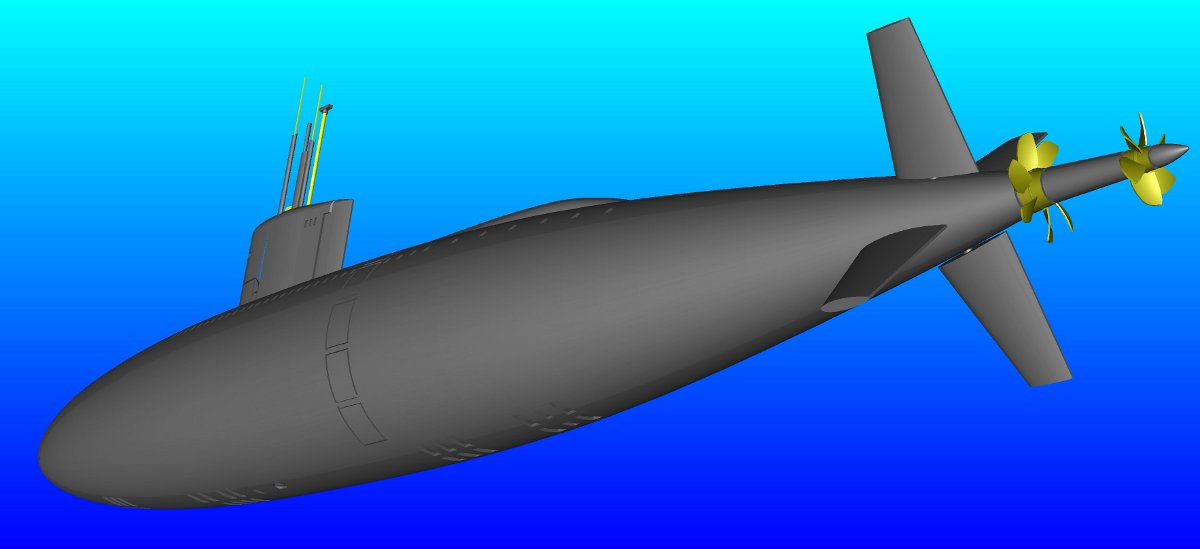

The prop options...
Best Regards

Fritz K.
Roscoe
Posts: 296
Joined: Thu Jul 07, 2011 5:12 pm

Re: AGSS 569 Albacore

Post by Roscoe »

Very cool and unique sub Fritz, and a very nice looking CAD model too. So it had three prop variations? I'm curious as to how much improvement the two prop variants were over the single prop?

-Dean
