5", 38 caliber gun

[michel.verschuere]

Hello,

I am assembling the missing items for a 1/72 scratchbuild of CVE-107 Gilbert Islands (Commencement Bay Class Escort Carrier out of WWII).

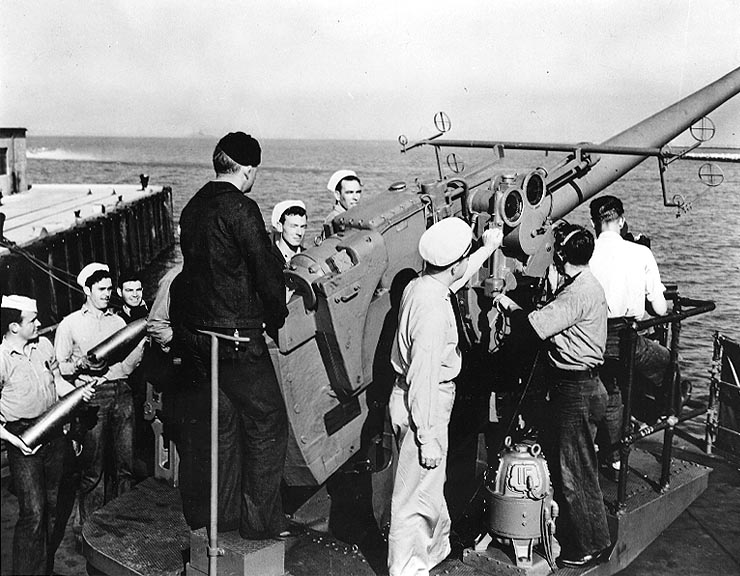

I am looking for detailed pictures or plans of the two 5", 38 caliber guns that were installed on this ship. They were a version of the open pedestal mount type described on this Wikipedia link:
https://en.wikipedia.org/wiki/5%22/38_caliber_gun

Any general arrangement views at listed scale would do. I plan to build a 3D model of it and then print the main parts with my 3D printer but I need pictures and some plans. I am happy to share the 3D model here after it is made.

Can anyone help me to plans?

Cheers, Michel.

E: michel.verschuere@telenet.be

[Pusser509]

Michel; PM sent.

[Fliger747]

Let me know how thins comes out, I need to build a similar mount for the fantail of an APA project in 1:120

Thanks: Tom

[grim reaper]

The floating drydock has ordance sheets available. Chad

http://floatingdrydock.com/ordnance.htm
