Ting Yuen / Chen Yuan Plans

[Bill1957]

hi
i have got so far with the maodel but the wheel house and funnel have stumped me
i am building one static and one for radio control
ive sent emails out to chinner and germany
no replies so far
thanks bill

[Bill1957]

hi just worked out how to put up pictures

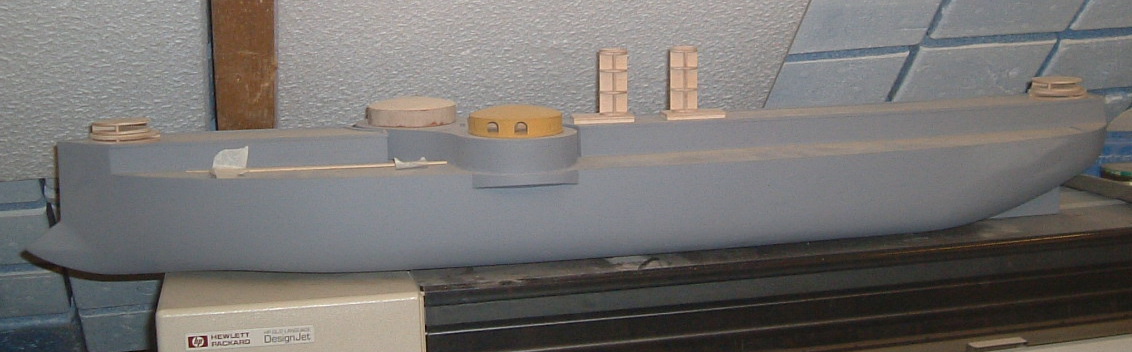

heres the static model

bill

[ARH]

There,s 3 pictures in picture post, in the finished model section, it might help.

[Bill1957]

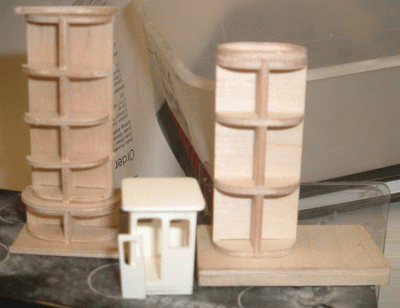

hi thanks they where of some help heres what iv done

the funnel on the right is my first atemp and the left hand one is my second
the wheel house is mostly gess work
so if any one has photos or plans comfirming i need the help

bill

[ingura]

...

[Bill1957]

hi
his model is fantastic and puts mine to shame , also my fore and aft gun turrets are diferant to his

i dont read german plus im word blind so it hard to read translated tex

i will try again later to contac him

thanks bill

[peppe]

if you go on the site
http://www.beiyang.org/dingyuan/01.htm
you can find the history, in chinese, of the building of a model in 1:1 with lot of foto
in the same site at
http://www.beiyang.org/bybq/zheny.htm
you can find ,in chinese, foto and drawing of the ship
hope can help
ciao peppe
ps you can see on google at
37�30'31.03''N , 122�07'19.51''E
http://www.panoramio.com/map/#lt=37.508 ... 30&z=4&k=2
