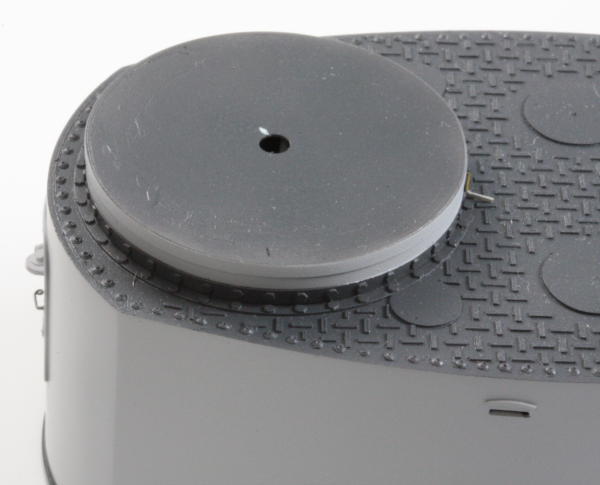

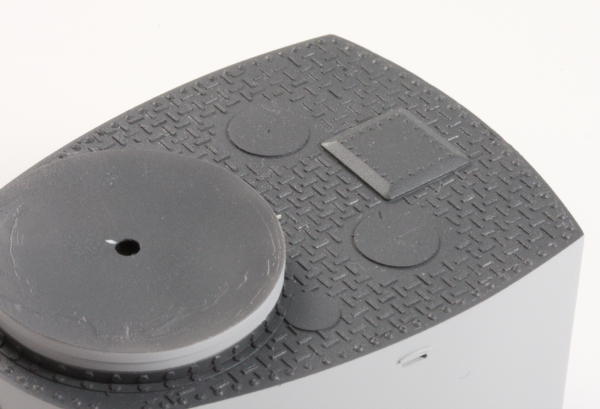

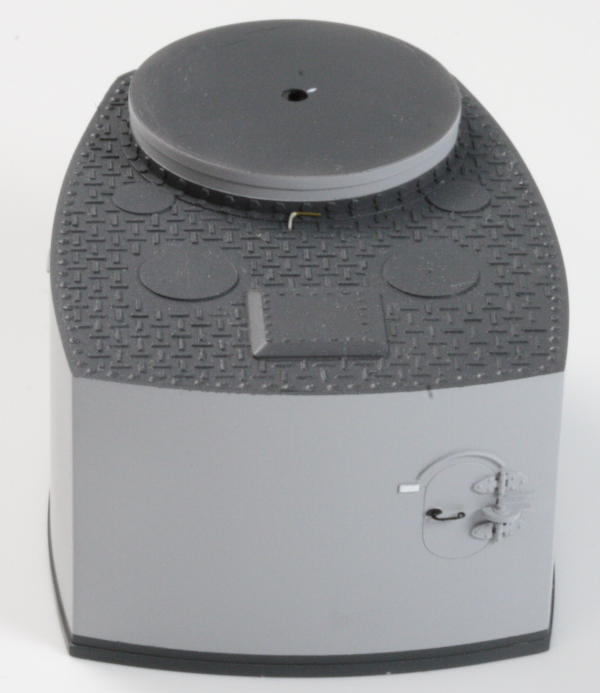

Bismarck 1/100th scale aft artillery command post

Post by 109 »

Hi all,

I am new to this forum and I say hello with a few pictures of my work on Bismarck so far. It is a static modell, 1/100 scale using largely 0.5mm alu sheet metal.

All comments are welcome!

Bye now and talk to you soom,

Bernd.
Attachments
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

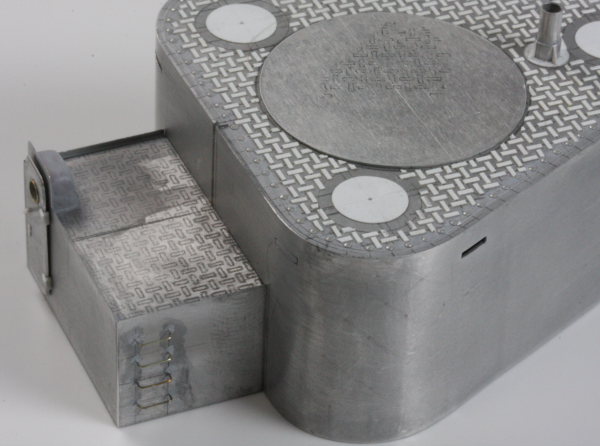

Bismarck 1/100th scale main artillery command post

Post by 109 »

Hi,

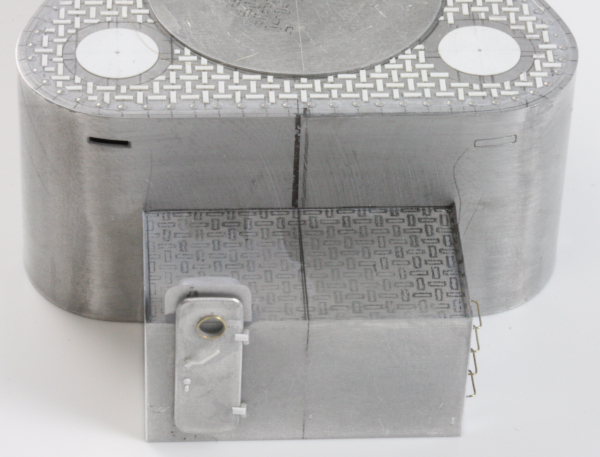

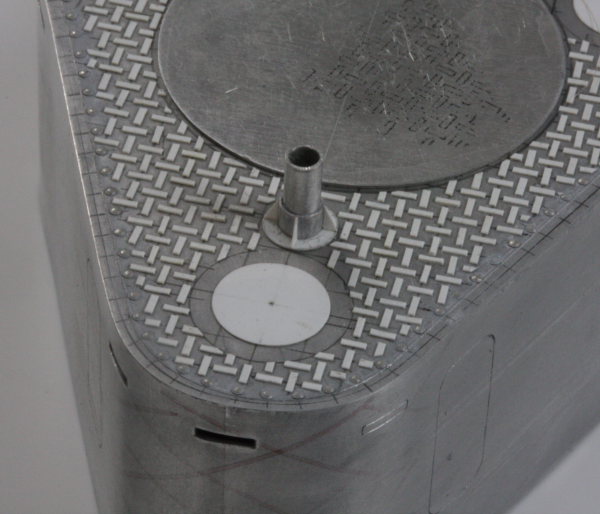

some more pictures of WIP.

Bye! :wave_1:
Attachments
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
johnny canuck
Posts: 189
Joined: Mon Sep 11, 2006 9:33 pm
Location: St. Catharines, Ontario Canada

Re: Bismarck 1/100th scale aft artillery command post

Post by johnny canuck »

Welcome aboard. Your build looks very good so far. I find it amazing what people can do with metal. I am having enough issues just using plastic sheet.

Keep us posted on the progess.
James W.

Dry docked:
1/72 HMCS Assiniboine DDE 234-1960
1/72 HMCS Ottawa DDE 229-1960
1/72 HMCS St. Catharines-River Class Frigate-1944
On the slipway:
1/72 HMCS Camrose-Flower Class Corvette-1943
1/72 HMCS Trillium-Flower Class Corvette-1942
Top
User avatar
GTDEATH13
Posts: 1205
Joined: Tue Jan 01, 2008 7:15 am
Location: ATHENS, GREECE

Re: Bismarck 1/100th scale aft artillery command post

Post by GTDEATH13 »

What is your method for painting??? Very impressive work... :thumbs_up_1: :thumbs_up_1: :wave_1: :wave_1:
NIKOS (NICK)
???? ?? ??? ???????? ??????
(GREAT IS THE NATION THAT MASTERS THE SEAS)
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale aft artillery command post

Post by 109 »

Hi,

thanks for the kind comments. I solely use an airbrush (Iwata) for painting. Only some details are brush painted (high quality brushes only, enamel paints).

I use for airbrushing high quality paints from Model Railroad suppliers as they also do not want to obsure fine detail with unsuitable lacquers.

Bye,

Bernd.
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
Dave Wooley
Posts: 4131
Joined: Sat Jan 22, 2005 10:18 am
Location: Liverpool

Re: Bismarck 1/100th scale aft artillery command post

Post by Dave Wooley »

Welcome bernd Your work is very impressive.
Dave Wooley
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale main artillery command post

Post by 109 »

Hi,

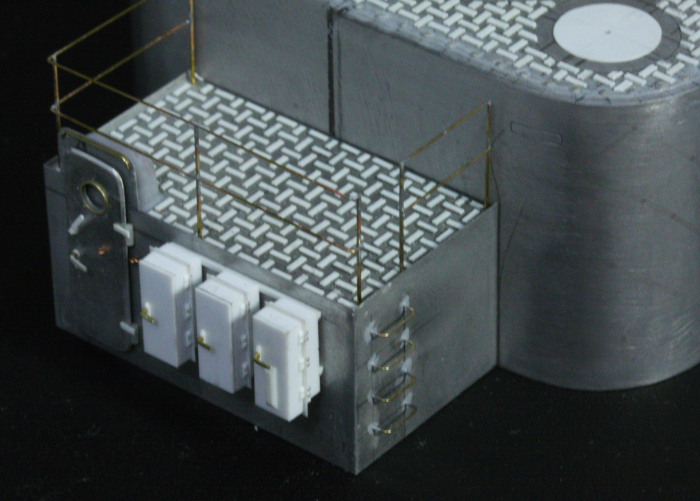

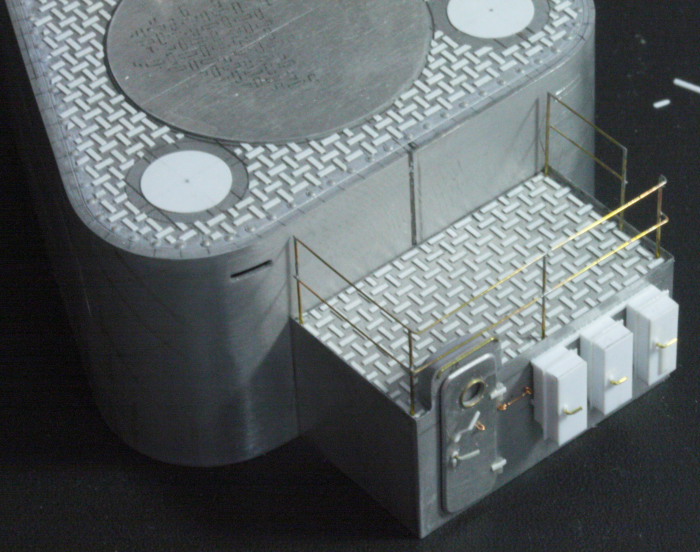

added some more detail to the shelter house.

Bye! :wave_1:
Attachments

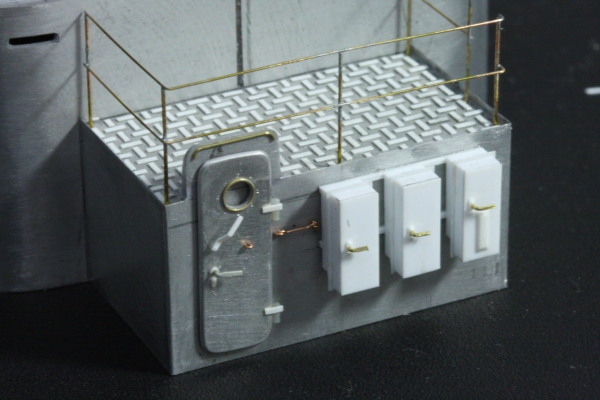

Rear view
Rear view
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
Dave Wooley
Posts: 4131
Joined: Sat Jan 22, 2005 10:18 am
Location: Liverpool

Re: Bismarck 1/100th scale main artillery command post

Post by Dave Wooley »

This is exceptional work . I do like the way you perfected the dogs around the WT door. Detail work at its best . :thumbs_up_1: :thumbs_up_1:
Dave Wooley
Top
User avatar
russclark
Posts: 1173
Joined: Sat Dec 09, 2006 6:12 pm
Location: campbell river.b.c canada

Re: Bismarck 1/100th scale main artillery command post

Post by russclark »

my goodness, your work is amazing. i don,t know how you do it ,but i am awe struck by your detail
Top
User avatar
GTDEATH13
Posts: 1205
Joined: Tue Jan 01, 2008 7:15 am
Location: ATHENS, GREECE

Re: Bismarck 1/100th scale main artillery command post

Post by GTDEATH13 »

I have seen and another topic with another build of yours.. Will you build the entire ship or just some parts???

Very impressive work and detail.. What do you use to glue the metal parts with the styrene ones? :thumbs_up_1: :thumbs_up_1: :wave_1:
NIKOS (NICK)
???? ?? ??? ???????? ??????
(GREAT IS THE NATION THAT MASTERS THE SEAS)
Top
User avatar
GTDEATH13
Posts: 1205
Joined: Tue Jan 01, 2008 7:15 am
Location: ATHENS, GREECE

Re: Bismarck 1/100th scale aft artillery command post

Post by GTDEATH13 »

Just found it... There are two topics with your Bismarck build and I was confused... Very nice work... :thumbs_up_1: :thumbs_up_1: Why don 't you merge them into one since it is the same build??
NIKOS (NICK)
???? ?? ??? ???????? ??????
(GREAT IS THE NATION THAT MASTERS THE SEAS)
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale main artillery command post

Post by 109 »

Hi,

yep, I plan to build the complete ship. I use CA glue.

Take care,

Bernd.
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
GTDEATH13
Posts: 1205
Joined: Tue Jan 01, 2008 7:15 am
Location: ATHENS, GREECE

Re: Bismarck 1/100th scale main artillery command post

Post by GTDEATH13 »

Nice to see that you are building the whole ship. Cant wait to see some turret work. :wave_1: :wave_1: :thumbs_up_1:
NIKOS (NICK)
???? ?? ??? ???????? ??????
(GREAT IS THE NATION THAT MASTERS THE SEAS)
Top
User avatar
Dave Wooley
Posts: 4131
Joined: Sat Jan 22, 2005 10:18 am
Location: Liverpool

Re: Bismarck 1/100th scale main artillery command post

Post by Dave Wooley »

If the rest of the ship is to the standard of what has been produced so far then this model is going to be truly impressive. :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:
Dave Wooley
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale main artillery command post

Post by 109 »

hi,

I guess you will see some turret work in 2009 as i am turning the gun barrels probably this month...:D

Bye!
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale main artillery command post

Post by 109 »

Hi,

added more details and a first coat of primer to check out flaws and inaccuracies. Hope you�ll like it!

Bye!
Attachments

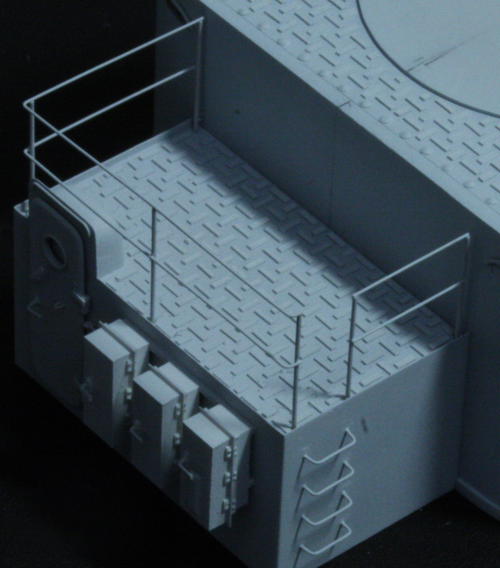

Roof of the shelter house and aux. flak command post
Roof of the shelter house and aux. flak command post

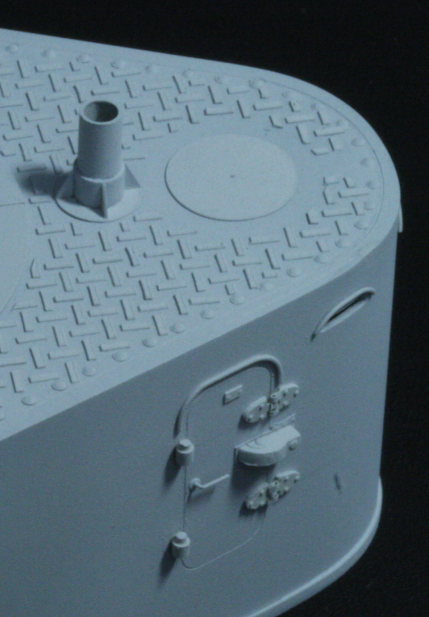

Starboard door to the main artillery command post on the foretop
Starboard door to the main artillery command post on the foretop
Access via step irons to the roof of the shelter house on the starboard side (reconstructed)
Access via step irons to the roof of the shelter house on the starboard side (reconstructed)

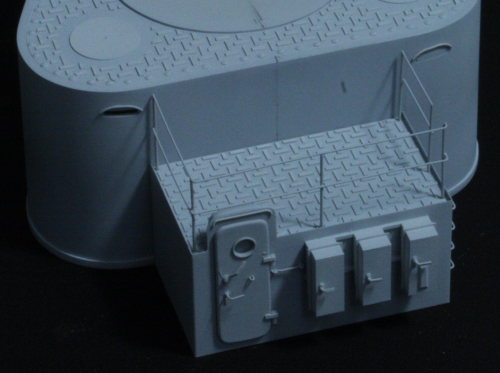

Rear view of the shelter house with access door and two switchboxes and a telephone box
Rear view of the shelter house with access door and two switchboxes and a telephone box

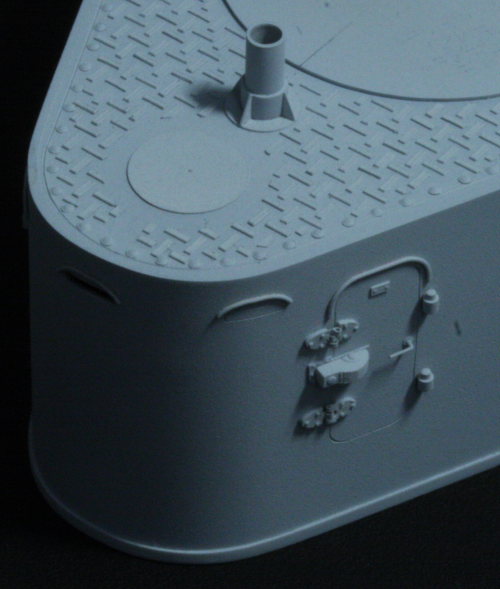

Starboard door to the main artillery command post on the foretop.<br />Observation slit is modeled in a closed status (they could be fully open, closed with a 20 mm armor panel or a 7 mm SECURIT glass lite)
Starboard door to the main artillery command post on the foretop.
Observation slit is modeled in a closed status (they could be fully open, closed with a 20 mm armor panel or a 7 mm SECURIT glass lite)
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
Top
User avatar
bismarck builder
Posts: 403
Joined: Wed Jan 12, 2005 3:28 am
Location: alton hampshire uk

Re: Bismarck 1/100th scale main artillery command post

Post by bismarck builder »

hi 109
will you build or buy the hull?
gary r
building the 1/128 scale bismarck slowley very slowley oh so very very slowley
did i mention it was going slowley
a bad day sailing is better than a good day at the office
Top
User avatar
JWintjes
Posts: 1223
Joined: Mon Jan 10, 2005 11:41 am
Location: turning into a power-hungry Yamato-models-munching monster... buahahahaha...

Re: Bismarck 1/100th scale main artillery command post

Post by JWintjes »

Wow, that is extremely impressive! Thanks for posting these! :thumbs_up_1:

Jorit
Top
User avatar
Dave Wooley
Posts: 4131
Joined: Sat Jan 22, 2005 10:18 am
Location: Liverpool

Re: Bismarck 1/100th scale main artillery command post

Post by Dave Wooley »

109 this is seriously GOOD work! As a matter of interest how long does it take you to construct such an accurate piece of work? I take it you are familiar with Joseph Kaisers outstanding work on his Bismarck? :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:
Dave Wooley
Top
User avatar
109
Posts: 627
Joined: Sun Nov 16, 2008 7:56 am
Contact:
Contact 109

Re: Bismarck 1/100th scale main artillery command post

Post by 109 »

Hi Dave,

I don�t know the total number of working hours but I spent 9h on the detailing of the two side doors... so, it is time consuming! :roll:

Do you know the working hours of your models, please?

Bye!
Thanks & Sources: Nilsson (research) and J.Arntz (research, drawings).
