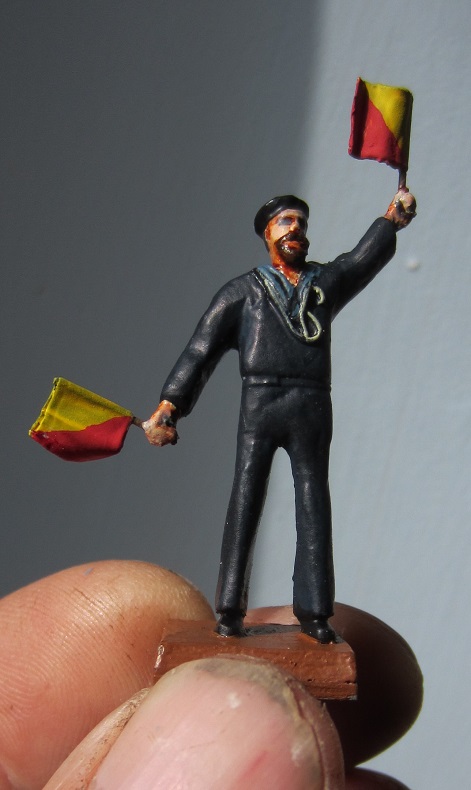

I also produced a couple of figures which are not for the picket boat, but are in the same vintage uniforms so will be suitable for my other late Victorian RN vessels. Here is the finished signaller complete with semaphore flags. The flags were added to the cast resin figure using brass wire and aluminium adhesive tape. The aluminium tape makes it easy to animate the flags.

_________________
PICKETBOAT

www.chyldshallmodelshipyard.com

Hi all

And three more finished figures. These are destined for the picket boat model. The Officer and the seated sailor will be in the aft cockpit and the kneeling sailor adjusting the mooring lines (in white duck working uniform with bare feet) will be in the bow. The cast resin bases will be removed with a fine fret saw and a brass 0.5mm wire fitted into the legs (as a locating pin) to help secure the figure to the model.

_________________
PICKETBOAT

www.chyldshallmodelshipyard.com

Hi Steve,

They look great. Will you be selling them?

Away from home at the moment but looking forward to seeing you at NWW (I'll be there Saturday only though).

Since I missed your sailing visit with the launch I am very keen to see it and talk about how you electricised it.

I am thinking of r/cing the Revell 48th scale PCF, but I don't think I have quite as much weight to play with.

The Belgians are coming over again this year and they seem masters at lightweight R/Cing using mobile phone electric motors.

I may need to buy a couple of those littel motors from you...

Apologies for not sending an email and breaking into your thread.

See you soon.

All the best
Sandy

Sandy

I will see you at the National Model Warship Weekend when all will be revealed and we can discuss your project in detail. I will bring some motors for you to see. The Belgian contingent seem to be experts on the "sub miniature" RC equipment. They were showing me how they use dismantled servos for their models. Brilliant.

_________________
PICKETBOAT

www.chyldshallmodelshipyard.com

Hi all

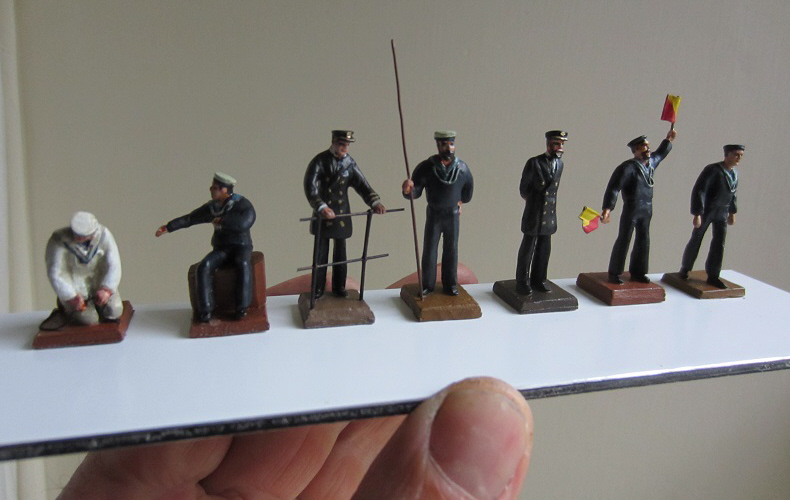

Well that pretty much finishes off the construction of these figures, some of which which were designed as a finishing touch for this picket boat model. As I said previously, there are seven figures in total, (see pictures below) but not all were intended for use on the picket boat, despite the fact they were all in suitable period clothing for 1900.
