PM coming your way.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

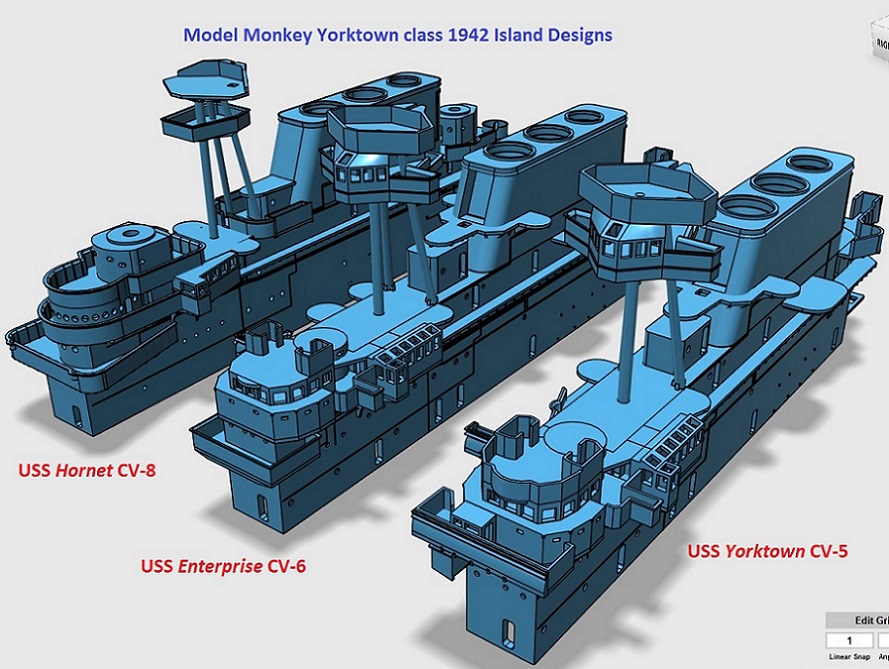

The design for USS Hornet CV-8 in 1/350 scale is complete. Here are the three Yorktown class island designs side-by-side. You can see that Hornet is considerably different than her older sisters.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Very nice Steve. My wallet hates you.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Excellent work. I presume you will re-scale in 1/200 also???? Please????

Gene.

_________________
Anything worth doing is worth overdoing
http://geneberger-models.com/

Thanks, Martin and Gene!

I hope to have the island rescaled to 1/200, 1/487, 1/500, 1/600, 1/700 and 1/719 soon.


Features:
- fully assembled
- overall dimensions accurately scaled from the official builder's plans drawn by Newport News Shipbuilding & Drydock Company, dated April 5, 1940, adjusted for 1942
- details specific to USS Hornet confirmed by careful study of builders plans and period photographs of the real ship
- properly asymmetrical Pilot House, a feature every plastic kit manufacturer gets wrong
- accurately sited Tripod and Fighting Top (Hornet's was further aft than the tripod of her elder sisters)
- open Primary Flight Control "PriFly" windows
- open Battle Lookouts, aka "Vision Slits"
- open doors, ready for your favorite photo-etch (not included)
- accurately shaped decks
- accurately shaped splinter shielding with interior rib detail
- properly shaped funnel cap
- properly sized and located, open, scale 16" and 12" diameter portholes
- properly scaled smokepipes passing through the entire island - forward smokepipe at the correct slope
- delicate exterior electrical cabling
- heavy structural deck support details (light supports omitted, ready for your favorite photo-etch
- aft cutout for crane

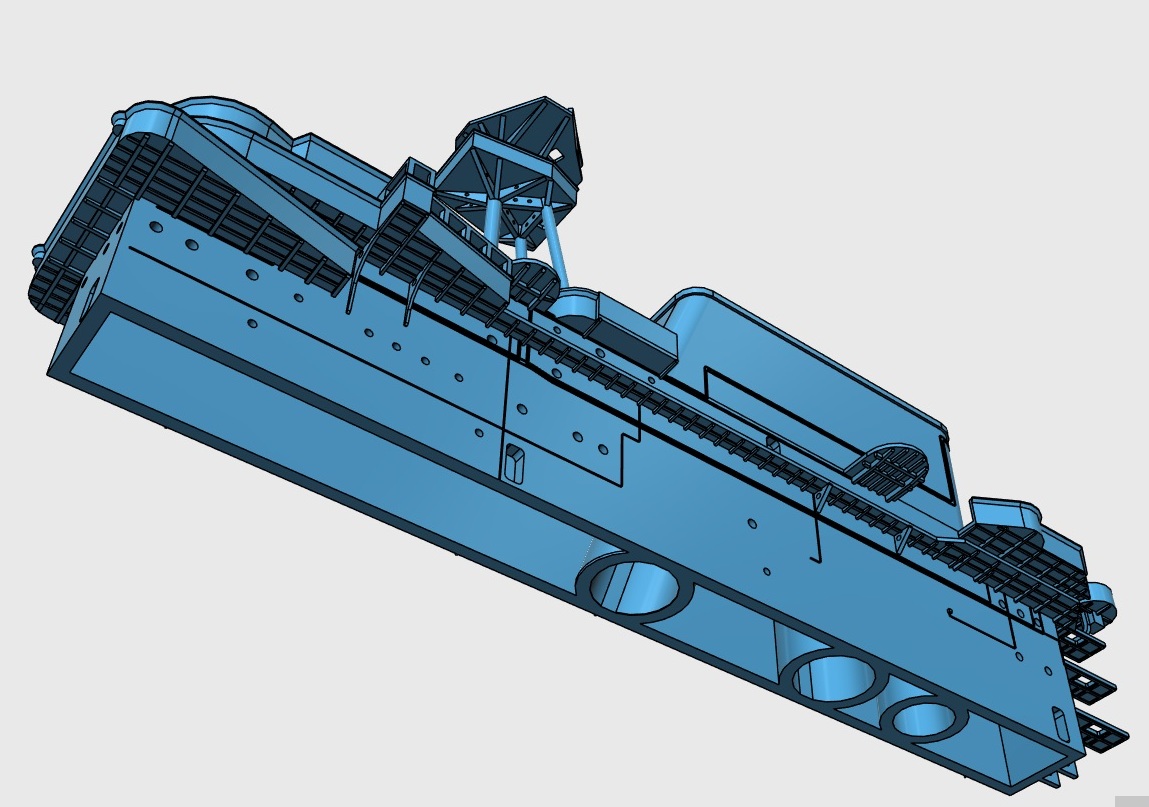

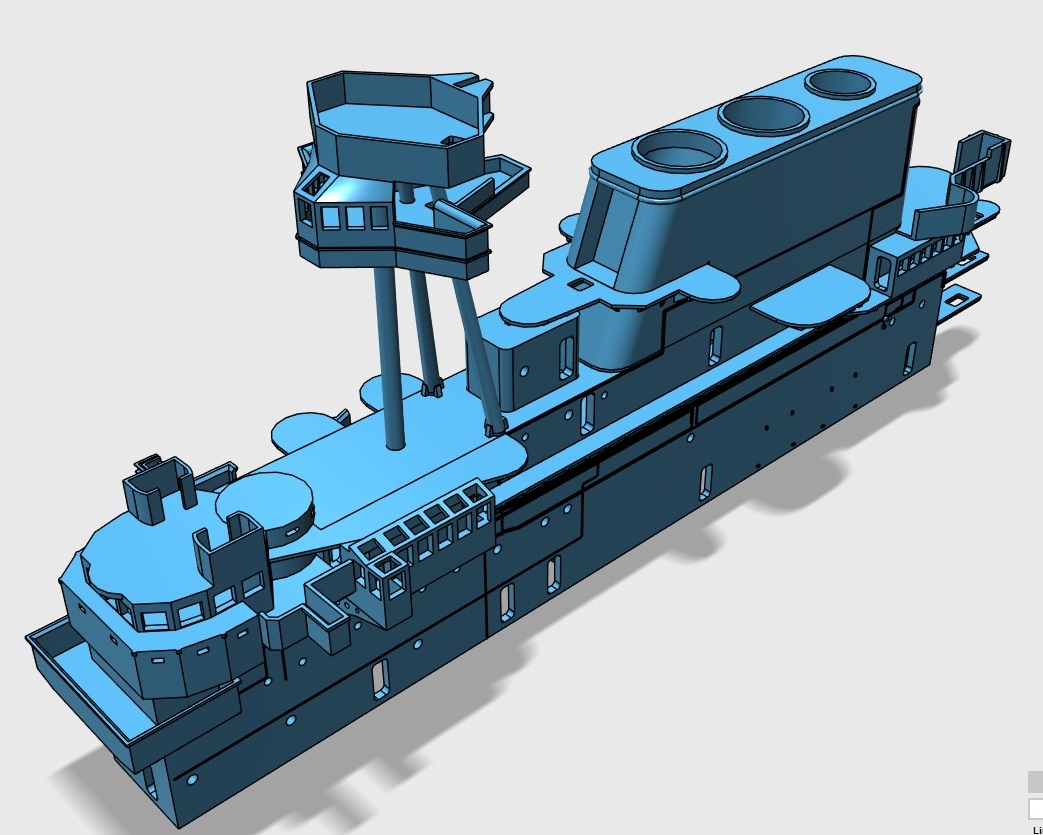

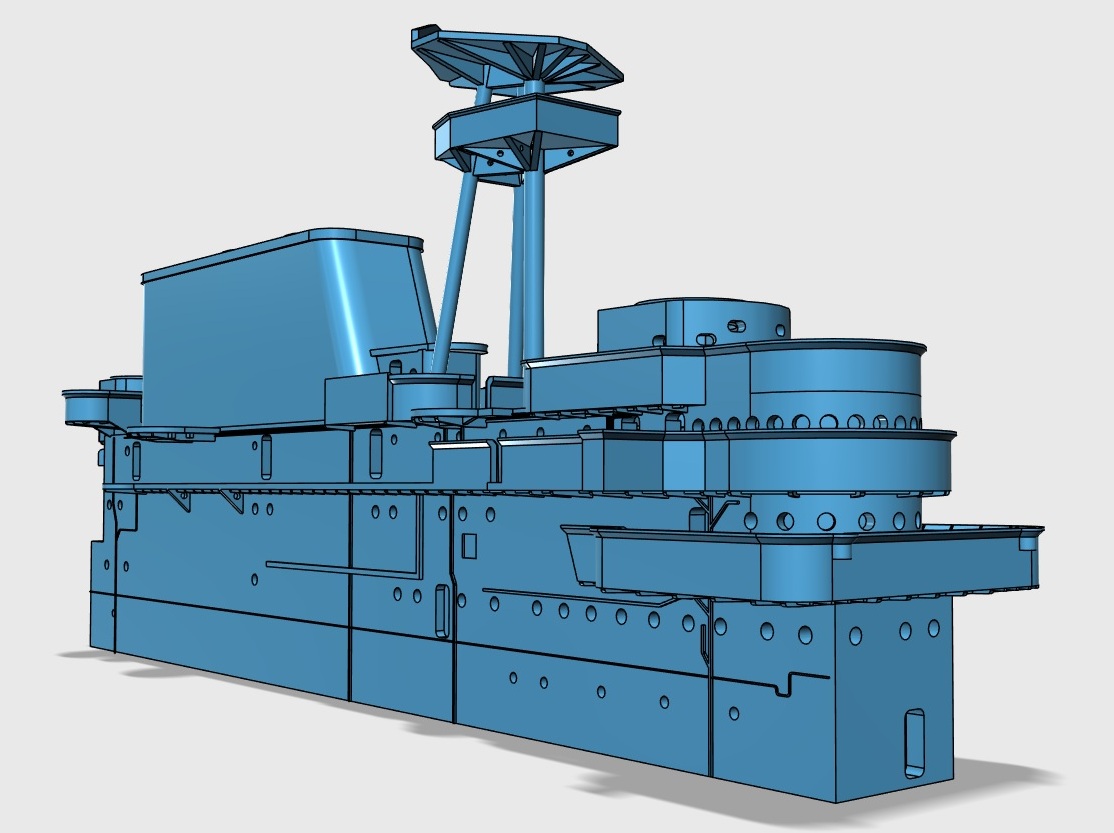

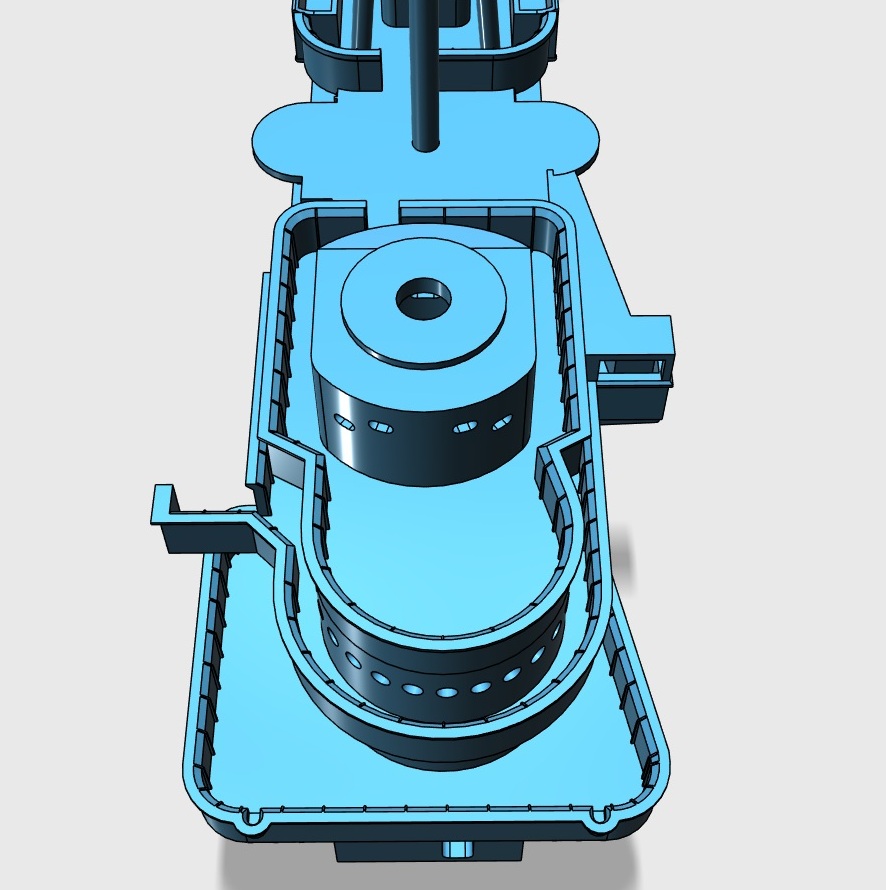

Here are some closeups of the design:

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Fantastic.................

_________________
Anything worth doing is worth overdoing
http://geneberger-models.com/

Yes it is - for us 1/350th modelers. Sorry, Gene. Maybe someday . . .
John

_________________
Some people make you happy, then they leave.
Others make you happy when they leave. (apologies to Oscar Wilde if he ever said anything similar, of which there is some doubt . . .)

AWESOME!!! Thanks, Steve!!

I can't wait to get one (or 3) of these in various scales!!!

Kelley

_________________

Thanks, Gene, John and Kelley!

Hornet island in 1/700 (Trumpeter, HP-Models, Mini Hobby Models) is ready and available.

1/719 (Tamiya) will be ready shortly. [edit: done!]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Hornet CV-8 islands in all popular scales from 1/719 through 1/200 are ready.

All scale designs passed Shapeways design analysis software. [edit: all scales have printed successfully].

Thanks for all the advice and encouragement in making these designs!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

An island for USS Enterprise CV-6 in 1/200 scale is ready, now, too.

It's enormous. It's truly "Big E".


"Big E" continues to be available in 1/719 (Tamiya), 1/700 (HP-Models, Mini Hobby Models, Pit-Road/Skywave, & Trumpeter), 1/600 (Aurora), 1/487 (Revell), and 1/350 (Trumpeter) scales.

Here are some closeups of the 1/200 design:

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Hello Steve,

yesterday my Enterprise 1/700 scale and the Saratoga / 44' , 1/700 scale islands arrieved me finally.

Absolute stunning and impressive work really a masterpice!

Thanks Steve for your work to do this!

Best regards
Chris

Thanks, Chris!

You're going to love Hornet, too.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Question for anyone who's ordered these islands: How easy is the material to cut and sand? I want an island for the Tamiya and Revell CV-5 kits, but I'll want to back date them to pre-war. Just curious if this material lends itself to well to manipulation.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley

As she appeared in 1940. Big black Y era.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley

Devin,
I have the CV5 island for the Revell kit but haven't started sanding/modifying it yet. I will be working on the 1/350 version first and hopefully this weekend I can get started. I was told as far as cutting to use a very thin razor saw blade while supporting the piece/area being worked. I also heard that drilling out portholes were possible.

I purchased a CentralPneumatic Air Eraser Kit from Harbor Freight that Steve mentioned others have used (with baking soda as the medium) to sand/smooth out areas of the mold. It cost me about $27.00

As soon as I'm able to get started and have some results with air eraser, sandpaper and cutting, I'll let you know.

Kelley

_________________

Just received my MM 1/700 Yorktown Island I ordered for my Tom's Modelworks Yorktown. What a stunning piece of work! Thank you Model Monkey!!!

Thanks so much! I hope it will be a great addition to your build.

More superstructures and islands coming.

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Steve,

I received my 1/200 Hornet Island today. I am Utterly speechless.....................

Gene

_________________
Anything worth doing is worth overdoing
http://geneberger-models.com/

Gene -
Now what? Are you going to shift targets to HORNET, or keep working SS US?
I'll be taking a shot at soda blasting my 1/350 islands early next week. I bought 50# of the industrial baking soda, so if you intend to go the same route you can stop over and grab some white powder for your habit. Model habit, that is.
