pbudzik
 Post subject:
PostPosted: Tue Dec 04, 2007 10:40 am
Offline
User avatar

Joined: Sat Sep 15, 2007 11:40 pm
Posts: 575
Location: California
Beautiful detailing Steve,

What did you use for all the vertical pieces along the hull?

Paul


Report this post
Top
 Profile
Reply with quote
Elvis965
 Post subject:
PostPosted: Tue Dec 04, 2007 2:11 pm
Offline
User avatar

Joined: Thu Dec 29, 2005 12:48 pm
Posts: 1059
Location: Pittsburgh, PA
Awesome stuff, Steve! :thumbs_up_1:

Bob


Report this post
Top
 Profile
Reply with quote
Guest
 Post subject:
PostPosted: Tue Dec 04, 2007 2:49 pm
No comments !!! An immaculate work !!!! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

:cool_2: .


Report this post
Top

Reply with quote
Jose Chaica
 Post subject:
PostPosted: Tue Dec 04, 2007 3:11 pm
Offline
User avatar

Joined: Sat Apr 30, 2005 1:40 pm
Posts: 369
Location: Marinha Grande - Leiria, Portugal.
Anonymous wrote:
No comments !!! An immaculate work !!!! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

:cool_2: .


That was me...not logged in !!!! :lol_spit_1:

:cool_2: .


Report this post
Top
 Profile
Reply with quote
J. Soca
 Post subject:
PostPosted: Tue Dec 04, 2007 5:04 pm
Offline
User avatar

Joined: Sun Dec 03, 2006 5:36 pm
Posts: 2160
Location: About 50 miles away from the Gulf of Mexico ( traveling W is you do so :)
Nice looking hull :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
gtb -red
 Post subject:
PostPosted: Tue Dec 04, 2007 10:48 pm
Offline
User avatar

Joined: Thu Dec 14, 2006 8:06 pm
Posts: 1612
Location: SAN FRANCISCO CA.
:thumbs_up_1: :thumbs_up_1: :thumbs_up_1: Lots of great info Steve maybe i'll redo my Hornet and call it Wasp. after i'm done with the FDR i might just take a break! :big_grin: :wave_1:


Report this post
Top
 Profile
Reply with quote
ofrezca
 Post subject:
PostPosted: Wed Dec 05, 2007 12:55 pm
Offline
User avatar

Joined: Thu Jan 26, 2006 8:34 am
Posts: 66
Location: Hamburg, Germany
Hi Steve,
great looking model so far, I just love that ship. Your documentation is very good. Keep us informed. Great job. :thumbs_up_1:

_________________
Torben AKA "Young Gun"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Tue Dec 18, 2007 2:51 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4042
Location: USA
Nick, Paul, Bob, Jose, J. Soca, gtb-red, Torben, thank you all!

pbudzik wrote:
What did you use for all the vertical pieces along the hull?


The butt straps are cut from .010 thick Evergreen styrene strips then sanded very thin after installation.

Improving the Hangar Deck overhead

The real ship's Flight Deck was supported by various structural girders that were visible from below inside the Hangar Deck. The space enclosed by these girders in the midships area contained various offices, berthing and ammunition handling rooms associated with the air group. None of these details is included in the Trumpy kit. Since I opened up all of the Hangar Deck roller doors on the kit, the absence of any overhead details would be conspicuous therefore they would have to be scratch built. Here you can see some of the work to add transverse and longitudinal girders as well as the midships area containing the air group's compartments.

Forward and aft of the midships Air Group compartments, the space enclosed by girders was largely open to the hangar deck below except for the space immediately to port of the aft elevator. (I chose to build that structure on the bottom of the kit's Flight Deck parts therefore it isn't visible in the images below.)


Attachments:
File comment: Note that two gallery deck level 40mm ammunition handling rooms are installed adjacent to, and inboard of, the two port,
aft Bofors platforms. Since these compartments are visible from the hangar deck it was necessary to make them.
IM004025.jpg [ 233.73 KiB | Viewed 5446 times ]
File comment: Here, the fore transverse girders are installed. AOTS drawings indicate that the transverse girders on the real ship varied in height and were not spaced evenly. Note that four longitudinal girders between the forward elevator and midships Air Group compartments have not yet been fabricated nor installed. Some minor adjustments to the alignment of the girders will be made.
Steve Larsen IM004102a.jpg
Steve Larsen IM004102a.jpg [ 196.55 KiB | Viewed 2622 times ]
CV-9 EssexHangar02.jpg
CV-9 EssexHangar02.jpg [ 101.33 KiB | Viewed 2617 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Wed Dec 17, 2014 10:29 pm, edited 9 times in total.
Report this post
Top
 Profile
Reply with quote
Dave Wooley
 Post subject:
PostPosted: Tue Dec 18, 2007 6:14 pm
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Steve what a superb build sequence to a magnificent model. :thumbs_up_1: :thumbs_up_1: :wave_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
JIM BAUMANN
 Post subject:
PostPosted: Tue Dec 18, 2007 7:19 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5568
Location: Nr Southampton England
excellent methodology and really clean and crisp.

enjoyable read and presentation!

:thumbs_up_1: :thumbs_up_1:

JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Elvis965
 Post subject:
PostPosted: Tue Dec 18, 2007 9:19 pm
Offline
User avatar

Joined: Thu Dec 29, 2005 12:48 pm
Posts: 1059
Location: Pittsburgh, PA
What, Steve.....no lights?????? :mrgreen:

Superb detailing! :worship_1:

Bob


Report this post
Top
 Profile
Reply with quote
Sleepwalker
 Post subject:
PostPosted: Wed Dec 19, 2007 12:48 am
Offline
User avatar

Joined: Mon Aug 14, 2006 3:48 am
Posts: 110
Location: Singapore
Absolutely great! :thumbs_up_1:

_________________
God created Arrakis to train the faithful.


Report this post
Top
 Profile
Reply with quote
nick
 Post subject:
PostPosted: Wed Dec 19, 2007 4:50 am
Offline
User avatar

Joined: Tue May 29, 2007 2:23 am
Posts: 832
Location: Queen City of the South - Cebu City, Philippines
Really nice Steve!!
:thumbs_up_1:

Elvis965 wrote:
What, Steve.....no lights??????

With him!

_________________
Nichol Caballero
Civil Engineer and Ship Enthusiast


Report this post
Top
 Profile
Reply with quote
Avery Boyer
 Post subject:
PostPosted: Wed Dec 19, 2007 9:19 am
Offline
User avatar

Joined: Mon Apr 24, 2006 4:56 pm
Posts: 934
Location: Berks County, Pennsylvania
Spectacular work :thumbs_up_1:

_________________
"It is best to remain silent and let others assume you are dumb than to speak up and remove all doubt"

http://nssavannah.wordpress.com/


Report this post
Top
 Profile
Reply with quote
ModelMonkey
 Post subject:
PostPosted: Sat Dec 22, 2007 2:05 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4042
Location: USA
Dave, Jim, Bob, Sleepwalker, Nick and Avery, thanks so much!

Improving the structures above the Fantail

There were various structures containing aircraft engine shops, berthing, oxygen and CO2 transfer shops, etc., at the stern below the flight deck and above the fantail on the real ships. Replacing the kit's heavy framing with the lighter latticework of reinforcing ribs seen in photos helps improve the kit parts' appearance.


Attachments:
File comment: The heavy framing has been trimmed away and 69 rib parts have been added to the structure. The ribs are composed of Evergreen 0.010" x 0.020" strips. Note that consistent with the photo of Hornet, the framing on the port side (left side of photo) is intentionally installed slightly lower than framing on the rest of the structure.
IM004043.jpg [ 141.83 KiB | Viewed 4547 times ]
File comment: Original kit parts
IM004038.jpg [ 198.74 KiB | Viewed 4471 times ]
File comment: CV-12 Hornet's stern structures over the fantail looked like this. The structures are typical for the class but Tracy White reports that Hornet's stern flight deck overhang CATWALKS seen in the photo are NOT typical for USS Yorktown or USS Essex. If you are building either of those ships be sure to check your references before installing PE catwalks.
cv-12_021222.jpg [ 127.09 KiB | Viewed 4561 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Last edited by Anonymous on Tue Dec 16, 2014 8:48 pm, edited 1 time in total.
Report this post
Top
 Profile
Reply with quote
Elvis965
 Post subject:
PostPosted: Mon Dec 24, 2007 10:49 am
Offline
User avatar

Joined: Thu Dec 29, 2005 12:48 pm
Posts: 1059
Location: Pittsburgh, PA
Steve,

You are the master of detail!

Nice shot of the stern hull plating in the photo, too.

Bob


Report this post
Top
 Profile
Reply with quote
johndon
PostPosted: Sun Jan 06, 2008 6:17 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 3:39 pm
Posts: 1018
Location: Newcastle Upon Tyne, England
Great work Steve, I'm keeping a close eye on this one.

John


Report this post
Top
 Profile
Reply with quote
gtb -red
PostPosted: Sun Jan 06, 2008 8:31 pm
Offline
User avatar

Joined: Thu Dec 14, 2006 8:06 pm
Posts: 1612
Location: SAN FRANCISCO CA.
Man Steve, I look back at your progress just outstanding man. :thumbs_up_1: :cool_2: :big_grin: :wave_1:


Report this post
Top
 Profile
Reply with quote
ModelMonkey
PostPosted: Fri Jan 18, 2008 8:27 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 4042
Location: USA
Bob, John, gtb-red, thank you so much!

Installing new aft flight deck structural columns

The flight deck above the fantail is supported by two very large structural columns. The kit's parts (B3 and B4) detailing appears heavy. I decided to replace the kit parts with scratch-built columns with lighter detail to match photos of these columns of the real ship. The scratch-built starboard column is composed of 18 parts. The port column extends upward onto the aft face of kit part C19 and is composed of 22 parts.

Click on thumbnails to see larger image


Attachments:

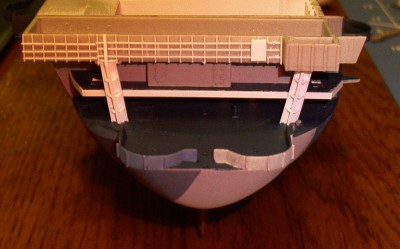

File comment: The improved structure is dry-fit in place. It is now ready for PE railings
and details such as pyro lockers, acetylene/oxygen bottles, and inclined
ladders and, of course, paint.
IM004050.jpg [ 214.2 KiB | Viewed 4271 times ]
File comment: Here the scratch-built columns have been installed. Note that the reinforcing
fillets (the triangular webs) are not uniform in that the upper and lower fillets
are fixed perpendicular to the column centerline. The middle fillets are fixed
parallel to the deck. The fillets have an opening in them as well. The edge of
kit part C13 is capped with a styrene strip replicating the real platform's edge
reinforcement (noticeable in photos of the real ship).
IM004047.jpg [ 156.43 KiB | Viewed 4208 times ]

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby
Report this post
Top
 Profile
Reply with quote
MartinJQuinn
PostPosted: Mon Jan 21, 2008 10:36 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8338
Location: New Jersey
Damn Steve...that's really fine work.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
