1/350 USS Yorktown CV-10 (1945) - Trumpeter

Moderators: BB62vet, MartinJQuinn, JIM BAUMANN, Jon, Dan K

Post Reply
User avatar
pbudzik
Posts: 577
Joined: Sat Sep 15, 2007 11:40 pm
Location: California
Contact:
Contact pbudzik

Post by pbudzik »

Beautiful detailing Steve,

What did you use for all the vertical pieces along the hull?

Paul
Top
User avatar
Elvis965
Posts: 1059
Joined: Thu Dec 29, 2005 12:48 pm
Location: Pittsburgh, PA

Post by Elvis965 »

Awesome stuff, Steve! :thumbs_up_1:

Bob
Top
Guest

Post by Guest »

No comments !!! An immaculate work !!!! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

:cool_2: .
Top
User avatar
Jose Chaica
Posts: 369
Joined: Sat Apr 30, 2005 1:40 pm
Location: Marinha Grande - Leiria, Portugal.

Post by Jose Chaica »

Anonymous wrote:No comments !!! An immaculate work !!!! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

:cool_2: .
That was me...not logged in !!!! :lol_spit_1:

:cool_2: .
Top
User avatar
J. Soca
Posts: 2161
Joined: Sun Dec 03, 2006 5:36 pm
Location: About 50 miles away from the Gulf of Mexico ( traveling W is you do so :)

Post by J. Soca »

Nice looking hull :thumbs_up_1:
Top
User avatar
gtb -red
Posts: 1612
Joined: Thu Dec 14, 2006 8:06 pm
Location: SAN FRANCISCO CA.

Post by gtb -red »

:thumbs_up_1: :thumbs_up_1: :thumbs_up_1: Lots of great info Steve maybe i'll redo my Hornet and call it Wasp. after i'm done with the FDR i might just take a break! :big_grin: :wave_1:
Top
User avatar
ofrezca
Posts: 66
Joined: Thu Jan 26, 2006 8:34 am
Location: Hamburg, Germany

Post by ofrezca »

Hi Steve,
great looking model so far, I just love that ship. Your documentation is very good. Keep us informed. Great job. :thumbs_up_1:
Torben AKA "Young Gun"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany
Top
ModelMonkey
Model Monkey
Model Monkey
Posts: 4103
Joined: Sat Aug 20, 2005 9:27 pm
Location: USA
Contact:
Contact ModelMonkey

Post by ModelMonkey »

Nick, Paul, Bob, Jose, J. Soca, gtb-red, Torben, thank you all!
pbudzik wrote:What did you use for all the vertical pieces along the hull?
The butt straps are cut from .010 thick Evergreen styrene strips then sanded very thin after installation.

Improving the Hangar Deck overhead

The real ship's Flight Deck was supported by various structural girders that were visible from below inside the Hangar Deck. The space enclosed by these girders in the midships area contained various offices, berthing and ammunition handling rooms associated with the air group. None of these details is included in the Trumpy kit. Since I opened up all of the Hangar Deck roller doors on the kit, the absence of any overhead details would be conspicuous therefore they would have to be scratch built. Here you can see some of the work to add transverse and longitudinal girders as well as the midships area containing the air group's compartments.

Forward and aft of the midships Air Group compartments, the space enclosed by girders was largely open to the hangar deck below except for the space immediately to port of the aft elevator. (I chose to build that structure on the bottom of the kit's Flight Deck parts therefore it isn't visible in the images below.)
Attachments
Note that two gallery deck level 40mm ammunition handling rooms are installed adjacent to, and inboard of, the two port, <br />aft Bofors platforms. Since these compartments are visible from the hangar deck it was necessary to make them.
Note that two gallery deck level 40mm ammunition handling rooms are installed adjacent to, and inboard of, the two port,
aft Bofors platforms. Since these compartments are visible from the hangar deck it was necessary to make them.
Here, the fore transverse girders are installed. AOTS drawings indicate that the transverse girders on the real ship varied in height and were not spaced evenly. Note that four longitudinal girders between the forward elevator and midships Air Group compartments have not yet been fabricated nor installed. Some minor adjustments to the alignment of the girders will be made.
Here, the fore transverse girders are installed. AOTS drawings indicate that the transverse girders on the real ship varied in height and were not spaced evenly. Note that four longitudinal girders between the forward elevator and midships Air Group compartments have not yet been fabricated nor installed. Some minor adjustments to the alignment of the girders will be made.
CV-9 EssexHangar02.jpg
Last edited by Anonymous on Wed Dec 17, 2014 10:29 pm, edited 9 times in total.
Have fun, Monkey around. TM

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey™ on Facebook: - https://www.facebook.com/modelmonkeybookandhobby
Top
User avatar
Dave Wooley
Posts: 4131
Joined: Sat Jan 22, 2005 10:18 am
Location: Liverpool

Post by Dave Wooley »

Steve what a superb build sequence to a magnificent model. :thumbs_up_1: :thumbs_up_1: :wave_1:
Dave Wooley
Top
User avatar
JIM BAUMANN
Posts: 5686
Joined: Mon Jan 10, 2005 5:30 pm
Location: Nr Southampton England

Post by JIM BAUMANN »

excellent methodology and really clean and crisp.

enjoyable read and presentation!

:thumbs_up_1: :thumbs_up_1:

JIM B
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Top
User avatar
Elvis965
Posts: 1059
Joined: Thu Dec 29, 2005 12:48 pm
Location: Pittsburgh, PA

Post by Elvis965 »

What, Steve.....no lights?????? :mrgreen:

Superb detailing! :worship_1:

Bob
Top
User avatar
Sleepwalker
Posts: 110
Joined: Mon Aug 14, 2006 3:48 am
Location: Singapore

Post by Sleepwalker »

Absolutely great! :thumbs_up_1:
God created Arrakis to train the faithful.
Top
User avatar
nick
Posts: 832
Joined: Tue May 29, 2007 2:23 am
Location: Queen City of the South - Cebu City, Philippines
Contact:
Contact nick

Post by nick »

Really nice Steve!!
:thumbs_up_1:
Elvis965 wrote:What, Steve.....no lights??????
With him!
Nichol Caballero
Civil Engineer and Ship Enthusiast
Top
User avatar
Avery Boyer
Posts: 934
Joined: Mon Apr 24, 2006 4:56 pm
Location: Berks County, Pennsylvania
Contact:
Contact Avery Boyer

Post by Avery Boyer »

Spectacular work :thumbs_up_1:
"It is best to remain silent and let others assume you are dumb than to speak up and remove all doubt"

http://nssavannah.wordpress.com/
Top
ModelMonkey
Model Monkey
Model Monkey
Posts: 4103
Joined: Sat Aug 20, 2005 9:27 pm
Location: USA
Contact:
Contact ModelMonkey

Post by ModelMonkey »

Dave, Jim, Bob, Sleepwalker, Nick and Avery, thanks so much!

Improving the structures above the Fantail

There were various structures containing aircraft engine shops, berthing, oxygen and CO2 transfer shops, etc., at the stern below the flight deck and above the fantail on the real ships. Replacing the kit's heavy framing with the lighter latticework of reinforcing ribs seen in photos helps improve the kit parts' appearance.
Attachments
The heavy framing has been trimmed away and 69 rib parts have been added to the structure. The ribs are composed of Evergreen 0.010&quot; x 0.020&quot; strips. Note that consistent with the photo of Hornet, the framing on the port side (left side of photo) is intentionally installed slightly lower than framing on the rest of the structure.
The heavy framing has been trimmed away and 69 rib parts have been added to the structure. The ribs are composed of Evergreen 0.010" x 0.020" strips. Note that consistent with the photo of Hornet, the framing on the port side (left side of photo) is intentionally installed slightly lower than framing on the rest of the structure.
Original kit parts
Original kit parts
CV-12 Hornet's stern structures over the fantail looked like this. The structures are typical for the class but Tracy White reports that Hornet's stern flight deck overhang CATWALKS seen in the photo are NOT typical for USS Yorktown or USS Essex. If you are building either of those ships be sure to check your references before installing PE catwalks.
CV-12 Hornet's stern structures over the fantail looked like this. The structures are typical for the class but Tracy White reports that Hornet's stern flight deck overhang CATWALKS seen in the photo are NOT typical for USS Yorktown or USS Essex. If you are building either of those ships be sure to check your references before installing PE catwalks.
Last edited by Anonymous on Tue Dec 16, 2014 8:48 pm, edited 1 time in total.
Have fun, Monkey around. TM

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey™ on Facebook: - https://www.facebook.com/modelmonkeybookandhobby
Top
User avatar
Elvis965
Posts: 1059
Joined: Thu Dec 29, 2005 12:48 pm
Location: Pittsburgh, PA

Post by Elvis965 »

Steve,

You are the master of detail!

Nice shot of the stern hull plating in the photo, too.

Bob
Top
User avatar
johndon
Posts: 1033
Joined: Mon Jan 10, 2005 3:39 pm
Location: Newcastle Upon Tyne, England

Re: Detailing USS Yorktown CV-10 in 1/350 scale

Post by johndon »

Great work Steve, I'm keeping a close eye on this one.

John
Top
User avatar
gtb -red
Posts: 1612
Joined: Thu Dec 14, 2006 8:06 pm
Location: SAN FRANCISCO CA.

Re: Detailing USS Yorktown CV-10 in 1/350 scale

Post by gtb -red »

Man Steve, I look back at your progress just outstanding man. :thumbs_up_1: :cool_2: :big_grin: :wave_1:
Top
ModelMonkey
Model Monkey
Model Monkey
Posts: 4103
Joined: Sat Aug 20, 2005 9:27 pm
Location: USA
Contact:
Contact ModelMonkey

Re: Detailing USS Yorktown CV-10 in 1/350 scale

Post by ModelMonkey »

Bob, John, gtb-red, thank you so much!

Installing new aft flight deck structural columns

The flight deck above the fantail is supported by two very large structural columns. The kit's parts (B3 and B4) detailing appears heavy. I decided to replace the kit parts with scratch-built columns with lighter detail to match photos of these columns of the real ship. The scratch-built starboard column is composed of 18 parts. The port column extends upward onto the aft face of kit part C19 and is composed of 22 parts.

Click on thumbnails to see larger image
Attachments

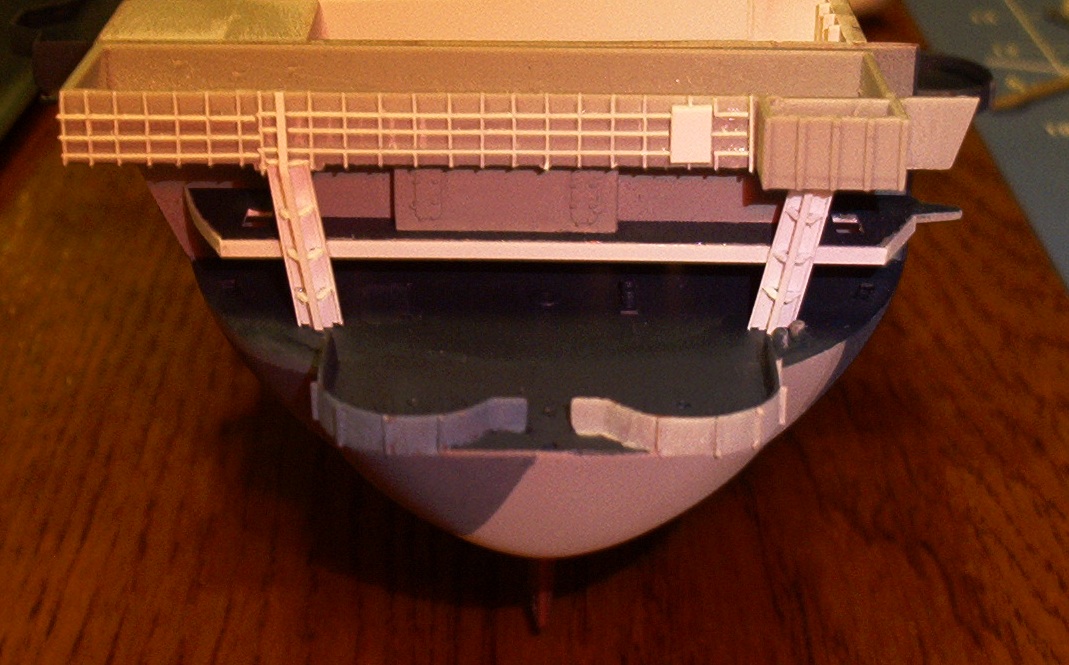

The improved structure is dry-fit in place. It is now ready for PE railings <br />and details such as pyro lockers, acetylene/oxygen bottles, and inclined <br />ladders and, of course, paint.
The improved structure is dry-fit in place. It is now ready for PE railings
and details such as pyro lockers, acetylene/oxygen bottles, and inclined
ladders and, of course, paint.
Here the scratch-built columns have been installed. Note that the reinforcing <br />fillets (the triangular webs) are not uniform in that the upper and lower fillets <br />are fixed perpendicular to the column centerline. The middle fillets are fixed <br />parallel to the deck. The fillets have an opening in them as well. The edge of <br />kit part C13 is capped with a styrene strip replicating the real platform's edge <br />reinforcement (noticeable in photos of the real ship).
Here the scratch-built columns have been installed. Note that the reinforcing
fillets (the triangular webs) are not uniform in that the upper and lower fillets
are fixed perpendicular to the column centerline. The middle fillets are fixed
parallel to the deck. The fillets have an opening in them as well. The edge of
kit part C13 is capped with a styrene strip replicating the real platform's edge
reinforcement (noticeable in photos of the real ship).
Have fun, Monkey around. TM

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey™ on Facebook: - https://www.facebook.com/modelmonkeybookandhobby
Top
User avatar
MartinJQuinn
Posts: 8532
Joined: Tue Jan 11, 2005 1:40 pm
Location: New Jersey

Re: Detailing USS Yorktown CV-10 in 1/350 scale

Post by MartinJQuinn »

Damn Steve...that's really fine work.
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery
Top
