PostPosted: Tue Jan 21, 2014 2:21 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Mickosh3 wrote:
Hi, Bernd!

The illuminator's frames on your hull are looked very realistic!

But let me argue with you a little bit.

The Bismark's hull had no illuminators (portholes) in armored plates! The armored plates were located greatly below!
Please, look at the attached photo. It shows approx. Spt 25. There you can see the position of the armor plates (they are riveted) and rain rails (coamings) above the portholes.
with best regargs-
Anatoly.


Hi Anatoly,

Bow:
These areas include the shell plating of the hull above the bow armour (60 mm) and reaches up to the 50 mm upper deck armour. Its reaches forward as far as the 50 mm upper deck armour exists and it goes back to the citadel armour. This was made of 35 mm WhnA and towards the stem of 20 mm.

Stern:
These areas include the shell plating of the hull above the stern armour (80 mm) and reaches up to the 50 mm upper deck armour. Its reaches backwards frame 10.5 and it goes forward to the citadel armour. This was made of 35 mm WhnA.

Bye,

Bernd.

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jan 22, 2014 1:26 pm
Offline
User avatar

Joined: Tue Oct 12, 2010 6:17 am
Posts: 95
Location: The Peter, Russia
Ok, Bernd, I think it was my fault - I find a short info about 35 mm in my book.

With best regards-
Anatoly.


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 24, 2014 1:59 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Hi,

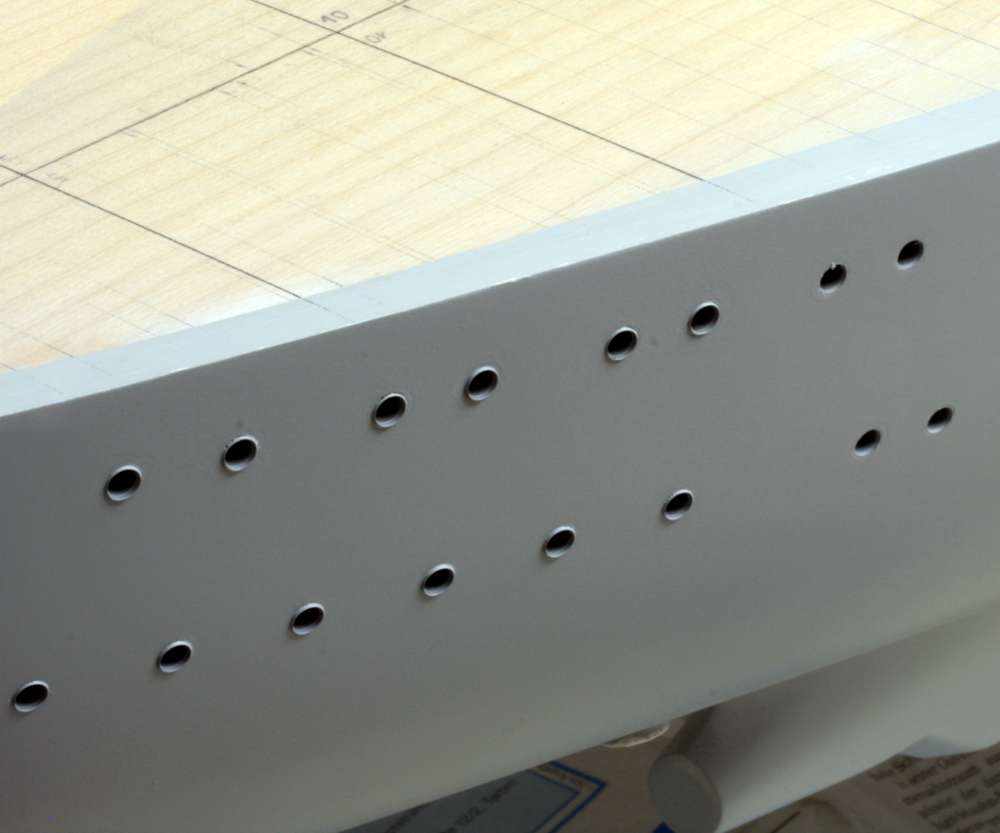

first sanding and priming ... obviously more to come ... :heh:

:wave_1:


Attachments:
Fenster 001.jpg
Fenster 001.jpg [ 35.57 KiB | Viewed 4042 times ]
Fenster 004.jpg
Fenster 004.jpg [ 49.61 KiB | Viewed 4042 times ]

_________________
»Als ik kan«
Report this post
Top
 Profile
Reply with quote
PostPosted: Tue May 06, 2014 7:17 am
Offline
User avatar

Joined: Mon Nov 04, 2013 2:17 am
Posts: 194
Location: _/\/¯¯¯¯¯\/\_ Cape Town
This is really one amazing piece of work you have made here. The dedication is mindblowing for the time period already spend on the hull alone so far!
Well done!! Looking forward to see more of this :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jun 12, 2015 10:30 am
Offline

Joined: Tue Jun 02, 2015 4:09 pm
Posts: 4
Im Curious where you got your plans for your ship i cant find a set of them anywhere?

Thanks Rob

Sorry if this has been asked i didnt see in your blog.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jun 13, 2015 4:27 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3321
Location: USA
Brilliant!

_________________
Have fun, Monkey around.

-Steve Larsen

Catalog of over 2000 products for scale modelers, most in 3D-printed gray resin - https://www.model-monkey.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jun 13, 2015 8:22 pm
Offline

Joined: Fri Mar 13, 2015 11:59 am
Posts: 102
I have been away .Glad too see this build still going ! :woo_hoo:


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jul 01, 2015 3:27 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
silvershadow wrote:
This is really one amazing piece of work you have made here. The dedication is mindblowing for the time period already spend on the hull alone so far!
Well done!! Looking forward to see more of this :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:


Thanks!

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jul 01, 2015 3:28 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Trogdor wrote:
Im Curious where you got your plans for your ship i cant find a set of them anywhere?

Thanks Rob

Sorry if this has been asked i didnt see in your blog.


Hi,
I got some plans from a widow and thru the Internet.

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jul 01, 2015 3:29 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Richard OMalley wrote:
I have been away .Glad too see this build still going ! :woo_hoo:

Thanks! I will resume work soon.

Bye.

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Aug 09, 2015 1:06 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Hi,

finally some work done on Bismarck. Installed the rest of the portholes. There were two different variants for unarmoured up to frame 10.5) and armoured areas of the outer shell.

Mre to come in the future ... :thumbs_up_1:



_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 10, 2015 7:46 am
Offline
User avatar

Joined: Tue Apr 17, 2007 9:18 am
Posts: 1955
Location: Brasil
wow fantastic my friend. top work :woo_hoo: :thumbs_up_1: :wave_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Aug 15, 2015 8:11 am
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Hi,

weekend = modeling time :woo_hoo:

I call the aft ship with its tearoff edge finished in terms of shape.


Attachments:
Bismarck_Willmer_3.jpg [ 113.41 KiB | Viewed 2523 times ]
Bismarck_Willmer_4.jpg [ 84.77 KiB | Viewed 2523 times ]

_________________
»Als ik kan«
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Aug 15, 2015 7:38 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3321
Location: USA
Superb!

_________________
Have fun, Monkey around.

-Steve Larsen

Catalog of over 2000 products for scale modelers, most in 3D-printed gray resin - https://www.model-monkey.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Aug 18, 2015 5:31 am
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
ModelMonkey wrote:
Superb!


Thanks!

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Aug 18, 2015 2:32 pm
Online
User avatar

Joined: Mon Mar 12, 2012 11:13 am
Posts: 659
Location: Ludwigsburg/Germany
Nice to see you back on track!

XXXDAn

_________________
To Victory and beyond ...
viewtopic.php?f=59&t=99050&start=60

See also our german forum for the age of Sail and History:
http://www.segelschiffsmodellbau.com


Report this post
Top
 Profile
Reply with quote
 Post subject: I need your help.
PostPosted: Thu Sep 17, 2015 10:08 pm
Offline

Joined: Sat Sep 12, 2015 10:44 am
Posts: 6
Hello, 109. I am from China, I am sorry, I do not understand English, can only rely on the translation software and your dialogue. It's a shock to see your model! I am also preparing to do a 1:200 Bismarck, want to learn from you, do a little more, but I do not have a very detailed information on the information, I hope to get your help, you can share your drawings to me?


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: I need your help.
PostPosted: Sun Sep 20, 2015 10:25 pm
Offline

Joined: Sat Sep 12, 2015 10:44 am
Posts: 6
I only have a very low resolution hull details from the site, because I can't see clearly, so I hope to get your help! I am very much to get a clear hull detail to complete my 1:200 Bismarck model more perfectly. This is my email: 250645959@qq.com. thank you all!


Attachments:
File comment: Website screenshot
newslider2015_6-1170x400.jpg [ 94.96 KiB | Viewed 2149 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Sep 23, 2015 1:13 pm
Offline
User avatar

Joined: Sun Nov 16, 2008 7:56 am
Posts: 525
Hi mzlzr,

I don't have the drawings you mentioned above . You should buy that book. However that drawing seems to be of Tirpitz!!
As for details of Bismarck : there aren't drawings available that shows all details . You need to research all sources and draw your own conclusions!
In 1/2ooth scale most details are so small that you can neglect them.

Also my build report shows all areas in detail.

Okay? Bye

_________________
»Als ik kan«


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Sep 23, 2015 10:51 pm
Offline

Joined: Sat Sep 12, 2015 10:44 am
Posts: 6
Thank you for your reply! Because I am not on the side of the majority of the site, plus the lack of information, so my work has become very difficult. I now have a set of Trumpeter Bismarck 1:200 and PHONTOS27001F super modified, see your work after I feel I am not good enough, I hope to learn from you. I am also considering doing a 1:100, all copper construction, hope you can help! Can you tell me the name of the book? What other Bismarck or Tirpitz's data is available?




Thank you very much!


Report this post
Top
 Profile
Reply with quote
